ST-PSE INSTALLATION MANUAL ON CONCRETE
ST-PSE
1. CHARACTERISTICS
Description
System inclination:
System orientation:
System materials:
Warranty:
Compatible solar panels:
Solar panels type:
Solar panels orientation:
Solar panel size
Application area:
Application area:
Roof slope:
Wind load:
Ref.
FT_GS_M_ST-PSE_H-en

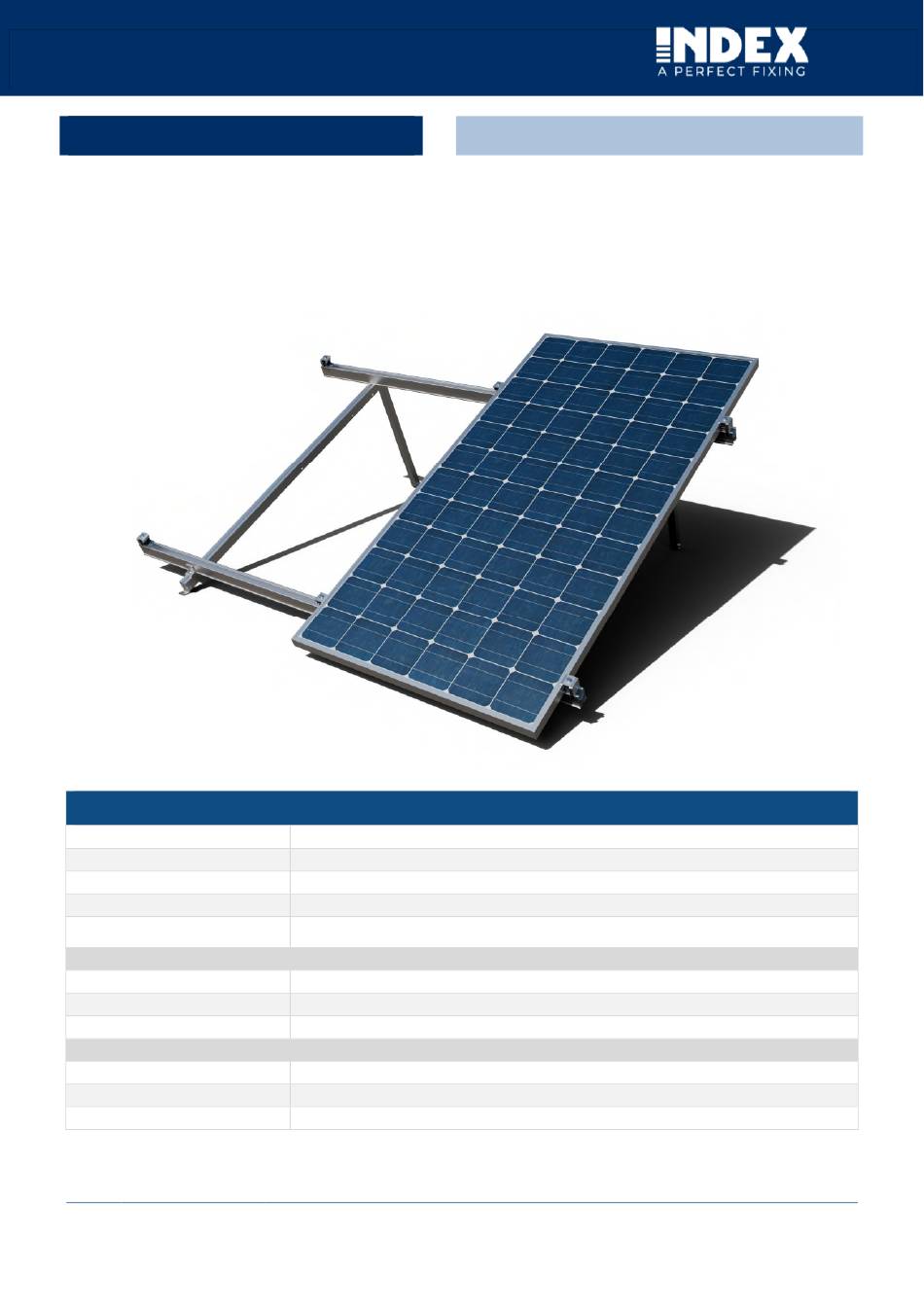

Triangular mounting system on PSE-A aluminium profile in continuous format on concrete.
Triangular mounting on pre-assembled triangles with adjustable inclination at 25°, 30° and 35°.
Facing SOUTH, EAST OR WEST depending on the roof orientation.
Aluminium, stainless Steel and EPDM.
Until 10 years depending on environmental conditions (excluding environments exposed to hydrogen
sulphide). The warranty is only valid if the complete ST-PSE system is used.
Solar panels with frame height between 30mm and 40mm.
Mounting orientation of portrait (vertical)
Panel length less than 1150 mm
Flat and low-slope roofs.
Up to 240 km/h. The structure and fixing must be calculated according to local and roof conditions.
Up to 2 kN/m². The structure and fixing must be calculated according to local and roof conditions.
Rev: 0
15/05/23
SYSTEM DESCRIPTION
Triangular mounting system with PSE-A "aluminium profile for
assembled fixing", for the installation of solar panels.
1 of 12
