Summary of Contents for Invicta SNL48V30GC

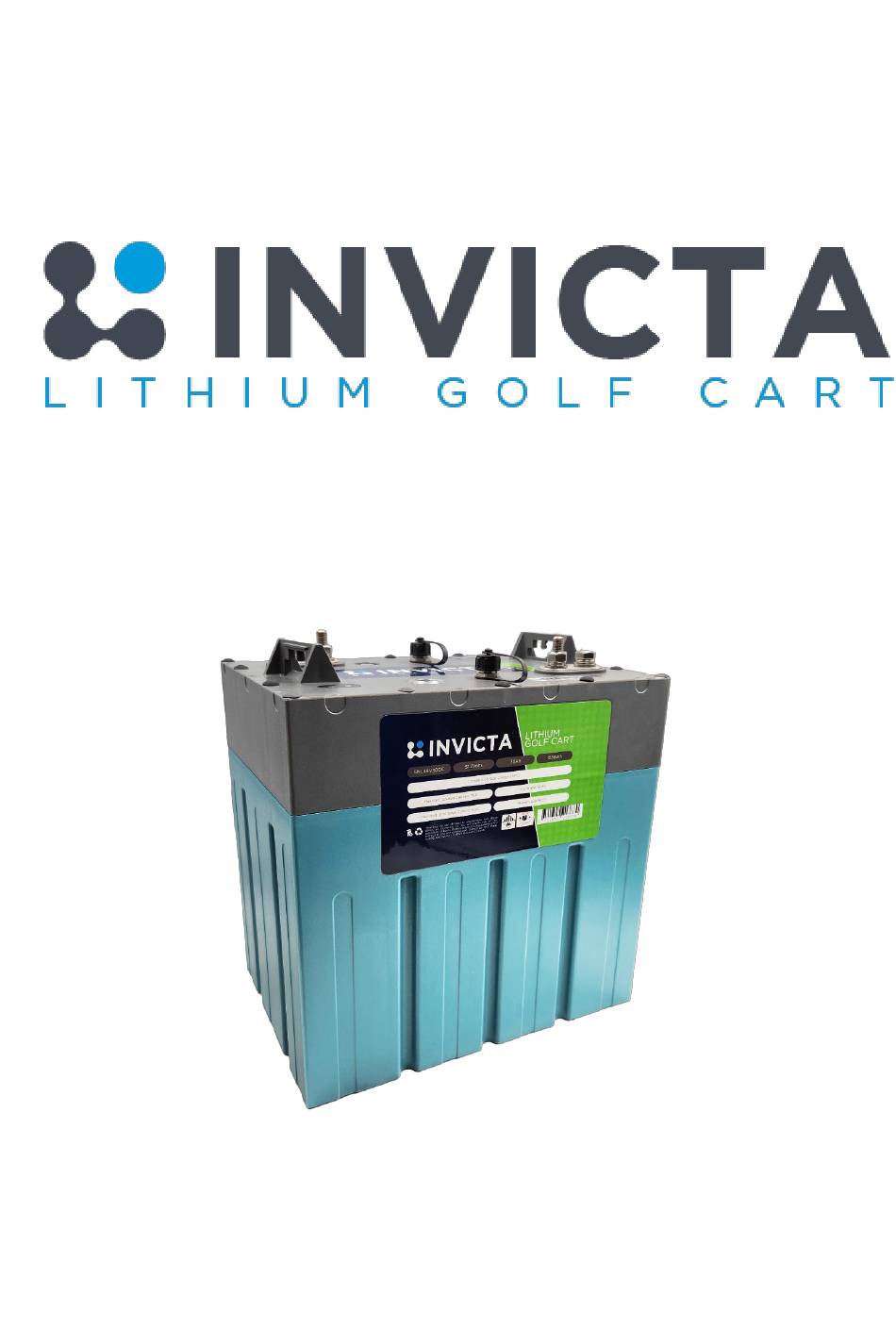

  • Page 1 SNL48V30GC User Manual...
  • Page 2: Table Of Contents

    1.2 Standard ................................1 1.3 Important safety information ......................... 1 1.4 Battery Maintenance ............................2 1.5 Waste Treatment..............................2 2. Introduction to the Invicta 48V Golf Cart battery ................2 2.1. Key Features ..............................2 2.2. Product Appearance ............................ 2 2.3 Functional characteristics ..........................
  • Page 3: Safety

    1. Safety 1.1 Instruction Please read the user manual carefully before installation, operation and maintenance, and pay attention to various warning boards and warning statements on the equipment. Please keep it for future reference after reading the user manual, 1.2 Standard The following marks are used in the user manual to indicate where the special attention should be paid during operation.
  • Page 4: Battery Maintenance

    Operating the battery /: • It is prohibited to connect the battery with a different type of battery; • A Invicta Lithium Charger with matching required voltage must be used; • Long term floating charge is prohibited for lithium ion batteries •...
  • Page 5: Functional Characteristics

    ② ③ Positive and negative terminals ① Explosion proof valve Communication port1 Communication port2 ① ⑥ Isolation Switch ④ ⑤ Fig1 Outline drawing 2.3 Functional characteristics Item Specification Item Specification Rated voltage 51.2V Size 260*180*272mm Rated capacity 30AH Communication CAN/RS485 Standard Charging voltage 55.2V~57.6V Weight...
  • Page 6: Installation

    2.3.4 ON or OFF Invicta 48V GOLF CART has an isolation switch. When the battery is transported or stored for a long time, this can be turned off. This ensures there is very low self-discharge, so the battery can be stored for a long time and improve the safety of the battery.
  • Page 7: Supporting Parallel Connection

    3.3 Parallel Connections INVICTA 48V GOLF CART allows up to 10 batteries to be used in parallel. Before parallel connection of batteries, use a multimeter to test the voltage at both ends of the positive and negative electrodes of the batteries, and ensure that the voltage difference between batteries does not exceed 2V.
  • Page 8: Connection Mode Of Battery Communication Port

    Two 51.2V batteries rated at 30Ah connected in parallel Do not use the battery in series, which may permanently damage battery. Do not output positive and negative poles on the same battery, which may damage the battery. System Voltage: 51.2V System Capacity: 30Ah + 30Ah = 60Ah 3.4 Connection mode of battery communication port 1.CAN...
  • Page 9: Charging Requirements

    However, it must be set to charge no higher than 58.4V and then MUST be switched off once the INVICTA series battery is fully charged. DO NOT leave a solar regulator switched on without a suitable lithium charge setting once the battery is fully charged.
  • Page 10: Battery Recyclable

    2. Invicta Bluetooth CAN monitor The Invicta CAN Bluetooth monitor device can be connected to one of the CAN ports on your batteries. When used conjunction with the Invicta app, the battery information can be displayed on your mobile device, such mobile phones or tablets via Bluetooth connection.
