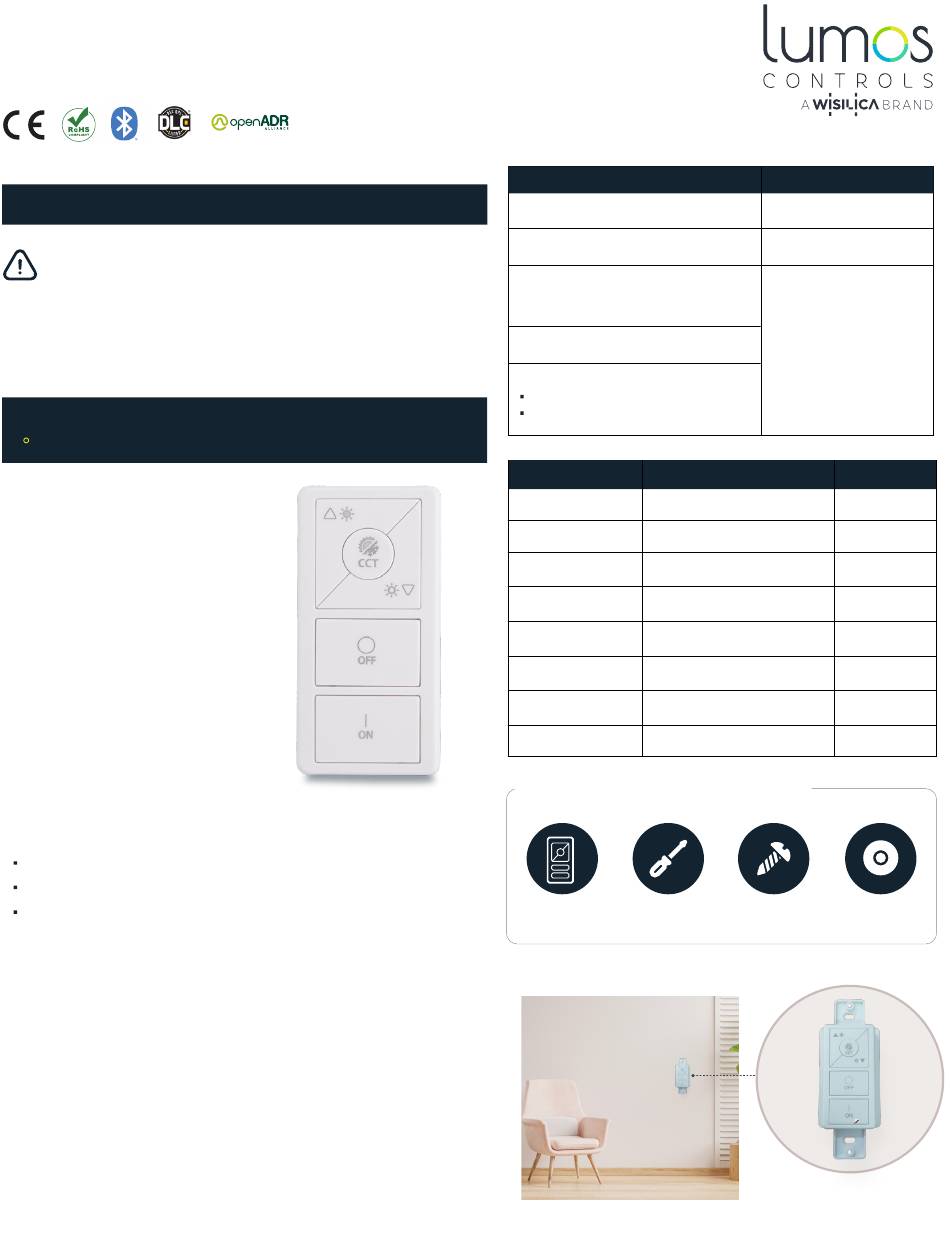

WiSilica lumos controls Catron V Installation And Quick Start Instructions

Catron V
Wireless 5 Button Remote
INSTALLATION AND QUICK START SHEET

WARNING AND GUIDELINES!!!

Read and follow all safety instructions!!
DO NOT INSTALL DAMAGED PRODUCT! This product has been properly packed so that
no parts should have been damaged during transit. Inspect to confirm. Any part
damaged or broken during or after assembly should be replaced.
WARNING: Risk of Product Damage
Do not disassemble the product

PRODUCT OVERVIEW

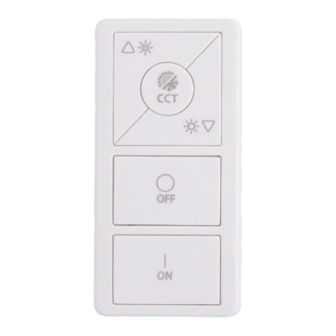

Catron V is a battery-powered switch that
configures ON/OFF, intensity, and Correlated
Color Temperature of an individual or group of
luminaires.
This compact device is designed for maximum
longevity.
It is part of Lumos Controls ecosystem, which
includes controllers, sensors, switches, modules,
drivers, gateways, and analytical dashboards.

INSTALLATION INSTRUCTIONS

Ensure the switch is within BLE range of other system components
Pick a convenient location, perhaps near a door where occupants enter
and exit
Consider the construction materials in the space and remove the
obstacles that may interfere with RF signals

INSTALLATION STEPS

I.
Find a suitable place to fix the wall bracket using screws.
II. Using a level and a pencil, lightly mark 2 small dots to align the top edge
of the mounting plate.
III.
Mark the mounting screw drill points and drill holes for the wall anchors
with a 3/16" drill bit and insert wall anchors.
IV.
Insert the top screw(s) loosely and level the back plate.
V.
Insert the bottom screw(s), and then hand tighten the top screw(s).
VI.
Attach the wall plate on top of the rocker pad using the two screw holes.
Do's
Installation should be performed by a
qualified electrician
Installation shall be in accordance with
all applicable local and NEC codes
Place devices as far away as possible
from metallic materials and also do
not place the device inside a metallic
box
Devices work best in when there is a
clear LOS between them
Delete the switch from the App only when
The controllers are in powered ON state
Switch and controllers are in BLE range
Value

Specifications

Input voltage 3VDC
Frequency range 2402-2480MHz
7dBm
Tx power
Receive sensitivity -92dBm
Operating temperature
0 to 50°C (32 to 122°F)
Storage temperature -10 to 60°C (14 to 140°F )
Relative humidity 95%
Dimension 4.1 X 1.6 X 0.47in (105 X 40 X 12mm)
REQUIRED TOOLS & SUPPLIES
Catron V Screwdriver
Don'ts
Don't use outdoors
Don't dissemble the products
Remarks
CR 2032 battery
_
Conductive
_
_
_
Non-condensing
L x W x H
Wall plates
Screws
