- Page 1 www.lumoscontrols.com Catron V Catron V Wireless 5 Button Remote...

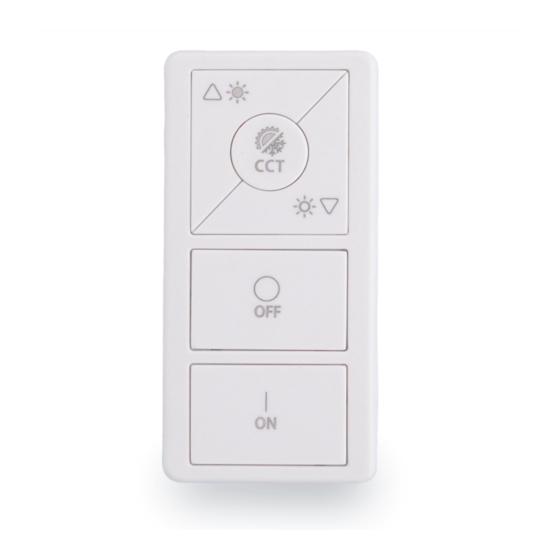

- Page 2 Product Overview Features Catron V is a battery-powered switch that controls ON/OFF, intensity, and Correlated Color Temperature of an individual or Controls ON/OFF, intensity, and CCT of an individual or group of luminaires. This five-button switch device operates on a group of luminaires. a 3V coin cell battery and is designed for maximum longevity.
- Page 3 Device Dimension Case material: 5VA PC Wall bracket dimensions Remote dimensions 0.15in(4mm) 1.25in(32mm) 0.35in(9mm) 4.13in(105mm) Catron V 2.59in (66mm) 1.57in(40mm) 0.47in(12mm) Device Controls Commissioning ON/OFF Operation Long press the ON and OFF button ON and OFF buttons simultaneously for 10 can be used to perform seconds to activate ON-OFF operations...
- Page 4 Intensity Operation CCT Operation CCT operation can be performed Intensity(dimming) of Intensity CCT Up by clicking the CCT mode button the luminaires can be CCT Mode controlled using these The device will persist in CCT Intensity CCT Down intensity up and down Down mode only for 10 seconds after buttons...
- Page 5 5 Button Remote The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by WiSilica Inc. is under license. Other trademarks and trade names are those of their respective owners. +1 949-397-9330 All Rights Reserved WiSilica Inc Ver 1.0 Apr 2022...
