22 " LCD TV
TCL L22E75BK

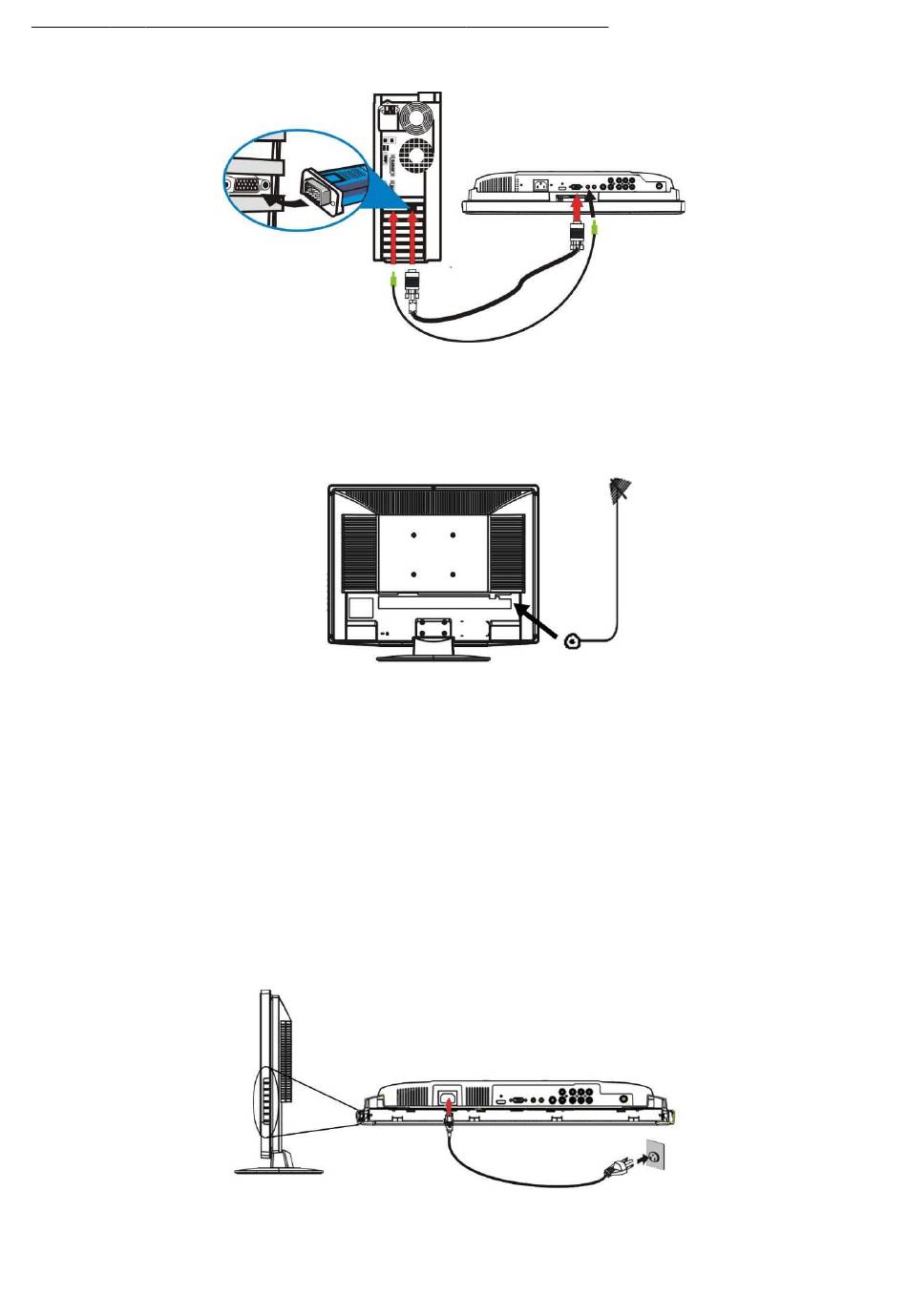

Note: For the connection between the PC and the TV, (see below)
Note:When there is no input VGA signal, the unit will automatically switch to standby mode after 30 minute.
Antenna input: Antenna or CATV cable input. This portal accepts a 75Ω coaxial cable for the input signal. Please
refer to the following image:
Note: When there is no TV signal input, the unit will automatically switch to standby mode after 15 minutes.
Power Connection
Plug the AC-power cord into the External Adapter. Then plug the DC-jack power cable into "POWER"
If you have not turned off the power and leave TV in standby mode, the TV will continue to consume a residual
amount of power.
It is recommended that you unplug the power cords from the outlet when the TV will not be used for a long time.
16
