Bass Habit Play P8A Manual

Active subwoofer enclosure 8”
Hide thumbs

Advertisement

Quick Links

Download this manual
P8A
Active Su bwoofer Enclosure 8"

Advertisement

loading
Need help?

Need help?

Do you have a question about the Play P8A and is the answer not in the manual?

Questions and answers

Related Manuals for Bass Habit Play P8A

Summary of Contents for Bass Habit Play P8A

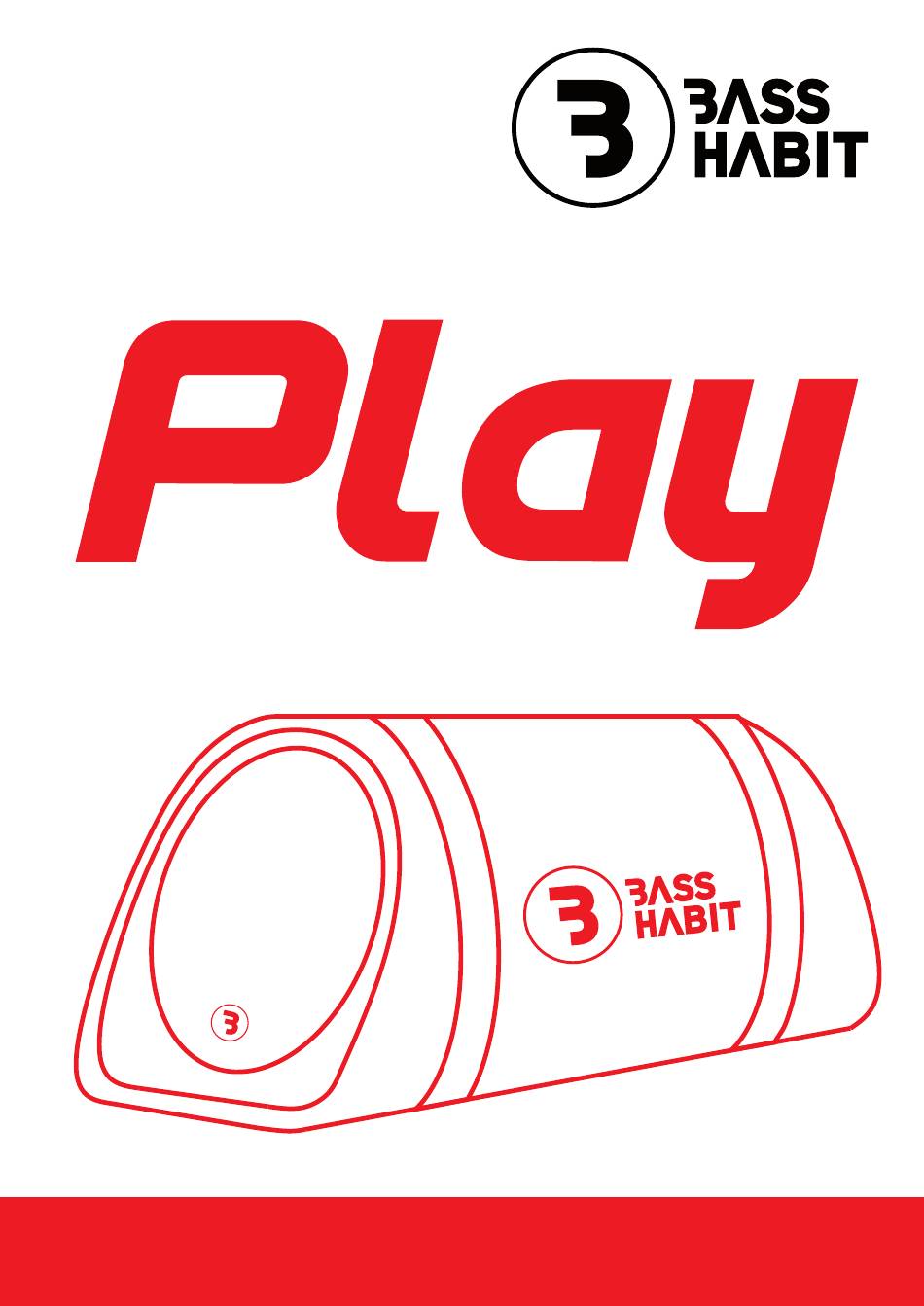

  • Page 1 Active Su bwoofer Enclosure 8”...

  • Page 3: Warranty

    Ensure that no moving parts catch on the speaker or grill (e.g. door handles or window glass inside the door). WARRANTY All Bass Habit products carry a full warranty depending on the conditions in the country where it is sold. The warrany is valid from the date of the original receipt as proof of purchase (warranty period differs depending on local warranty laws and policies).
  • Page 4 CHOOSE BETWEEN USING HIGH LEVEL OR LOW LEVEL CONNECTION NOTE! Do not connect your Bass Habit Subwoofer Encosure to both High and Low level inputs at the same time. This might result in damage to the product or your sound system. You need to choose to use either High or Low.

  • Page 5: Wiring Examples

    WIRING EXAMPLES You need to choose if you want to use the High Level input or Low Level input when connecting your Bass Habit Subwoofer Enclosure to your sound system. When you have decided, see the correct wiring example below.
  • Page 6 AMPLIFIER CONTROL PANEL High input Connect to the sound system’s existing speaker wires Remote Remote volume control input Low input Connect to source unit RCA output Gain Set the input sensitivity from the source unit Low Pass Filter 40-250Hz, adjust frequency reproduction Bass boost Enhances bass frequencies 0-18dB (45Hz) Status LED...

  • Page 7: Power Connection

    POWER CONNECTION The Bass Habit Subwoofer Enclosure has been included with a Plug-in connector to wire up the Power, Ground and Remote Turn-on in the following steps: +12V: Connect the two twisted Red wires to 12Volt positive. Route the wire through a rubber grommet in the vehicles firewall.
  • Page 8 SPECIFICATION P8A Active subwoofer enclosure Component 8” (200MM) Size 100W RMS Power 200W MAX Power 4 Ohm Nominal Impedance 35Hz - 250Hz Freq. Response 95 dB Sensitivity 1,5” (40MM) Voice coil diameter Magnet Ferrite Crossover slope 12db / Octave Crossover range 40Hz - 250Hz Dimension (LxWxH) 368/546x254x254mm...

  • Page 9: Troubleshooting

    TROUBLESHOOTING Symptom Check / Control No power Power cable (measure), REM connection (measure). Check fuses, control GND connection No Audio Control source unit and signal cables. If the unit is connected with high-level: control connec- tions and speaker cables. Status LED glowing Control power cables (measure) and battery condition.
  • Page 10 The crossed-out wheelie bin symbol means that the product, literature and packaging included must be taken to separate collection at the end of their working life. Do not dispose of these products as unsorted municipal waste: dispose of them at a recycling point. For info on your nearest recycling point, check with your local waste authority.
