Summary of Contents for Bass Habit Play PL300

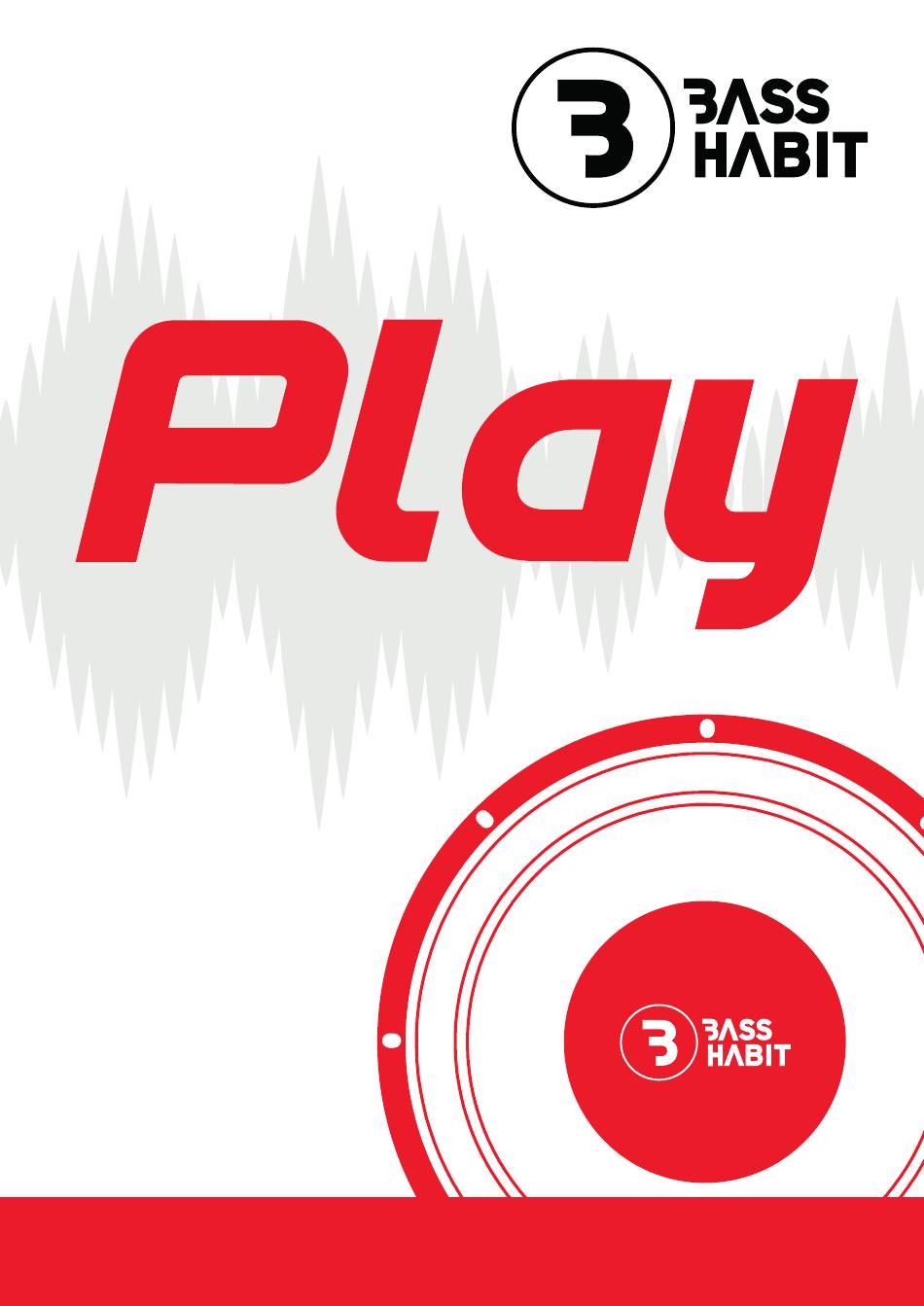

- Page 1 PL300 SPL Play 300 Subwoofer User Manual...
- Page 2 THANK YOU FOR PURCHASING BASS HABIT Thank you for purchasing this Bass Habit subwoofer. Please read this manual in order to fully understand how to get the best result from this product and ensure that the advices on how to look after the product and the safety precautions are followed.
-
Page 3: Table Of Contents
TABLE OF CONTENT • SAFETY & WARRANTY Caution Warranty What is not covered Warning International technical enquiries • INSTRUCTIONS Installation experience Choosing subwoofer mounting locations Preparing for installation Installation precautions Installing the subwoofer Recommended subwoofer enclosure size • WIRING EXAMPLES One 4 ohm subwoofer Two 4 ohm subwoofers in series Two 4 ohm subwoofers in parallel... -
Page 4: Safety & Warranty
Ensure that no moving parts catch on the subwoofer or grill. WARRANTY All Bass Habit products carry a full warranty depending on the conditions in the country where it is sold. The warranty is valid from the date of the original receipt as proof of purchase (warranty period differs depending on local warranty laws and policies). -
Page 5: Instructions
Installation of Bass Habit subwoofer may require experience with a variety of mechanical procedures including enclosure construction. This manual only provides general installation and operation instructions. If you have any reservations about your installation skills, please contact your local authorized Bass Habit dealer for help. CHOOSING SUBWOOFER MOUNTING LOCATIONS Choosing the correct subwoofer mounting location will have the greatest effect of the sound quality of the system. -
Page 6: Installing The Subwoofer
7) Pull the wire through the subwoofer opening and connect the subwoofer. Be sure to observe proper polarity. 8) Mount the subwoofer using good quality screws. RECOMMENDED SUBWOOFER ENCLOSURE SIZE If you wish to mount your Bass Habit subwoofer in an enclosure, please follow the recommended values below when constructing the enclosure. SEALED ENCLOSURE:... -
Page 7: Wiring Examples
WIRING EXAMPLES Your PL300 subwoofer uses a single 4 ohm voice coil. It is important to know the limits of your amplifier to optimi- ze its performance. You can vary the impedance by altering the wiring configurations: Series, Parallel or Series-Parallel. -
Page 8: Specifications Pl300
SPECIFICATION PL300 Subwoofer Component 300mm (12") Size 200W RMS Power 400W MAX Power 600W PEAK Power 4 Ohm Nominal Impedance 88dB Sensitivity Steel Frame material Cone material Polypropylene (PP) Suspension material Rubber Magnet Ferrite Voice Coil Diameter 51mm (2") Voice Coil Wire Aluminium 3.2 Ohm 0.54... - Page 9 MEASUREMENT PL300 φ298mm φ 315mm 136mm 123mm φ 140mm φ 282mm...
- Page 10 The crossed-out wheelie bin symbol means that the product, literature and packaging included must be taken to separate collection at the end of their working life. Do not dispose of these products as unsorted municipal waste: dispose of them at a recycling point. For info on your nearest recycling point, check with your local waste authority.
