INSTRUCTION MANUAL
INSTALLATION BASE

BEFORE USE ....

Thank you for choosing us. Before use, please check con-
tents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact our sales office or representatives.
■ PACKAGE INCLUDES:
Installation base ..................................................................(1)
■ MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.

POINTS OF CAUTION

■ POWER INPUT RATING & OPERATIONAL RANGE
• Refer to signal conditioner data sheet. Choose the same
power input specification for all units.
■ GENERAL PRECAUTIONS
• Before you remove the unit from the base or mount it,
turn off the power supply and input signal for safety.
■ ENVIRONMENT
• Indoor use.
• When heavy dust or metal particles are present in the
air, install the installation base inside proper housing and
ventilate it.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -5 to +55°C
(23 to 131°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
• Be sure that the ventilation slits are not covered with ca-
bles, etc.
■ WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
MG CO., LTD. www.mgco.jp
5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

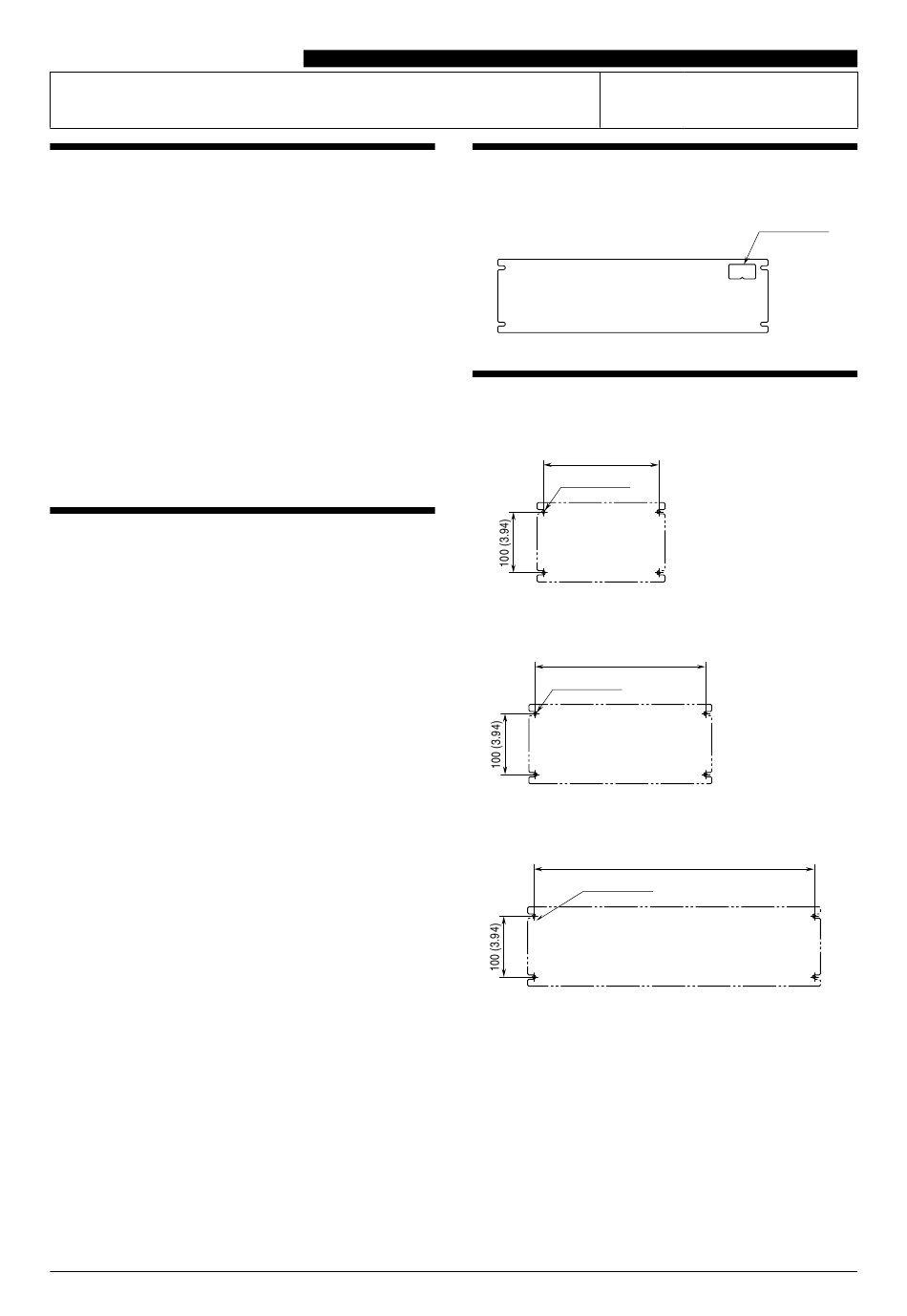

MODEL

COMPONENT IDENTIFICATION

■ REAR VIEW

MOUNTING REQUIREMENTS

■ M2BS2-04
190 (7.48)
4–M5 SCREW
■ M2BS2-08
280 (11.02)
4–M5 SCREW
■ M2BS2-16
4–M5 SCREW
M2BS2
Specifications
unit: mm (inch)
460 (18.11)
EM-5007 Rev.1 P. 1 / 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2BS2 and is the answer not in the manual?

Questions and answers

Summary of Contents for MG M2BS2

  • Page 1 • Do not bind these cables together with those in which noises are present. Do not install them in the same duct. EM-5007 Rev.1 P. 1 / 4 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 2 M2BS2 TERMINAL CONNECTIONS Connect the unit as in the diagram below. ■ EXTERNAL DIMENSIONS unit: mm (inch) • M2BS2-041 (INPUT BASE) • M2BS2-081 (INPUT BASE) 300 (11.81) 210 (8.27) 280 (11.02) 190 (7.48) 260 (10.24) 170 (6.69) 13 14 13 14 2–M3 POWER...
  • Page 3 M2BS2 • M2BS2-161 (INPUT BASE) 480 (18.90) 460 (18.11) 440 (17.32) 13 14 CH10 CH11 CH16 2–M3 POWER TERMINALS CT PROTECTOR (CTM2) ** 6 (.24) 64–M3 INPUT TERMINALS * 165 (6.50) required for pneumatic tubing for M2PV. ** Attached to M2CA and M2CE.
  • Page 4 INPUT OUTPUT Ch.16* Ch.16* INPUT OUTPUT *Up to Ch.4 for M2BS2-04, Ch.8 for M2BS2-08. WIRING INSTRUCTIONS ■ SCREW TERMINAL Torque: 0.8 N·m ■ SOLDERLESS TERMINAL Refer to the drawing below for recommended ring tongue terminal size. Spade tongue type is also applicable.

This manual is also suitable for:

M2bs2-041M2bs2-081M2bs2-042M2bs2-082
