Summary of Contents for AtomoSynth KOE 7 Vactrol

  • Page 1 AtomoSynth KOE 7 Vactrol / Ladder User Manual...

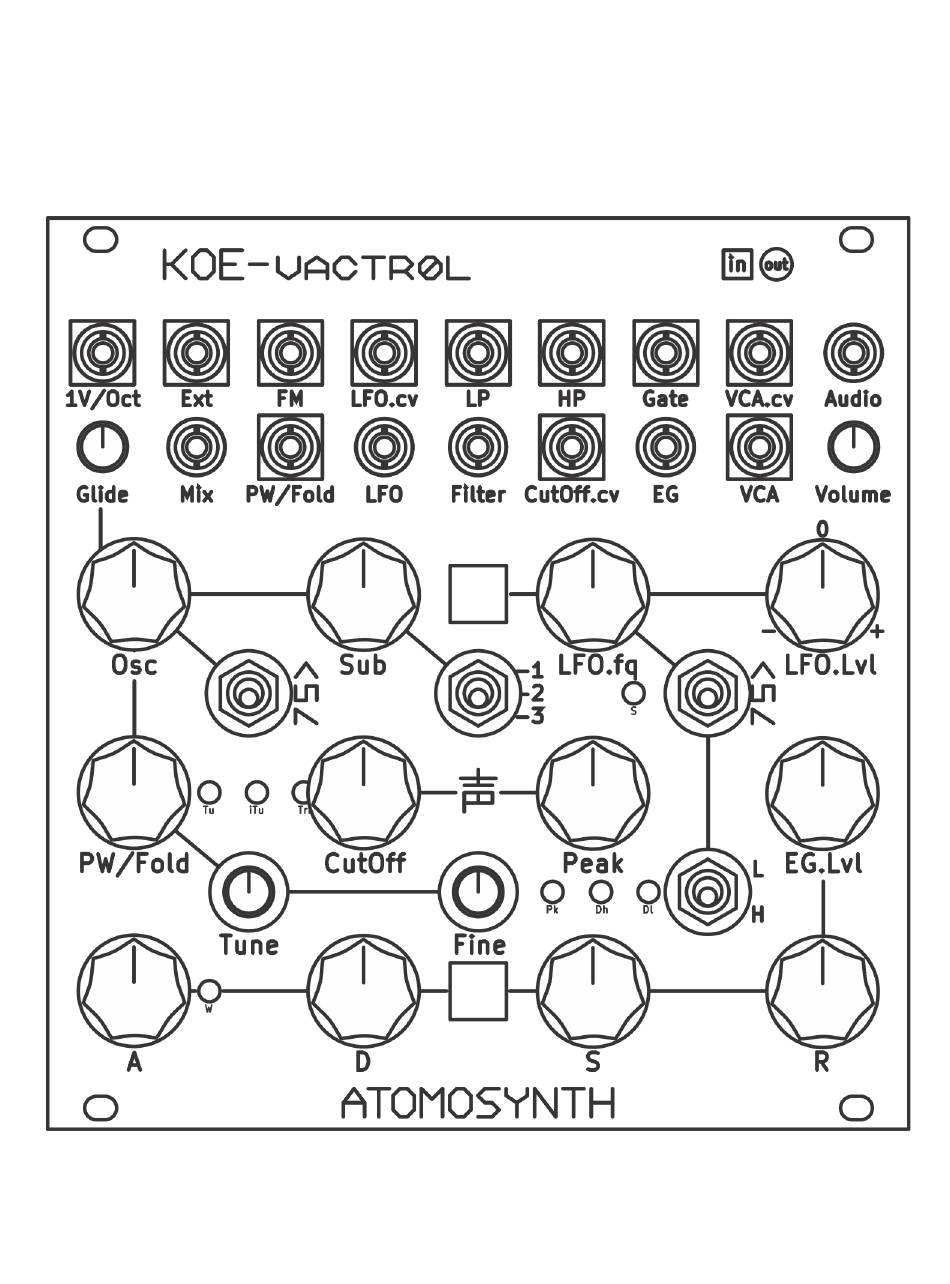

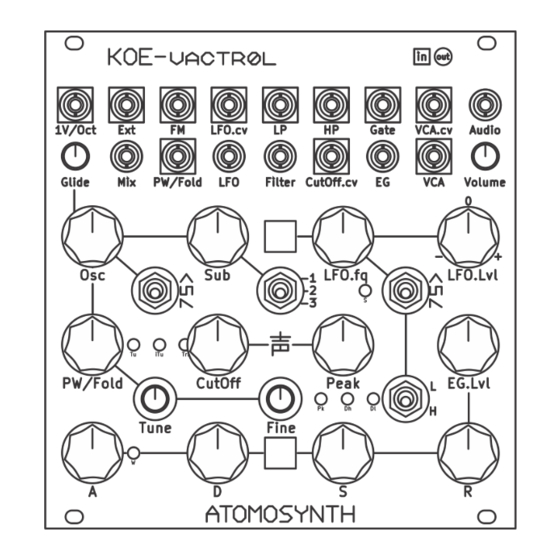

  • Page 2 The KOE 7 is a complete synthesizer voice in one module, featuring all the basic submodules like an oscillator, low-frequency oscillator, filter*, and envelope generator, these are internally pre-connected so it produces a classic synth sound with the minimum patching (only CV and gate signals), however, each submodule can be used individually thanks to its extensive patch bay.
  • Page 3 4. SUB knob: Sets the volume level of the square wave sub-oscillator. 5. Sub-Octave Switcher: This sets the octave of the sub-oscillator to -1, -2, or -3 octaves below the main oscillator. 6. PW/Fold knob: This knob sets the depth of the Folding effect when the Waveform Switcher is set to triangle wave.
  • Page 4 4. R knob: Sets the release level of the envelope generator. 5. EG.Lvl knob: Sets the level of the output of the envelope generator. Patch bay connectors 1. 1V/Oct jack: It is a voltage input and controls the pitch of the oscillator, it is calibrated to 1 volt per octave.
  • Page 5 When a cable is connected to the VCA jack, it gets disconnected from the filter. 17. AUDIO jack: It is the audio output of the VCA and is attenuated by the VOLUME knob. AtomoSynth 2023. All rights reserved www.atomosynth.net...
