Page 2
● Each channel features a master knob to adjust the output level. ● The Trasmon can be expanded by connecting more Transmon units to its internal input and output bus connectors. ● Each input features an internal jumper to connect a normalized 12V offset signal to the input (disabled by default) ●...
Page 3

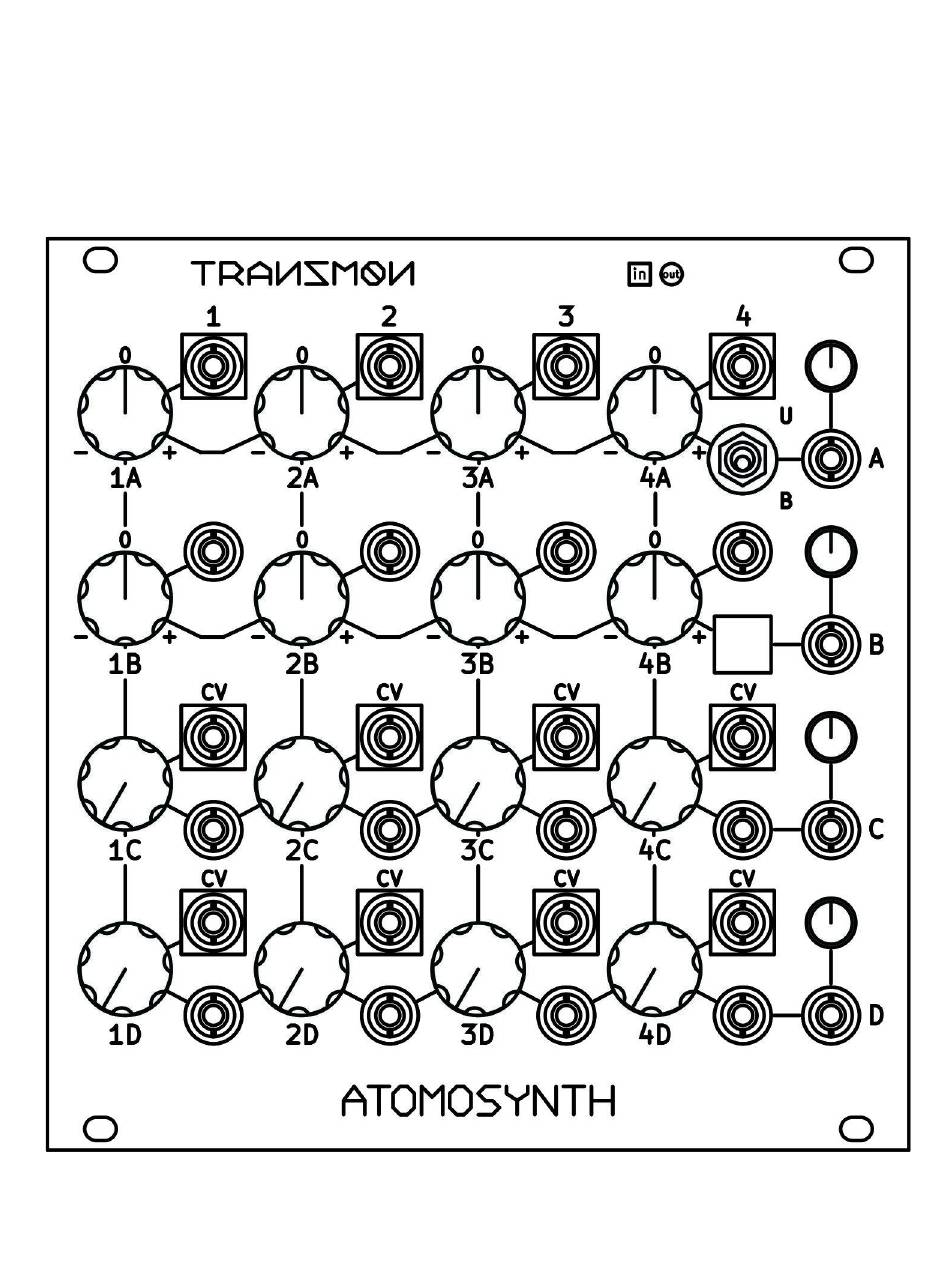

Channels Description: A channel. ● In the first row, there are the global input connectors labeled 1,2,3 and 4 (inputs are marked with a square) ● The knobs 1A, 2A, 3A, and 4A control the level of each input and the mix is output at the A connector.
Page 4
● Each attenuverter has an individual output connector. When a cable is connected to one output, its signal will be disconnected from the mix in the B channel. ● In this row is located the power LED, it indicate that the mixer is powered. C channel ●...
Page 5
Connecting 2 or more Transmon Units. ● The Transmon can be connected to other Transmon units to expand the number of input channels. ● In the back of the unit (circuit panel), there are 2 connectors labeled output bus and Input bus.
