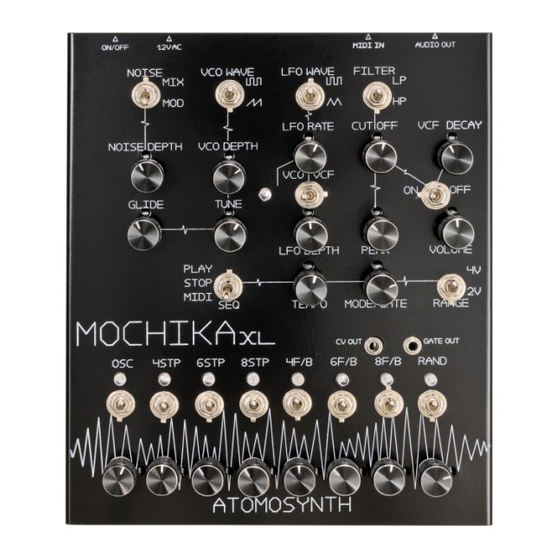

- Page 1 AtomoSynth Mochika XL v.2...
- Page 2 Thank you for purchasing the AtomoSynth, Mochika XL version 2. Analog synthesizer sequencer. In order to enjoy long and trouble free use, please read this manual carefully and use the instrument correctly. After reading this manual, please keep it for later reference.
- Page 3 3. Make sure the “SEQ” switcher is set to “STOP” position and turn on the unit using the power switch located in the rear panel. 4. Using the “MODE/GATE” knob select one of the playing modes, the Mochika XL v.2 has 12 playing modes: ...

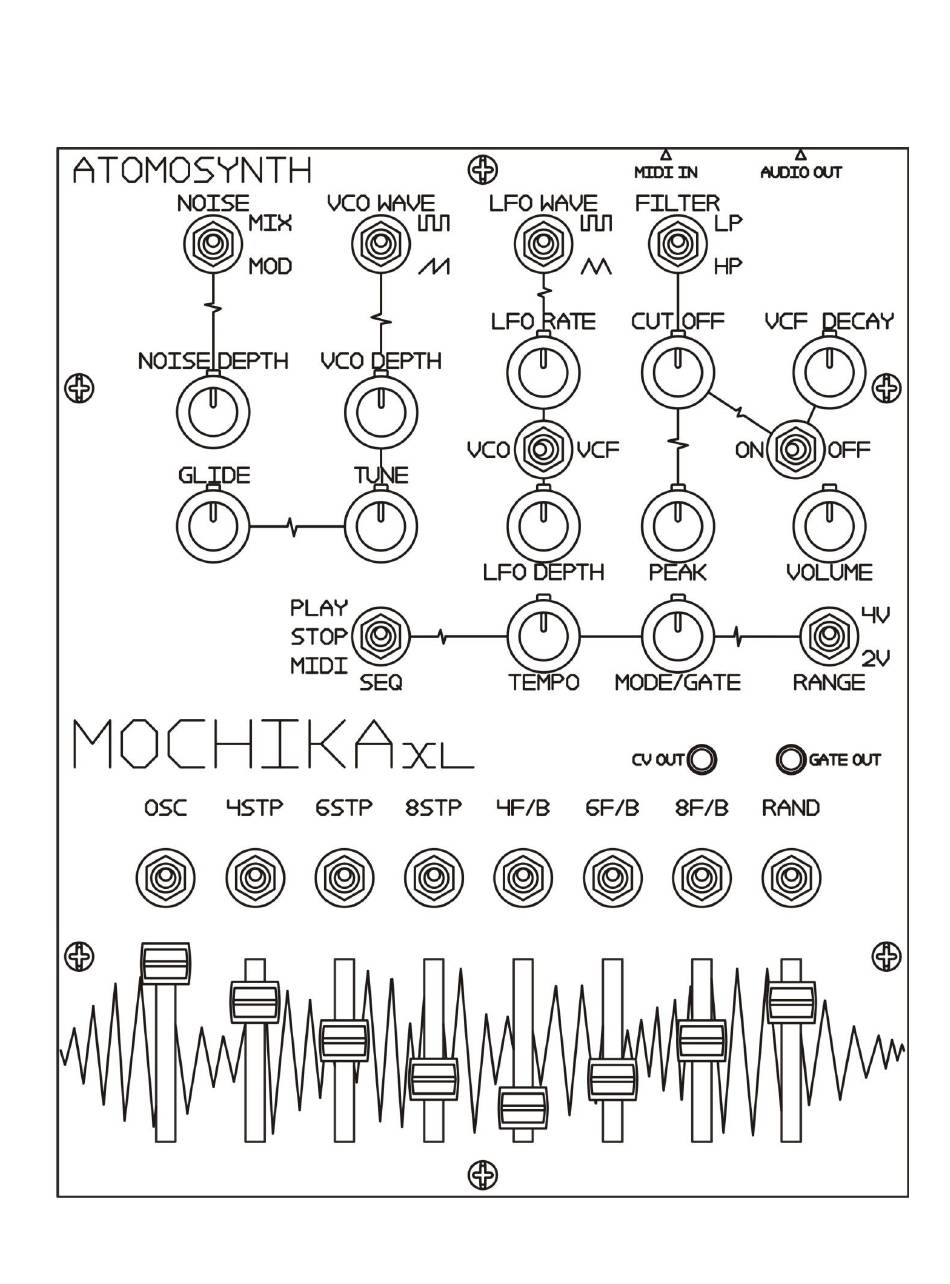

- Page 4 Parameter Controls Noise “NOISE” switcher: In “MIX” position mixes the noise output to the VCO output. In “MOD” position the noise output is routed to the CV input of the VCO modulating it. “NOISE DEPTH” Knob: It sets the amount of white noise applied. ...
- Page 5 Inputs and Outputs AUDIO OUT: Audio output used to connect the Mochika XL v.2 with an amplifier or mixer. Use unbalanced 1/4" connector (mono plug). Note: the output is not designed to be used with headphones, connect it always to an amp.
- Page 6 3. Turn the "SEQ" switcher to the "MIDI" position. 4. Using the “TEMPO” knob set the synchronization rate. (it can be set both in the “STOP” or in the “MIDI” state). The Mochika XL can sync 1, 2, 4 and 8 times Master clock tempo: ...
- Page 7 Are the tune knob and/or step pitch knobs set to a subsonic or ultrasonic pitch? The unit does not start or got frozen. Turn off the unit, wait some seconds and turn it on again. AtomoSynth E.I.R.L. All rights reserved info@atomosynth.com www.atomosynth.com...
