True TDBD-48-4 Specifications

2001 East Terra Lane • P.O. Box 970 • O'Fallon, Missouri 63366
(636)240-2400 • Fax (636)272-2408 • (800)325-6152 • Intl Fax# (001)636-272-7546
Parts Dept. (800)424-TRUE • Parts Dept. Fax# (636)272-9471 • www.truemfg.com
Model:
TDBD-48-4
ROUGH-IN DATA
Capacity
(Cu. Ft.)
Model Doors
(liters)
TDBD-48-4 4 28
793
† 1
Depth does not include / "
2
T R
RUE EFRIGERATION
TM
MADE IN
U.S.A. U.S.A. .S.A.
®
SINCE 1945
6/07
TRUE FOOD SERVICE
EQUIPMENT, INC.

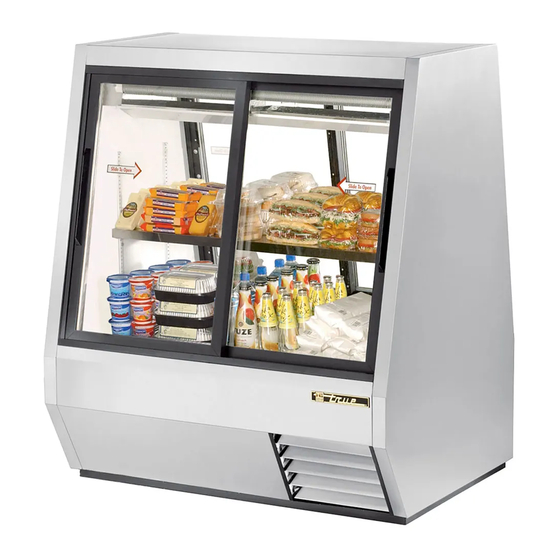

Display Case:
Double Duty Deli Case
Chart dimensions rounded up to the nearest
Cabinet Dimensions
Shelves
PVC
Stainless Coated L
1
1 2 48
Full Length 1223
(13mm) for threaded drain fi tting.
APPROVALS:
R
Printed in U.S.A.
Project Name:
Location:
Item #:
Model #:
(inches)
(mm)
D † H HP
1 1
/ 35 / 55 /
8 8 2
893 1397
Qty:
TDBD-48-4
Double duty deli cases offer the
added advantage of two refrigerated
compartments. One for display to
provide a high profi le area for ready
to serve deli products under the
industry's best lighting and a second
lower compartment for convenient
bulk storage.
Cabinet is NSF-7 certifi ed to hold open
food product.
Oversized, factory balanced,
refrigeration system holds 38°F to
40°F (3.3°C to 4.4°C). Gravity coil
refrigeration system provides high
humidity environment for superior
preservation of meats and deli
products.
"Low-E", double pane thermal glass
front and self-closing rear doors
provide maxiumum insulation value
for greater effi ciency and energy
savings.
Exterior - stainless steel front, sides
and back. White laminated rear panel
and rear louvered grill.
Interior - attractive, NSF approved,
white aluminum liner. 300 series
stainless steel fl oor with coved
corners.
Case is equipped with three (3) light
sources for maximum product display;
two (2) cabinet mounted and one (1)
shelf mounted. Fluorescent lamps are
low UV emitting to enhance product
appearance and increase shelf life.
Automatic defrost system; time-
initiated, time-terminated.
Entire cabinet structure is foamed-
in-place using high density, CFC free,
polyurethane insulation.
Specifi cations subject to change without notice.
1
/ " (millimeters rounded up to next whole
8
NEMA
Voltage Amps Confi g.
115/60/1 14.2 5-20P
AVAILABLE AT:
AIA #
SIS #
number).
Cord Crated
Length Weight
(total ft.) (lbs.)
(total m) (kg)
9 475
2.74 216
