STANDARD FEATURES

DESIGN
• True's back bar/direct draw combination
coolers are designed with enduring
quality and value. Our commitment to
using the highest quality materials and
oversized refrigeration assures colder
product temperatures and years of
trouble free service.
REFRIGERATION SYSTEM
• Factory engineered self-contained,
capillary tube system using
environmentally friendly (CFC free)
134A refrigerant.
• Extra large evaporator coil balanced with
higher horsepower compressor and large
condenser; maintains cabinet temperatures
of 33°F to 38°F (.5°C to 3.3°C).
• Sealed, cast iron, self-lubricating
evaporator fan motor and larger fan
blades give True merchandisers a more
effi cient low velocity, high volume
airfl ow design. This unique design
insures faster temperature pull down
of warm product, colder holding
temperatures and faster recovery in high
use situations.
• Condensing unit accessed from behind
front grill, slides out for easy cleaning
and maintanance.
CABINET CONSTRUCTION
• Exterior - heavy duty, wear resistant
laminated black vinyl front and sides.
Matching black aluminum back. All
stainless steel counter top.
• Interior - 300 series stainless steel fl oor
1
with / " (13 mm) reinforced lip and
2
heavy gauge galvanized steel walls.

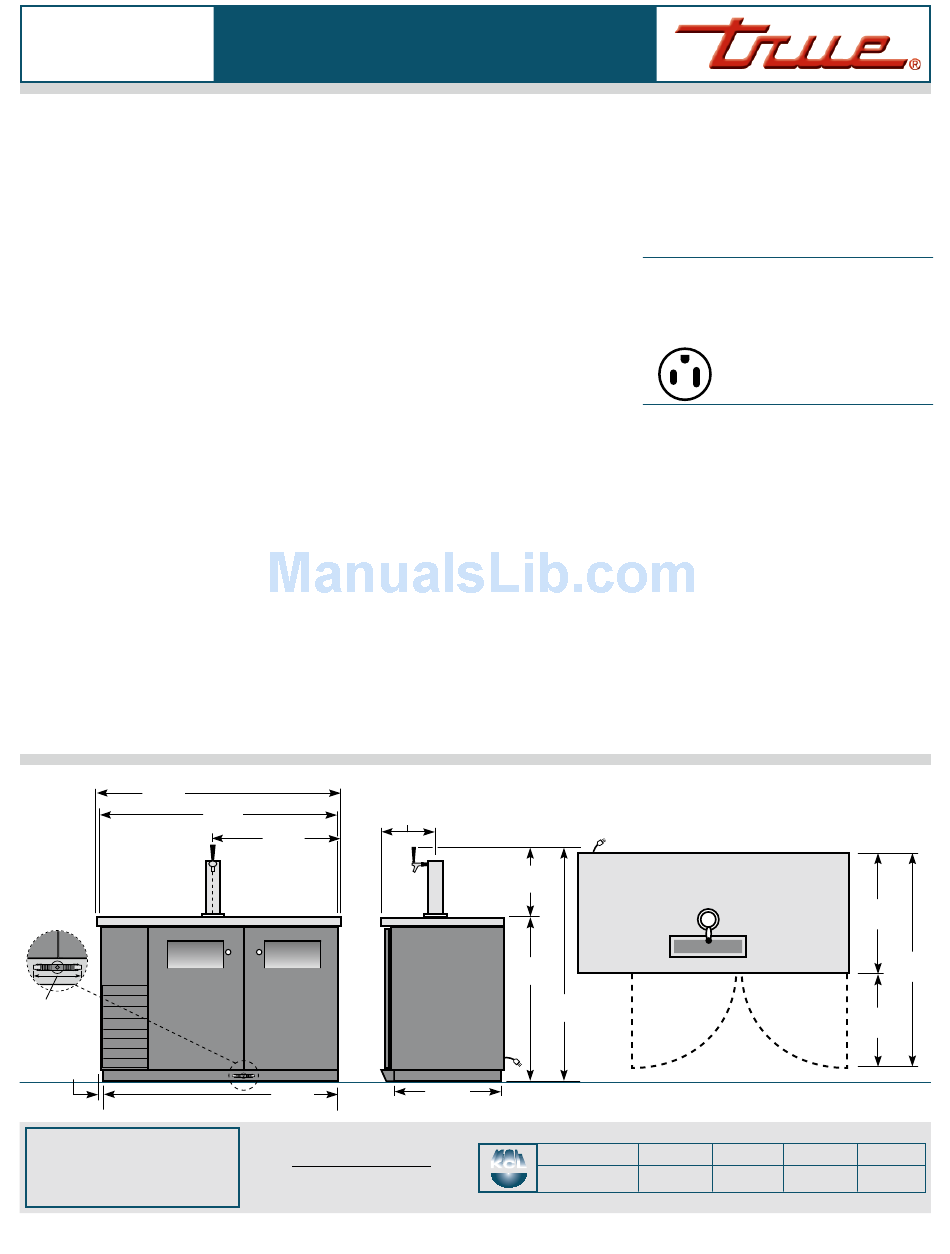

PLAN VIEW
49 1 / "
16
(1247 mm)
(1217 mm)
1 / "
2 (13 mm)
Barbed T
Drain Fitting
7
3 / "
8
(99 mm)
/ "
1
2
(13 mm)
ELEVATION
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366 • (636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
24" Back Bar/Direct Draw Beer Dispenser
Solid Door
• Insulation - entire cabinet structure
foamed-in-place using high density, CFC
free, polyurethane insulation.
• Welded, heavy duy galvanized frame rail
dipped in rust inhibiting enamel paint
for corrosion protection inside and out.
• 3" (77 mm) diameter stainless steel
insulated beer column. Cold air is
channeled directly into beer column
to reduce foaming and maximize draft
beer profi ts.
DOORS
• Wear-resistant laminated black vinyl
exterior with heavy gauge galvanized
steel liner.
• Positive deal doors.
• Each door fi tted with 12" (305 mm)
long recessed handle that are foamed-
in-place with a sheet metal interlock to
insure permanent attachment.
• Magnetic door gaskets of one piece
construction, removable without tools
for ease of cleaning.
• Door locks standard.
SHELVING
• Two (2) adjustable, heavy duty, black
PVC coated wire shelves 17
(451 mm x 458 mm). Four (4) chrome
plated shelf clips included per shelf.
• Shelf support pilasters made of same
material as cabinet interior; shelves are
adjustable on
LIGHTING
• Fluorescent interior lighting. Safety
shielded.
47 7 / "
8
(251 mm)
26 / "
15
32
(673 mm)
47 / "
3
8
(1204 mm)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE
TRUE FOOD SERVICE EQUIPMENT
3 / "L x 18"D
4
1
/ " (13 mm) increments.
2
9 / "
27
32
15 1 / "
4
(388 mm)
35 5 / "
8
(905 mm)
50 7 /
8
(1293 mm)
20 1 / "
4
(515 mm)
RIGHT VIEW
Model
KCL
TDB-24-48
MODEL FEATURES
• Designed to accommodate a variety of
beer kegs.
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
• Listed under NSF-7 for the storage
and/or display of packaged or bottled
product.
ELECTRICAL
• Unit completely pre-wired at factory and
ready for fi nal connection to a 115/60/1
phase - 15 amp dedicated outlet. Cord
and plug set included.
115/60/1
NEMA-5-15R
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/fl anged legs.
❒ 2
1
/ " (64 mm) diameter castors.
2
❒ 4" (102 mm) diameter castors.
❒ TrueTrac One liter or wine bottle
organizers.
❒ TrueTrac 12 oz. (355 ml) bottle
organizers.
❒ Double headed draft column.
❒ Two-way manifold.
❒ Three-way manifold.
❒ Draft cap.
❒ Remote cabinets (condensing units
supplied by others; system comes
standard with 404A expansion valve and
requires R404A refrigerant). Consult
factory technical service department for
BTU information.
"
PLAN VIEW
Elevation Right
TFSY05E TFSY05S
23 13 / "
16
(605 mm)
42 / "
3
16
(1072 mm)
18 / "
3
8
(467 mm)
Plan 3D
TFSY05P TFSY053
