- Page 1 Contents H3C ANT-2503CM antenna installation guide ··············································· 1 Technical specifications ····································································································································· 1 Safety precautions ············································································································································· 3 Choosing a mounting location ···························································································································· 4 Mounting the antenna ········································································································································ 4 Tools and accessories required ················································································································· 4 Mounting the antenna on a ceiling ············································································································· 4 Mounting the antenna on a wall ·················································································································...

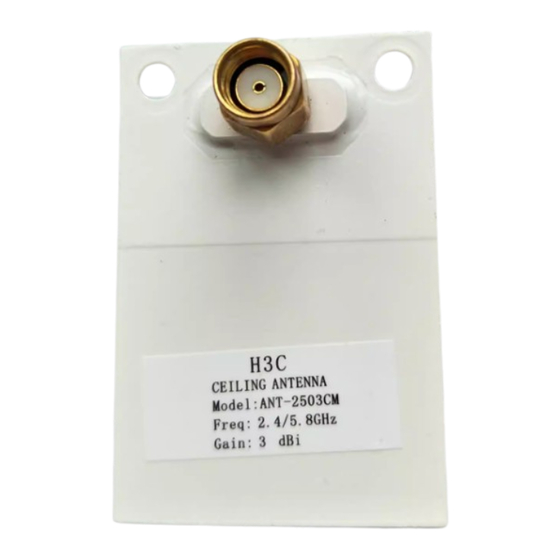

- Page 2 H3C ANT-2503CM antenna installation guide Technical specifications The ANT-2503CM antenna is designed for use in indoor environments. It is connected to the 2.4 GHz or 5 GHz antenna port on an H3C indoor AP through the SMA connector. Figure 1 Antenna view...
- Page 3 Dimensions 48 × 33 × 1.6 mm (1.89 × 1.30 × 0.06 in) Weight 0.01 kg (0.022 lb) Operating temperature –40°C to +60°C (–40°F to +140°F) Installation Ceiling or wall mounting Figure 2 Figure 3 show the horizontal and vertical radiation patterns of the antenna. Figure 2 Horizontal pattern...
- Page 4 Figure 3 Vertical pattern Safety precautions WARNING! • Installing antennas carries some level of risk. For your safety, read the following safety precautions carefully before your operation. • Keep the antenna away from power sources, street lamps, power distribution boxes, or other places that might cause electrical shock.
- Page 5 If possible, use a cable as short as possible to connect the antenna and AP. Mounting the antenna You can mount the ANT-2503CM antenna on a ceiling or on a wall. The installation accessories are provided with the antenna (installation tools are user supplied). If you intend to mount your antenna in a way other than what is described in this document, you must provide the installation accessories yourself.
- Page 6 Figure 5 Mounting the antenna From above the ceiling, slide the spring washers down the bolts and fasten them until the antenna is secured in place. See Figure Figure 6 Securing the antenna Mounting the antenna on a wall Use a pencil to mark screw positions on the wall where you want to mount the antenna and then drill three holes in the wall.
- Page 7 Insert the wall anchors into the two 7 mm (0.28 in) holes in the wall. Then thread the screws through holes in the antenna. See Figure Figure 8 Mounting the antenna Insert the screws into the two wall anchors and fasten them until the antenna is secured in place. Figure Figure 9 Securing the antenna Recommended cable...
