Contents H3C ANT-2009Y Yagi antenna installation guide ··································································································· 1 Technical specifications ···················································································································································· 1 Safety precautions ····························································································································································· 3 Installation guidelines ······················································································································································· 4 Choosing a mounting location ········································································································································ 4 Mounting the antenna ······················································································································································ 4 Tools and accessories required ······························································································································ 4 ... -
Page 2: H3C Ant-2009Y Yagi Antenna Installation Guide

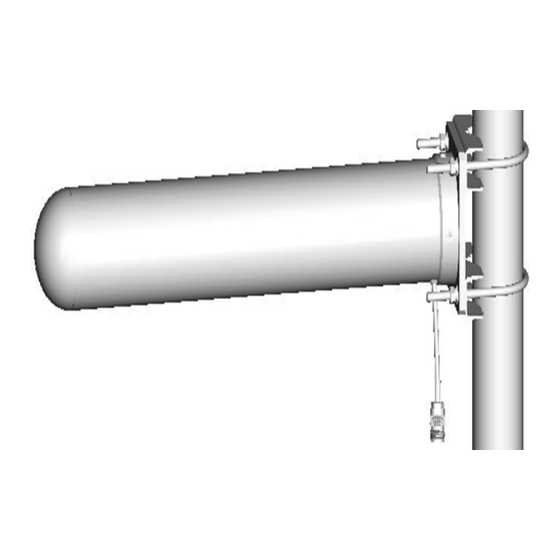

H3C ANT-2009Y Yagi antenna installation guide Technical specifications The ANT-2009Y Yagi antenna is designed for use in outdoor environments. It is connected to the antenna port on an H3C indoor or outdoor AP through an N-type connector. Figure 1 Antenna view... - Page 3 Manual Version:5PW100-20120627 Wind resistance 60 km (37.28 miles)/h Installation Mast mounting Figure 2 Figure 3 show the horizontal and vertical radiation patterns. Figure 2 Horizontal pattern...
-
Page 4: Safety Precautions
Manual Version:5PW100-20120627 Figure 3 Vertical pattern Safety precautions WARNING! Installing antennas is dangerous. For your safety, follow the installation directions. • • Keep the antenna away from power source, street lamps, distribution box, or other places that may cause electrical shock. Do not touch any power lines for your safety. -
Page 5: Installation Guidelines
Attach a spring washer between a flat washer and an M6 hex nut. A backing plate has been attached to the antenna base. • H3C recommends that you use a mast with a diameter of 40 to 50 mm (1.57 to 1.97 in). • Choosing a mounting location Keep the antenna away from metal obstructions such as heating and air-conditioning ducts. -
Page 6: Recommended Cable
Figure 5 Backing plate and U-bolt sizes (mm) Recommended cable H3C recommends that you use a high-quality, low-loss cable with the antenna. Coaxial cable loses efficiency as the frequency increases, causing signal loss. Keep the cable as short as possible because...
