Bosch NIT8060SUC, NIT8060UC - 30" Induction Cooktop with Home Connect Manual

Induction cooking

Advantages of induction cooking

Induction cooking is fundamentally different from traditional cooking methods, since the heat builds up directly in the cookware. This offers numerous advantages:

Saves time when boiling and frying.
Saves energy.
Easier to care for and clean. Spilled food does not burn on as quickly.
Controlling the heat supply and safety; the cooktop increases or decreases the heat supply as soon as the user changes the setting. The induction cooking zone stops the heat supply when you remove the cookware from the cooking zone without you having to switch it off first.

Cookware

Only ferromagnetic cookware is suitable for induction cooking.
For example:

Enameled steel cookware
Cast iron cookware
Special stainless steel cookware that is suitable for induction cooking

You can find additional information on which items of cookware are suitable for the induction cooking under In order to achieve a good cooking result, ensure that the ferromagnetic area of the cookware base corresponds to the size of the cooking zone. If the cookware is not detected on a cooking zone, place it on a cooking zone with a smaller diameter.

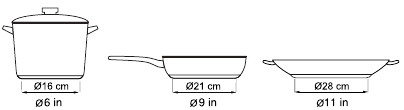

Cookware - Suitable sizes of cookware

The base of many items of induction cookware is not fully ferromagnetic:
If you use large cookware with a smaller ferromagnetic base, only the area that is ferromagnetic heats up. As a result, the heat is not distributed evenly. The temperature of the non ferromagnetic area may therefore be too low for cooking.

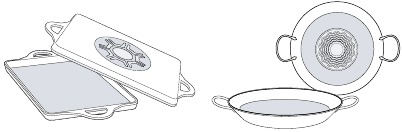

Cookware - Using cookware with ferromagnetic base

Cookware bases that contain aluminum reduce the ferromagnetic area. This may reduce the output and the cookware will not be detected sufficiently or at all, and will therefore not be heated sufficiently.

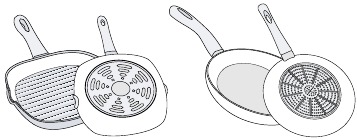

Cookware - Using aluminum cookware

Unsuitable cookware
Never use heat diffuser plates or cookware made of the following:

Thin-walled normal steel
Glass ¡ Clay
Copper
Aluminum

Composition of the cookware base
The material(s) from which the base of the cookware is made may affect the cooking result. Cookware made of materials that distribute heat evenly in the pot, such as saucepans with a stainless steel sandwich base, save time and energy.
You should preferably use cookware with a flat base because uneven cookware bases impair the heat supply.

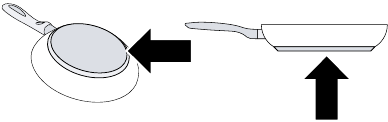

Cookware - Using cookware with a flat base

No cookware/cookware of an unsuitable size
If you do not place cookware on the selected cooking zone or the cookware is made of an unsuitable material or is not the right size for the cooking zone, the display for the cooking zone flashes. To make the display go out, place a suitable item of cookware on the cooking zone. If you do not place a suitable item of cookware on the cooking zone within 90 seconds, it automatically switches off.

Empty cookware or cookware with a thin base
Do not heat empty cookware and do not use cookware with a thin base. The cooktop is equipped with an internal safety system. However, empty cookware may heat up so quickly that the "Automatic switch-off" function does not respond quickly enough and an excessive temperature is reached. As a result, the base of the cookware may melt and damage the glass plate. In this case, do not touch the cookware; switch off the cooking zone. If the cooking zone no longer works after cooling down, contact Customer Service.

Cookware detection
Each cooking zone has a minimum limit for the cookware detection and this depends on the ferromagnetic diameter and the material of the base of the cookware. Therefore, use the cooking zone that best corresponds to the diameter of the pan base.

Familiarizing yourself with your appliance

This Use and Care Manual covers several models. Your model may have some but not all of the features listed.

( ) = cm
NIT8060SUC, NIT8060UC

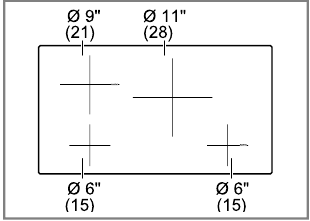

Cooktop burners dimensions

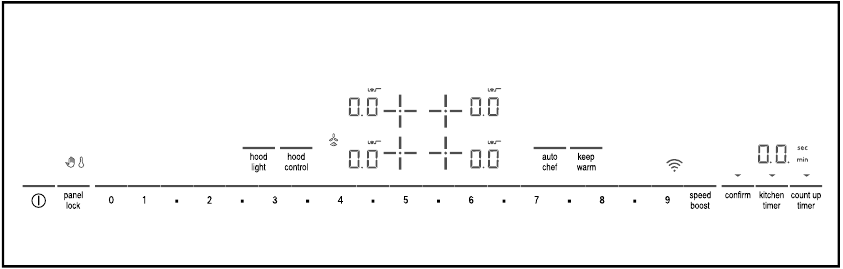

Control panel

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. The control panel image is representative. Your appliance may vary slightly.

Touch keys

Touch keys are touch sensitive areas. Touch a symbol to activate the corresponding function.

The indicators above the touch keys that currently can be selected light up.
The touch keys for functions that currently cannot be selected do not light up.
The indicators for selected functions or cooking zones light up brighter.

Touch key	Function
	Main switch
	Settings area
	Select cooking zone
panel lock	Wipe protection / Panel lock
speed boost	SpeedBoost and ShortBoost function
	AutoChef function
kitchen timer	Kitchen timer
count up timer	Count-up timer
keep warm	Keep warm function
confirm	Home Connect confirmation key
hood control	Hood control function
hood light	Hood light control

Notes

Keep the controls clean and dry. Moisture can impair the function of the controls.
Do not place cookware close to the displays and sensors. The electronics may overheat.

Displays

The displays show active settings and functions.
When you select a cooking zone, the settings for this cooking zone light up brighter.

Display	Name
	Cooktop ready
	Power levels
	Residual heat indicator
	SpeedBoost function active
	Short Boost function active
	AutoChef active
	Timer value
	Keep warm function active
	Wipe protection active
	Panel lock active
	Wi-Fi
	Automatic hood control active

Residual heat indicator

The cooktop is equipped with a residual heat indicator for each cooking zone. The residual heat indicator lights up when a cooking zone is turned off. Do not touch the cooking zone when the residual heat indicator lights up.

Display	Meaning
	The cooking zone is hot.
	The cooking zone is warm.

If you remove the cookware from the cooking zone during cooking, the residual heat indicator and the selected power level flash alternately.

Cooking zones

Here you can find an overview of the cooking zones available on your cooktop. Place the cookware on the cooking zone that best matches its size.
When a cooking zone is active, the corresponding displays light up.

Only use cookware that is suitable for induction cooking.
→ "Induction cooking"
Refer to the overview of models and dimensions.

Symbol	Cooking zone	Function
	Single cooking zone	Only one cooking zone size is available.

Operation

Here you will find everything you need to know about operating your appliance.

Turning the unit on

Press ⁠.
- When you first switch on the cooktop, lights up for a few seconds. This means that you have not set up Home Connect, yet. This behavior will occur every time you turn on the cooktop, until you connect the cooktop to your home network, or if the connection has been interrupted.
  → "Home Connect"
- Press and follow the instructions for Home Connect setup.
- To exit the initial set-up, press any touch key.
The indicator above turns on.
The symbols for the cooking zones and functions available at this time light up.
lights up in the cooking zone displays.

Turning the unit off

Press and hold until all indicators go out.
- All cooking zones are turned off.
- The residual heat indicators remain lit until the cooking zones have cooled off sufficiently.

Note: The cooktop turns off automatically when all the cooking zones have been turned off for more than 20 seconds.

Cooking zone settings

In order to make settings on a cooking zone, the cooking zone has to be selected.

Set the desired power level for each cooking zone in the settings area.

Setting	Power level
1	lowest power level
9	highest power level
	Intermediate setting for all power levels

Note: The cooktop may temporarily reduce the power automatically to protect the fragile parts of your appliance and to prevent the appliance from producing excess noise.

Setting the power level

Requirement:
The cooktop is turned on.

Place the cookware on the cooking zone.
Press to select the cooking zone ⁠.
- lights up brighter on the cooking zone display.
Set the power level in the settings area . Press to set an intermediate level, for example 1.5 or 3.5.

Notes

If there is no cookware on the cooking zone, the cooking zone display blinks. This means that the cooking zone tries to detect the cookware. Place cookware on the cooking zone within 30 seconds, or the cooking zone will switch itself off.
If the indicators blink while cookware is present on the cooking zone, check whether the cookware is suitable for induction cooking.
→ "Testing cookware suitability"
If there is cookware on the cooking zone before switching the cooktop on, it is detected within 20 seconds after touching the main switch and the cooking zone is selected automatically. Set the power level within 10 seconds. Otherwise, the cooking zone switches off after 20 seconds.
If there are several pieces of cookware on the cooktop when it is switched on, only one piece of cookware is detected.

Changing the power level

Press to select the cooking zone.
Set the power level in the settings area.

Turning the cooking zone off

Press to select the cooking zone.
Select 0 in the settings area.
- The residual heat indicator lights up after approximately 10 seconds.

Note: You can also switch off the cooking zone directly by touching the cooking zone symbol for longer than 3 seconds.

Recommended cooking settings

Here you can find recommendations on cooking and an overview of various dishes with suitable heat levels.

Select power level 8 or 9 for bringing water to a boil or heating up the pan.
Stir thick liquids occasionally.
Food that needs to be seared quickly, or food which loses a lot of liquid during initial frying, is best seared in several small portions.
When you cook with a lid on, turn the heat setting down as soon as steam escapes between lid and cookware.
Keep the lid on the cookware after cooking until you serve the food.
When you cook with a pressure cooker, observe the manufacturer's instructions.
Do not cook food for too long or in too much water. Otherwise the nutrients will be lost. You can use the kitchen timer to set the optimum cooking time.
→ "Kitchen timer"
Do not heat oil or grease until it smokes. You will achieve healthier cooking results.
When you brown food, fry small portions one after the other.
Cookware may become very hot during cooking. We recommend the use of pot holders.
→ "Saving energy"

Cooking charts
The cooking chart shows which power level is suitable for each type of food. The cooking time may vary depending on the type, weight, thickness and quality of the food.

Stews or liquids can heat up very quickly during cooking and may overflow or spatter, e.g. soups, sauces or drinks.

Stir continuously.
Heat the food at a suitable power level.

Melting
Type of food	Power level
Chocolate	1.5
Butter	1.0 - 2.0
Heating
Frozen vegetables, e. g. spinach	2.5 - 3.5
Broth	7.0 - 8.0
Thick soup	1.5 - 2.5
Milk¹	1.0 - 2.0
¹ Cook without lid
Simmering
Delicate sauce, e. g. Béchamel sauce	4.0 - 5.0
Spaghetti sauce	2.0 - 3.0
Pot roast	4.0 - 5.0
Fish¹	4.0 - 5.0
¹ Ongoing cooking without lid
Cooking
Rice, with double amount of water	2.0 - 3.0
Potatoes boiled in their skins, with 1-2 cups of water	4.0 - 5.0
Boiled potatoes, with 1-2 cups of water	4.0 - 5.0
Fresh vegetables, with 1-2 cups of water	2.0 - 3.5
Frozen vegetables, with 1-2 cups of water	3.5 - 4.5
Pasta, with 2-4 qt. water¹	6.0 - 7.0
Pudding²	1.0 - 2.0
Cereals	2.0 - 3.0
¹Ongoing cooking without lid ²Cook without lid
Frying
Pork chop¹	5.5 - 6.5
Chicken breast¹	5.0 - 6.0
Bacon	6.0 - 7.0
Eggs	5.0 - 6.0
Fish	5.0 - 6.0
Pancakes	6.0 - 7.0
¹ Turn the food several times.
Deep-fat frying Fry in 1-2 qt. oil without a lid.
Deep-frozen foods, e. g. chicken nuggets (0.5 lb per serving)	8.0 - 9.0
Other, e. g. doughnuts (0.5 lb per serving)	4.5 - 5.5
Keep warm
Tomato sauce	1.5

Kitchen timer

You can use the Kitchen timer to set a time of up to 99 minutes.
The Kitchen timer is independent from other settings and does not switch off a cooking zone.
You can also use the Kitchen timer when the cooktop is turned off or the panel lock is activated.

Setting the Kitchen timer

burn hazard
Boilovers can cause smoke and some foods and oils may catch fire if left on high temperature settings.

When using a timer, always supervise the cooktop.
Do not allow anything to boil over or burn.

Press kitchen timer.
- lights up in the timer display.
- The indicator above kitchen timer lights up.
Set the desired time in the settings area.
Press kitchen timer to confirm.
- The time starts to count down after a few seconds.
- When the time has elapsed, a beep sounds. blinks in the timer display.
- The indicator above kitchen timer blinks.
Press any key to turn off the signals. After 10 seconds the signals stop automatically.

Changing or canceling the kitchen timer

Press kitchen timer.
Set the desired time in the settings area.
To cancel the kitchen timer, set the time to ⁠ ⁠.
Press kitchen timer to confirm.

Count-up timer

The Count-up timer displays the time that has elapsed since activating the function.
The Count-up timer works independently from the cooking zones and from other settings. This function does not automatically switch off a cooking zone.

Starting the Count-up timer

burn hazard
Boilovers can cause smoke and some foods and oils may catch fire if left on high temperature settings.

When using a timer, always supervise the cooktop.
Do not allow anything to boil over or burn.

Press count up timer.
- lights up on the timer display.
- The indicator above count up timer lights up.
- The timer starts to count up.

Canceling the Count-up timer

Press count up timer.
- The timer stops running.
Press count up timer again.
- The timer is cleared and turns off.

SpeedBoost

With this function you can heat larger quantities of water faster than with power level 9. This function temporarily increases the top output of the selected cooking zone.

Restrictions for using the SpeedBoost function

This function can only be used on one cooking zone of the same cooktop segment at a time. The illustration shows these segments of your cooktop.
If the function is not available, and blink on the display of the selected cooking zone. The power level is set automatically.

Activating SpeedBoost

Press to select the cooking zone.
Touch speed boost.
- lights up in the cooking zone display.

Deactivating SpeedBoost®

The function may be deactivated automatically to avoid overheating. This serves to protect the internal electronic components of the cooktop.

Press to select the cooking zone.
Press speed boost.
- goes out.
- The cooking zone switches to power level ⁠.

Notes

In certain circumstances, this function may switch off automatically in order to protect the electronic elements inside the cooktop.
If you have set a power level before activating the function, this power level is used automatically after the function has been deactivated.

ShortBoost

With this function you can heat cookware faster than with power level ⁠.
Recommendations for using this function:

Always use cookware that has not been pre-heated.
Use cookware with a flat base.
Do not use cookware with a thin base.
Never leave empty cookware, oil, butter or lard to heat up unattended.
Do not place a lid on the cookware.
Place the cookware on the center of the cooking zone.
Ensure that the diameter of the base of the cookware matches the size of the cooking zone.
Refer to the information on cooking with induction for information on the type, size and positioning of the cookware.

Restrictions for using the ShortBoost function

This function can only be used on one cooking zone of the same cooktop segment at a time. The illustration shows these segments of your cooktop.
If the function is not available, and blink on the display of the selected cooking zone. The power level is set automatically.

Activating ShortBoost

Oil and fat heat up quickly with the ShortBoost function.
Overheated oil and fat may ignite.

Never leave the cooktop unattended during cooking.

Press to select the cooking zone.
Press speed boost twice.
- lights up on the cooking zone display.

Deactivating ShortBoost

The function is turned off automatically after 30 seconds.
You can turn it off manually before that.

Press to select the cooking zone.
Press speed boost.
- goes out.
- The cooking zone switches to power level ⁠.

Keep warm

This function is suitable for melting chocolate or butter and for keeping food warm.

Activating the keep warm function

Select the cooking zone.
Press keep warm.
- lights up on the cooking zone display.

Deactivating the keep warm function

Select the cooking zone.
Press keep warm.
- goes out.
- The cooking zone turns off and the residual heat indicator lights up.

AutoChef

With the AutoChef function, a sensor controls the temperature of the pan. You can fry while the pan maintains the selected temperature.

Advantages when using the AutoChef function:

The cooking zone only continues heating for as long as this is necessary to maintain the temperature. This saves energy and prevents the oil or fat from overheating.
The frying function reports when the empty frying pan has reached the optimum temperature for adding oil and then for adding the food.

General notes for using the AutoChef function:

Do not place a lid on the frying pan. This will prevent the function from activating correctly. Use a splatter guard to prevent fat from spitting out.
Use suitable oil or fat. If you are using butter, margarine, cold-pressed olive oil or lard, use temperature setting 1 or 2.
Never leave fat or oil unattended while you are heating it.
If the cooking zone is a higher temperature than the cookware or vice versa, the cooking sensor is not activated correctly.

Suitable pans for AutoChef

A suitable sensor frying pan for the AutoChef function is available as an optional accessory.
You can purchase suitable sensor frying pans from Customer Service, in our online shop www.bosch-home.com/us/shop or in specialized stores. Always indicate the relevant reference number.

Reference number	Special accessory
HEZ390210	Sensor frying pan Ø 6" (15 cm)
HEZ390220	Sensor frying pan Ø 7" (19 cm)
HEZ390230	Sensor frying pan Ø 8¼" (21 cm)

The sensor frying pans have a non-stick coating, which means that very little oil is needed for frying.

Conventional frying pans

When using a conventional frying pan observe the following notes.

The AutoChef function has been configured specifically for our system pans.
Other frying pans may overheat. They may reach a temperature above or below the selected frying level. Try the lowest frying level first and then change it according to your requirements.
Make sure that the diameter of the base of the frying pan corresponds to the size of the cooking zone. Place the pan in the center of the cooking zone.

Frying levels

The AutoChef function offers 5 frying levels.

Frying level	Temperature	Suitable for
1	Very low	Preparing and reducing sauces, sweating vegetables and frying food in extra virgin olive oil, butter or margarine.
2	Low	Frying food using extra virgin olive oil, butter or margarine, e.g. omelettes, French toast, hash browns.
3	Medium-low	Frying fish, pancakes and thick food such as Hamburgers or pork chops.
4	Medium-high	Frying ground meat, vegetables or thin slices of meat, e.g. veal cutlet.
5	High	Frying food at high temperatures, e.g. steaks medium rare or fried cooked potatoes.

Setting AutoChef

Hot oil or fat may ignite.

Never leave hot fat or oil unattended.
Do not place a lid on the frying pan. This will prevent the AutoChef function from activating correctly. Use a mesh splatter guard to prevent fat from spitting out.
Only use fat or oil that is suitable for frying.
When you are using butter, margarine, olive oil or lard, select frying level 1 or 2.
Do not use AutoChef for boiling.

Notes

If AutoChef is fitted on the dual cooking zone of your cooktop, the additional heating ring automatically turns on when you select AutoChef
The outer ring of the triple cooking zone is not available with AutoChef. The triple cooking zone will automatically be operated as a dual cooking zone.
If the size of the pan is unsuitable or the pan is poorly positioned on the flexible cooking zones the AutoChef may not be activated.

Requirements

The cooktop is turned on.
You have selected a suitable frying level from the chart.

Place the frying sensor pan in the center of the cooking zone with the AutoChef® feature.
Select the cooking zone.

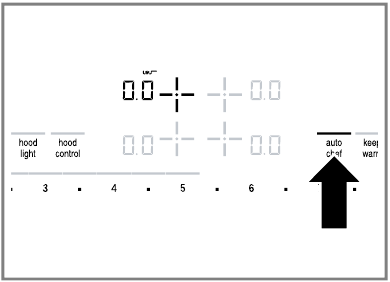

Press auto chef.
- and light up in the cooking zone display.
- The frying levels 1 - 5 light up in the settings area.

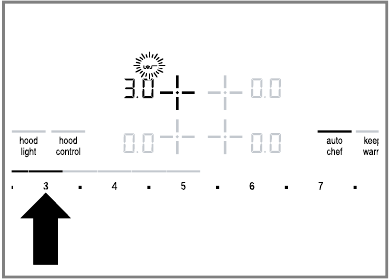

Select the desired frying level with the number keys in the settings area.
- blinks.
- When the set frying temperature is reached a beep sounds and stops blinking.
Add the frying oil to the pan.
Add the ingredients.
Turn the food over as usual to avoid burning.

Turning AutoChef off

Select the cooking zone.
Touch auto chef.

Frying recommendations

Here you can find recommendations which frying level is best used for particular foods. The frying time depends on the type, weight, thickness and quality of the food.

Cooking tips

The frying levels stated here are for cooking with the system pan. The frying levels may vary when you use other frying pans.
First heat the empty pan. Add the fat and the food to the pan when the signal sounds.

Meat
Food	Frying sensor level	Total cooking time from sound signal in min.
Frying with a little oil
Escalope, plain	4	6-10
Escalope, breaded	4	6-10
Fillet	4	6-10
Chops	3	10-15
Cordon bleu	4	10-15
Viennese schnitzel	4	10-15
Steak, rare, 1¼" (3 cm) thick	5	6-8
Steak, medium, 1¼" (3 cm) thick	5	8-12
Steak, well done, 1¼" (3 cm) thick	4	8-12
Poultry breast, ¾" (2 cm) thick	3	10-20
Meat cut into strips	4	7-12
Gyros	4	7-12
Bacon	4	5-8
Ground meat	4	6-10
Hamburgers, ½" (1.5 cm) thick	3	6-15
Rissoles, ¾" (2 cm) thick	3	10-20
Filled rissoles	3	10-20
Boiled sausages	3	8-20
Raw sausages	3	8-20
Fish
Frying with little oil
Fish fillet, plain	4	10-20
Fish fillet, breaded	3	10-20
Scampi	4	4-8
Shrimp	4	4-8
Fried whole fish	3	10-20
Egg dishes
Frying with little oil
Fried eggs in butter	2	2-6
Fried eggs	4	2-6
Scrambled eggs	2	4-9
Omelettes	2	3-6
Crêpes	5	1,5-2,5
Frech toast	3	4-8
Shredded raisin pancake	3	10-15
Vegetables and legumes
Frying with a little oil
Garlic	2	2-10
Onions, sautéed	2	2-10
Onion rings	3	5-10
Zucchini	3	4-12
Eggplant	3	4-12
Peppers	3	4-15
Frying green asparagus	3	4-15
Mushrooms	4	10-15
Sautéing vegetables in oil	1	10-20
Glazed vegetables	3	6-10
Potatoes
Frying with a little oil
Fried potatoes, made from unpeeled boiled potatoes	5	6-12
French fries, made from raw potatoes	4	15-25
Potato pancakes	5	2,5-3,5
Swiss rösti	2	50-55
Glazed potatoes	3	10-15
Sauces
Frying with a little oil
Tomato sauce with vegetables	1	25-35
Béchamel sauce	1	10-20
Cheese sauce	1	10-20
Reducing sauces	1	25-35
Sweet sauces	1	15-25
Frozen products
Frying with a little oil
Escalope	4	15-20
Cordon bleu	4	10-30
Poultry breast	4	10-30
Chicken nuggets	4	10-15
Gyros	4	10-15
Kebab	4	10-15
Fish fillet, plain	3	10-20
Fish fillet, breaded	3	10-20
Fish sticks	4	8-12
Frying French fries	5	4-6
Stir-fries	3	6-10
Spring rolls	4	10-30
Camembert	3	10-15
Miscellaneous
Frying with a little oil
Camembert	3	6-10
Croutons	3	6-10
Dried ready meals	1	5-10
Toasting almonds	4	3-15
Toasting nuts	4	3-15
Toasting pine nuts	4	3-15

Panel lock

You can use the panel lock to prevent the cooktop from being turned on accidentally.

The panel lock may be turned on and off accidentally due to:

water spilled during cleaning
food that has overflowed
objects being placed on the panel lock touch key.

Activating the panel lock
Requirement: The cooktop is turned off.

Touch panel lock for 4 seconds.
- lights up for 10 seconds.
- The control panel is locked.

Deactivating the panel lock

Touch panel lock for 4 seconds.
- The control panel is unlocked.

Automatic panel lock
This function automatically activates the panel lock when you switch off the cooktop.
The automatic panel lock can be activated in the basic settings

Wipe protection

With this function you can avoid changing the settings while cleaning the control panel during cooking. This function does not lock the main switch. You can turn the cooktop off at any time.

Activating wipe protection

Touch panel lock.
- lights up.
- The control panel is locked for 35 seconds.
- After 30 seconds a beep indicates that the wipe protection is about to turn off.

Deactivating wipe protection

You can turn off the wipe protection manually.

Touch panel lock.
- goes out.

Basic settings

You can configure the basic settings for your appliance to meet your needs.

Basic settings overview

Here you can find an overview of the basic settings and the preset factory settings.

Display	Function
	Panel lock - Manual¹ – Automatic – Function deactivated
	Signal tones – Confirmation signal and error signal are off. The main switch signal remains on. – Only error signal is on. – Only confirmation signal is on. – Confirmation signal and error signal are on¹.
	Display energy consumption – Deactivated¹ – Activated
	Duration of timer end signal – 10 seconds¹ – 30 seconds – 1 minute
	Power management function. Limiting the total power of the cooktop. The available settings depend on the maximum power of the cooktop. – Deactivated^2,3 – 1.000 W minimum power – 1.500 W ... – 3.000 W recommended for 13 A. – 3.500 W recommended for 16 A – 4.000 W – 4.500 W recommended for 20 A ... or – Maximum power of the cooktop³
	Time for setting a cooking zone after selection – Unlimited: The last selected cooking zone remains selected. You can adjust the settings without having to select it again 1. – Limited: You can adjust the settings for the selected cooking zone within 10 seconds. After 10 seconds you have to select the cooking zone again.
	Results for suitability test for cookware – Not suitable. – Not ideal. –Suitable.
	Restore factory settings – Off¹ – Restore appliance to factory settings
¹Factory setting ²Factory setting (may vary according to model) ³The cooktop's maximum power output is shown on the rating plate

Changing the basic settings

Requirement: The cooktop is turned off.

Turn on the cooktop.
Within the next 10 seconds, press kitchen timer for about 4 seconds.
The first four displays provide the product information. To call up the individual displays, touch the control panel.

Product information	Display
Customer Support index (CI)
Production number
Production number 1
Production number 2	⁠

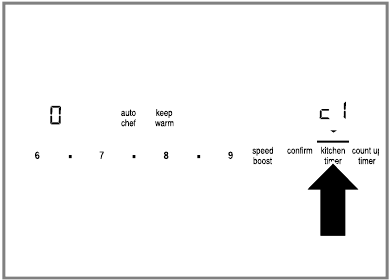

Press kitchen timer to access the basic settings.
- In the left display and flash alternately.
- In the timer display lights up.

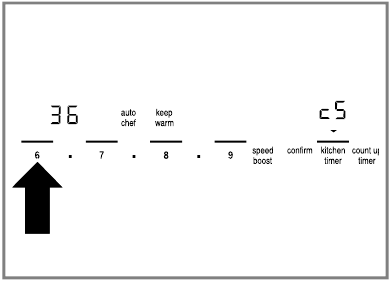

Press kitchen timer repeatedly until the desired setting lights up in the left display.
Set the desired option in the settings area.
Press kitchen timer for about 4 seconds.
- The setting is saved.

Tip: Press On/Off to leave the basic settings and turn off the cooktop.

Energy consumption display

This function indicates the total amount of energy consumed between turning the cooktop on and turning it off again.
Once cooktop is turned off, the energy consumption is displayed in kWh for 10 seconds, e.g. 1.08 kWh. The accuracy of the display depends on various factors such as the voltage quality of the power supply.
You can activate or deactivate this function in the basic settings menu.

Power limitation

You can use the PowerManager function to set the total power of the cooktop.
The cooktop is set at the factory; the cooktop's maximum power is shown on the rating label. You can use this function to adjust the configuration to the requirements of each electrical installation.
In order to not exceed this set value, the cooktop automatically distributes the available power as needed between the cooking zones that are switched on.
While this function is activated, the output of each cooking zone may temporarily fall below the nominal value. In order to not exceed this set value, the cooktop automatically distributes the available power as needed between the cooking zones that are switched on . The appliance regulates and selects the highest power level automatically.
For more information, go to
→ "Basic settings"

Home Connect

This appliance is network-capable. Connecting your appliance to a mobile device lets you control its functions via the Home Connect app, adjust its basic settings and monitor its operating status.
The Home Connect services are not available in every country. The availability of the Home Connect function depends on the availability of Home Connect services in your country. You can find information on this at: www.home-connect.com.
The Home Connect app guides you through the entire registration process. Follow the instructions in the Home Connect app to implement the settings.

Tips

Consult the Home Connect documents supplied.
Follow the instructions in the Home Connect app as well.

Notes

Also note the safety information in this instruction manual and ensure that it is also observed when operating the appliance using the Home Connect app.
Cooktops are not designed to be left unattended. Always monitor the cooking process.
Operating the appliance on the appliance itself always takes priority. It is not possible to operate the appliance using the Home Connect app during this time.
In networked standby mode, the appliance requires a maximum of 2 watts.

Setting up Home Connect

Requirements

The appliance is connected to the power supply and is switched on.
You have a mobile device with a current version of the iOS or Android operating system, e.g. a smartphone.
The mobile device and the appliance are within range of your home network's Wi-Fi signal.

Download the Home Connect app.

Open the Home Connect app and scan the following QR code.

Follow the instructions in the Home Connect app.

Overview of the Home Connect settings

You can adjust the settings and network settings for Home Connect in the basic settings for your appliance.

Setting	Selection or display	Description and additional information
	– Not connected/disconnect network – Connect automatically – Connect manually – Connected	Log the appliance on in the home network (Wi-Fi) or disconnect from the network.
	– Not connected – Connect	Connecting to the app The setting is only displayed if the appliance is connected to the home network.
	– Wireless module switched off – Wireless module switched on	Connection to the (Wi-Fi) If (Wi-Fi) has been activated, you can use the Home Connect functions. In networked standby mode, your appliance requires a maximum of 2 W. The setting is only displayed if the appliance has been previously connected to a network.
	– Switched off – Switched on¹	Set using the app If the setting is switched off, only the cooktop's operating statuses will be displayed in the Home Connect app.
	– Update available and ready for installation – Start installation starten	Software update The setting is only displayed if a software update is available.
	– Not authorized – Authorized	Controlling remote access by Customer Support The setting is only displayed if after-sales service is attempting to connect to the appliance. You can end this at any time after granting access.
	– Not connected to the home network (Wi-Fi) – Signal strength 1 (poor) – Signal strength 2 (moderate) – Signal strength 3 (good)	Display Wi-Fi signal strength The setting is only displayed if there is a connection to the home network (Wi-Fi).
	– Not connected – Connected	Connection to Home Connect server The setting is only displayed if there is a connection to the home network (Wi-Fi).
¹Factory setting

Changing settings via the Home Connect app

You can use the Home Connect app to change the settings for the cooking zones and send them to the cooktop.

Requirements

The appliance is connected to the home network and to the Home Connect app.
In order to set the hob via the app, the basic setting must be switched on.
The hob is switched on.

Select the setting in the Home Connect app and send it to the cooktop.
Follow the instructions in the Home Connect app.
If the setting was previously , two steps are required:
- If confirm flashes, touch confirm.
- If the cooking zone display alternately flashes the old and new value, select the cooking zone.
If the setting was not previously , the old and new value alternately flash directly on the cooking zone display.
- To accept the setting for the cooking zone, select the cooking zone.
To discard the setting, touch any other button on the cooktop.

Software update

Your appliance's software can be updated using the software update function, e.g. for the purposes of optimization, troubleshooting or security updates.
To do this, you must be a registered Home Connect user, have installed the app on your mobile device and be connected to the Home Connect server. As soon as a software update is available, you are informed via the Home Connect app and can start the software update via the app. Once the update has been successfully downloaded, you can start installing it via the Home Connect app if you are in your WLAN home network (Wi-Fi). The Home Connect app informs you once the installation is successful.

Notes

You can continue to use your appliance as normal while updates are downloading. Depending on your personal settings in the app, software updates can also be set to download automatically.
We recommend that you install security updates as soon as possible.

Remote diagnostics

The Customer Service can access your appliance via Remote Diagnostics if you ask them to do so, if your appliance is connected to the Home Connect server and if Remote Diagnostics is available in the country where you are using the appliance.

Tip: Further information and details about the availability of Remote Diagnostics in your country can be found in the Service/Support section of your local website: www.homeconnect.com.

Data Protection

Please see the information on data protection. The first time your appliance is registered on a home network connected to the Internet, your appliance will transmit the following types of data to the Home Connect server (initial registration):

Unique appliance identification (consisting of appliance codes as well as the MAC address of the installed Wi-Fi communication module).
Security certificate of the Wi-Fi communication module (to ensure a secure data connection).
The current software and hardware version of your appliance.
Status of any previous reset to factory settings.

This initial registration prepares the Home Connect functions for use and is only required when you want to use the Home Connect functions for the first time.

Note: Please note that the Home Connect functions can be utilized only with the Home Connect app. Information on data protection can be called up in the Home Connect app.

Wi-Fi module

The Home Connect Wi-Fi module is a communication device designed to provide communication between appliances and smart devices.

This module is integrated at the factory, under direct control of BSH Home Appliances Corporation, and is not user serviceable or upgradable. At least 7⅞ inch (20 cm) separation distance should be maintained from device to user.

Cooktop-based hood control

You can connect your appliance to a hood and, in this way, control the functions of your hood via the cooktop. If both appliances are Home Connect compatible, the easiest way to connect the appliances is in the Home Connect app. To do this, connect the two appliances to Home Connect and follow the instructions in the app. Alternatively, you have the following options for connecting the appliances together:

Connecting the appliances directly.
Connecting the appliances via your home network.

Notes

Make sure you follow the safety instructions in the Use and Care Manual for your hood and that these are complied with even when operating the appliance via the hood controls on the cooktop.
If the appliance is being operated by means of the controls on the hood, this mode of operation always has priority. It is not possible to use the hood controls on the cooktop during this time.
In networked standby mode, your appliance requires a maximum of 2 W.

Connecting appliances directly

Connect the appliance directly to your hood to control the hood via the cooktop. If you connect your cooktop directly to the hood, it cannot be connected to your home network as well and you will not be able to use Home Connect.

Note: Note the information for connecting the cooktop in the Use and Care Manual for your hood.

Requirement: The hood is switched off.

Turn on the cooktop.
Press and hold kitchen timer for 4 seconds.
- The product information is displayed.
Press kitchen timer repeatedly until and are displayed alternately.
- lights up on the cooking zone display.
Select the settings value in the settings area.
- is blinking on the cooking zone display.
Within 2 minutes, initiate the connection process on the hood. Refer to the operating instructions of your hood.
- When the connection is completed lights up on the cooking zone display.
- The hood control icons light up on the control panel.
Exit the basic settings.

Note: You can change the settings anytime in the basic settings menu.

Connecting appliances via your home network (Wi-Fi)

If the appliances are connected to each other via your home network, you can operate the hood via the cooktop controls or with Home Connect.

Note: The appliances can only be connected when both are connected to the home network and are simultaneously engaged in connecting. If the time allowed for connecting has already expired for one of the two appliances, start the connection process again.

Requirements

Your router has a WPS button. You will find information about this in the manual for your router.
The hood is connected to the same home network (Wi-Fi).

Turn on the cooktop.
Press and hold kitchen timer for 4 seconds.
- The product information is displayed.
Press kitchen timer repeatedly until and are displayed alternately.
- (not connected) or (connected to home network) lights up on the cooking zone display.
Select the settings value in the settings area.
- is blinking on the cooking zone display.
If the appliance is not yet connected to your home network, press the WPS button on the router within the next 2 minutes.
- The cooktop is connected to your home network. lights up on the cooking zone display.
Initiate the connection process on the hood within the next 2 minutes.
- When the connection is completed lights up on the cooking zone display.
- The hood control icons light up on the control panel.

Resetting the connection

If you have problems connecting your appliance to your home network (Wi-Fi) or if you want to log your appliance onto a different home network (Wi-Fi), you can reset the Home Connect settings.

Note: If you reset the Home Connect settings, the connection to any hood will also be terminated.

Turn on the cooktop.
Press and hold kitchen timer for 4 seconds.
- The product information is displayed.
Press kitchen timer repeatedly until and are displayed alternately.
Set the settings value to in the settings area.

Controlling the hood via the cooktop

In the basic settings menu, you can configure what the hood should do when the cooktop or individual cooking zones are switched on or off.
You can select other settings using the control panel.

Setting the fan

Touch hood control.
Select the fan level.
You can choose between the levels 1, 2 and 3. To select the levels Boost and PowerBoost, press 4 or 5 in the settings area, or press speed boost repeatedly until the required intensive level is set.

Turning off the fan

Touch kitchen timer.
Select fan setting ⁠.

Setting automatic mode

Touch hood control repeatedly until lights up.
- Depending on the configuration of the hood sensor, the fan will start automatically when steam is produced. Refer to the operating instructions of your hood.

Deactivating automatic mode

Touch hood control repeatedly until goes out or Select a different fan setting.

Setting the hood lighting

You can switch the hood light on and off via the control panel of the cooktop.

Press hood light.

Note: Depending on the basic settings you have selected, the light will automatically be switched on or off when the cooktop is switched on or off.

Overview of the hood control settings

You can adjust the cooktop based hood controls to suit your requirements at any time.

Note: The settings will only be displayed if the appliance is connected to a hood. Some of these settings may not be available.

Setting	Values	Description
	- Not connected¹/disconnect - Start connection process - Connected to home network (Wi-Fi) - Connected to hood	Connection between cooktop and hood
	- Deactivated The hood must be switched on manually, if required. - Switched on in automatic mode. 1 In automatic mode, the hood switches itself on when one of the cooking zones is switched on. - Switched on in manual mode. The hood switches itself on at the default level when one of the cooking zones is switched on.	Automatic fan switch-on The display shows this setting only when the appliance has been connected to the hood.
	- Deactivated The fan switches off when the cooktop is turned off. - Switched on in automatic mode¹ - Switched on with standard delayed shut-off - No change to the settings	Delay shut-off Setting for whether/how the fan is to run on after the cooktop is turned off. The display shows this setting only when the appliance has been connected to the hood.
	- Turned off - Turned on¹ The light turns on automatically when you turn on the cooktop.	Turn light on automatically The display shows this setting only when the appliance has been connected to the hood.
	- Turned off¹ - Turned on The light turns off automatically when you turn off the cooktop.	Turn off the light automatically
¹Factory setting (may vary according to model)

Cleaning and maintenance

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

Cleaning agents

You can purchase suitable cleaners and glass scrapers from Customer Support or in our online shop www.bosch home.com/us/shop.

Tip: Bosch cleaners have been tested and approved for use on Bosch appliances. Other recommended cleaners do not constitute an endorsement of a specific brand.

Recommended cleaning agents

Glass ceramic cooktop cleaner
BonAmi
Soft Scrub (without bleach)
White vinegar

Unsuitable cleaning agents

Glass cleaners which contain ammonia or chlorine bleach. These cleaners may damage or permanently stain the cooktop.
Caustic cleaners such as Easy Off. These cleaners may stain the cooktop surface.
Abrasive cleaners.
Metal scouring pads and scrub sponges such as Scotch Brite. These cleaners may scratch the cooktop surface and/or leave metal marks.
Soap-filled scouring pads such as SOS. These cleaners may scratch the cooktop surface.
Powdery cleaners containing chlorine bleach. These cleaners may permanently stain the cooktop surface.
Flammable cleaners such as lighter fluid or WD-40.

Cleaning the glass ceramic cooktop

Clean Cooktop With Caution.

If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn.
Some cleaners can produce noxious fumes if applied to a hot surface.
Do not clean the appliance while it is still hot.

Do not use any kind of cleaner on the glass while the surface is hot; use only the glass scraper. The resulting fumes can be hazardous to your health. Heating the cleaner can chemically attack and damage the surface.

Requirements

The cooktop has cooled off.
Exception: Remove dry sugar, sugar syrup, milk and tomato products immediately.
→ "Cleaning recommendations"

Wipe off splatters with a clean, damp sponge or a paper towel.
Rinse and dry.
If a smudge remains use white vinegar.
Rinse and dry again.
Apply a small amount of cooktop cleaner with a clean paper towel or cloth and let it dry.
Buff the surface with a clean paper towel or cloth.

Cleaning the cooktop frame

Notes

Wipe the cooktop frame with the grain.
For moderate to heavy soil, use BonAmi or Soft Scrub (no bleach).

Wipe using a damp sponge or cloth.
Rinse and dry.

Cleaning recommendations

Follow these cleaning instructions for removing common soiling.

The blade of the glass scraper is extremely sharp. You can cut yourself.

Replace the blade immediately, when you see any imperfections.
Follow the manufacturer's instructions.

NOTICE:
Diamond rings may scratch the ceramic cooktop surface.

Take off any rings before you clean the ceramic cooktop surface.

Type of soil	Recommendation
Dry sugar Sugar syrup Milk Tomato spills Melted plastic film or foil	REMOVE IMMEDIATELY. Failure to remove these substances immediately can permanently damage the ceramic cooktop surface. Remove the soil with the glass scraper while the cooktop surface is still hot. Use a new, sharp razor in the glass scraper. Remove the cookware and turn off the cooking zone. Put on an oven mitt. Hold the glass scraper at 30° angle and scrape off the soil. Be careful not to gouge or scratch the glass ceramic surface. Push the soil off the heated area. Let the surface cool. Remove the residue and apply glass ceramic cooktop cleaner.
Burned-on food soil Dark streaks Dark specks	Lay a damp paper towel or sponge on top of the soil for 30 minutes to soften the soil. Remove the soil with a plastic scrubber and glass ceramic cooktop cleaner or with the glass scraper. Rinse the cooktop surface and dry it.
Greasy spatters	Remove grease with a soapy sponge or cloth. Rinse the cooktop surface thoroughly and dry it. Apply glass ceramic cooktop cleaner.
Metal marks: iridescent stain	Pans with aluminum, copper or stainless steel bases may leave marks. Treat metal marks immediately after the cooktop surface has cooled off. Failure to do so makes removal very difficult. Clean the cooktop surface with glass ceramic cooktop cleaner. If this does not remove the marks, clean the cooktop surface with a damp paper towel and a mild abrasive (Bon Ami, Soft Scrub without bleach). Rinse the cooktop surface and apply glass ceramic cooktop cleaner.
Hard water spots	Hot cooking liquids may drip or spill on the cooktop surface. The minerals in some water can be transferred onto the surface and cause stains. Remove boilovers and stains before using the cooktop again. Clean the cooktop surface with undiluted white vinegar. Rinse the cooktop surface and dry it. Apply glass ceramic cooktop cleaner.
Surface scratches	Small scratches are common and do not affect cooking. They become smoother and less noticeable with daily use of the glass ceramic cooktop cleaner. Apply glass ceramic cooktop cleaner before cooking to remove sand-like grains and grit such as salt and seasoning. Scratches can be reduced by using pans with bases that are smooth, clean, and dry before use. Use recommended glass ceramic cooktop cleaner daily.

Maintenance

This appliance requires no maintenance other than daily cleaning.
For best results, apply cooktop cleaning cream daily.

Troubleshooting

You can eliminate minor issues on your appliance yourself. Please read the information on eliminating issues before contacting Customer Service. This may avoid unnecessary repair costs.

Improper repairs are dangerous.

Only authorized service providers should repair the appliance.
If the appliance has an issue, call Customer Service.

Improper repairs are dangerous.

Repairs to the appliance should only be performed by authorized service providers.
Only original spare parts may be used to repair the appliance.

Issue	Cause and troubleshooting
None	The power supply has been disconnected. Check whether the lighting in your kitchen or other appliances in the room are working.
	The appliance has not been connected as shown in the circuit diagram. Disconnect the appliance from the power supply. Make sure the appliance has been connected as shown in the circuit diagram.
	There is an electronics fault If the fault cannot be eliminated, call Customer Service.
All displays flash	The control panel is wet or objects are lying on it. Dry the control panel or remove the object.
is flashing in the cooking zone displays.	There is an electronics fault Briefly cover the control panel with your hand to acknowledge the fault.
	The electronics have overheated. The corresponding cooking zone has switched off. Wait until the electronics have cooled down sufficiently. Touch any control element. When error message disappears, the electronics have cooled down sufficiently. You can continue to cook.
	The electronics have overheated. All cooking zones have switched off. Wait until the electronics have cooled down sufficiently. Touch any control element. When error message disappears, the electronics have cooled down sufficiently. You can continue to cook.
and the power level flash alternately. A signal tone sounds.	There is hot cookware near the control panel. The electronics are at risk of overheating. Remove the cookware from the control panel. You can continue to cook.
and audible signal	There is hot cookware near the control panel. The cooking zone has switched off to protect the electronics. Remove the cookware from the control panel. Wait a few seconds. Touch any control element. When error message disappears, the electronics have cooled down sufficiently. You can continue to cook.
	The cooking zone has overheated. It has switched off to protect the work surface. Wait until the electronics have cooled down sufficiently. Switch the cooking zone back on. You can continue to cook.
and cooking zones not heating	The cooking zone has been operating continuously for an extended period of time without interaction. The automatic time limitation has been triggered. Touch any control element. You can set the cooking zone and continue to cook.
	The supply voltage is incorrect. It is outside the normal operating range. Contact your electrical utility provider.
is displayed.	The cooktop is unable to connect to your home network or to the hood. Switch the appliance off and on again. If the fault was a one-off occurrence, the message disappears. If the message appears again, call Customer Service. Please specify the exact error message when calling. → "Customer Service"
	The supply voltage is incorrect. It is outside the normal operating range. Contact your electrical utility provider.
and cooking zones do not heat up	Demo mode is activated. Disconnect the appliance from the power supply for 30 seconds by switching off the circuit breaker or fuse in the electrical panel. Touch any touch field within the next 3 minutes.

Additional information

Notes

If lights up on the display, press and hold the touch key for the cooking zone in question, in order to read the fault code.
If the fault code is not listed in the table, disconnect the cooktop from the power supply, wait 30 seconds, and then reconnect it again. If the display appears again, contact Customer Support and tell them the precise fault code.
If a fault occurs, the appliance will not switch to standby mode.

Testing cookware suitability

With this function you can check the speed and quality of the cooking process for individual pieces of cookware.

Requirements

The cookware is cold.
You have read the recommendations for induction cooking

Fill the cookware with approximately 8 oz. (200 ml) of water.
Place the cookware on the cooking zone that best matches the base of the cookware. Center the cookware on the cooking zone.
If the diameter of the cooking zone is much smaller than the diameter of the cookware, only the middle of the cookware will heat up. This may have a negative effect on the cooking results.
Select in the basic settings.
→ "Changing the basic settings"
Touch any control element in the settings range. a flashes in the cooking zone display. a The result of the test appears in the cooking zone display after 10 seconds.
→ "Possible Results for Cookware Suitability Test"

Possible Results for Cookware Suitability Test
There are three possible outcomes for the cookware suitability test.

Displa y	Meaning
	The cookware is not suitable for the cooking zone. It will not heat up. If possible, test the cookware again on a smaller cooking zone.
	The cookware takes longer than expected to heat up. The cooking process is not ideal. If possible, test the cookware again on a smaller cooking zone.
	The cookware heats up correctly. The cooking process is good.

FAQs

Using the appliance

Question	Answer
Why can't I switch on the cooktop and why is the panel lock symbol lit?	The panel lock is activated. You can find further information about this function under → "Panel lock"
Why are the illuminated displays flashing and why is a signal sounding?	Clean any the surface of the control panel of any liquids or food residue. Remove any objects that may cover the control panel. You can find further information about deactivating the signal tone under → "Basic settings",
Why can I not activate the frying sensor?	The appliance has reached its maximum power consumption or the power manager function has been activated. Switch off or reduce the power levels of the active cooking zones. You can find further information about this function under → "Power limitation"
Noises
Question	Answer
Why I can hear noises while I'm cooking?	Noises may be generated while using the cooktop depending on the properties of the base of the cookware. These noises are normal for induction technology. They do not indicate that there is a fault.
Possible noises	A deep humming noise similar to a transformer: Occurs when cooking at a high power level. This noise disappears or becomes quieter when you reduce the power level. A quiet whistling noise: This can be heard when the cookware is empty. This noise disappears when you add water or food to the cookware. Crackling: This noise occurs when the cookware is made from different multilayer materials, or if you use cookware of different sizes and different materials. The volume of the noise can vary depending on the quantity of food being cooked or the cooking method. Loud whistling noises: These may arise if you are operating two cooking zones at the same time and at the maximum power level. These whistling noises disappear or become quieter when you reduce the power level. Fan noises: The cooktop is equipped with a fan that switches on automatically at high temperatures. The fan may also continue to run after you have switched the cooktop off if the temperature measured is still too high.
Items of cookware
Question	Answer
Which cookware is suitable for the induction cooktop?	You can find additional information on which items of cookware are suitable for the induction cooking under → "Induction cooking"
Why is the cooking zone not heating up and why is the power level flashing?	The cookware is on a different cooking zone to the one that has been switched on. Ensure that you have switched on the correct cooking zone for the cookware. The cookware is too small for the cooking zone that is switched on or it is not suitable for induction cooking. Ensure that the cookware is suitable for induction cooking and that it is placed on the cooking zone which best corresponds to its size. You can find more information about this under → "Induction cooking"
Why is it taking so long for the cookware to heat up or why is it not heating up sufficiently despite being on a high power setting?	The cookware is too small for the cooking zone that is switched on or it is not suitable for induction cooking. Ensure that the cookware is suitable for induction cooking and that it is placed on the cooking zone which best corresponds to its size. You can find more information about this under → "Induction cooking"
Cleaning
Question	Answer
How can I clean the cooktop?	You can achieve the best results by using special glass-ceramic cleaning products. Do not use harsh or abrasive cleaning products, dishwater detergent (concentrated) or scouring pads. You can find more information about this under → "Cleaning and maintenance"

Customer Service

With any warranty repair, we will make sure your appliance is repaired by an authorized service provider using genuine replacement parts. We use only genuine replacement parts for all repairs.
Detailed information on the warranty period and terms of warranty can be found in the Statement of Limited Product Warranty, from your retailer, or on our website.
If you contact the Customer Service, you will need the model number (E-Nr.) and the production number (FD) of your appliance.
USA:
1-800-944-2904
www.bosch-home.com/us/owner-support/get-support
www.bosch-home.com/us/shop
CA:
1-800-944-2904
www.bosch-home.ca/en/service/get-support
www.bosch-home.ca/en/service/cleaners-and-accessories
For assistance with connecting to Home Connect, you can also view instructions here:
www.home-connect.com/us/en/help-support/set-up

Model number (E-Nr.) and production number (FD)
You can find the model number (E-Nr.) and the production number (FD) on the appliance's rating plate. The model number (E-Nr.) can also be found on the glass ceramic. You can also display the customer service index (KI) and the production number (FD) in the Basic settings.
Making a note of your appliance's details and the Customer Service telephone number will enable you to find them again quickly.

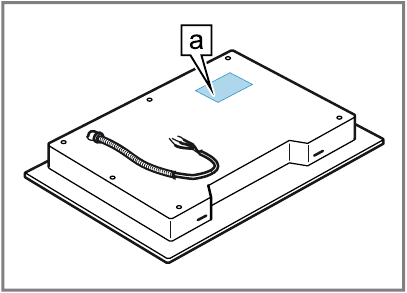

Rating plate location
You can find the rating plate of your appliance:

on the underside of the appliance
in the appliance pass
You can also check the Customer Service Index (CSI) and the FD number in the basic settings.
→ "Changing the basic settings"

Rating plate

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

burn hazard shock hazard
Read all instructions carefully before use. These precautions will reduce the risk of electrical shock, fire and injury to persons. When using kitchen appliances, basic safety precautions must be followed including those in the following pages.

Safety definitions

Here you can find explanations of the safety signal words used in this manual.

This indicates that death or serious injuries may occur as a result of non-observance of this warning.

This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.

NOTICE:
This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.

Note: This alerts you to important information and/or tips.

General information

Read this manual carefully.
Keep the instructions, the appliance pass and the product information safe for future reference or for the next owner.
Do not connect the appliance if it has been damaged in transit.

Intended use

Only a qualified electrician may connect appliances without plugs. The manufacturer is not responsible for damage caused by incorrect connections. Please see the Statement of Limited Product Warranty. The appliance can only be used safely if it is correctly installed according to the installation instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.

Only use this appliance:

To prepare meals and drinks.
Under supervision. Never leave the appliance unattended when cooking for short periods.
In private households and in enclosed spaces in a residential environment.
up to an altitude of 13,100 ft (4000 m) above sea level.

Do not use the appliance:

This appliance is not intended for operation with an external clock timer or a remote control.

Restriction on user group

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
When children become old enough to use the appliance, it is the responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualified persons.
Children should be supervised to ensure that they do not play with the appliance.
Do not let children play with the appliance.

Safe use

When properly cared for, your new appliance has been designed to be safe and reliable.

Read all instructions carefully before use. These precautions will reduce the risk of burns, electric shock, fire, and injury to persons.
When using kitchen appliances, basic safety precautions must be followed, including those in the following pages.

Overheated materials can cause fire or burns.

Do not allow aluminum foil, plastic, paper or cloth to come in contact with a hot surface element, burner or grate.
Do not allow pans to boil dry.

burn hazard Unattended cooking on a cooktop with fat or oil can be dangerous and may result in a fire.

Do not leave the cooktop unattended when in use.

Never leave the cooktop unattended when in use.
burn hazard Boilovers cause smoking and greasy spillovers may ignite.
A fire could occur during cooking.

Always have a working smoke detector near the kitchen.
Have an appropriate fire extinguisher available, nearby, highly visible and easily accessible near the appliance.

burn hazard If the cooktop is near a window, forced air vent or fan, be certain that flammable materials such as window coverings do not blow over or near the burners or heating elements. They could catch on fire.

Cooking fires can spread if extinguished incorrectly.

Never use water on cooking fires.

burn hazard
TO REDUCE THE RISK OF A GREASE FIRE

Never Leave Surface Units Unattended at High Settings - Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe').
Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
Use proper pan size. Always use cookware appropriate for the size of the surface element.
Do not flambé under the extractor hood or work with a naked flame. When switched on, the extractor hood draws flames into the filter. There is a risk of fire due to deposits on the grease filter!

Flames can be drawn into the ventilation system.

Whenever possible, do not operate the ventilation system during a cooktop fire. However, do not reach through fire to turn it off.

Cookware Handles Should be Turned Inward and Not Extend Over Adjacent Surface Units.

To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the cookware, the handle of a cookware should be positioned so that it is turned inward, and does not extend over adjacent surface units.

Wear Proper Apparel. Loose-fitting or hanging garments, such as ties, scarves, jewelry, or dangling sleeves, should never be worn while using the appliance.

Tie long hair so that it does not hang loose.
Secure all loose garments, etc. before beginning.

Use Proper Pan Size - This appliance is equipped with one or more surface units of different sizes.

Select cookware having flat bottoms large enough to cover the surface unit cooking zone.
The use of undersized cookware will expose a portion of the cooking zone to direct contact and may result in ignition of clothing. Proper relationship of cookware to cooking zone will also improve efficiency. Controls may be operated unintentionally by spills covering the control panel.
Never use the appliance if liquids or foods have spilled around the control panel.
Always turn off the cooktop and dry the control panel. Boilovers can cause smoke and some foods and oils may catch fire if left on high temperature settings.
When using a timer, always supervise the cooktop.
Do not allow anything to boil over or burn.

burn hazard
If the frying sensor is not working properly, overheating may result causing smoke and damage to the pan or fire.

WHEN COOKING WITH THE FRYING SENSOR FUNCTION OBSERVE THE FOLLOWING

Always use a sensor frying pan.
Always put the pan in the center of the cooking zone.
Do not place a lid on the pan.
Never leave hot fat or oil unattended.

If the cooktop turns off automatically and can no longer be operated, it may turn itself on unintentionally at a later point.

Switch off the circuit breaker or fuse in the electrical panel.
Contact Customer Service for support.

The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

If the display does not work when a cooking area is heating up disconnect the circuit breaker or fuse in the electrical panel.

Contact an authorized service provider. To avoid risk of fire do not store items on the cooking surfaces.

In the event that personal clothing or hair catches fire, drop and roll immediately to extinguish flames.

Do Not Use Water on Grease Fires.

Smother fire or flame or use dry chemical or foam-type extinguisher.

Use Only Dry Potholders - Moist or damp potholders on hot surfaces may result in burns from steam.

Do not let potholders touch hot heating elements.
Do not use a towel or other bulky cloth.

Hot oil is capable of causing extreme burns and injury.

Use high heat settings on the cooktop only when necessary.
To avoid bubbling and splattering, heat oil slowly on no more than a low-medium setting.
Never move a pan of hot oil, especially a deep fat fryer.

Wait until it is cool.

Spills of hot food may cause burns.

Hold the handle of the pan when stirring or turning food.

This helps prevent spills and movement of the pan.

DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS. Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns.

During and after use, do not touch, or let clothing, potholders, or other flammable materials contact surface units or areas near units until they have had sufficient time to cool. Among these areas are the cooktop and areas facing the cooktop.

Do not place metallic objects such as knives, forks, spoons, and lids on the cooktop surface since they can get hot.

Clean Cooktop With Caution.

If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn.
Some cleaners can produce noxious fumes if applied to a hot surface.
Do not clean the appliance while it is still hot.

The pan detection shut-off feature may not turn off the cooking zone due to spilled food or objects placed on the cooktop.

Keep the cooktop clean and do not store objects on the cooking zones.

Storage in or on Appliance - The use of corrosive chemicals in heating or cleaning will damage the appliance and could result in injury.

Flammable materials, corrosive chemicals, vapors or non-food products should not be stored or used in an oven or on or near surface units.
The appliance is specifically designed for use when heating or cooking food.

This appliance is intended for normal family household use only.

It is not approved for outdoor use.
See the Statement of Limited Product Warranty. If you have any questions, contact the manufacturer.

burn hazard
Using this appliance other than for its intended use can cause fire or injury to persons.

Use this appliance only for its intended use as described in this manual.
NEVER use your appliances as a space heater for warming or heating the room. Doing so may result in overheating the appliance.
Never use the appliance for storage.

burn hazard
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A GREASE FIRE, OBSERVE THE FOLLOWING.

SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
NEVER PICK UP A FLAMING PAN – You may be burned.
DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
Use an extinguisher ONLY if:
- You know you have a Class ABC extinguisher, andyou already know how to operate it. - The fire is small and contained in the area where it started.
- The fire department is being called.
- You can fight the fire with your back to an exit.

Do not heat or warm unopened food containers. Build-up of pressure may cause the container to burst and cause injury.

Liquid between the pot base and the cooktop may build up steam pressure. This may cause the pot to jump suddenly causing injury.

Always keep the cooktop and bases of pots dry. When cooking with a double-boiler, the cooktop and cooking vessel may crack due to overheating.
The cooking vessel in the double-boiler must not come in direct contact with the bottom of the pot filled with water.
Use only heat-resistant cookware.

Injury and damage to the appliance may occur if control elements are not used properly.

Moisture intrusion may cause an electric shock.

Do not use any steam cleaners or high-pressure cleaners to clean the appliance.

If the appliance or the power cord is damaged, this is dangerous.

Do not turn the power on if the appliance or the power cord is damaged. Doing so may cause injury.
Never operate a damaged appliance.
If the surface is cracked, you must switch off the appliance in order to prevent a possible electrical shock. To do this, switch off the appliance via the circuit breaker in the circuit breaker panel rather than at the main switch.
If the appliance or the power cord is damaged, immediately switch off the breaker in the circuit breaker box.
Call Customer Service.
Repairs to the appliance must only be performed by an authorized service provider.

If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

shock hazard Do Not Cook on a Broken Cooktop - If the cooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock.

Contact an authorized service provider immediately.

Child safety

When children become old enough to use the appliance, it is the responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualified persons.

Do not allow children to use this appliance unless closely supervised by an adult.

Children and pets should not be left alone or unattended in the area where the appliance is in use. They should never be allowed to play in its vicinity, whether or not the appliance is in use.

Do not allow anyone to climb, stand, lean, sit, or hang on any part of an appliance, especially a door, warming drawer, or storage drawer.

This can damage the appliance, and the unit may tip over, potentially causing severe injury.

Do not let children play with the appliance.

Do not store items of interest to children in cabinets above an appliance or on the backguard of an appliance. Children climbing on the appliance to reach items could be seriously injured.

Do Not Leave Children Alone.

Children should not be left alone or unattended in the area where the appliance is in use.
They should never be allowed to sit or stand on any part of the appliance.

To avoid the risk of suffocation:

Do not allow children to play with packaging material.

Proper installation and maintenance

In the event of a malfunction, it might become necessary to turn off the power supply.

Have the installer show you the circuit breaker or fuse. Mark it for easy reference.

To avoid electrical shock hazard, before servicing the appliance, turn power off at the service panel and lock the panel to prevent the power from being switched on accidentally.

shock hazard Proper Installation - Improper installation or grounding can cause electric shock.

This appliance must be properly installed and grounded by a qualified technician.
Connect only to properly grounded outlet.
Refer to installation instructions for details. User Servicing - Do not repair or replace any part of the appliance unless specifically recommended in this manual.
All other servicing should be referred to an authorized service provider.

If the supply cord is damaged, it must be replaced by the manufacturer, its authorized service provider or similar qualified persons in order to avoid hazard.

The cooktop is equipped with a cooling fan on its underside. Materials may be sucked into the fan and compromise the cooling of the appliance or damage the fan.

If the cooktop is installed above a drawer, the drawer must not contain any objects or paper.
There must be a minimum distance of ¾" (20 mm) between the content of the drawer and the fan input.

Malfunctions can cause injuries.

Do not operate this appliance if it is not working properly, or if it has been damaged. Contact an authorized service provider.

State of California Proposition 65 Warnings

This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:

STATE OF CALIFORNIA PROPOSITION 65 WARNING:

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Preventing material damage

NOTICE:
Cookware with rough bottoms scratch the glass ceramic surface.

Check the bottom of the cookware before setting it down.

Salt, sugar or grains of sand scratch the glass ceramic surface.

Never use the cooktop as a working surface or for setting things down.

Overheating can damage the cookware.

Do not heat empty pots or pans.

Hot cookware can cause the electronics to overheat.

Never set down hot pans and pots on the control panel or the cooktop frame.

When hard or sharp objects fall on the cooktop, they can cause damage.

Do not let hard or pointed objects fall on the cooktop. Aluminum foil and plastic melt on hot cooking zones.
Do not let aluminum foil or plastic come into contact with hot cooking zones.
Do not use cooktop protective film.

Unsuitable cleaning agents can cause shimmering metallic discolorations on the glass ceramic surface.

Refer to the cleaning recommendations in this manual.
→ "Cleaning and maintenance"

Overview of the most common types of damage
Here you can find an overview of the most common types of damage and suggestions how to avoid them.

Stains
Cause	How to avoid
Boiled-over food	Remove boiled-over food immediately with a glass scraper.
Unsuitable cleaning agents	Use cleaning agents that are suitable for glass ceramic cooktops.
Scratches
Cause	How to avoid
Salt, sugar and sand	Do not use the cooktop as a work surface or storage space.
Cookware with rough bases	Check the cookware.
Discolorations
Cause	How to avoid
Unsuitable cleaning agents	Use cleaning agents that are suitable for glass ceramic cooktops.
Pot abrasion (e.g. aluminum)	Lift pots and pans when moving them.
Blisters
Cause	How to avoid
Sugar, food with a high sugar content	Remove boiled-over food immediately with a glass scraper.
