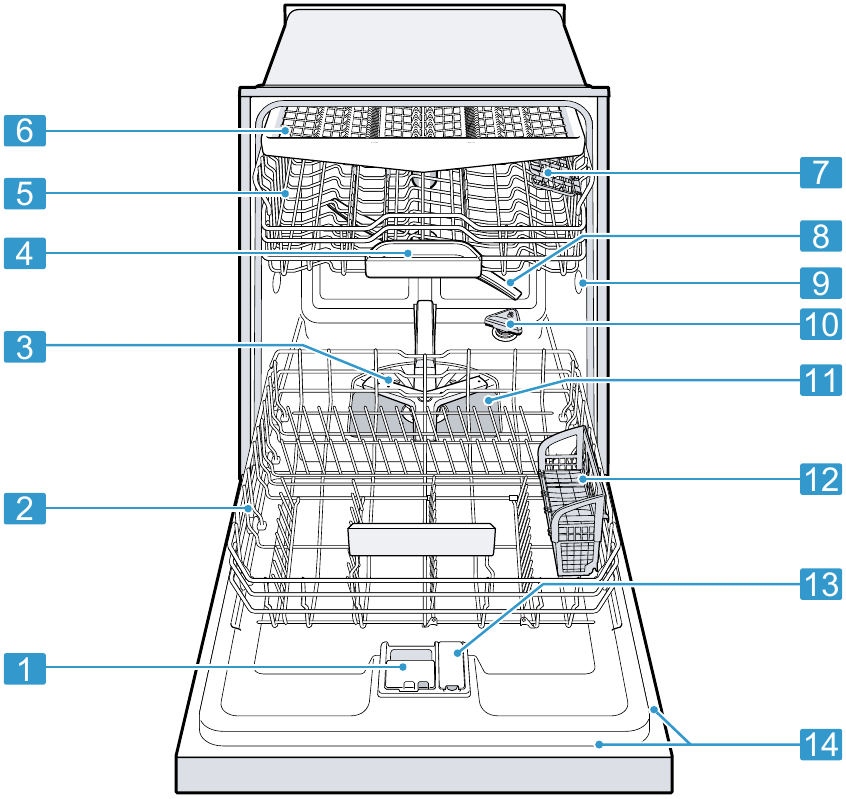

Detergent dispenser | Add detergent to the detergent dispenser. | |
Lower rack | Lower rack | |
Lower spray arm | The lower spray arm washes the dishware in the lower rack. If the dishware has not been washed properly, clean the spray arms. | |

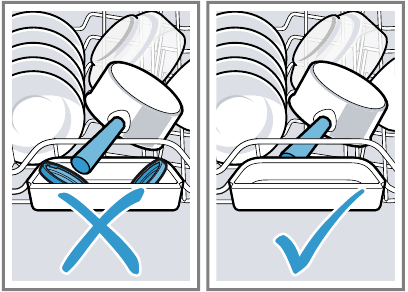

Detergent tab collecting tray | During the wash cycle, detergent tabs automatically drop out of the detergent dispenser into the tab collecting tray, where they can dissolve fully. | |
Upper rack | Upper rack | |
Silverware drawer | Silverware drawer | |
Cup shelf1 | Cup shelf | |
Upper spray arm | The upper spray arm washes the dishware in the upper rack. If the dishware has not been washed properly, clean the spray arms. | |
Intake opening of the Zeolith container | The intake opening is required for Zeolith drying | |
Blow opening of the Zeolith container | The blow opening is required for Zeolith drying | |
Filter system | Filter system | |
Silverware basket | Silverware basket | |
Dispenser for rinse aid | Rinse aid is added to the dispenser for rinse aid. → "Rinse aid system" | |
Rating plate | Rating plate with E number and FD number. You will need this data to contact Customer service |
1 Depending on the appliance specifications

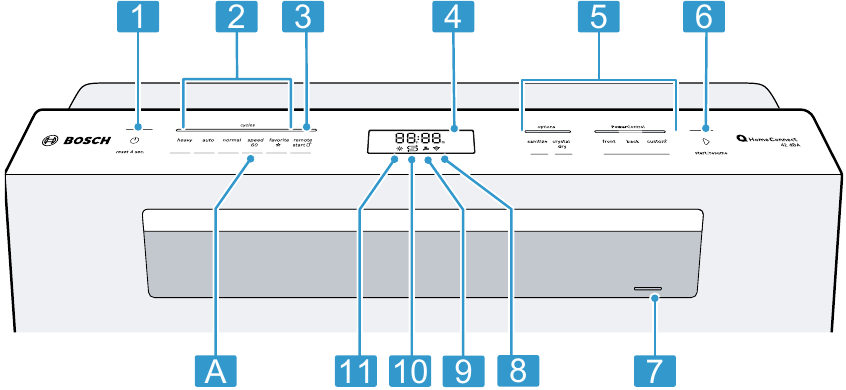

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.
Button A | If you press A for approx. 3 seconds, you can open the basic settings. → "Changing the basic settings" | |
ON/OFF button and reset button Reset 4 sec. | Switching on the appliance Switching off the appliance Terminating the wash cycle | |
Cycle buttons | "Unit Cycles" | |
Remote Start | → "Remote Start " | |
Display | The display shows information about the remaining run time or basic settings. You can change the basic settings via the display and the setting buttons. → "Changing the basic settings" | |
Cycle buttons and options | "Unit Cycles" "Options" | |
Start button | "Starting the wash cycle" | |
WLAN display | "Home Connect" | |
Water supply display | Display for water supply | |
Rinse aid refill indicator | Rinse aid system → "Adding rinse aid" |
Below is an overview of the different cycles available on your dishwasher.
The running time may vary depending on the cycle selected. The running time depends on the water temperature, the quantity of dishware, the level of dirt and the option selected. The running time will change if the rinse aid system is switched off or rinse aid needs to be added. The consumption values relate to normal conditions and a water hardness of 16 - 20 °E. Different influencing factors such as water temperature or pipe pressure may result in deviations.
Cycle | Purpose | Cycle sequence | Usage
|
Heavy | Dishware:
Level of soiling:
| Intensive
|
|
Auto | Dishware:
Level of soiling:
| Sensor controlled:
|
|
Normal | Dishware:
Level of soiling:
| Most economical cycle:
|
|
Speed 60 | Dishware:
Level of soiling:
| Time-optimized:
|
|
Favorite | - | - |
|
The Energy Guide label was based on the Normal soil sensing cycle.
The unit was tested without any rinse aid (liquid) in the rinse aid dispenser. A single dose of detergent was inserted into the detergent dispenser, with no detergent being used in the prewash. The unit was not subjected to truncated testing per the definitions in the test procedure. We recommend that dish loads such as the one in the energy certification test have the rack position set in the highest position. Recommended for daily, regular or typical use to completely wash a full load of normally soiled dishes.
With this function, you can save a combination of a Cycle and an Option.
You can save the selected Cycle and Option combination via the Home Connect app or on the appliance.
Tip: You can use the Home Connect app to download additional Cycles and Options and save them.1
Save Favorite on the appliance.
Tip: To reset the cycle, either use the Home Connect app or reset your appliance back to the factory settings.
→ "Overview of the basic settings".
1 Depending on the appliance specifications
Here is an overview of the different options available on your dishwasher.
Option | Use |
Crystal Dry | Patented technology thoroughly dries dishes and plastics such as baby bottles and food storage containers. Natural minerals transform moisture into heat up to 176F/80C to get dishes, even plastics, 60% drier. Extends drying time. |
sanitize |
|
front |
|
back |
|
custom |
If you do not specify any zone via the Home Connect app, all 4 zones in the lower rack will then be activated with the lower spray arm for efficient and intensive cleaning. |
Concerning dishware sanitation, be aware of the following.
You can find an overview of the possible features of your appliance and how to use them here. These features depend on your appliance model.

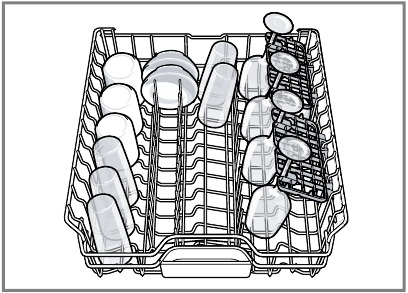

Arrange cups, glasses, and small tableware items in the top rack.
You can adjust the height of the upper rack to make room for larger items.

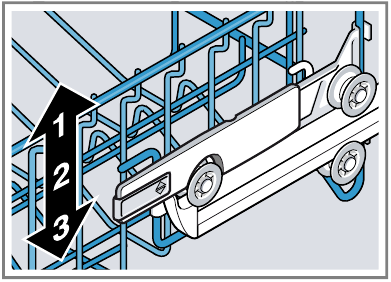

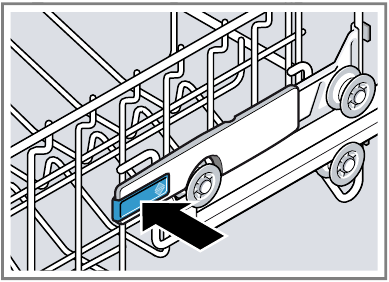

Adjusting upper rack with RackMatic
To wash large items in the racks, adjust the shelf height of the upper rack.

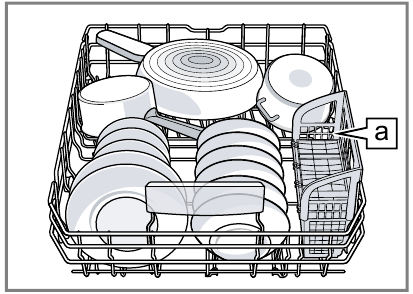

Arrange pans and plates in the lower rack.
1 Depending on the appliance specifications

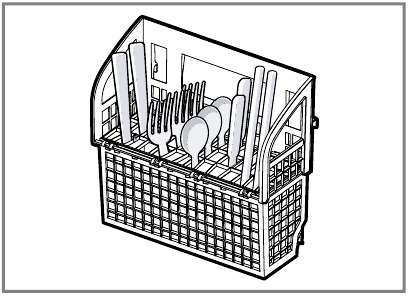

Arrange the silverware in the silverware basket, ensuring that the items are not nestled together and with the sharp points down.
The sharp points and edges of knives and other sharp utensils can cause serious injury.

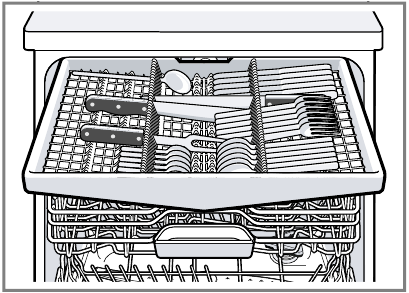

Arrange silverware in the silverware drawer.
Arrange silverware with the points and sharp edges down. You can reorganize the silverware drawer to make more space for longer or wider utensils.

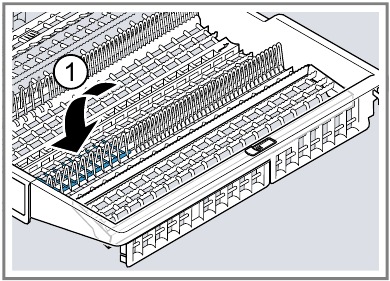

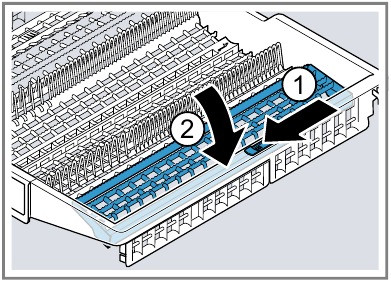

Reorganizing the silverware drawer
Fold down the side shelves and front tines to provide more space for longer or wider cutlery items.
Tip

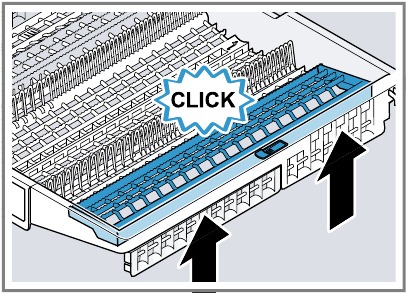

If you want to return the cutlery tray to its original position, fold the side shelf upward until it clicks into position.

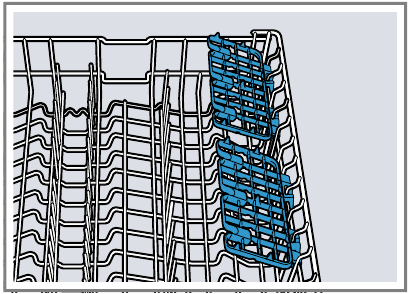

Use the cup shelf and the space underneath for small cups and glasses or for large items of silverware, e.g. cooking spoons or serving cutlery.
If you do not need the cup shelf, you can fold it up.

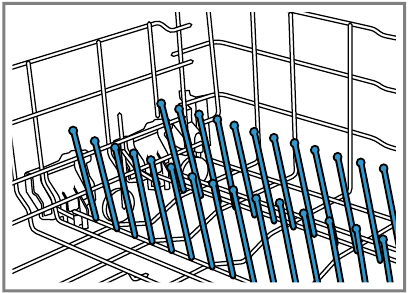

Use the flip tines to position dishware securely, e.g. plates. You can fold the tines down to arrange pans, bowls and glasses better.1

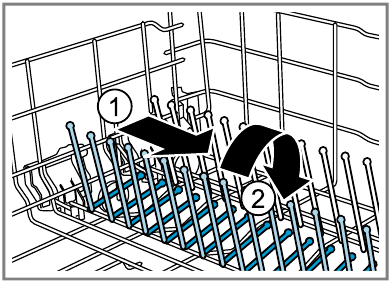

Folding down the tines1
If you do not need the tines, fold them down.
1 Depending on the appliance specifications
Set the racks at the right height.
Appliance height 34" with silverware basket
Setting | Upper rack | Lower rack |
1 max. ø | 24 cm / 9.5" | 33 cm / 13" |
2 max. ø | 26.5 cm / 10.5" | 30.5 cm / 12" |
3 max. ø | 29 cm / 11.5" | 28 cm / 11" |
Appliance height 34" with silverware drawer | ||
Setting | Upper rack | Lower rack |
1 max. ø | 18 cm / 7" | 33 cm / 13" |
2 max. ø | 20.5 cm / 8" | 30.5 cm / 12" |
3 max. ø | 23 cm / 9" | 28 cm / 11" |
Tip: If you remove the 3rd rack, you can place large items of dishware in the lower rack.
Initial use
Before the first use, or after a factory reset, you will need to configure the settings.
Tip: Connect your appliance to a mobile device. You can conveniently change all settings using the Home Connect app.
→ "Home Connect quick start"
Requirement: The appliance has been installed and connected.
Tip: You can change these settings and other Basic settings at any time.
For optimum drying results, use rinse aid.
Only use rinse aid intended for household dishwashers.

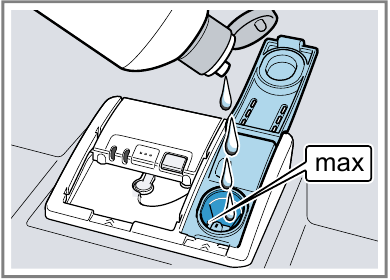

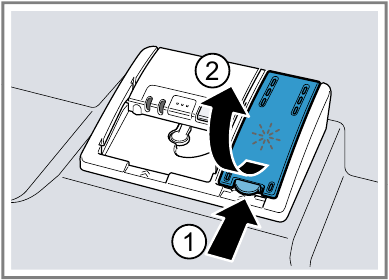

Adding rinse aid
If the rinse aid refill indicator lights up, fill the dispenser with rinse aid. Only use rinse aid intended for household dishwashers.
If there are streaks or water spots on dishware, change the amount of rinse aid.
If you choose not to use rinse aid, you can turn the rinse aid system off.
Tip: Rinse aid within a combination detergent has limited effectiveness. You will generally get better results using a separate rinse aid.
Find out which detergents are suitable for your appliance.
Only use detergents that are made for dishwashers, either basic or combination detergents.
For the best washing and drying results, use a separate detergent, then add Special salt and Rinse aid separately.
Modern, powerful detergents mainly use a low-alkaline formulation with enzymes. Enzymes break down starch and remove protein. Oxygen-based bleaching agents are generally used to remove colored stains, e.g. tea or ketchup.
Note: Follow the manufacturer's instructions for each detergent.
Detergent | Description |
Tabs | Tabs are perfect for all cleaning functions and do not need to be measured out. However, with shorter Cycles sometimes tabs do not dissolve entirely and leave residues of detergent. This may reduce its effectiveness. |
Powder detergent | Powder detergent is recommended for shorter cycles. The dosage can be adjusted to the level of soiling. |
Liquid detergent | Liquid detergent works faster and is recommended for shorter cycles without a pre-rinse.
The dosage can be adjusted to the level of soiling. |
Do not use a detergent which is not designated for dishwasher use or contains chlorine.
Detergent | Description |
Liquid hand soap | Liquid hand soap can cause increased frothing and damage the appliance. |
Detergent containing chlorine | This may leave chlorine residue on dishware. |
Follow the instructions on detergents in everyday use.

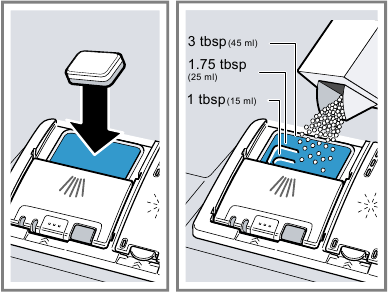

Detergent amount guidelines
Note: This dishwasher provides the optimum cleaning performance without the use of a prewash detergent and further enhances our standards of sustainability and efficiency.
Auto | 1.75 Tbsp (25 ml) or 1 tab |
Normal | 1.75 Tbsp (25 ml) or 1 tab |
Heavy | 3 Tbsp (45 ml) or 1 tab |
Speed 60 | 1 Tbsp (15 ml) |
Only wash dishware that is suitable for dishwashers.
Note: Decorated glassware and parts made of aluminum or silver may fade or discolor with dishwashing. Delicate types of glass may turn cloudy after a few wash cycles.
Only put glasses and china in the dishwasher if they are labeled dishwasher-safe. Avoid damage to glass and dishware.
Cause | Recommendation |
The following types of dishes are not dishwashersafe:
| Only put dishes in the dishwasher if they are labeled dishwasher-safe. |
The chemical composition of the detergent causes damage. | Use a detergent labeled as gentle to dishes. |
Highly caustic alkaline or highly acidic cleaning solutions, in particular commercial or industrial cleaners, are not safe to use in the dishwasher with aluminum. | If you use highly caustic alkaline or highly acidic cleaning solutions, in particular commercial or industrial cleaners, do not put anything aluminum in the dishwasher. |
The water temperature of the cycle is too high. | Select a cycle with lower temperatures. After the cycle has ended, take glassware and silverware out of the appliance without delay. |
The water temperature of the cycle is too high and the water is too soft. | Select a cycle with lower temperatures. Use detergent with glass protection. |

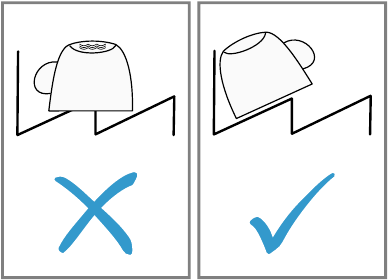

Arrange dishware correctly to optimize the dishwashing result and prevent damage to both dishware and the appliance. The noise level may also vary depending on the items placed in your dishwasher.
NOTICE:
Avoid dishwasher damage
Tips
Dishes can be very hot immediately after the cycle ends.

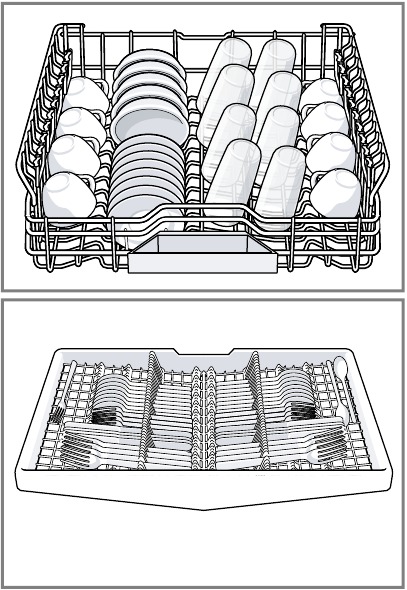

Recommended loading patterns.

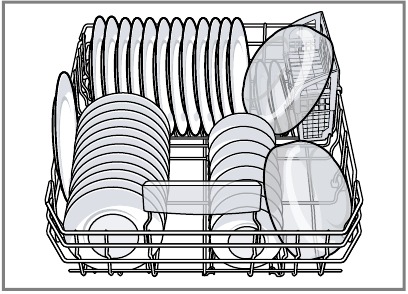

12 place settings:
Lower rack
Upper rack

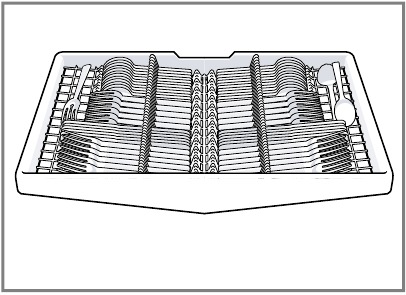

Third rack

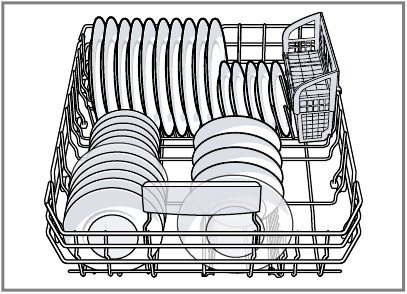

Additional loading patterns for 10 place settings:
Lower rack
Upper rack
Third rack
Your dishwasher has a built in feature to help prevent unintentional operation, e.g. by children. After starting the appliance, the door has to be closed within 4 seconds, otherwise the operation will be paused. If this occurs, follow the steps below to restart your dishwasher.
Notes
To adjust the wash cycle to the soiling level of the dishware, select a suitable program.
You can set options to complete the chosen wash program.
Note: The available options depend on which program is selected.
You can delay the start of the wash cycle via the Home Connect app.
In the settings, you can use the time delay function to delay the start of the wash cycle.
Notes
To end a cycle early or to switch from one that has already started, you will need to cancel it first.
To avoid risk of injury, always use caution when opening the door during or following a wash cycle as hot water or steam may escape.
You can configure the basic settings for your appliance to meet your needs
The basic settings depend on the features of your appliance.
Basic setting | Display text | Selection | Description |
Rinse aid disp. | r: 05 1 | r: 00 - r: 06 | Set the amount of rinse aid. → "Setting the amount of rinse aid" Switch the rinse aid system off with level r: 00. |
Sensor setting | SE:00 1 | SE:00 - SE:02 | Set the water sensor for identifying soiling. → "Sensors" |
Extra Dry | d: 00 1 | d: 00 - d: 01 | The temperature is increased during the final rinse, which improves the drying result. This may increase the run time slightly. Note: Not suitable for delicate items of dishware. Switch Extra Dry on "d: 01" or off "d: 00". |
infoLight | I:011 | I:00 - I:01 | Switch InfoLight on or off. A light is projected in the door handle during the program. If the light is flashing, the appliance door is not completely closed. The program has ended when the light is no longer visible in the door handle. The level "I:00" switches the InfoLight off. |
Start cycle | SP:00 1 | SP:00 - SP:01 | Set a default cycle for when the appliance is switched on.
|
Signal volume | SL:02 1 | SL:00 -SL:03 | Adjusting the signal volume. Level "SL:00" switches the signal tone off. |
Button volume | bL:02 1 | bL:00 - bL:03 | Set the button volume during operation. Level "bL:00" switches the button tones off. |
Wi-Fi | Cn: 00 | Cn: 00 - Cn: 01 | Switch the wireless network connection on or off. Level "Cn: 00" switches the wireless network connection off. The basic setting is not available until you have connected the appliance with the Home Connect® app. → "Home Connect" |
Remote Start | rc: 01 | rc: 00 - rc: 02 | Activate or deactivate
The basic setting is not available until you have connected the appliance with the Home Connect app. |
Factory setting | rE: | Starting with Y:ES Confirming with | Restore changed settings to the factory settings. The settings for initial use must be configured. |
1 Factory setting (may vary according to model)
Tip: Connect your appliance to a mobile device. You can conveniently change all settings using the Home Connect app.
→ "Home Connect quick start"
This appliance is network-capable. Connecting your appliance to a mobile device lets you control its functions via the Home Connect app.
The Home Connect services are not available in every country. The availability of the Home Connect function depends on the availability of Home Connect services in your country. You can find information on this at: www.home-connect.com.
To be able to use Home Connect, you must first set up the connection to the WLAN home network (Wi-Fi1) and to the Home Connect app.
The Home Connect app guides you through the entire registration process. Follow the instructions in the Home Connect app to implement the settings.
Tips
Note: Also note the safety information in this instruction manual and ensure that it is also observed when operating the appliance using the Home Connect app.
1 Wi-Fi is a registered trade mark of the Wi-Fi Alliance.
Connect your appliance to a mobile device quickly and easily.
Requirements
Adapt Home Connect to your needs.
You can find the Home Connect settings in the basic settings for your appliance. Which settings the display shows will depend on whether Home Connect has been set up and whether the appliance is connected to your home network.
You can use the Home Connect app to start the appliance with your mobile device.
Tip: If you select "rc: 02" in the Basic settings of this function, the function is permanently activated, and you can start your appliance with a mobile device at any time.
Activating Remote Start
When you have selected "rc: 01" in the basic settings of this function, activate the function on your appliance.
Requirements
Tip: To deactivate the function, press .
The Customer Service can access your appliance via Remote Diagnostics if you ask them to do so, if your appliance is connected to the Home Connect server and if Remote Diagnostics is available in the country where you are using the appliance.
Tip: Further information and details about the availability of Remote Diagnostics in your country can be found in the Service/Support section of your local website: www.homeconnect.com.
You can use this function to update the software of your appliance, e.g. for optimization, troubleshooting or safetyrelevant updates.
The Home Connect app informs you about available software updates.
Please see the information on data protection.
The first time your appliance is registered on a home network connected to the Internet, your appliance will transmit the following types of data to the Home Connect server (initial registration):
This initial registration prepares the Home Connect functions for use and is only required when you want to use the Home Connect functions for the first time.
Note: Please note that the Home Connect functions can be utilized only with the Home Connect app. Information on data protection can be called up in the Home Connect app.
To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.
Using detergents containing chlorine may result in harm to health.
Only use suitable cleaning agents to clean your appliance.
→ "Preventing material damage"
Follow the tips on appliance care to make sure your appliance functions properly at all times.
Action | Benefit |
Regularly wipe the door seals, the front of the dishwasher and the control panel using a damp cloth and dishwashing liquid. | This ensures the parts of the appliance will remain clean and hygienic. |
If the appliance is not going to be used for a while, leave the door slightly ajar. | This will prevent unpleasant odors. |

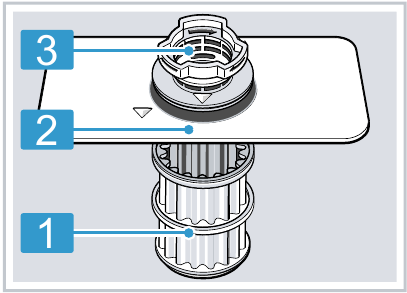

The filter system removes coarse soiling from the dishwashing cycle.

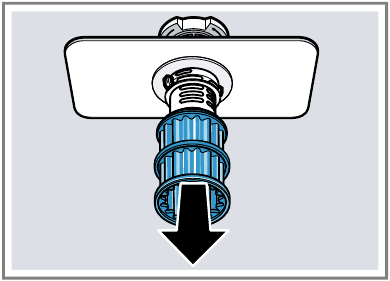

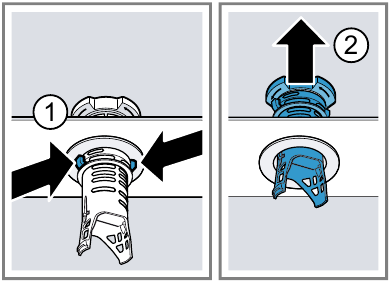

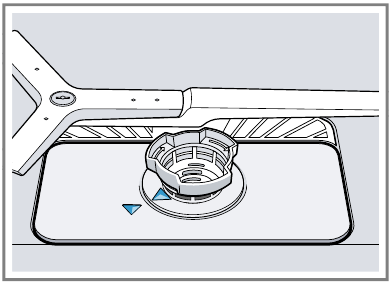

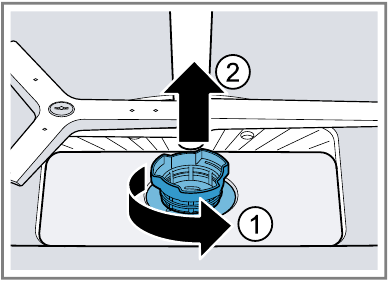

Cleaning filters
Debris in the dishwashing water may block the filters.

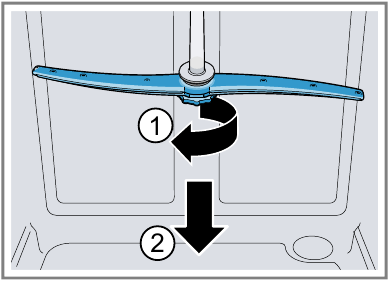

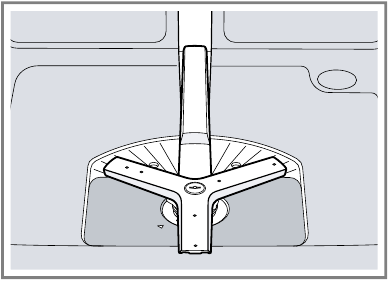

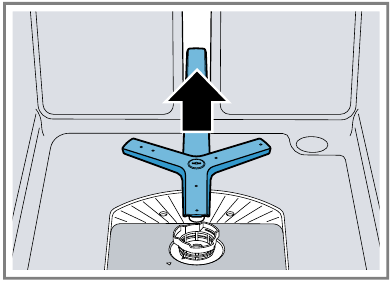

Limescale and debris in the dishwashing water may block the nozzles and bearings on the spray arms. Clean the spray arms regularly.

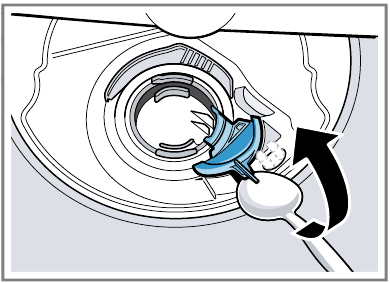

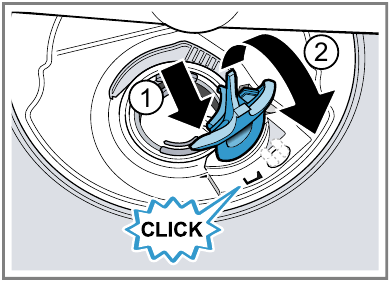

Large food remnants or foreign objects can block the drain pump. As soon as the dishwashing water no longer drains properly, the drain pump must be cleaned.
Use a sponge if necessary.
There may be some sharp debris, such as glass fragments, blocking the drain pump.
You can eliminate minor issues on your appliance yourself. Please read the information on eliminating issues before contacting Customer Service. This may avoid unnecessary repair costs.
Issue | Cause and troubleshooting |
E:20-60 lights up alternately. | Appliance has detected that the heating element is calcified.
|
E:21-30 lights up alternately. | Intake opening of Zeolith container is covered by items of dishware.
|
E:30-00 lights up alternately. | Water protection system is activated.
|
E:31-00 lights up alternately. | Water protection system is activated.
|
E:32-00 lights up alternately or indicator for water supply lights up. | Inlet hose is kinked.
|
Water faucet is turned off.
| |
Water faucet is clogged or calcified.
| |
Filters in the water connection of the supply or AquaStop hose are blocked.
| |
E:34-00 lights up alternately. | Water is continuously running into the appliance.
|
E:61-02 lights up alternately. | Not an appliance error. The drain pump cover is loose or a foreign object is blocking the pump.
|
E:61-03 lights up alternately. Water is not draining. | Not an appliance error. Garbage disposal is still plugged or the drain hose is kinked.
|
Not an appliance error. The drain pump cover is loose or a foreign object is blocking the pump.
| |
Not an appliance error. High loop is missing and/or debris flushed back into drain hose and blocked it.
| |
E:61-60 lights up alternately. | There is a technical error.
|
E:90-01 lights up alternately. | Power voltage is too low. There is no problem with the appliance.
|
E:92-10 lights up alternately. | Spray arm rotation of the lower spray arm is blocked.
|
Lower spray arm is not correctly fitted.
| |
E:92-40 lights up alternately. | Filters are soiled or blocked.
|
A different error code appears in the display window. E:01-00 to E:90-10 | There is a technical issue.
|
Dishware is not dry. | No rinse aid used or dosage set too low.
|
Cycle or cycle option has no drying phase, or drying phase is too short.
| |
Water collects in recesses of dishware or silverware. | |
Dishware is not dry. |
|
The combined detergent used has a poor drying performance.
| |
Extra Dry/intensive drying not activated to improve drying performance.
| |
Dishware removed too early or drying process not yet ended.
| |
Rinse aid used has a limited drying performance.
| |
Silverware is not dry. | Silverware not arranged properly in the silverware basket or silverware drawer. Droplets can form on the contact points of silverware.
|
Appliance interior still wet after wash cycle. | Not an error. Condensation drying creates water droplets in the tub. This is normal. Moisture in the air condenses on the inside walls of the appliance, runs off, and is pumped out. No action required. |
Food remnants on dishware. | Dishware was placed too close together or rack is overfilled.
|
Spray arm rotation of the lower spray arm is blocked.
| |
Spray arm nozzles are blocked.
| |
Filters are dirty.
| |
Filters are inserted incorrectly and/or not engaged.
| |
Selected wash cycle is too light.
| |
Dishware has been precleaned too intensively. Then the sensors choose a lighter cycle. Stubborn remnants cannot be entirely removed.
| |
Food remnants on dishware. |
|
Tall narrow containers in corner areas are not rinsed out adequately.
| |
Upper rack on right and left not set to same height.
| |
Detergent residue in the appliance | Lid of the detergent dispenser is blocked by items of dishware and will not open.
|
The lid of the detergent dispenser is blocked by the tab and will not open.
| |
Tabs are used in the quick or short cycle. There is not enough time for the tab to dissolve.
| |
Detergent may lose its cleaning or dissolving ability after being stored a long time, or the detergent is clumped together.
| |
Water spots on plastic parts. | Droplet formation on plastic surfaces is unavoidable due to the laws of physics. Water spots are visible after drying.
|
Wipeable or water-soluble coatings inside the appliance or on the door. | There is detergent residue. These coatings cannot generally be removed with chemicals.
|
There are stubborn white coatings on the dishware, inside the appliance or on the door. | There is detergent residue. These coatings cannot generally be removed with chemicals.
|
Too little detergent is being used.
| |
Selected wash cycle is too light.
| |
Tea residue or lipstick marks on dishware. | Dishwashing temperature is too low.
|
Too little detergent is being used or is unsuitable.
| |
Dishware has been precleaned too intensively. Then the sensors choose a lighter cycle. Stubborn remnants cannot be entirely removed.
| |
There are colored coatings (blue, yellow, brown) inside the appliance or on stainless steel dishware that are difficult or impossible to remove. | The formation of films is due to substances contained in vegetables (cabbage, celery, potatoes, noodles, etc.) or tap water (manganese).
|
The formation of films is due to metal components on silver or aluminum dishware.
| |
Plastic parts inside the appliance are discolored. | Plastic parts inside the appliance may become discolored over the life of the dishwasher.
|
Plastic parts are discolored. | Dishwashing temperature is too low.
|
Dishware has been precleaned too intensively. Then the sensors choose a lighter cycle. Stubborn remnants cannot be entirely removed.
| |
There are removable streaks on glasses, glassware with a metallic appearance and silverware. | Amount of rinse aid to be dispensed is set too high.
|
No rinse aid has been added.
| |
There is detergent residue in the final rinse. Lid of detergent dispenser is blocked by dishware and will not open fully.
| |
Dishware has been precleaned too intensively. Then the sensors choose a lighter cycle. Stubborn remnants cannot be entirely removed.
| |
Irreversible clouding of glassware. | Glasses are not dishwasher-proof, only suitable for dishwashers.
|
Detergent residue is present in the detergent dispenser or the tab collecting tray. | Spray arms were blocked by dishware so detergent was not rinsed out.
|
Detergent dispenser was damp when detergent was added.
| |
Excessive formation of foam occurs. | Hand soap got in the rinse aid dispenser.
|
Rinse aid has been spilled.
| |
Detergent or machine care product used causes excessive foaming.
| |
Connection to home network is not established. | WLAN on router is not active.
|
WLAN display is flashing. | Connection to home network is not available.
|
Home Connect cannot be implemented correctly. | Home Connect set incorrectly.
|
There is a technical error.
| |
Refill indicator for rinse aid lights up. | No rinse aid.
|
Refill indicator for rinse aid does not light up. | Rinse aid system is switched off.
|
All LEDs light up or flash. | Electronics have detected a fault.
|
UP appears on the display. | A software update is available.
|
Water is left in the appliance at the end of the program. | Filter system or area under the filters is blocked.
|
Program has not yet ended.
| |
Appliance cannot be switched on or operated. | Software update is taking place.
|
Appliance functions have failed.
| |
Appliance does not start. | The breaker has tripped.
|
Power cord is not inserted.
| |
Appliance door is not closed properly.
| |
Wash cycle starts up automatically. | You did not wait until the cycle ended.
|
Appliance stops during the cycle or cuts out. | Appliance door is not closed properly.
|
Power and/or water supply has been interrupted.
| |
Upper rack is pressing against inner door and preventing appliance door from being closed securely.
| |
Appliance door cannot be closed. | Door lock has been activated.
|
Door cannot be closed due to installation method.
| |
Lid on the detergent dispenser cannot be closed. | Detergent dispenser or lid are blocked by sticky detergent residue.
|
Filling valves making knocking noises. | Caused by the domestic installation. No fault present in the appliance. Does not affect functioning of the appliance.
|
Noise level varies | The noise level can vary, depending on what kind of dishes are loaded and where they are placed.
|
Spray arm is striking dishes.
| |
With a small load the water jets directly strike against the tub.
| |
Light items of dishware move about during the wash cycle.
|
1 Depending on the appliance specifications
NOTICE:
Preparing your unit for vacation
Winterizing your unit
To avoid damage to the appliance, empty it before transporting.
Note: Always transport the dishwasher upright to prevent residual water getting into the machine's controls and damaging the appliance.
With any warranty repair, we will make sure your appliance is repaired by an authorized service provider using genuine replacement parts. We use only genuine replacement parts for all repairs.
Detailed information on the warranty period and terms of warranty can be found in the Statement of Limited Product Warranty, from your retailer, or on our website.
If you contact Customer Service, you will need the model number (E-Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) of your appliance.
USA:
1-800-944-2904
www.bosch-home.com/us/owner-support/get-support
www.bosch-home.com/us/shop
CA:
1-800-944-2904
www.bosch-home.ca/en/service/get-support
www.bosch-home.ca/en/service/cleaners-and-accessories
For assistance with connecting to Home Connect, you can also view instructions here:
www.home-connect.com/us/en/help-support/set-up
Model number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.)
You can find the model number (E-Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) on the appliance's rating plate.
The rating plate is located inside the appliance door.
Making a note of your appliance's details and the Customer Service telephone number will enable you to find them again quickly.
Weight | Max.: 60 kg/132 lbs |
Voltage | 120 V, 60 Hz |
Power rating | 1440 W |
Fuse | 12 A |
Water pressure |
|
Inlet rate | Min. 2.6 gal/min |
Water temperature | Cold water. Hot water max.: 140°F/ (60°C) |
Load capacity | 16 place settings |
Information regarding Free and Open Source Software
You can request the relevant information from ossrequest@bshg.com or BSH Hausgeräte GmbH, CarlWery-Str. 34, 81739 Munich, Germany.
The source code will be made available to you on request.
Register your appliance and join the Bosch family of perks:
bosch-home.com/us/mybosch
READ AND SAVE THESE INSTRUCTIONS
Read all instructions carefully before use. These precautions will reduce the risk of electrical shock, fire and injury to persons. When using kitchen appliances, basic safety precautions must be followed including those in the following pages.
Here you can find explanations of the safety signal words used in this manual.
This indicates that death or serious injuries may occur as a result of non-observance of this warning.
This indicates that minor or moderate injuries may occur as a result of non-observance of this warning.
NOTICE:
This indicates that damage to the appliance or property may occur as a result of non-compliance with this advisory.
Note: This alerts you to important information and/or tips.
To reduce the risk of fire, electrical shock, or serious injury, observe the following.
Only use this appliance:
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
This appliance must be grounded to a metal, permanent wiring system or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the dishwasher. See the Installation Instructions included with this dishwasher for more information on electrical requirements.
Improper connection of the equipment grounding conductor can result in risk of electric shock.
Follow these safety instructions when using the appliance.
To reduce the risk of serious injury, observe the following.
Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. Hydrogen gas is explosive.
To avoid risk of electric shock, observe the following.
The blow opening of the Zeolith container becomes hot and can cause burns.
To avoid risk of injury, when loading items to be washed, observe the following.
For safe care and operation of your appliance, observe the following.
NOTICE:
Water and power shut off
Follow these safety instructions if there are children in your home.
To reduce risk of injury to children, observe the following.
This product may contain a chemical known to the State of California, which can cause cancer or reproductive harm. Therefore, the packaging of your product may bear the following label as required by California:
STATE OF CALIFORNIA PROPOSITION 65 WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
NOTICE:
Harsh chemicals such as bleach-based products can damage your dishwasher.
Certain cleaning products may damage the appliance.
Avoid stainless steel polish
Escaping water vapor can damage cabinetry.
Protect your appliance from the elements.
Special salt for dishwashers can damage the tub due to corrosion.
Detergent may damage the water softening system.
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
Advertisement
Thank you! Your question has been received!
Need Assistance?
Do you have a question about the SHP78CM5N that isn't answered in the manual? Leave your question here.
