Safety Instruction


To avoid possible electric shock or personal Injury, please observe the following specifications.

  • Before using the instrument, please read this manual carefully, and strictly follow the operation of this manual to use this instrument, otherwise the protection function provided by the instrument may be damaged or weakened.
  • Please be careful when measuring in excess of 60 VDC. Since such voltage may cause the risk of electric shock.
  • Do not measure voltage higher than the rated value between terminals or between terminals and ground.
  • Check if the instrument is working properly by measuring the known voltage. Do not use if it is abnormal or damaged.
  • Before using the instrument, please check whether there is a crack in the instrument case or damaged plastic parts, if there is please do not use it.
  • Please use the instrument according to the measurement category and voltage rating specified in the instrument or manual.
  • Please observe local safety regulations. Wear personal protective equipment (such as approved rubber gloves, masks, and fire-retardant clothing) to prevent electrical shock and arc injuries when dangerous live conductors are exposed.
  • When low battery indicator appears, please replace the battery in time to avoid measurement error.
  • Do not use the instrument in the presence of explosive gas or steam or in a humid environment.
  • Do not use the meter when the meter is removed or the battery cover is opened.

The Meter Structure

Overview

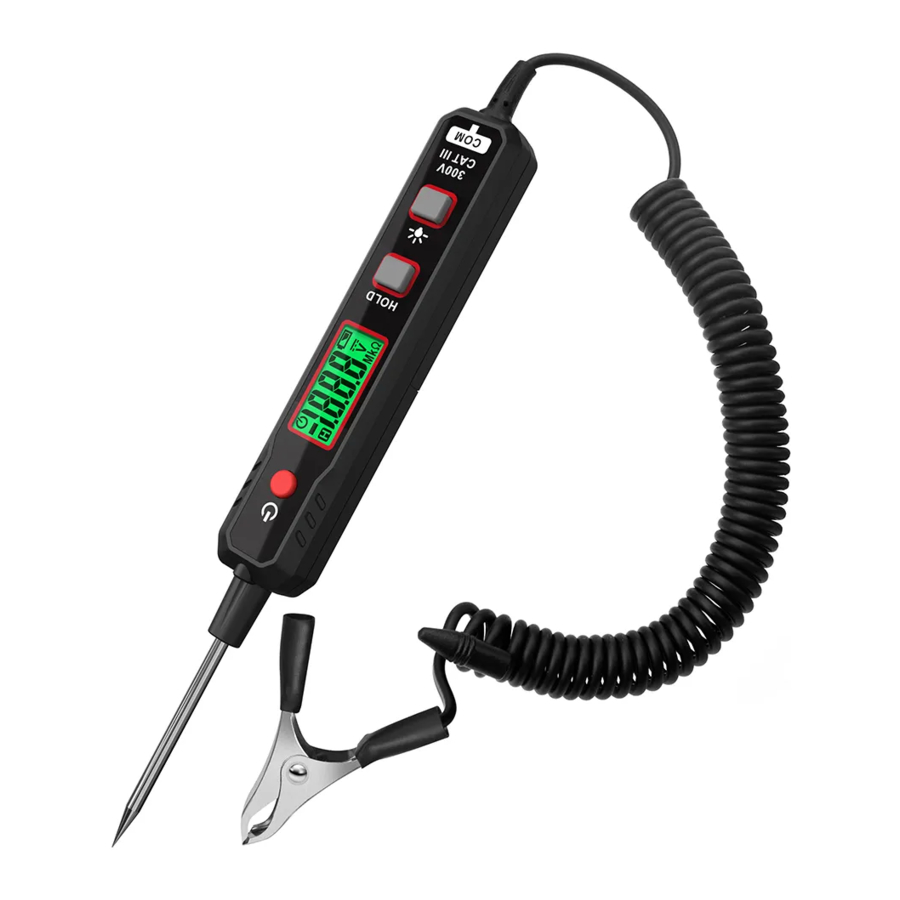

  1. Positive probe
  2. Flashlight
  3. Power button
  4. LCD display
  5. Hold button
  6. Light/Backlight button
  7. Negative clamp

Measurement Operation

Power On/Off
Press the power button for about 2 seconds to turn on or off the tester.

Data Hold
Short press the HOLD button to lock and release the data.

Flashlight
Press the Light/Backlight button for about 2 seconds to turn on or off the light.

Backlight
Short press the Light/Backlight button to turn on or off the backlight.

Auto Power Off

  • The instrument will automatically shut down without any operation in 15 minutes.
  • Hold down the Light/Backlight button and turn on the instrument power, it will cancel the Auto Power Off function. Restart, the instrument will resume the function.

Smart Measurement Mode

This measurement mode is enabled by default when turning on the instrument. In this mode, DC voltage, resistance, and on-off can
be measured, and the measuring signal can be recognized automatically.

  1. Press the power button to turn on the instrument, the display will show "---", and enter into the smart measurement mode.
  2. The meter will automatically recognize the measured signal by touching the probe to the power supply or the resistance.
  3. When the resistance is measured, resistance< 50Ω, the buzzer sounds.
  4. Read the measurement results from the display screen.

Note: minimum discernible voltage in this mode is 0.8V

  • Do not measure voltage above 110V, or the instrument will be damaged.
  • Pay special attention to safety when measuring high voltage to avoid electric shock or personal injury.
  • Before use, test the known voltage with the instrument and confirm that the instrument functions properly.

Note: when the measuring circuit is on or off, the reading may be affected by other circuits between the meter and pen.

General Technical Specifications

General Technical Specifications

Accuracy Specifications

Benchmark conditions: Ambient temperature 18°C to 28°C, Humidity ≤80%
Accuracy: ±(%+5 )

DC voltage

DC voltage

Resistance

Resistance

Continuity

Continuity

Maintenance

Clean:
Stop measuring and turn off instrument power. Wipe the case with a damp cloth or mild detergent. Do not use abrasives or solvents.


Please keep the inside of the instrument clean and dry at all times to prevent electric shock or damage to the instrument.

Replace the battery:

  1. Turn off the power.
  2. Use a screwdriver to unscrew the battery cover and remove it.
  3. Remove the old battery and replace it with a new one of the same size. Please note the polarity of the battery. There is a positive and negative polarity mark for each battery in the battery case.
  4. Put the battery cover back in its original position and lock the battery cover with screws.

  • To avoid incorrect readings that may result in shock or personal injury, replace the battery immediately if it is low. Do not short-circuit or reverse the polarity of the battery to make the battery discharge.
  • In order to ensure safe operation and maintenance of the instrument, when long-term unused, please remove the battery, in order to prevent battery leakage caused by damage to the product.
