KAIWEETS VT500 - Voltage Tester Manual

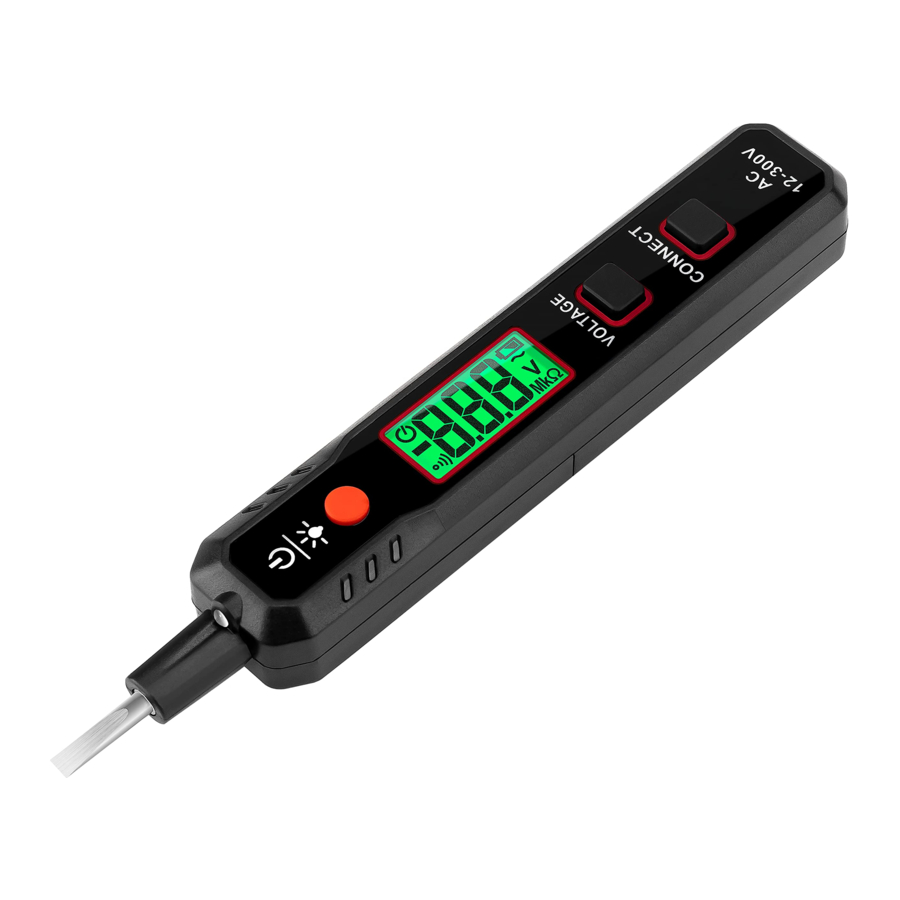

The Meter Structure

The Meter Structure

  1. Probe (NCV Sensor)
  2. Flashlight
  3. Power / Light Button
  4. LCD Screen
  5. AC Voltage Test Button
  6. Continuity / Polarity Test Button

Operation Description

Power On/ Off


Press the power button for more than 1 second to turn on the tester and turn it off in the same way.

Flashlight


When the tester is on, press the key to turn on the flashlight; when the flashlight is on, press again to tum it off.

Auto Shut-off

The voltage tester would be automatically powered off after being in 5 mins of inactive status.

Inductive Measuring Mode

When the probe is placed close to the AC voltage, the buzzer sounds and the voltage level will show an display. The higher the voltage, the more rapid the buzzer sounds. Likewise, "HI" on the display indicates high voltage. "U" indicates low voltage. With this function, you can differentiate between Null and Live wires, or find the breakpoint of the wire.

AC Voltage Detection


When the tester is on, press the button to enter AC voltage testing mode. The screen displays the AC voltage reading when the test probe contacts an AC voltage source. This function can also detect AC voltage and distinguish zero and live wires according to the voltage.

Continuity Detection


When the tester is on, press the button with the right hand, and hold one end of the uncharged wire with the left hand while contacting the other end of the wire with the test probe. If the wire is connected correctly, the screen will display "--C" and a buzzer sounds, if the wire is open, the test pen does not respond.

Battery Polarity Detection


When the tester is on, press and hold the button while touching the test probe to the positive terminal, the other hand press and hold the negative terminal. If the polarity is correct, the screen displays "— — P" and the buzzer sounds. If it is reversely connected, the test pan does not respond.

warning Note: In general, when the backlight turns red, it indicates that the object under test may be dangerous and should be operated carefully.

  • Different or irregular structures of socket would possibly result in wires not being identified as either live or null wires. In that case, the operator can instead switch to "AC Voltage Detection" mode to help identify wires according to their voltage reading.
  • If live and null wires are positionally too close, separate them from each other as far as possible for accurate detection. If it is impossible to do that distinguish them based on the indication from the buzzer and the display. It should be live wire when the buzzer sounds at the highest frequency and the screen displays the symbol '"HI".
  • As the voltage detector requires human contact to form a circuit, please ensure that the operator touches buttons on the product well.

Low Battery Indication

When the battery voltage is running low, the screen displays symbol "" for suggesting the operator to replace the battery

Battery Replacement

Battery Replacement
Push off the battery cover as shown at right and replace the used battery with a new one, following the battery polarity sign.

warning Note: Before locking, do not use the tester to test electricity in case of electric shock.

Technical specifications

AC Voltage: 12~300V, 50/60HZ
Measurement error: ± (5%+3)
Operating temperature: 0~400C
Storage temperature: -10~40 0C
Humidity: ≤95%
Altitude: ≤2000m
Safety Compliance: CAT.ll 300V
Battery: 1 x 1 1.5V AAA

Cleaning

Clean the voltage tester with a wet cloth. Make sure that the device is completely dry before use.

Three years warranty

It is guaranteed that all KAIWEETS products come with three years warranty from the date of purchase.

UK Authorized Representative
Company name: YH Consulting Limited
Address: C/O YH Consulting Limited Office 147.
Centurion House, Landen Road, Staines-upan
Tharnes Staines. Surrey, London. TWIS 4AX
Tel: +44 07514-677868
Email: H2YHUK@gmaiI.com

Safety Instruction

To avoid possible electric shock or physical injury, please be fully aware of the following statements:

  • The protection mechanism will be ineffective if the operator fails to use the product with manual instructions.
  • Please test on a known live power supply to ensure that the detector is in good condition before use.
  • Do not use the product if it is damaged or does not work properly. If any problem about the product arise, please send it for repair in time.
  • Do not apply the product to an object with voltage over its testing range.
  • Users should be extremely careful when testing voltage>30v, since such voltage may cause the risk of electric shock.
  • Comply with local end national safety regulations, end use appropriate protective equipment as required by local of national authorities.

Customer Service: Support@kaiweets.com
