ManoMano STAR WARS R2D2 Assembly Instructions Manual

Wall shelf

Assembly Instructions

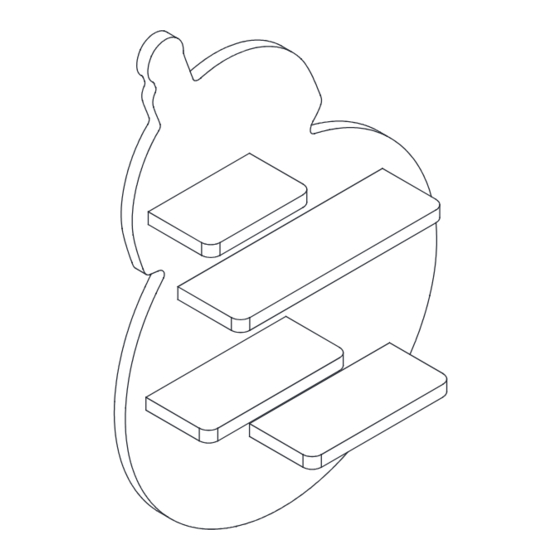

R2D2 Wall Shelf

521486

336mm

80mm

1 - 8

2023-08-29

Table of Contents

Need help?

Do you have a question about the STAR WARS R2D2 and is the answer not in the manual?

Page 1 Assembly Instructions R2D2 Wall Shelf 521486 336mm 80mm 1 - 8 2023-08-29...
Page 2 IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Assembly to be carried out by a competent adult only. During assembly children should be kept away from the product due to the possible risk of injury. Do not use the furniture if any part is broken, torn or missing and use only spare parts approved by the manufacturer.
Page 3 PARTS LIST HARDWARE LIST A x 8 B x8 C x 2 D x 4 6 x 40 mm 10 x 10 mm 3 x 10 mm φ25mm 3 -8...
Page 4 C x 2 D x 4 A x 2 B x2 4 - 8...
Page 5 A x 2 B x2 A x 2 B x 2 5 - 8...
Page 6 A x 2 B x 2 6 - 8...
Page 7 As wall materials vary, screws for fixing to wall are not included. Please contact your DIY or hardware store for advice on the correct type of screws/rawl plugs for your type of wall. 7 - 8...
Page 8 Sourcebynet UK Limited Unit 8, Nine Bridges, Vanguard Way, Battlefield Enterprise Park, Shrewsbury, 8 - 8 SY1 3TG, UK...
