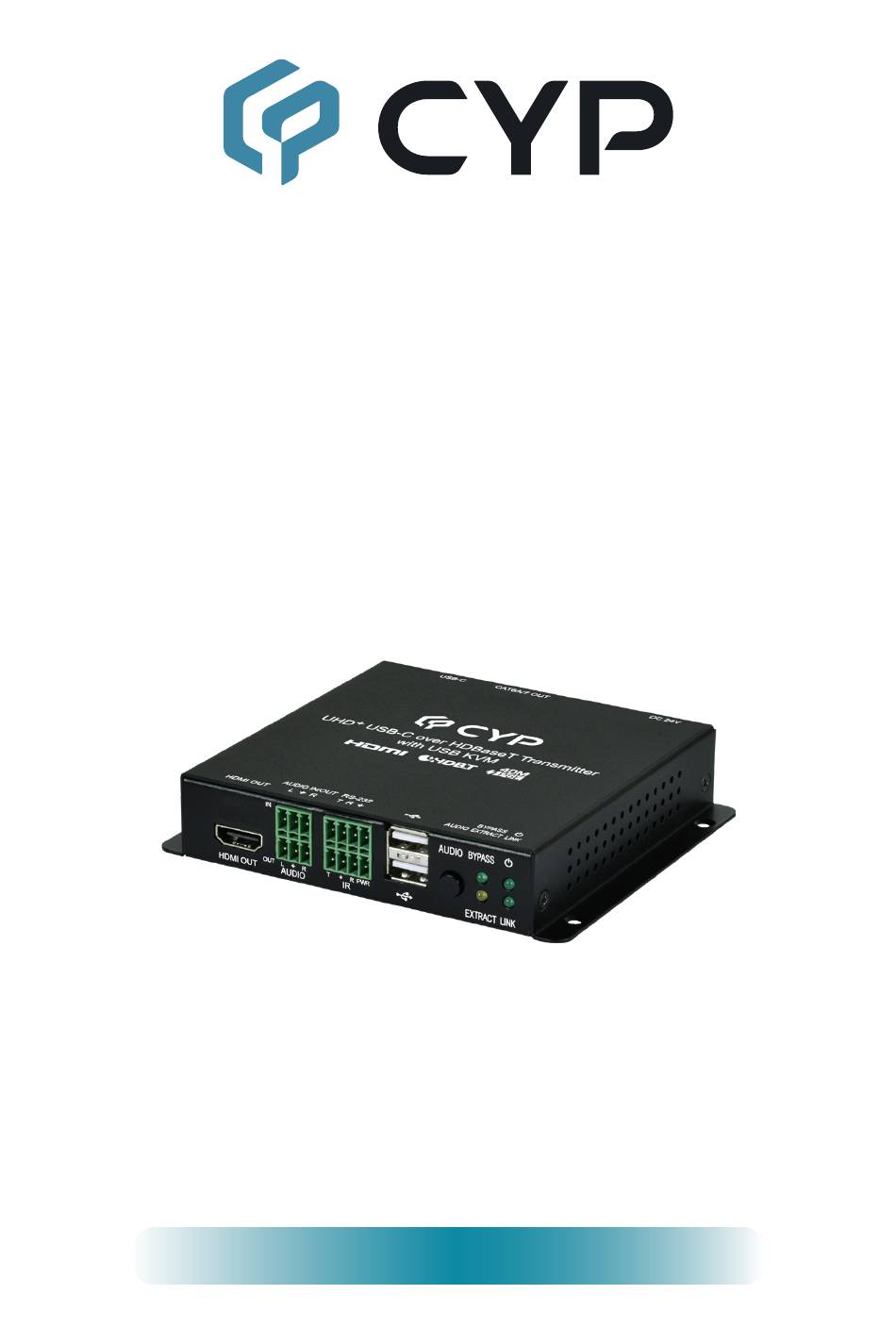

- Page 1 VEX-E2502T USB-C over HDBaseT Transmitter with USB KVM Operation Manual Operation Manual...
- Page 3 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document. Cypress Technology reserves the right to make improvements to this document and/or product at any time and without notice.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications ............. 1 3. Package Contents ........... 1 4. System Requirements ........1 5. Features............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel........... 4 6.3 IR Cable Pinouts.......... 5 6.4 Serial Pinout .......... -
Page 6: Introduction
1. INTRODUCTION This 4K UHD USB-C over HDBaseT transmitter uses HDBaseT 3.0, the newest generation of HDBaseT technology, and is the perfect solution for extending full bandwidth (18Gbps, 4K@60Hz 4:4:4) video signals with HD audio via a single run of Cat.6A/7 cable over distances of up to 40 meters. -
Page 7: Features
5. FEATURES • USB-C (USB 3.0) video compatible • HDMI 2.0 and DVI 1.0 compatible • HDCP 2.2 and HDCP 1.x compliant • HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0) • 1 USB-C input • 1 HDBaseT and 1 HDMI output •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel AUDIO BYPASS R PWR EXTRACT LINK HDMI OUT AUDIO HDMI OUT port: Connect to an HDMI TV, monitor, or amplifier for digital video and audio output. AUDIO IN 3-pin Terminal Block: Connect to the analog audio output of a device such as a media player or game console using a 3-pin adapter cable. -
Page 9: Rear Panel
BYPASS & EXTRACT LEDs: These LEDs will illuminate to indicate if the unit is in audio bypass (receiver’s analog audio input) or extract mode (USB-C input). POWER LED: This LED will illuminate to indicate the unit is on and receiving power. LINK LED: This LED will illuminate solidly when a live connection with a compatible receiver is active. -
Page 10: Ir Cable Pinouts
6.3 IR Cable Pinouts IR Blaster + IR Extender 4-pin Terminal Block 3.3V 6.4 Serial Pinout 4-pin Terminal Block 6.5 Audio Pinouts Stereo Audio Input Stereo Audio Output 3-pin Terminal Block 3-pin Terminal Block RIGHT RIGHT LEFT LEFT... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM Tower PC Local Monitor 60° 1.5m 60° RS-232 USB-C IR Input & Output HDMI Output AUDIO BYPASS R PWR Power EXTRACT LINK HDMI OUT AUDIO Supply USB-C DC24V CAT6A/7 OUT IR Input & AUDIO BYPASS Output R PWR AUDIO EXTRACT LINK CAT6A/7 IN... -
Page 12: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps USB-C Bandwidth 32.40Gbps (DisplayPort 1.4a compliant) HDBaseT Bandwidth 16Gbps Input Ports 1×USB 3.0 (Type-C) 1×Analog Stereo (3-pin Terminal Block) Output Ports 1×HDMI (Type-A) 1×HDBaseT (RJ-45) 1×Analog Stereo (3-pin Terminal Block) Pass-through Ports 1×IR In/Out (4-pin Terminal Block) 1×RS-232 (4-pin Terminal Block) 2×USB 2.0 (Type-A) -
Page 13: Video Specifications
8.2 Video Specifications Input Output Supported Resolutions (Hz) USB-C HDMI HDBT 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600p@56/60/72/75/85 848×480p@60 ... - Page 14 Input Output Supported Resolutions (Hz) USB-C HDMI HDBT 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 3840×2160p@24/25/30 3840×2160p@50/60 (4:2:0) 3840×2160p@24, HDR10 3840×2160p@50/60 (4:2:0), HDR10 ...
-
Page 15: Audio Specifications
8.3 Audio Specifications 8.3.1 Digital Audio USB-C Input / HDMI & HDBaseT Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard & High-Definition 8.3.2 Analog Audio Analog Input Max Audio Level 2Vrms Impedance 90.2kΩ... -
Page 16: Cable Specifications
8.4 Cable Specifications Cable Length High Speed HDMI Cable HDMI Output USB-C Cable USB-C Input Ethernet Cable Cat.5e/6 Cat.6A/7 Bandwidth Category Examples: • HD Video - 720p@60Hz - HDMI transmission rates lower than 3Gbps • FHD Video - 1080p@60Hz - HDMI transmission rates between 3Gbps and 5.3Gbps •... -
Page 17: Hdbaset Features
8.5 HDBaseT Features HDBaseT Feature Set Transmitter Video & Audio Extension Supported LAN Extension Unsupported Send power to Receiver Supported (PoH) Accept power from Receiver Unsupported IR Extension Supported RS-232 Extension Supported USB 2.0 Extension Supported... -
Page 18: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 4K UHD 4K Ultra-High-Definition (10.2Gbps max) 4K UHD 4K Ultra-High-Definition (18Gbps max) 8K UHD 8K Ultra-High-Definition (48Gbps max, without DSC) 8K UHD 8K Ultra-High-Definition (48Gbps max, with DSC) Analog-to-Digital Converter ASCII American Standard Code for Information Interchange Cat.5e Enhanced Category 5 cable Cat.6... - Page 19 ACRONYM COMPLETE TERM Power Sourcing Equipment Signal-to-Noise Ratio Transmission Control Protocol THD+N Total Harmonic Distortion plus Noise TMDS Transition-Minimized Differential Signaling Universal Serial Bus Video Graphics Array WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduced Blanking) Extended Graphics Array Ω...
- Page 20 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
