Summary of Contents for Cypress CA-HDMIAT

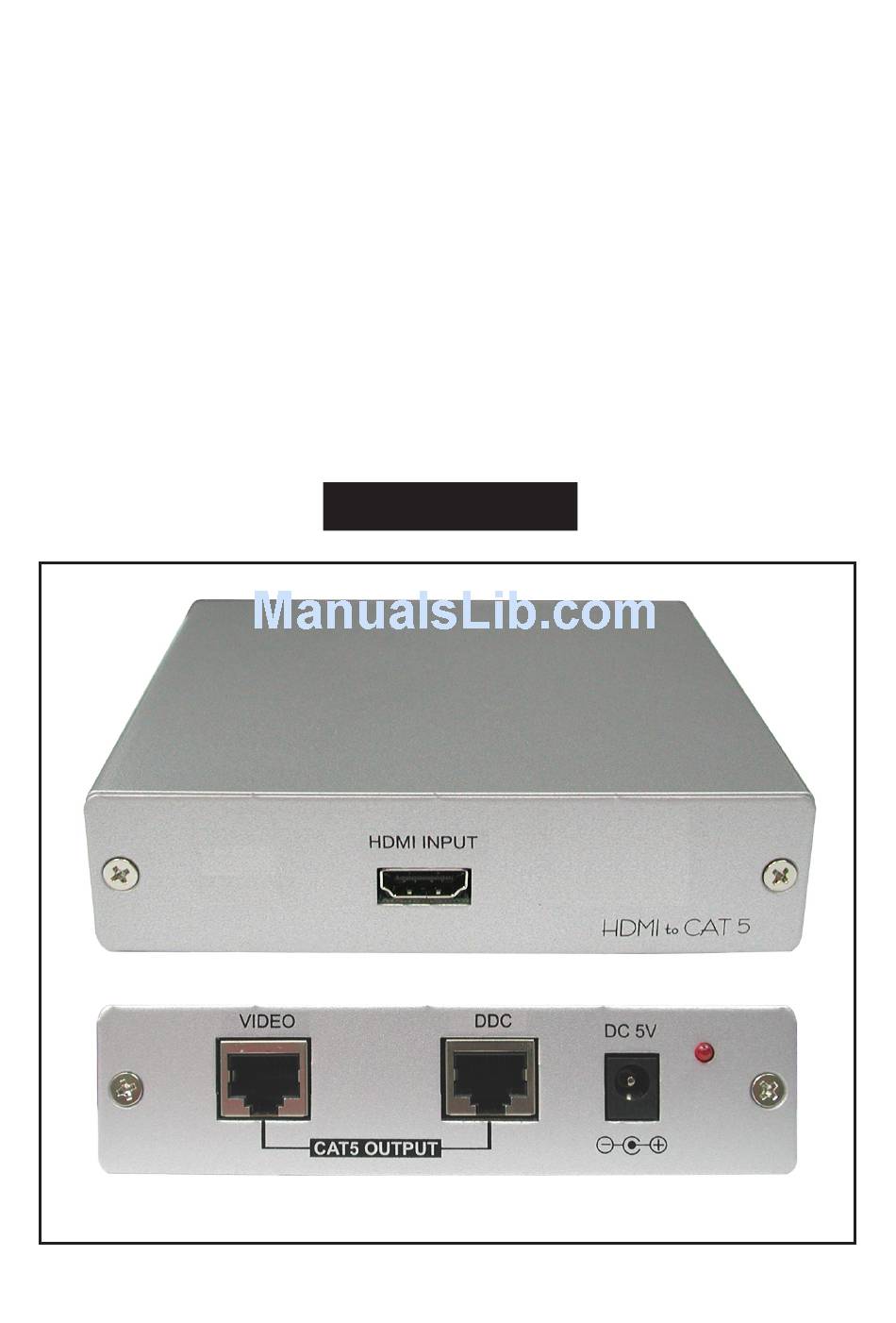

- Page 1 HDMI Over CAT5 Transmitter Operation Manual CA-HDMIAT...
- Page 2 Cypress also makes no commitment to update or to keep current the information contained in this document. Cypress Technology reserves the right to make improvements to this document and/or product at any time and without notice. Copyright Notice...
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Features …………………..………………….……....….. Package Contents ………………………...………....… Specifications ……………..………..………......……. Operation Controls and Functions ……………...……....…… Front Panel ................Rear Panel .…………………………………..……..…...….… Connection and Installation ….…………………..…..…..…..Acronyms ….................. -
Page 5: Introduction
1. Introduction This is the transmitter (Tx) unit of HDMI over CAT5 Tx/Rx solution, depends on the type of receiver (Rx) unit used, this HDMI over CAT5 transmitter can extend HDMI signal through CAT-5 cables for a distance up to 50/100/150/250 meters. -
Page 6: Specifications
4. Specifications Supported resolutions HDMI - 480i/480p, 576i/576p, 720P@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz Input 1 x HDMI female port Output 1 x CAT-5 output for VIDEO, 1 x CAT-5 output for DDC Power 5V / 2.6A DC power supply Dimensions 123(W) x 125(D) x 30(H)mm Weight 700g... -
Page 7: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Front Panel HDMI INPUT ① ① HDMI INPUT: Connect the HDMI input port to the HDMI or DVI output of your source equipment such as DVD player or set-top-box. 5.2 Rear Panel VIDEO DC 5V CAT5 OUTPUT ①... -
Page 8: Connection And Installation
6. Connection and Installation DVD Player HDMI HDMI Cable Cable VIDEO (CAT-5 Cable) DDC (CAT-5 Cable) VIDEO DC 5V HDMI INPUT CAT5 OUTPUT Transmitter unit Transmitter unit Front Rear 50 Meters 100 Meters 150 Meters 250 Meters VIDEO DC 5V EQUALIZER GAIN HDMI OUTPUT... -
Page 9: Acronyms
Acronyms Acronym Complete Term... - Page 12 HDMI Over CAT5 Receiver at 50 meters CA-HDMI 100R HDMI Over CAT5 Receiver at 100 meters CA-HDMI 150R HDMI Over CAT5 Receiver at 150 meters CA-HDMI 250R HDMI Over CAT5 Receiver at 250 meters CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20070727 MPM-CAHDMIAT...
