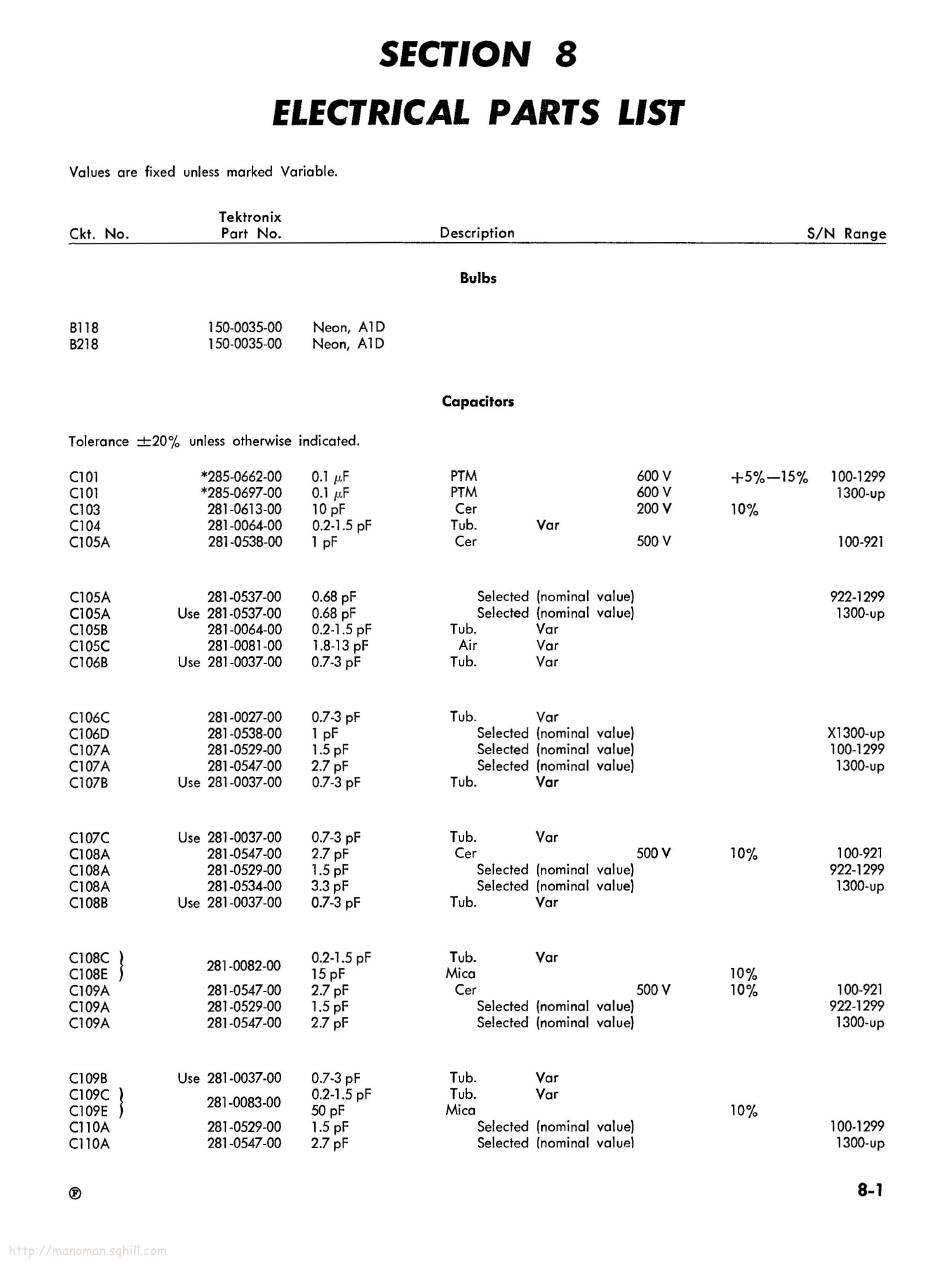

SECTION 8
ELECTRICAL PARTS LIST
Values are fixed unless marked Variable.
Tektronix
Ckt. No. Part No. Description S/N Range
Bulbs
Bi18 150-0035-00 Neon, A1D
B218 150-0035-00 Neon, A1D
Capacifors
Tolerance +20% unless otherwise indicated.
C101 *285-0662-00 0.1 pF PTM 600 V +5%—15% 100-1299
C101 *285-0697-00 0.1 pF PTM 600 V 1300-up
C103 281 -0613-00 10 pF Cer 200 V 10%
C104 281 -0064-00 0.2-1.5 pF Tub. Var
C105A 281 -0538-00 1 pF Cer 500 V 100-921
C105A 281 -0537-00 0.68 pF Selected {nominal value) 922-1299
C105A Use 281-0537-00 0.68 pF Selected (nominal value) 1300-up
C105B 281 -0064-00 0.2-1.5 pF Tub. Var
C105C 281-0081-00 1.8-13 pF Air Var
C106B Use 281-0037-00 0.7-3 pF Tub. Var
C106C 281-0027-00 0.7-3 pF Tub. Var
C106D 281 -0538-00 1 pF Selected (nominal value} X1300-up
C107A 281 -0529-00 1.5 pF Selected (nominal value) 100-1299
CI07A 281-0547-00 2.7 pF Selected (nominal value) 1300-up
C107B Use 281-0037-00 0.7-3 pF Tub. Var
C107C Use 281-0037-00 0.7-3 pF Tub. Var
C108A 281-0547-00 2.7 pF Cer 500 V 10% 100-921
C108A 281 -0529-00 1.5 pF Selected (nominal value) 922-1299
C108A 281 -0534-00 3.3 pF Selected (nominal value) 1300-up
C108B Use 281-0037-00 0.7-3 pF Tub. Var
C108C 0.2-1.5 pF Tub. Var
C108E 281-008200 15 pF Mica 10%
C109A 281-0547-00 2.7 pF Cer 500 V 10% 100-921
C109A 281 -0529-00 1.5 pF Selected (nominal value} 922-1299
CI09A 281-0547-00 2.7 pF Selected (nominal value) 1300-up
C109B Use 281-0037-00 0.7-3 pF Tub. Var
C109C 0.2-1.5 pF Tub. Var
C109E 281-0083-00 50 pF Mica 10%
C110A 281-0529-00 1.5 pF Selected (nominal value] 100-1299
C110A 281 -0547-00 2.7 pF Selected (nominal value) 1300-up
®
8-1
