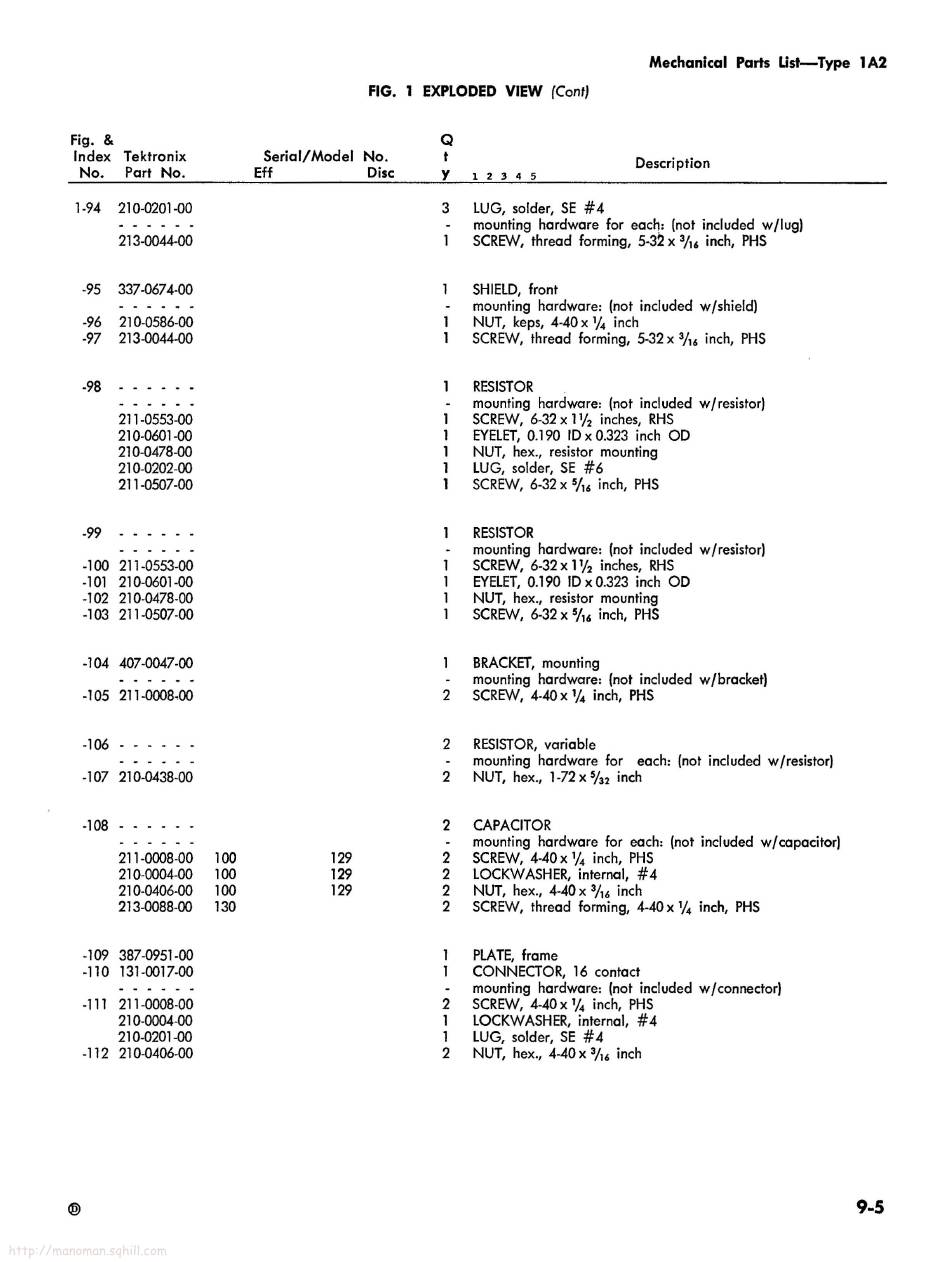

Mechanical Parts List—Type 1A2
FIG. 1 EXPLODED VIEW (Cont)
Fig. & Q
Index Tektronix Serial/Model No. t gs
No. Part No. Eff Disc Y 12345 Description
1-94 210-0201-00 3 LUG, solder, SE #4
eee eee - mounting hardware for each: (not included w/lug)
213-0044-00 1 SCREW, thread forming, 5-32 x 344 inch, PHS
-95 337-0674-00 1 SHIELD, front
cette - mounting hardware: (not included w/shield)
-96 210-0586-00 1 NUT, keps, 4-40 x Y% inch
-97 213-0044-00 1 SCREW, thread forming, 5-32 x 3/,¢ inch, PHS
98 ------ 1 RESISTOR
wee eee - mounting hardware: (not included w/resistor)
211-0553-00 1 SCREW, 6-32x 1, inches, RHS
210-0601-00 1 EYELET, 0.190 ID x 0.323 inch OD
210-0478-00 1 NUT, hex., resistor mounting
210-0202-00 1 LUG, solder, SE #6
211-0507-00 1 SCREW, 6-32 x 5/44 inch, PHS
99 ------ 1 RESISTOR
cee eee - mounting hardware: (not included w/resistor)
-100 211-0553-00 1 SCREW, 6-32x 11 inches, RHS
-101 210-0601-00 1 EYELET, 0.190 1D x 0.323 inch OD
-102 210-0478-00 1 NUT, hex., resistor mounting
-103 211-0507-00 1 SCREW, 6-32 x 5/4 inch, PHS
-104 407-0047-00 1 BRACKET, mounting
cee eee - mounting hardware: (not included w/brackef)
-105 211-0008-00 2 SCREW, 4-40x 4 inch, PHS
106 ------ 2 RESISTOR, variable
cee eee - mounting hardware for each: (not included w/resistor}
-107 210-0438-00 2 NUT, hex., 1-72 x 5/32 inch
108 ------ 2 CAPACITOR
eet eee - mounting hardware for each: (not included w/capacitor]
211-0008-00 100 129 2 SCREW, 4-40x ¥, inch, PHS
210-0004-00 100 129 2 LOCKWASHER, internal, #4
210-0406-00 100 129 2 NUT, hex., 4-40 x 3/4 inch
213-0088-00 130 2 SCREW, thread forming, 4-40 x 1, inch, PHS
-109 387-0951-00 1 PLATE, frame
-110 131-0017-00 1 CONNECTOR, 16 contact
cee eee - mounting hardware: (not included w/connector)
-111 211-0008-00 2 SCREW, 4-40x 1, inch, PHS
210-0004-00 1 LOCKWASHER, internal, #4
210-0201-00 1 LUG, solder, SE #4
-112 210-0406-00 2 NUT, hex., 4-40 x 34, inch
