Sealey SA200T.V2 Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instruction
manual
1. SAFETY
Ensure the compressor tank is in a good condition before use. If in any doubt do not use the tank and contact a service agent.
9
Locate the compressor tank in a well ventilated area, away from heat sources, corrosives and inflammable materials.
9
Ensure the compressor tank is placed on a firm, level surface.
9
WARNING! DO NOT tamper with, or attempt to adjust, the safety valve.
‰
Before moving, or working on, the compressor tank, ensure that all tank pressure has been vented.
9
Use only authorised attachments and parts. Unauthorised items may be dangerous and will invalidate the warranty.
9
Ensure the air supply valve is turned off before disconnecting the air supply hose.
9
Ensure air hoses are not tangled, twisted or pinched.
9
Keep children and unauthorised persons away from the working area.
9
Read the instructions relating to any accessory to be used with this compressor tank.
9
Ensure the safe working pressure of any air appliance used exceeds the compressor tanks output pressure. If using a spray gun, check
9
that the area selected for spraying is provided with an air change system/ventilation.
DO NOT install the compressor tank outdoors, or in a damp, or wet location.
8
DO NOT use the compressor tank to perform a task for which it is not designed to do.
8
DO NOT deface, or remove, the certification plate attached to the compressor tank.
8
WARNING! DO NOT direct the compressed air output towards people or animals.
‰
WARNING! The compressor tank is a pressure vessel and the following safety measures apply:
‰
DO NOT use the compressor tank without the safety valve fitted.
8
DO NOT tamper with the safety valve, DO NOT modify or alter the compressor tank in any way and DO NOT strap anything to it.
8
DO NOT subject the compressor tank to impact, vibration or heat and DO NOT allow contact with abrasives or corrosives.
8
Drain condensation from compressor tank daily, and have a detailed inspection carried out annually. The compressor tank shell must not
9
fall below the certified thickness at any point.
Keep tools and other items away from the compressor tank when it is in use, and keep area clean and clear of unnecessary items.
9
When not in use for a prolonged period, and if possible, store the compressor carefully in a safe, dry, childproof location.
9
WARNING! The warnings, cautions and instructions referred to in this manual cannot cover all possible conditions and situations that
‰
may occur. It must be understood that common sense and caution are factors which cannot be built into this product, but must be applied
by the operator.
2. INTRODUCTION
Compressed air receiver manufactured to meet Pressure Vessel Directive and supplied with test certificate. Includes fitting kit,
safety valve, gauge and drain valve (hose not included). Can also be used in conjunction with other Sealey compressors.
3. SPECIFICATION
Model No: ...................................................... SA200T.V2
Dimensions (Height x Diameter): ..........1554 x Ø446mm
Receiver Capacity: .................................................. 200L
4. CONTENTS
• Pressure Gauge
• Safety Valve, 11 bar
• Valve, 1/2" (x2)
• Valve, 1/4"
• 2"M -1/2"F Fitting (x2)
• 3/8"M -1/4"F Fitting
• 1"M - 3/4"F Fitting (x2)
• 3/4"M -1/2"F Fitting
• 3/4"M -1/4"F Fitting
• 1/2"M -3/8"F Fitting
© Jack Sealey Limited

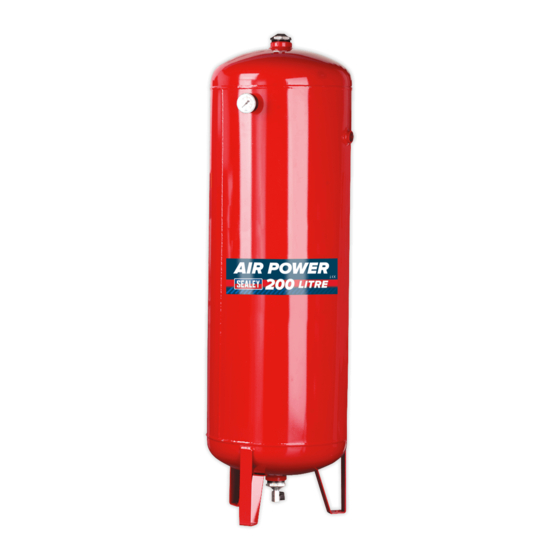

200L VERTICAL AIR COMPRESSOR TANK
SA200T.V2
MODEL NO:
Original Language Version
SA200T.V2 Issue: 2 03/07/23
