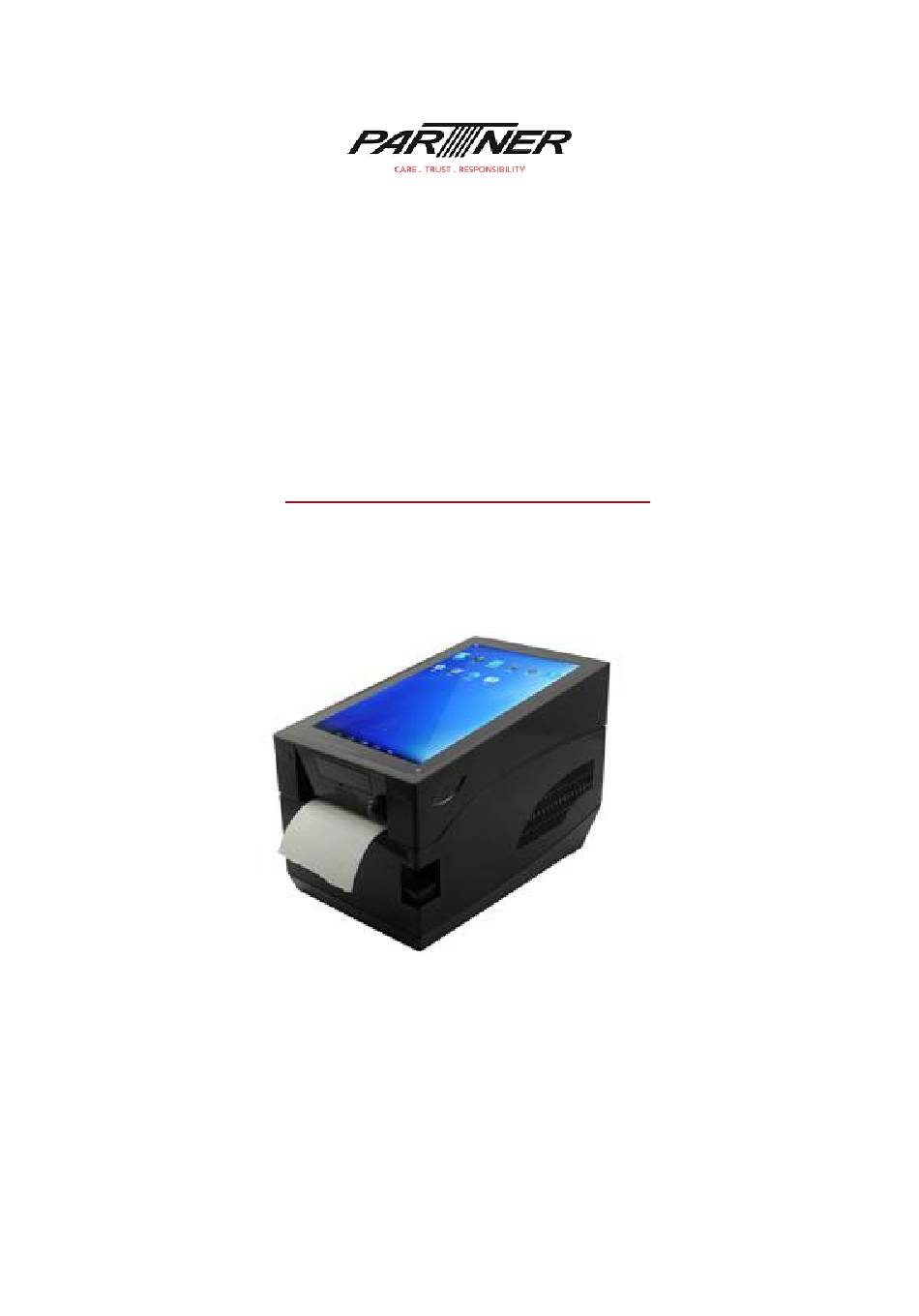

- Page 1 LP-9300 Android Label & Receipt Terminal User Manual Specification is subject of change without prior notice.
- Page 2 LP-9300 Manual 1. Product information Thanks for choosing our LP-9300, please read this manual carefully for correct operation of this device. This smart printer has been integrated Android operation system, no need to connect computer. You can operate this device as easily as operate your smart phone.
- Page 3 LP-9300 Manual 2. Main Features . Support 20~80mm width thermal paper roll and label. . Print head pressure adjustable, label and paper automatic recognition & calibration. . Standard interface: 4xUSB+ 1xEthernet+1xCash drawer+1xPower . Integrated Wi-Fi, Bluetooth, support cash drawer connection, 3G module optional .
-
Page 4: Ethernet Port
LP-9300 Manual USB ports Ethernet Cashdrawer Power Power in on/off 7. Power port 8. Cash drawer port 9. Ethernet port 10. USB port Remark : Left top USB port is for computer connection to set up printer parameters when necessary. - Page 5 LP-9300 Manual 4.2 Paper Paper type Thermal paper roll, adhesive thermal label roll( continuous type or with gap ) Paper width 20mm~80mm Paper diameter 100mm max. 4.3 Printer Print method Direct thermal printing Resolution 203DPI Print speed 101mm/s normal; 127mm/s max；...
- Page 6 LP-9300 Manual 5、Cable connection When you open the product package, please check if you get DC24V power adapter, and connect cables correctly with each port. Note: 4 USB ports，support hot plug, one is for computer to connect to do printer setting, others can be connected by mouse, keyboard and scanner.
- Page 7 LP-9300 Manual ⑤ Choose model LP-9300 (GP-93i)，choose Port and click Connect, then top right corner will be updated and show connection status. ⑥ Click “Print test” button to printer. 6.3 Screen unlocks / wakes up Slide to unlock to enter home screen....
- Page 8 LP-9300 Manual Can choose WCDMA 3G card to connect to network. Can click “set” in home screen to make WLAN connection settings Choose 3G, Wi-Fi or Ethernet connecting way, any one of them is OK. 6.5 Browser After network connected, you can input web address to check network information.
- Page 9 LP-9300 Manual Note：During OTA remote upgrading, do not cut off the power, otherwise your printer can not be used. 6.10 Power off When screen is lighted, go back to home screen, long-press tablet red button, and select the right option in the list showing in the screen....
- Page 10 (5) Open the equipment without our approval to cause the problem. (6) The problem caused by the force majeure. Partner Tech Fasanenweg 25, 22145 Hamburg T. +49 40 450 635 0 F. +49 40 450 635 202 Mail:support@partner-tech.eu Android Label & Receipt Terminal...
