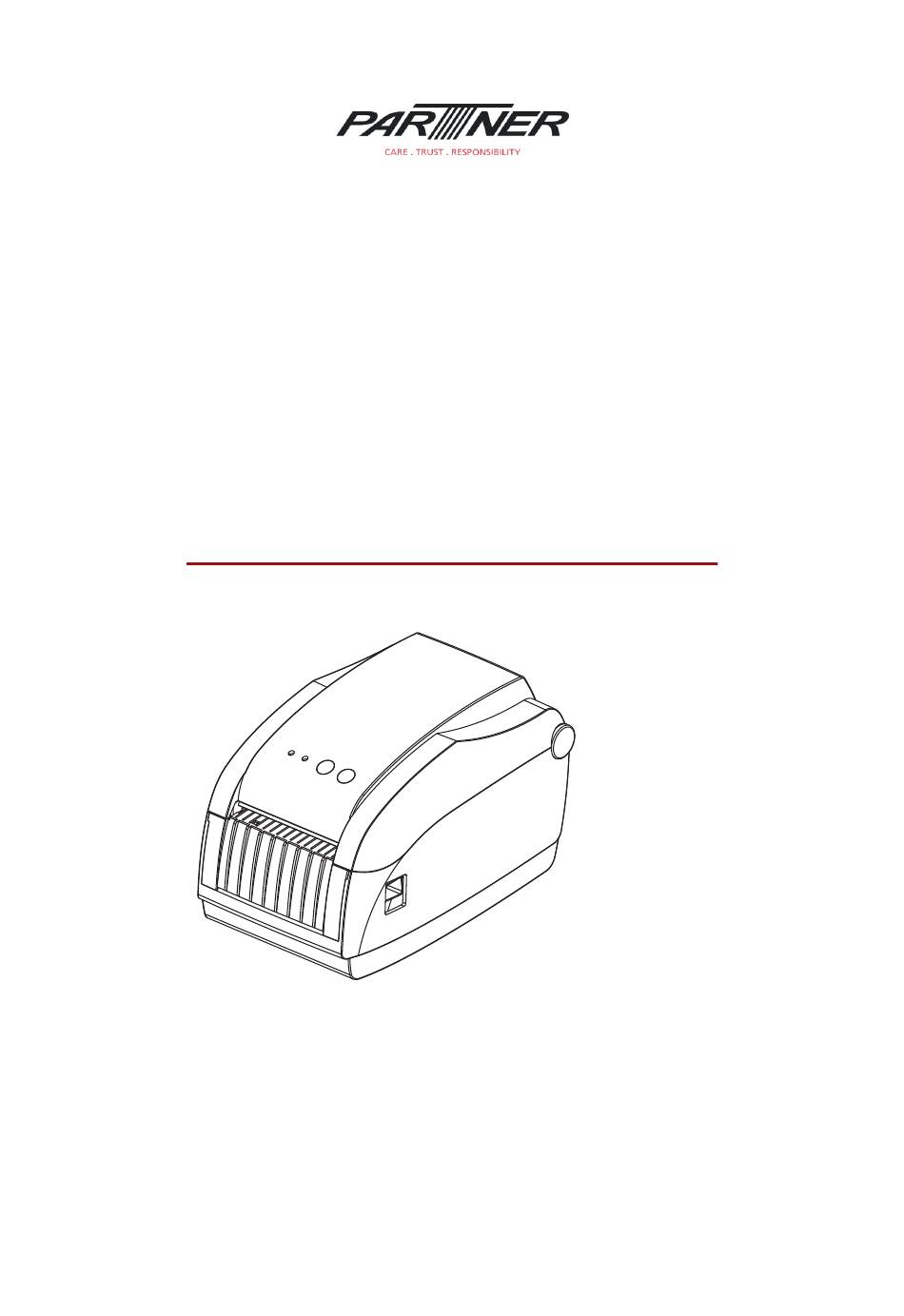

- Page 1 LP-13150 Thermal Barcode Printer User Manual Specification is subject of change without prior notice.
-
Page 2: Table Of Contents
LP-3150TIN Manual 1. Introduction....................2 1.1 Safety Warning ......................2 1.2 Note ...........................2 2. General Information ................3 2.1 Introduction ........................3 2.2 Main Features ......................3 3. Printer Parts ...................3 4. Paper Roll Installation ................5 5. Specification ...................8 5.1 Specification Table .....................9 6. Setting Up the Printer ................10 6.1 Unpacking ........................10 6.2 Power Cable Connection ..................10 6.3 Data Cable Connection ....................10... -
Page 3: Introduction
LP-3150 Manual 1 、Introduction Thanks for choosing our new thermal label printer LP-3150. This product provides reliable performance and high printing quality at economic price. With powerful functions and easy operation design, LP-3150 is your best choice of thermal label printer. CAUTION, NOTE CAUTION: MUST COMPLY, OTHERWISE HUMAN GET HARM AND DEVICES... -
Page 4: General Information
LP-3150 Manual 2 、General Information 2.1 Introduction LP-3150 is designed for real-time and batch label printing, which is applicable in the field of transportation, logistics, post, retail sale, and etc. The printer can be connected with other equipment with various interface cards, such as Parallel, Serial, USB and LAN. It supports different paper media, including thermal paper roll, thermal label paper and sticker paper. - Page 5 LP-3150 Manual （ 2） 10- Power Switch 11- Power Jack 12- Cashdrawer Jack 13- Parallel Interface 14- USB Interface 15- Serial Interface （ （ 3） 4） 16- Print Head 17- Paper Roll 18- Label Guide 19- Paper Presence Sensor 20- Peel-off Roller Lever 21- Light Transmission Sensor Light Source 22- Paper Roll Spindle 23- Light Transmission Sensor Receiver...
-
Page 6: Paper Roll Installation
LP-3150 Manual 4. Paper Roll Installation (1) Insert the paper roll spindle into a paper roll, and place the paper roll into the printer. Fixing tab on the paper roll spindle should be inside the internal paper roll mount. Adjust the paper roll spindle position with the paper roll mount. - Page 7 LP-3150 Manual ③ Place the paper roll into the internal paper roll mount. Please make sure the paper printing side face up as shown in the below photo. （ 8） （ 9） (2) Loading label for peel-off mode ① Thread the label through the label guides and move the label guides to adjust the fitness paper width.
- Page 8 LP-3150 Manual ③ Split the label paper and backing paper manually and keep the label paper in the label opening. Thread the backing paper in front of the peel-off spindle and into the peel-off part. （ 13） ④ Pull up the peel-off lever and the peel-off roller presses on the backing paper. Close the top cover.
-
Page 9: Specification
LP-3150 Manual Note: If the peel-off function fails, please check: 1.The printing media is installed correctly. 2.The backing paper must be in front of the peel-off spindle. 3.The peel-off roller needs to press on the backing paper. 4.The peel-off roller lever must be stand. Please refer the pictures below: Label Printing Side Label Opening... - Page 10 LP-3150 Manual SPECIFICATIONS Parameter Printing method Direct Thermal Resolution 203DPI Print width 16-82mm Print speed 2~6inch,Default 5 inch/s Memory DRAM: 2M FLASH: 2M Print Print head Thermal Sensitive Resistance temperature sensor Print head Microswitch position sensor Paper detection Photoelectricity sensor sensor Interface Serial+USB+Ethernet...
-
Page 11: Setting Up The Printer
LP-3150 Manual 6 . Setting Up the Printer 6.1 Unpacking Please unpack the printer package, and inspect the parts according to the packing list. If any parts are missing or damaged, please contact the customer service of your purchased reseller or distributor. （... -
Page 12: Gap Sensor Calibration
LP-3150 Manual Self-test Page Sample: SELFTEST...........Self-test Mode （ 20） MODEL：LP-3150TIN........Printer Model VERSION：V1.1(2013-12-06)......F/W Version INTERFACE: USB & SERIAL & ETHERNET(10BASE/100BASE) Interface SERIAL PORT: SERIAL 9600, N,8,1....SerIal Port Setting ETHERNET PROTOCOLS: TCP/IP....Ethernet Protocole MAC ADDRESS: 0-152-176-148-114-139..Mac Address IP ADDRESS: 192.168.123.100...... -
Page 13: Hexadecimal Dumping
LP-3150 Manual Please follow the steps below to calibrate the gap sensor: 1. Turn off the printer power. 2. Make sure the label roll is installed correctly and the printer top cover is closed. 3. Press and hold on the PAUSE button, then turn on the printer power. The printer will automatically calibrate the gap sensor sensitivity and save the gap length into DRAM. -
Page 14: Printer Initialization
LP-3150 Manual 7.5 Printer Initialization Printer initialization is used to clear DRAM and restore printer settings to defaults. Please do the gap sensor sensitivity calibration after the printer initialization. Please follow the steps below to initialize the printer: 1. Turn off the printer power. 2. -
Page 15: Maintenance
LP-3150 Manual Gap sensor calibration 1. Turn off the printer power. 2. Make sure the label roll is installed correctly and the printer top cover is closed. 3. Press and hold on the PAUSE button, then turn on the printer power. The printer will automatically calibrate the gap sensor sensitivity and save the gap length into DRAM. - Page 16 Partner Tech Europe GmbH Add:Fasanenweg 25, 22145 Hamburg...
