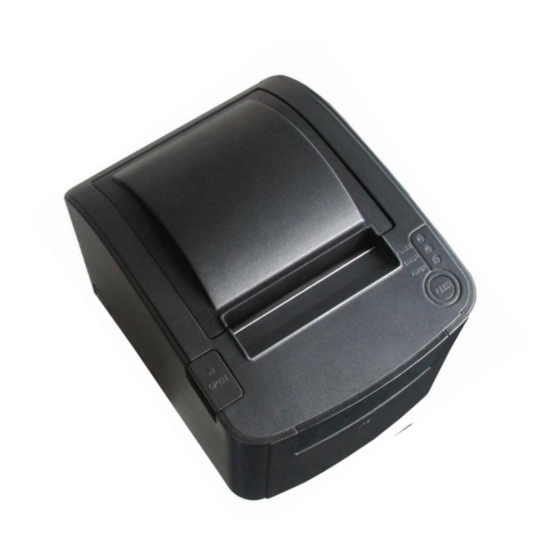

Partner RP-100-300II User Manual

Thermal receipt printer
Hide thumbs Also See for RP-100-300II:
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

See also: Programming Manual
Enlarged version

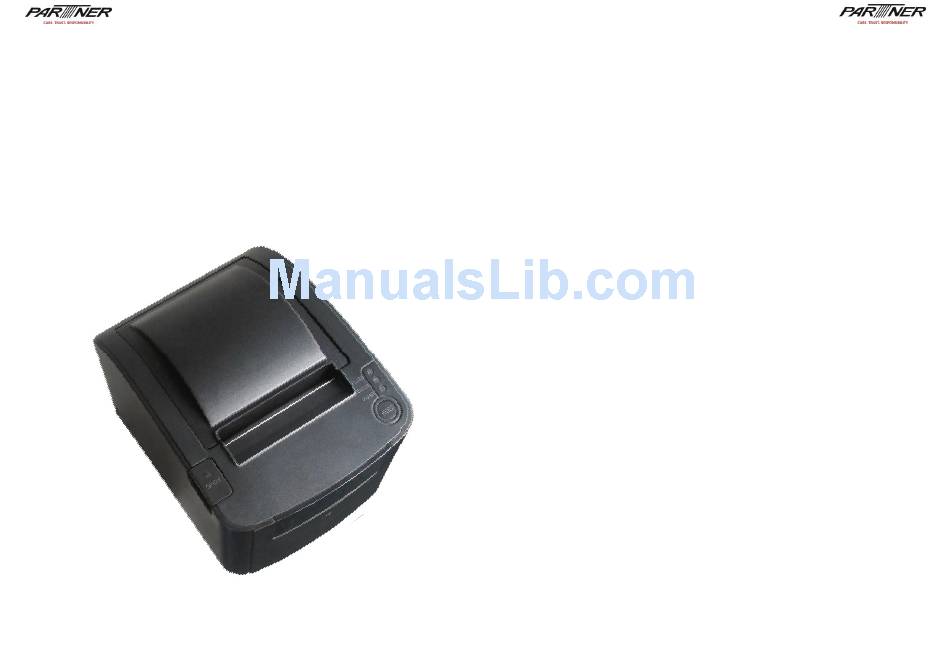

User's Manual
Contents

Thermal receipt printer

Contents..................................................... ...........................1
Physical dimension.........................................................................................2
Printer features..............................................................................................2
RP-100-300II
Printer specification.......................................................................................2
Drive installation........................................................................................4
Printer self-test page..................................................................................6
Hexadecimal mode...................................................................................6
Start DHCPfunction.............................................................................6
LAN port connection setting.......................................................................6
Standard TCP/IP port addition.......................................................................9
Baud rate setting........................................................................13
Buttons.....................................................................................................14
Buzzer...................................................................................................15
Interface..................................................................................................13
DIP switch....................................................................................................14
Cutter maintenance....................................................................................15
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RP-100-300II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Partner RP-100-300II

Summary of Contents for Partner RP-100-300II

  • Page 1: Table Of Contents

    User’s Manual Contents Thermal receipt printer Contents................1 Physical dimension..................2 Printer features....................2 RP-100-300II Printer specification..................2 Drive installation..................4 Printer self-test page..................6 Hexadecimal mode...................6 Start DHCPfunction................6 LAN port connection setting...............6 Standard TCP/IP port addition...............9 Baud rate setting................13 Buttons.....................14 Buzzer....................15 Interface....................13 DIP switch....................14...

  • Page 2: Physical Dimension

    Greek/Hebrew/East Europe/Iran/WPC1252/PC866/PC852/ 1. Printer Physical dimension： PC858/IranII/Latvian/Arabic/PT151,1251/PC73 LxWxH：180x139x127mm； 7/WPC/ 1257/Thai Weight：1.23kg； Vietnam/PC864/PC1001/(Latvian)/(PC1001)/ 2. Features: (PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/( 300mm/sec high print speed; Thai) UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)C Low power consumption：1.44w(Min.); ODE39/ITF/ Barcode mode Multiple interface: Serial, USB, Ethernet port CODABAR/CODE93/CODE128/QRCODE Automatically resume printing after disconnection; Fonts GB18030 EPSON ESC/POS &...

  • Page 3: Drive Installation

    4. Driver installation 1）.Insert the driver CD disk, run the Partner 80Driver to set up 4）Choose the correct port. 2）Choose the system which you used. 5) Completed. 3) Choose the model RP-100-300II...

  • Page 4: Printer Self-Test Page

    5. Print self-test page 8. LAN port connection setting A. Turn off the printer. A. Connect printer to PC via LAN cable. B. Make sure the paper roll is installed correctly and the printer top cover is Please make sure PC’s IP should be on the same network segment with the closed.

  • Page 5: Standard Tcp/Ip Port Addition

    1) With Windows software utility tool. 9. Standard TCP/IP port addition Connect the printer with PC through Ethernet port. Install the printer. 1) Right click the printer, and choose the printer properties. 2) Configure using the web browser. Open the web browser through IP address showed on the self-test page. Click “Configure Interface”, put in the new IP address, Subnet mask and Gateway address.
  • Page 6 2) Create a new port...

  • Page 7: Baud Rate Setting

    10. Baud rate setting Using serial port to print, printer serial baud rate must be same as the PC serial port baud rate, otherwise the printer won’t work. The setting method is as follows: A. Printer Baud rate ：Set the DIP switch on the bottom of the printer (SW7 , SW8Combination).

  • Page 8: Buttons

    11. Buttons 1) Feed Button：A. Paper feed B. Print self-test page C. enter Hexadecimal mode 2) Power indicator (Blue): When the power indicator is ON, Printer is powered on. 3) Error indicator (Red): A. flashing slowly 2 time: Cutter error B. Flash fast: Printer overhead protection is activated C.

  • Page 9: Cutter Maintenance

    14. DIP Switch Sele Cutter SELECT Two-byte Select Character with Select PRINT character cutt beeper per line cash baudrate DENSITY code drawer 42-font A Dark /56-font B Turn the gear to 48-font A reset the cutter Light /64-font B Open cover by the arrow direction 15.
