1
6
7
(R)
3
(L)
7
4
(L)
Parts List
NO
ITEM
1
Head board
2
Head board leg
3
Head board leg
4
Side rails
5
Foot board
6
Head board cross bar
7
Gas lift
8
Cross bar
Legs
9
10
Non woven fabric
11
Slat frame
ASSEMBLY INSTRUCTION
Item Number : WF297721AAAW

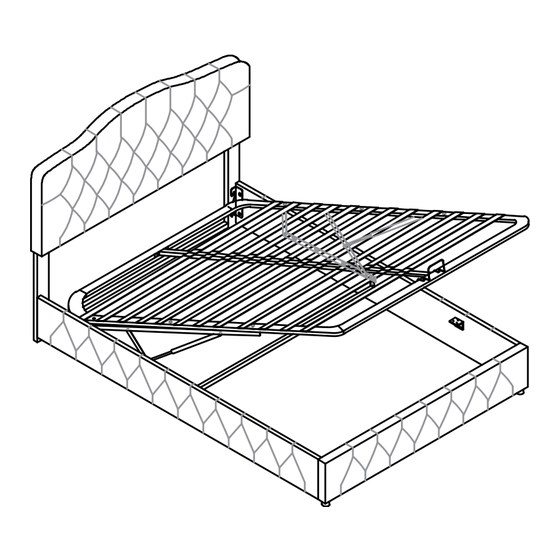

Upholstered Bed:140*200CM
2
(R)
4
8
5
9
QTY
WF297722AAAW
TIPS
1. This set comes in 2 boxes. If you don't receive a
full 2 boxes, please contact our customer service.
2.Please read the instructions fully before
assembly. These instructions include important
information which could ensure correct assembly.
We have been working on providing high quality
products for you. However, in the rare instance
that your product is defective, missing parts or
there are some issues, please don't hesitate to
contact our customer service to submit parts
requirements, assembly suggestion, or warranty
claims, and we will give the best solution as soon
as possible. If necessary, we need you to provide
some more clear pictures of the issue.
3. Insert the screws in holes and tighten the
screws, but not too tight, 70%~80% is ok, finally
tighten all the screws. If some issues happened
that some screws can not target to the hole or
some parts are difficult to install, please adjust
the tightness of the screws.
4. 2 people are recommended to finish.
9
Hardware List
NO
ITEM
Allen Key
A
1
Bolts (M8x45mm)
B
1
C
Washer
1
Bolts (M8x18mm)
D
E
Nuts
2
Nails (M4x25mm)
F
1
Nails (M4x50mm)
G
Nuts
H
1
Bolts (M6x25mm)
I
2
Spanner
J
1
Hinge
K
Plastic support
L
2
Middle legs
M
1
Middle slats cap
N
1
End slats cap
O
Stopper
P
Q
Three hole iron
1/6
10
11
QTY
1
20
4
22
14
9
2
2
10
1
4
3
2
12
24
1
2
Advertisement
Related Manuals for Otto WF297721AAAW
Summary of Contents for Otto WF297721AAAW
- Page 1 ASSEMBLY INSTRUCTION Item Number : WF297721AAAW WF297722AAAW Upholstered Bed:140*200CM TIPS 1. This set comes in 2 boxes. If you don't receive a full 2 boxes, please contact our customer service. 2.Please read the instructions fully before assembly. These instructions include important information which could ensure correct assembly.
-
Page 2: Part List
Part List WF297721AAW Head board-1pc Head board legs-1pc Head board legs-1pc Legs -2pcs Gas lift-2pcs Non woven fabric-1pc Hardware List+WF297722AAW Side rails -2pcs Foot board -1pc Storage box board -1pc 11.1 11.2 Cross bar -1pc Metal frame cross bar-2pcs Metal frame side bar-2pcs 11.3 11.4 Slat-24pcs... - Page 3 Attention: Do not tighten the screws before completing the entire installation If you have any difficulty with the installation process, please feel free to contact us. Step 1x2 Fix the Headboard legs To the headboard With Bolts B and Washers C by using Allen key A,you can chose the holes a and c or b and d .
- Page 4 Step 4 Fix the plastic support L to the side rails and footboard with nails F by using electric drill or screw driver F Nails x9 L Plastic support x3 M4X25mm Step 5 Fix the cross bar to the side rails with bolts I by using electric drill or screw driver.
- Page 5 Step 7 Stick the black non-woven fabric To the bottom of bed Step 8 Fix the legs to the footboard with nails G by using electric drill or screw driver G Nails x2 M4X50mm Step 9 Assemble the slats frame with bolts B and nuts E by using Spanner J B Bolts x8 E Nuts x8 J Spanner x1...
- Page 6 Step 10 x2 Fix middle legs M to the middle bar with blots B by using Allen key A A Allen Key B Bolts x 2 M Middle legs x2 M8X45mm Step 11 Assemble the slats into the assembled slats frame with middle slats cap N and end slats cap O Note: Please read the Instruction Manual before installing the slats cap ，...
