- Page 1 TO REDUCE THE RISK OF INJURY OR PRODUCT DAMAGE, READ OPERATION MANUAL PRIOR TO OPERATING PRODUCT. PATENT INFO AT APPIONTOOLS.COM - © 2024 APPION INC. ALL RIGHTS RESERVED...
-
Page 2: Table Of Contents
Factory Reset.......................19 About..........................20 Using the WS260......................21 Appion Central™ Bluetooth Operation............22 Appion Central™ App....................23 Refrigerant Recovery Tips..................24 General Maintenance and Care.................28 Scale Components....................29 Specifications.......................31 Regulatory Information...................33 Warranty Information....................35 QR Code Index......................37 Contact........................38 WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... -
Page 3: Introduction
From the intricate task of measuring critical charges in mere grams to managing large systems with hundreds of pounds of refrigerant, the WS260 Precision Scale is up to the task. Its easy-to-read backlit digital display ensures you obtain precise readings at a glance. -
Page 4: Warnings And Safety Information
• Do not dispose of the product or battery in a fire or heat above 212°F (100°C). • Remove batteries before storing the device for long periods of time. WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... -
Page 5: Refrigerant Storage Container Safety
Do not rely on these switches to stop the flow of refrigerant into the container. Only the valves on the recovery machine and on the cylinder can stop the flow of refrigerant into the container. WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... - Page 6 Diagram 1: Overfilled storage containers may explode due to liquid refrigerant expanding when heated. Transportation of refrigerant storage cylinders more than 80% full is a DOT violation. See Page 25 for information on how to calculate 80% Fill Weight WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED...
-
Page 7: Main Screen
Main Screen Display: Access the Main Screen by pressing and holding the power button to turn on the scale. Main Screen Example: 1. Battery Level Indicator 2. Auto Power Off Indicator 3. Bluetooth Indicator 4. Weight 5. Units WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... -
Page 8: General Functions
- Press the power button to select an option. • Hold 2 Seconds - Scale Power On/Off - Hold the power button for 2 seconds to power the scale on or off. WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... - Page 9 - Press and hold the Tare button for 2 seconds to tare the scale. - The scale can be tared at any weight. - A tared zero is stored in the memory, and the tared zero will display after a power cycle. WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED...
- Page 10 External Power A USB Type-C cable (sold separately) may be used to power the WS260 in cases where battery power is not sufficient, or long-term use is desired. Remove the protective rubber plug on the left side of the display to access the USB-C port. A standard smartphone wall adapter (5V/1A) is adequate.
- Page 11 - Adjust the displayed resolution. • Calibrate Scale - Calibrate the Scale. • Factory Reset - Reset the scale to factory-calibrated settings. • About - View the scale serial number and version number. WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED...
- Page 12 - Quick Press - Press the Backlight/Up button to scroll UP through selectable options. • Tare/Down - Quick Press - Press the Tare/Down button to scroll DOWN through selectable options. WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED...
-
Page 13: Resolution
Main Menu. Select between Normal (10 g) and High (1 g) resolution. Resolution Screen Example: Resolution Navigation Tips: • The selected resolution will be highlighted. • Select EXIT to save the selected resolution and return to the Main Menu. WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... -
Page 14: Calibrate Scale
• Exit - Return to the Main Screen. • Zero - Zero the scale with an empty platform. • Calibrate Scale - Calibrate the scale with a certified 25 kg weight. WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... -
Page 15: Zeroing Scale
• The display backlight will automatically turn off while zeroing. • Selecting CANCEL will revert to the previously saved zero. • Vibrations or wind during Zeroing will cause inaccuracies. • Only zero the scale when unloaded. WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... -
Page 16: Calibrating The Scale
Example: The scale is plugged into USB power and was previously calibrated with battery power. • If the scale is not recalibrated after switching power sources, the reading will not be accurate. Calibration Screen Examples: WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... - Page 17 Calibrating the Scale (cont.) WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED...
- Page 18 • Vibrations or wind during calibration will cause inaccuracies. • If the scale detects an issue during the calibration process, the failed calibration screen will appear. Failed Calibration Screen Example: WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED...
-
Page 19: Factory Reset
Menu. Reset all user-saved settings back to the original factory- calibrated settings. Factory Reset Tips: • Selecting CANCEL exits back to the Main Menu. • Selecting CONTINUE resets the device to factory-calibrated settings. WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... -
Page 20: About
View the serial number and firmware version number of the device. About Screen Example: About Screen Controls: • Power/Exit - Quick Press - Press the Power button to exit the About screen and return to the Main Menu. WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... -
Page 21: Using The Ws260
Caution: Always wear hand and eye protection, and work in well- ventilated areas when handling refrigerants. 1. Remove the WS260 from its protective case and place on a level and firm surface. If the scale is used on a sloped or otherwise unstable surface, irregular or inaccurate readings may result. -
Page 22: Appion Central Bluetooth Operation
Appion Central™ App. Development of the Appion Central™ App is ongoing, and any information presented in this manual about the Appion Central™ App may not be up to date. Please visit AppionTools.com or your device’s App Store for the latest Appion Central™... -
Page 23: Appion Central™ App
Appion Central™ App Scan the QR Code below to download the app and access the user guide. WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... -
Page 24: Refrigerant Recovery Tips
Vapor Port to bleed off excess pressure until it is about 5 psi (0.35 kg/cm²) above the pressure listed on the chart. 5. Close the valves and let the cylinder stand still for 10 minutes. Repeat if necessary. WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... - Page 25 47.6 lbs, TW is 24 lbs. 0.99 R-422D 60.642 47.6 x 1.08 x 0.8 + 24 = 65.1 lbs R-437A 65.231 1.06 Total Tank Weight 1.00 R-438A 61.804 (41.1 lbs of R-22) 0.80 R-454B 51.830 WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED...
- Page 26 (aka “de minimis”). Excess non-condensables can cause tank overheating, and may contaminate recovered refrigerant. ✪ Tip: Consult the manufacturer of your Refrigerant Recovery Machine for setup guidance. : Visit www.AppionTools.com/FullFlow to learn more. WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED...
- Page 27 • Valve Core Removal Tools with a ball valve (such as the Appion Valve Core Removal Tool) can be used as high flow low-loss fittings, in addition to the main function of removing valve cores.
-
Page 28: General Maintenance And Care
The WS260 is a precision instrument that must be maintained to ensure proper function. Please follow the guidelines listed. 1. Store the WS260 in a cool, dry environment when not in use. The recommended storage temperature (without batteries) is -4 °F to 140 °F (-20 °C to 60 °C). -
Page 29: Scale Components

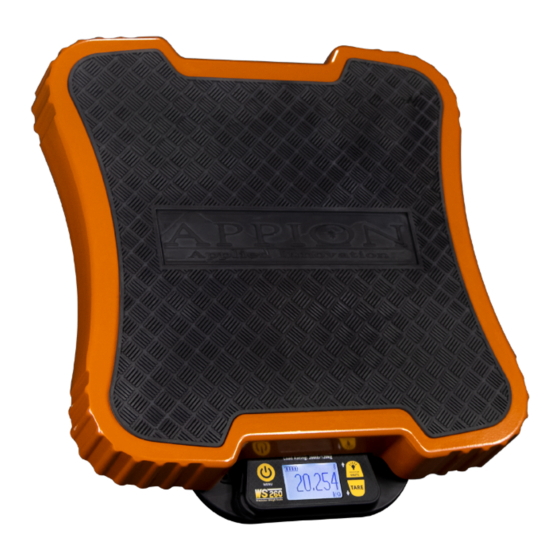

Scale Components Cast Aluminum Base Rubber Coated Platform Backlight/Units Power Tare Backlit Button Button Screen WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... - Page 30 -4 °F to 140 °F (-20 °C to 60 °C) *without batteries Battery Type: (3) AA Batteries Battery Life: 96 hours *with Bluetooth Off in Normal Resolution Mode Auto Power Off: 15 Minutes (Selectable On/Off) WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED...
-
Page 31: Specifications
± 5 g 0-10 kg, 5 g ± .03% of Reading Capacity: 264.5 lb (120 kg) Display Overload: 264.5 lb (120.01 kg) Sensor Overload: 297.6 lb (135 kg) Wireless Range: 1000 ft. *line of sight WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... - Page 32 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED...
-
Page 33: Regulatory Information
: 1. l’appareil ne doit pas produire de brouillage. 2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... - Page 34 AppionTools.com. All warranty services must receive Appion Factory Authorization and an RGA number prior to any action. Contact your local Appion authorized distributor to obtain the RGA number and shipping instructions. To help us provide the best service, be sure to have the following information available: •...
-
Page 35: Warranty Information
Warranty Information (cont.) Appion WS260 Warranty Registration Card Register by Mail: Appion Inc. 2800 South Tejon Street Englewood, CO 80110 USA WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... -
Page 36: Qr Code Index
QR Code Index Appion Central™ App Download Product Registration WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... - Page 37 Appion Inc. 2800 South Tejon St. Englewood, CO 80110 USA Tel: 1-303-937-1580 Fax: 1-303-937-1599 AppionTools.com Sales@AppionInc.com Support@AppionInc.com WS260 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED...
