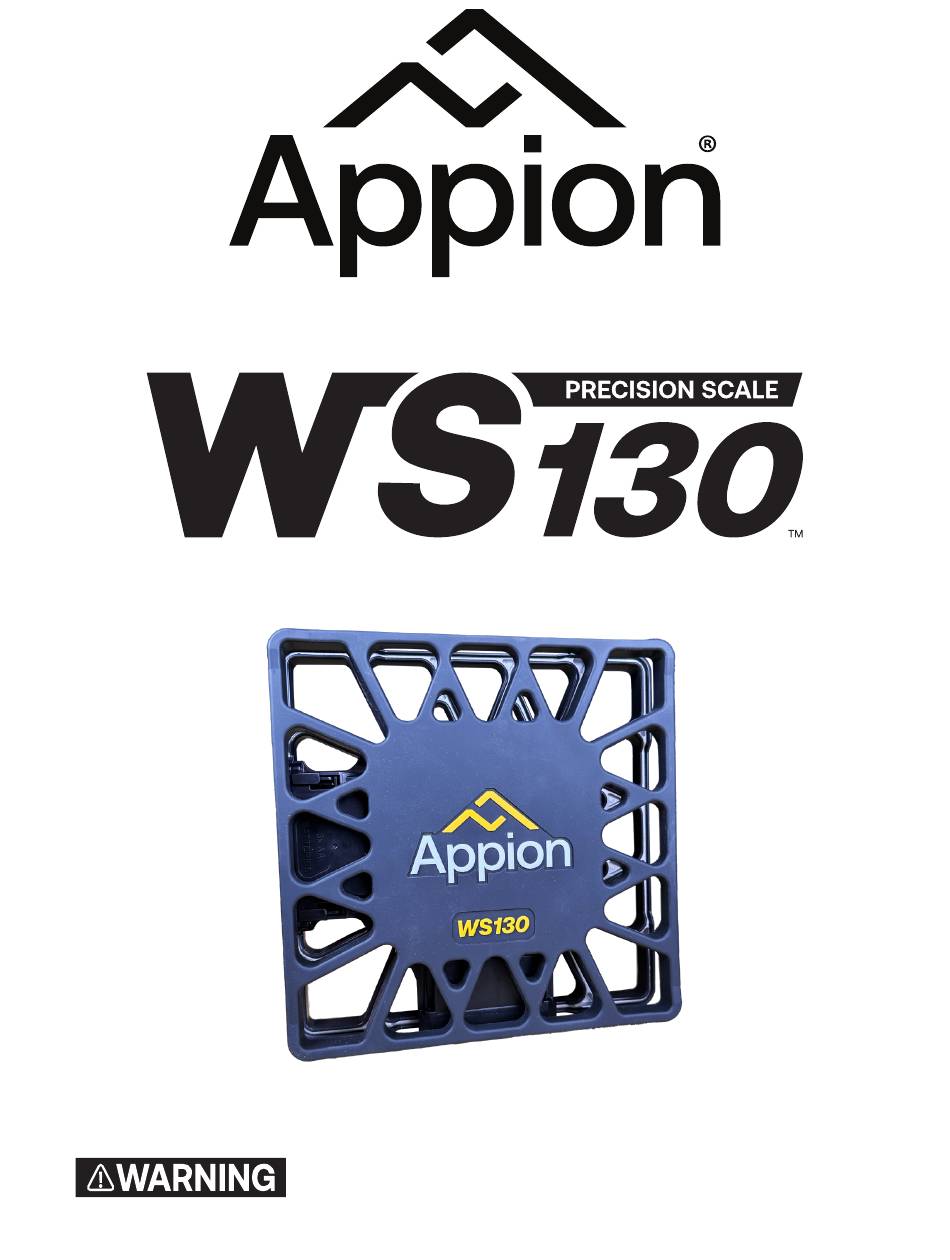

- Page 1 TO REDUCE THE RISK OF INJURY OR PRODUCT DAMAGE, READ OPERATION MANUAL PRIOR TO OPERATING PRODUCT. PATENT INFO AT APPIONTOOLS.COM - © 2024 APPION INC. ALL RIGHTS RESERVED...
-
Page 2: Table Of Contents
General Functions.......................8 Using the WS130......................12 Appion Central™ Bluetooth® Operation............13 Calibrate Scale......................14 Appion Central™ App....................16 Refrigerant Recovery Tips..................17 General Maintenance and Care.................21 Specifications.......................22 Regulatory Information...................24 Warranty Information....................26 QR Code Index......................28 Contact........................29 WS130 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... -
Page 3: Introduction
Its durable construction and wide measurement range make it perfect for a variety of systems. With its robust build and seamless integration with the Appion Central™ app, the WS130 is designed to simplify your workflow without sacrificing reliability. Ideal for smaller systems and tight spaces, the WS130 boasts a generous measurement range for its size. -
Page 4: Warnings And Safety Information
• Remove batteries before storing the device for long periods of time. • Always ground recovery cylinders to a known good ground to avoid static buildup in the recovery cylinder. WS130 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... -
Page 5: Refrigerant Storage Container Safety
Do not rely on these switches to stop the flow of refrigerant into the container. Only the valves on the recovery machine and on the cylinder can stop the flow of refrigerant into the container. WS130 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... - Page 6 Diagram 1: Overfilled storage containers may explode due to liquid refrigerant expanding when heated. Transportation of refrigerant storage cylinders more than 80% full is a DOT violation. See Page 18 for information on how to calculate 80% Fill Weight WS130 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED...
-

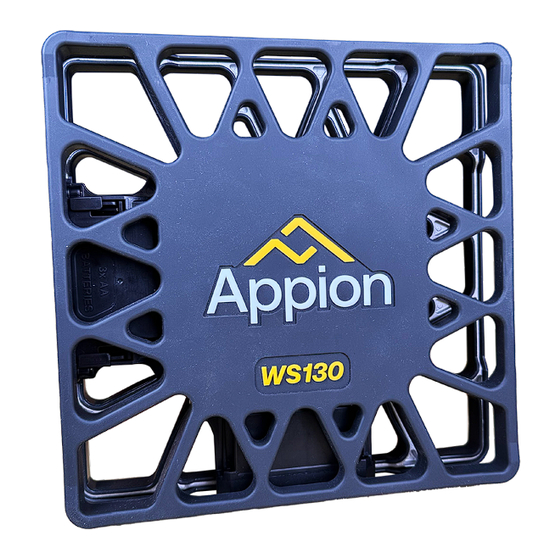

Page 7: Scale Components
Scale Components Battery Compartment Rubber Coated Platform Control Module WS130 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... -
Page 8: General Functions
Sec.” function. Power/Tare Quick Press: • Tare – When the scale is on, quick press the Power button to tare the scale. – The scale can be tared at any weight. WS130 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... - Page 9 Power + Calibrate Hold 5 Seconds: • Factory Reset – Press and hold the Power button and Calibrate button down simultaneously for five seconds to reset the scale to factory settings. WS130 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED...
- Page 10 The red LED will blink every three seconds, indicating the batteries should be changed soon. Enabling Auto Power Off The amber LED will illuminate for two seconds. Then the normal operation with auto power off enabled blink sequence will commence. WS130 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED...
- Page 11 The amber LED will blink rapidly for half a second indicating the scale has been reset to factory settings. Then the power on blink sequence will commence followed by the normal operation blink sequence. WS130 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED...
-
Page 12: Using The Ws130
Always wear hand and eye protection, and work in well-ventilated areas when handling refrigerants. 1. Remove the WS130 from its protective case and place it on a level and firm surface. If the scale is used on a sloped or otherwise unstable surface, irregular or inaccurate readings may result. -
Page 13: Appion Central™ Bluetooth® Operation
Appion Central™ App. Development of the Appion Central™ App is ongoing, and any information presented in this manual about the Appion Central™ App may not be up to date. Please visit AppionTools.com or your device’s App Store for the latest Appion Central™... -
Page 14: Calibrating The Scale
7. The amber LED will blink three times every three seconds indicating the scale is ready to sample a 25 kg weight. 8. Place a 25 kg certified weight centered on the platform. WS130 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... -
Page 15: Failed Calibration
Quick press the calibration button to restart the calibration process. To Exit Long press the power button to cancel the calibration and turn off the scale, this will restore the scale to its previously stored calibration. WS130 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... -
Page 16: Appion Central™ App
Appion Central™ App Scan the QR Code below to download the app and access the user guide. WS130 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... -
Page 17: Refrigerant Recovery Tips
Vapor Port to bleed off excess pressure until it is about 5 psi (0.35 kg/cm²) above the pressure listed on the chart. 5. Close the valves and let the cylinder stand still for 10 minutes. Repeat if necessary. WS130 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... - Page 18 47.6 lbs, TW is 24 lbs. 0.99 R-422D 60.642 47.6 x 1.08 x 0.8 + 24 = 65.1 lbs R-437A 65.231 1.06 Total Tank Weight 1.00 R-438A 61.804 (41.1 lbs of R-22) 0.84 R-454B 51.830 WS130 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED...
- Page 19 (aka “de minimis”). Excess non-condensables can cause tank overheating, and may contaminate recovered refrigerant. ✪ Tip: Consult the manufacturer of your Refrigerant Recovery Machine for setup guidance. : Visit www.AppionTools.com/FullFlow to learn more. WS130 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED...
- Page 20 • Valve Core Removal Tools with a ball valve (such as the Appion Valve Core Removal Tool) can be used as high flow low-loss fittings, in addition to the main function of removing valve cores.
-
Page 21: General Maintenance And Care
The WS130 is a precision instrument that must be maintained to ensure proper function. Please follow the guidelines listed. 1. Store the WS130 in a cool, dry environment when not in use. The recommended storage temperature (without batteries) is -4 °F to 140 °F (-20 °C to 60 °C). -
Page 22: Specifications
Storage temperature -4 °F to 140 °F (-20 °C to 60 °C) *without batteries Battery type (3) AA Batteries Battery life 105 hours Auto Power Off 15 Minutes (Selectable On/Off) WS130 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... - Page 23 ± 5 g (0-10 kg), ± 5 g + .03% of Reading (10 kg +) Capacity 132.2 lb (60 kg) Display Overload 132.2 lb (60.001 kg) Sensor Overload 198.4 lb (90 kg) Wireless Range 1000 ft *line of sight WS130 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED...
-
Page 24: Regulatory Information
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WS130 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... - Page 25 : 1. l’appareil ne doit pas produire de brouillage. 2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. WS130 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED...
-
Page 26: Warranty Information
AppionTools.com. All warranty services must receive Appion Factory Authorization and an RGA number prior to any action. Contact your local Appion authorized distributor to obtain the RGA number and shipping instructions. To help us provide the best service, be sure to have the following information available: •... - Page 27 Warranty Information (cont.) Appion WS130 Warranty Registration Card Appion WS260 Warranty Registration Card Register by Mail: Appion Inc. 2800 South Tejon Street Englewood, CO 80110 USA Scan for Product Registration WS130 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED...
-
Page 28: Qr Code Index
QR Code Index Appion Central™ App Download Product Registration WS130 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED... -
Page 29: Contact
Appion Inc. 2800 South Tejon St. Englewood, CO 80110 USA Tel: 1-303-937-1580 Fax: 1-303-937-1599 AppionTools.com Sales@AppionInc.com Support@AppionInc.com WS130 OPERATION MANUAL © 2024 APPION INC. ALL RIGHTS RESERVED...
