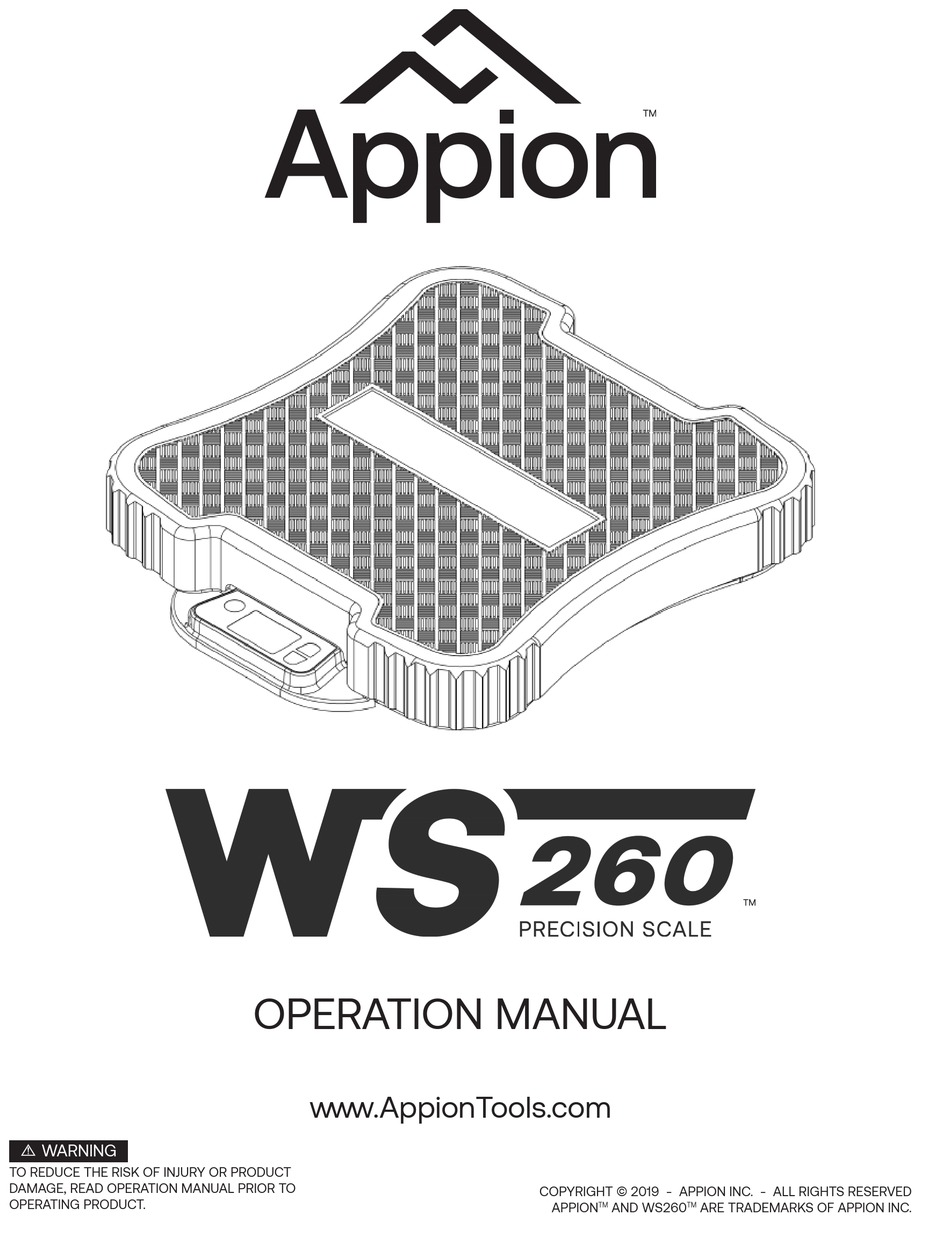

- Page 1 OPERATION MANUAL www.AppionTools.com ⚠ WARNING TO REDUCE THE RISK OF INJURY OR PRODUCT DAMAGE, READ OPERATION MANUAL PRIOR TO COPYRIGHT © 2019 - APPION INC. - ALL RIGHTS RESERVED OPERATING PRODUCT. APPION AND WS260 ARE TRADEMARKS OF APPION INC.
-
Page 2: Table Of Contents
Warranty ............................... 11 Regulatory..............................11 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Appion is under license. Other trademarks and trade names are those of their respective owners. -
Page 3: Warnings And Safety Information
Recovery Equipment while it is operating. affecting the operation of the unit may change. Remain observant to changes in environment, refrigerant pressure and refrigerant temperature. WS260 OPERATION MANUAL © 2019 APPION INC. - ALL RIGHTS RESERVED... -
Page 4: Refrigerant Storage Container Safety
80% full is a DOT violation. ✪ See Page 8 for information on how to calculate 80% Fill Weight Filled to Filled to 80% Capacity 90% Capacity WS260 OPERATION MANUAL © 2019 APPION INC. - ALL RIGHTS RESERVED... -
Page 5: Display
Note: The Display Backlight will momentairally turn off when Tared or Zeroed. This operation is normal. External Power A USB Type-C cable (sold separately) may be used to power the WS260 in cases where battery power is not sufficient, or long-term use is desired. Remove the protective rubber plug on the left side of the display to access the USB-C port. A standard smartphone wall adapter (5V/1A) is adequate. -
Page 6: Getting Started
Getting Started 1. Remove the WS260 from its protective case and place on a level and firm surface. If the scale is used on a sloped or otherwise unstable surface, irregular or inaccurate readings may result. 2. Press the power button to turn on the WS260. -
Page 7: Data Logging
Activating this option erases the current data log and removes the data log symbol from the main screen. Appion Central Mobile App Appion Central unlocks the full potential of the WS260, and is available on the App Store and Google Play. Search for ‘Appion’ or visit www.AppionTools.com to download the latest version. Features Include... -
Page 8: Refrigerant Recovery Tips
0.96 47.6 x 1.08 x 0.8 + 24 = 65.1 Lbs Total Tank Weight 0.99 R-422D 60.642 (41.1Lbs of R-22) 1.06 R-437A 65.231 1.00 R-438A 61.804 0.83 R-454B 51.343 WS260 OPERATION MANUAL © 2019 APPION INC. - ALL RIGHTS RESERVED... - Page 9 • Valve Core Removal Tools with a ball valve (such as Appion MegaFlow VCRT) can be used as high flow low-loss fittings, in addition to the main function of removing valve cores.
-
Page 10: Specifications And Support Troubleshooting
MegaFlow™ 3/8 in. Hose (1/4 in. FL to MH380006AAY (6ft) 1/4 in. FL, Yellow) MH380004AAY (4ft) Charging Tee MegaSeal™ Low-Loss Charging CTEE14 (1/4”) T-Fitting- (1/4in. & 5/16in.) CTEE516 (5/16”) WS260 OPERATION MANUAL © 2019 APPION INC. - ALL RIGHTS RESERVED... -
Page 11: Warranty
To claim Factory Warranty Service, contact Appion by phone at 303-937-1580 or email at Repairs@AppionInc.com. To receive the full One-Year Factory Limited Warranty, purchase only from authorized Appion sellers as identified on www.AppionTools.com. Purchases made through Unauthorized Dealers are done at the End User’s own risk and do not qualify for Appion’s Factory Limited Warranty. - Page 12 Appion Inc. 2800 South Tejon St. Englewood, CO 80110 USA Tel: 1-303-937-1580 Fax: 1-303-937-1599 www.AppionTools.com Sales@AppionTools.com Support@AppionTools.com OMXXXX - EN - 2019A © 2019 APPION INC. - ALL RIGHTS RESERVED...
