Summary of Contents for Zebronics ZEB Juke Bar 2601
- Page 1 Juke Bar 2601 User Manual www.zebronics.com...
- Page 2 Important Safety Instruction Thank you for purchasing the ZEB-JUKE BAR 2601 Soundbar. Please read this user manual carefully and keep for future reference. Warning Caution: To reduce the risk of electric shock, do not Ÿ dismantle the product and do not expose the apparatus to rain or moisture.
- Page 3 The lightning flash within an e q u i l a t e r a l t r i a n g l e i s intended to alert you to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute an electric shock to a person or persons.
- Page 4 3. The appliance is not intended to be operated by means of an external timer or separate remote control system. 4. If the power adapter cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Page 5 11. Do not place the unit on a amplifier or receiver. 12. Do not place this unit in a damp area as the moisture will affect the life of electric components. 13. Do not attempt to clean the unit with chemical solvents as this might damage the finish.
- Page 6 6. Protect the power adaptor cord from being walked on or pinched particularly at plugs, convenience receptacles or at the point where they exit from the apparatus. 7. Only use attachments/accessories specified by the manufacturer. 8. Unplug this apparatus during lightning storms or when unused for long periods of time.
- Page 7 Ÿ Places exposed to direct sunlight or close to radiators. Ÿ On top of other stereo equipment that radiate too much heat -Blocking ventilation or in a dusty area. Ÿ Areas where there is constant vibration. Ÿ Humid or moist places. Ÿ...

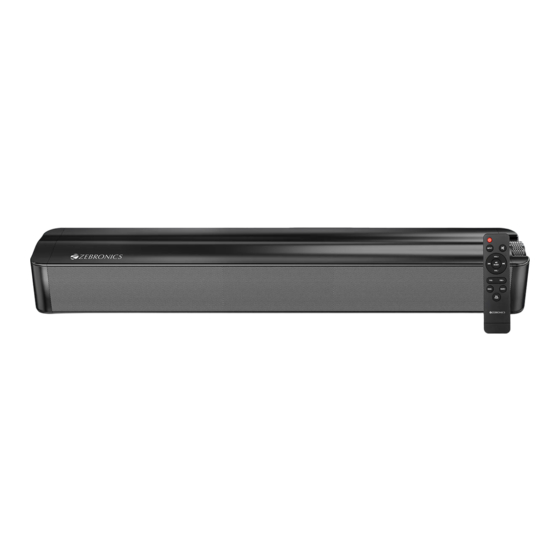

- Page 8 Product Representation Sound Bar 1. LED Indicator 2. DC IN 3. USB 4. HDMI(ARC) 5. VOLUME +/- Knob 6. Push...
-
Page 9: Remote Control
Remote Control INPUT RESET TRE- TRE+ BASS- BASS+ PAIR... - Page 10 : Standby mode for power on/off. 2. INPUT : Input mode Selection. 3. Vol+ : Volume Increase. 4. 9 : Previous Track (Only work under USB & BT Mode). 5. Vol- : Volume Decrease. 6. TRE- : Treble Decrease. 7. Bass- : Bass Decrease. 8.
- Page 11 Positioning the Sound Bar Place on a flat Surface Place the sound bar horizontally on a flat surface such as a TV unit or shelves and align it centrally with the TV screen. Allow some space between the speaker and the wall. Don’t place inside a cabinet or an a walled shelf.
- Page 12 Follow below steps to mount the sound bar on the wall Make 2 holes on the wall with distance same as the wall bracket on the soundbar Put the plastic anchors onto the wall and secure the screws to the plastic clip, do not tighten the screws all the way make sure leave some space Attached the 2 EVA pads onto the wall...
- Page 13 OPERATE INSTRUCTIONS Setting the Soundbar 1. Plug the power adapter cord in and the LED will light up. 2. Press the PUSH button on the soundbar to power on. Press again this button to switch the input mode. 3. The indicator can change into to different colors, representing different states: : Standby Blue...
- Page 14 Playing Audio via BT Connection 1.. Use either the buttons on the Sound Bar or the "Input" button on the remote to activate BT mode. A Blue LED indicator will indicate that BT mode has been selected. 2. Activate the pairing function on your phone of other compatible device and select “ZEB-JUKE BAR 2601"...
- Page 15 Playing Audio via USB Port When the USB flash drive is plugged in, the sound bar automatically switches to USB input mode. A Pink LED indicator will indicate that USB mode has been selected. This mode cannot be selected on the sound bar or remote control unless it is connected to a USB flash drive.
- Page 16 For details, see the user manual of your TV. 3. When HDMI(ARC) is connected, TV sound setting in "sound output" mode should be set as <external PCM Stereo>, in addition, digital a u d i o o u t p u t m o d e s h o u l d b e s e t a s <automatic>...
- Page 17 power adaptor cable...
-
Page 18: Specifications
Features: 2.0 Channel Soundbar Wireless BT/HDMI (ARC) / USB LED Indicator Volume/Media Control External Power Adapter Specifications Output Power (RMS) : 60W (30W +30W) Driver Size : (5.4 x 9.5cm) x 2 Impedance : 8Ω x 2 Frequency response : 20Hz-20kHz S/N Ratio : ≥65dB Separation... - Page 19 Package Contents: Sound Bar : 1 U QR Code Guide : 1 U Power Adapter : 1 U Remote control : 1 U ISO 9001:2015 Certified Company www.zebronics.com...
