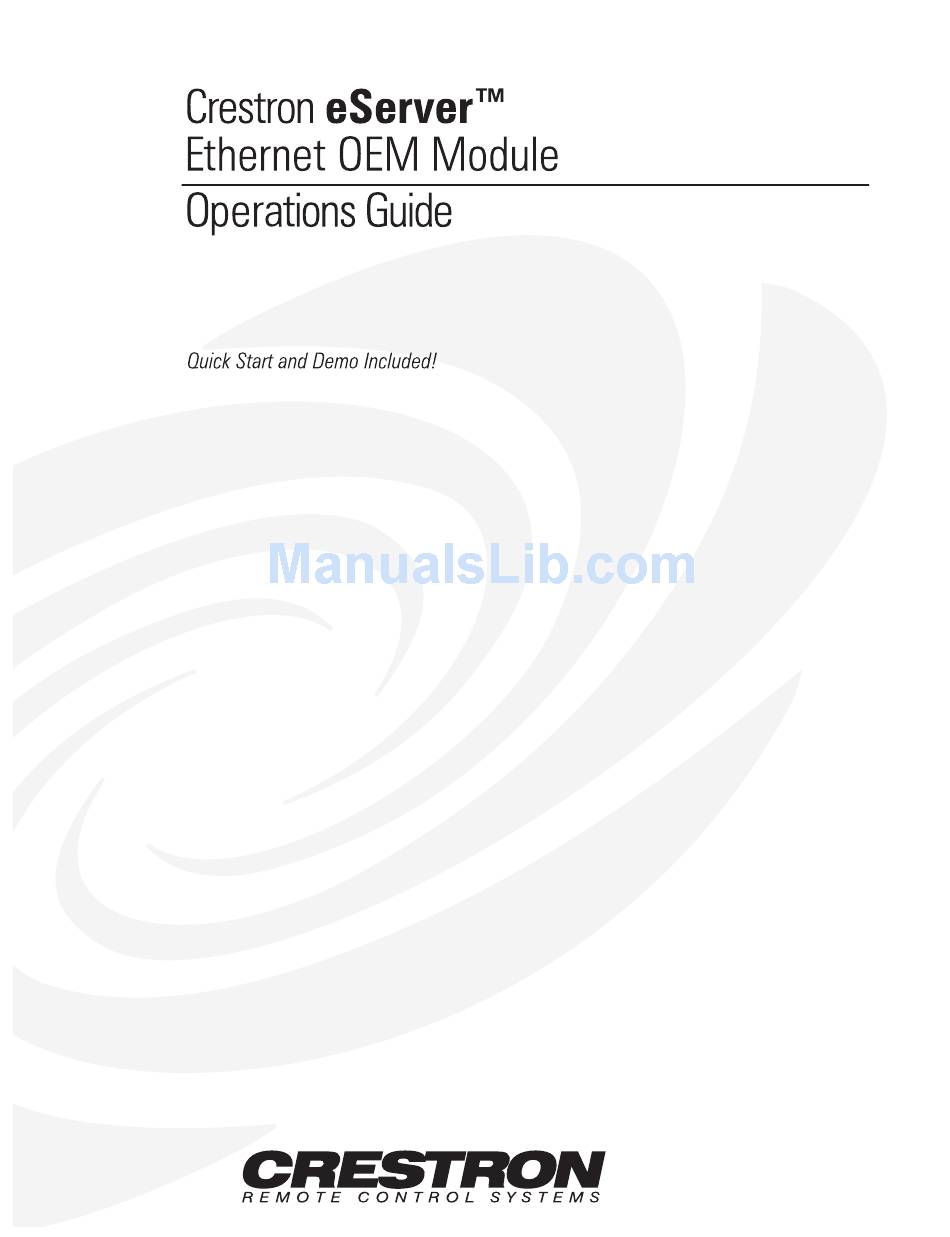

Crestron Ethernet Operator's Manual
  1. Manuals
  2. Brands
  3. Crestron Manuals
  4. Network Card
  5. Ethernet
  6. Operator's manual
Crestron Ethernet Operator's Manual

Crestron Ethernet Operator's Manual

Crestron operators manual ethernet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ethernet and is the answer not in the manual?

Questions and answers

Related Manuals for Crestron Ethernet

Summary of Contents for Crestron Ethernet

  • Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON...

  • Page 3: Quick Start

    For details regarding commands, refer to "Setup Menus" on page 11. 4. Connect to LAN Use a network cable (not supplied) to connect the eServer 10 BaseT port (labeled ETHERNET) to the LAN. Refer to "eServer Ports" on page 3 for ETHERNET port pinout details. 5. Run Demo Start the web browser on your PC and enter the IP address assigned in step 3.

  • Page 4: Table Of Contents

    Ethernet OEM Module Contents Demo Already Installed!...i Quick Start...i Ethernet OEM Module: eServer™ Description... 1 Functional Description ... 1 Physical Description... 2 Leading Specifications... 6 Control & Configuration... 6 Choose the Interface Method... 6 Choose the Configuration... 7 Implement the Chosen Configuration... 7 Setup Menus ...

  • Page 5: Ethernet Oem Module: Eserver

    Plug the eServer into any RS-232 controlled device or the LAN (for instant accessibility via the Internet). The unit communicates via industry standard TCP/IP, plugs directly into an 10/100 BaseT Ethernet LAN, runs on existing CAT5 cabling infrastructure, and provides remote access through a standard web browser for LAN and Internet access.

  • Page 6: Physical Description

    Due to the built-in SIMPL+ logic engine, the eServer is a very powerful one-port control system with Ethernet and web server built in. The web server with 2Mb of flash memory can store custom web pages for control of a connected device.
  • Page 7 No Connect From eServer (RTS) RS-232 Request to Send To eServer (CTS) RS-232 Clear to Send No Connect Ethernet OEM Module COM IN ETHERNET OUTPUT SPECS 120V~60Hz 12VDC .5 A 230V~50Hz 12VDC 1A DESCRIPTION Ethernet OEM Module: eServer™ • 3...
  • Page 8 ETHERNET This RJ45 modular connector provides Ethernet connection, thereby making the unit IP addressable and compatible with 10 BaseT Ethernet systems. The Ethernet port is the standard 10 BaseT pinout. Refer to the pinout table after this paragraph. Ethernet Port (RJ45) Pinouts 4 •...
  • Page 9 This LED illuminates when the Ethernet port on the eServer transmits Ethernet data. LNK (Ethernet) This LED illuminates when there are attachments to the Ethernet port on the eServer. ERR (Ethernet) This LED illuminates when any error is detected. It flashes when permanent ROM is reprogrammed.

  • Page 10: Leading Specifications

    The first question to answer when deciding to incorporate an eServer into a development project is how the device is to be used. There are two interface methods available, Crestron control and non-Crestron control. 6 • Ethernet OEM Module: eServer™ SPECIFICATION 12 VDC, 500 mA (domestic) 12 VDC, 1000 mA (international) ®...

  • Page 11: Choose The Configuration

    Crestron eServer™ Crestron Control Crestron control is defined as an interface to a Crestron Ethernet device. Implementation of this method is necessary for a device to communicate with a Crestron control system. Use of this interface method does not place design limitations on the project.
  • Page 12 SIMPL+ module that can translate their existing device's serial protocol to a standard Crestron symbol. The module would translate serial strings into standard Crestron digital, analog, and serial strings. 8 • Ethernet OEM Module: eServer™ • URL link to obtain the latest version of the device firmware •...
  • Page 13 Once the SIMPL+ module is created, it can be uploaded to the device via the serial or Ethernet port using the Crestron Viewport. Refer to "Appendix C: Uploading a SIMPL+ Program" on page 35 for details regarding the loading of a program from Viewport.
  • Page 14 Therefore, it should be fairly easy to integrate with existing code. The ActiveCNX control takes care of low-level Internet communications for a designer. Custom Application Control of a Device Utilizing Crestron ActiveCNX Control 10 • Ethernet OEM Module: eServer™ Web Pages Stored Files for...

  • Page 15: Setup Menus

    When the TCP socket opens, SIMPL+ (if running) pauses until the connection is closed. Setup Menus The eServer is an Ethernet device that is extremely flexible in the way it can provide Internet appliance capabilities to any RS-232 controlled device. As an Ethernet Operations Guide - DOC. 8148...
  • Page 16 NOTE: If XON/XOFF is checked, communication with the device may be unreliable. Apply power to the eServer and notice that the Viewport window changes as communication is established with the eServer, shown after this paragraph. 12 • Ethernet OEM Module: eServer™ Crestron eServer™ Operations Guide - DOC. 8148...
  • Page 17 Main Menu in Viewport Window Commands are listed in the left-most column with a brief description in the right- most column. Notice that DOS-type commands are prevalent (e.g., dir *.jpg). Operations Guide - DOC. 8148 Ethernet OEM Module Ethernet OEM Module: eServer™ • 13...
  • Page 18 0.0.0.0 separated by decimal points (.), after the “add_master” command. For example, to delete the IP address that was just added, enter the following: add_master 00.0.0.0.0.0 14 • Ethernet OEM Module: eServer™ Crestron eServer™ Operations Guide - DOC. 8148...
  • Page 19 201.201.201.0 ping Enter the “ping” command followed by an IP address to verify that the connected eServer can successfully communicate packets via the Ethernet port. port Entering the “port” command without any arguments displays the specs for the Console (Main) and DEVICE ports. For example, observe the following response to the “port”...
  • Page 20 Once the above command is entered, the new settings are saved to non-volatile memory. Invalid baud rates, comspecs, or options are ignored. A brief description of valid baud rates, comspecs, and options is shown after this paragraph. 16 • Ethernet OEM Module: eServer™ Crestron eServer™ Operations Guide - DOC. 8148...
  • Page 21 TCP-PORT – assigns a port number COMMAND Shows specs for COM IN and DEVICE ports. Sets DEVICE port to 9600, no parity, no handshake, no pacing, and mode is NONE. Disables DEVICE port. Ethernet OEM Module: eServer™ • 17 Ethernet OEM Module DESCRIPTION...
  • Page 22 The “prepare” command must be issued before the "system" command. It prepares the system prior to a firmware upgrade. 18 • Ethernet OEM Module: eServer™ Type system and depress ENTER. Viewport responds with “Start XMODEM xmit now” on one line and proceeds to display one “C”...
  • Page 23 DEBUG – for use with a Crestron technical representative only SYS_MESSAGES – suppresses all unprompted messages TELNET CONSOLE – permits access through Telnet (port 23) Operations Guide - DOC. 8148 from SIMPL+ Ethernet OEM Module: eServer™ • 19 Ethernet OEM Module...

  • Page 24: Programming With Simpl™ Windows

    Modules folder in the Device Library. The CEN-OEM, like any other device that is controlled via Ethernet from a Crestron control system, gets an IP ID and an entry in the IP Table of the control system. Refer to "ip_adr" on page 15 for setting the CEN- OEM IP ID.

  • Page 25: Example Program

    Refer to the following illustrations for the CEN-OEM symbol definition of the digital, analog, and serial signal lists in Detail View of SIMPL Windows' Program Manager. Operations Guide - DOC. 8148 Ethernet OEM Module SIMPL+ Definition DIGITAL_INPUT DIGITAL_OUTPUT ANALOG_INPUT ANALOG_OUTPUT STRING_INPUT or BUFFER_INPUT STRING_OUTPUT Ethernet OEM Module: eServer™ • 21...
  • Page 26 Sometimes, for the sake of organization, it is useful to space the signals out on the gate. In order to leave gaps in the ranges, the I/O lists can be assigned new starting join number. The following declarations accomplish this. 22 • Ethernet OEM Module: eServer™ Crestron eServer™ Operations Guide - DOC. 8148...
  • Page 27 Language Reference Guide (Doc. 5797) for detailed information on using these declarations. Renumbering the Example Program The following example demonstrates how the ranges can be renumbered. SIMPL+ Example: Renumbered Ranges Operations Guide - DOC. 8148 Ethernet OEM Module Ethernet OEM Module: eServer™ • 23...
  • Page 28 NOTE: When saving the SIMPL+ module, it should be saved as an OEM file type (select FILE | SAVE AS and choose the new file type from the drop down Save As 24 • Ethernet OEM Module: eServer™ Crestron eServer™...

  • Page 29: Web Page Demos

    Operations Guide in PDF format, which demonstrates that an OEM web project can use a variety of web technologies for device Web pages. Operations Guide - DOC. 8148 Ethernet OEM Module Ethernet OEM Module: eServer™ • 25...
  • Page 30 However, it provides an example of how a real implementation might allow an end user to get on-line help directly from the device or links to a manufacturer’s website. 26 • Ethernet OEM Module: eServer™ Crestron eServer™ Operations Guide - DOC. 8148...

  • Page 31: Problem Solving

    Problem Solving Troubleshooting The table after this paragraph provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron technical support representative. Operations Guide - DOC. 8148 Ethernet OEM Module Ethernet OEM Module: eServer™ • 27...

  • Page 32: Further Inquiries

    Crestron's award winning technical support team by calling: For local support from exclusive Crestron factory-trained personnel in New Zealand call Amber Technologies at +649-410-8382. 28 • Ethernet OEM Module: eServer™ POSSIBLE TROUBLE CAUSE(S) eServer is not receiving power.

  • Page 33: Software License Agreement

    Operations Guide - DOC. 8148 LICENSE TERMS OTHER LIMITATIONS Ethernet OEM Module: eServer™ • 29 Ethernet OEM Module...
  • Page 34 MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, OR ANY OTHER WARRANTIES, NOR AUTHORIZES OTHER PARTY MERCHANTABILITY FOR THIS PRODUCT. THIS WARRANTY STATEMENT SUPERSEDES ALL PREVIOUS WARRANTIES. 30 • Ethernet OEM Module: eServer™ PROPRIETARY RIGHTS GOVERNING LAW CRESTRON LIMITED WARRANTY OFFER WARRANTIES, Crestron eServer™...

  • Page 35: Return And Warranty Policies

    All brand names, product names, and trademarks are the sole property of their respective owners. Windows is a registered trademark of Microsoft Corporation. Windows95/98/Me/XP and WindowsNT/2000 are trademarks of Microsoft Corporation Operations Guide - DOC. 8148 Ethernet OEM Module Ethernet OEM Module: eServer™ • 31...

  • Page 36: Appendix A: Ip Table Setup

    ROM and can therefore be lost after a power cycle. Commands from the setup menus show the current IP table and implement changes to the list. Refer to "Add_master" on page 14 for details. 32 • Ethernet OEM Module: eServer™ Crestron eServer™ Operations Guide - DOC. 8148...

  • Page 37: Appendix B: Uploading Web Pages

    URL. The last statement in the dialog box confirms the transfer option chosen in the previous paragraph. Click OK to continue with the transfer. Operations Guide - DOC. 8148 Ethernet OEM Module Ethernet OEM Module: eServer™ • 33...
  • Page 38 The user has the option to cancel the transfer at any time. Otherwise the transfer of web pages to the eServer should conclude successfully. "Transfer In Progress…" Dialog Box 34 • Ethernet OEM Module: eServer™ Crestron eServer™ Operations Guide - DOC. 8148...

  • Page 39: Appendix C: Uploading A Simpl+ Program

    From Viewport, select File Transport | Send SIMPL+ Program to the CEN-OEM. Crestron Viewport The "Open" dialog box appears. Browse for the desired .csz file and select OK. The file is transferred to the eServer. Operations Guide - DOC. 8148 Ethernet OEM Module Ethernet OEM Module: eServer™ • 35...

  • Page 40: Glossary Of Terms

    Ethernet OEM Module Glossary of Terms Browser A browser is a software program that allows you to view and interact with various kinds of Internet resources available on the World Wide Web. A browser is commonly called a web browser.

  • Page 41: Master List

    The IP ID is a two-digit hexadecimal number that is used to differentiate a device from a group of Ethernet devices in a control system with the same IP address. Just as the Net ID is used to distinguish between identical devices within a SIMPL Windows program, the IP address for a specific IP ID in the control system's IP table must be set to the IP address of the given device.

  • Page 42: Subnet Mask

    Ethernet OEM Module Packet A packet is a chunk of information sent over a network. Each packet contains the address of origin, the address of its destination, and information about how to reunite with other related packets. This process allows packets from many different locations to co-mingle on the same lines and be sorted and directed to different routes by special machines along the way.
  • Page 43 World Wide Web at a particular server. Exploring a website usually begins with the home page, which may lead you to more information about that site. A single server may support multiple websites. Operations Guide - DOC. 8148 Ethernet OEM Module Glossary of Terms • 39...
