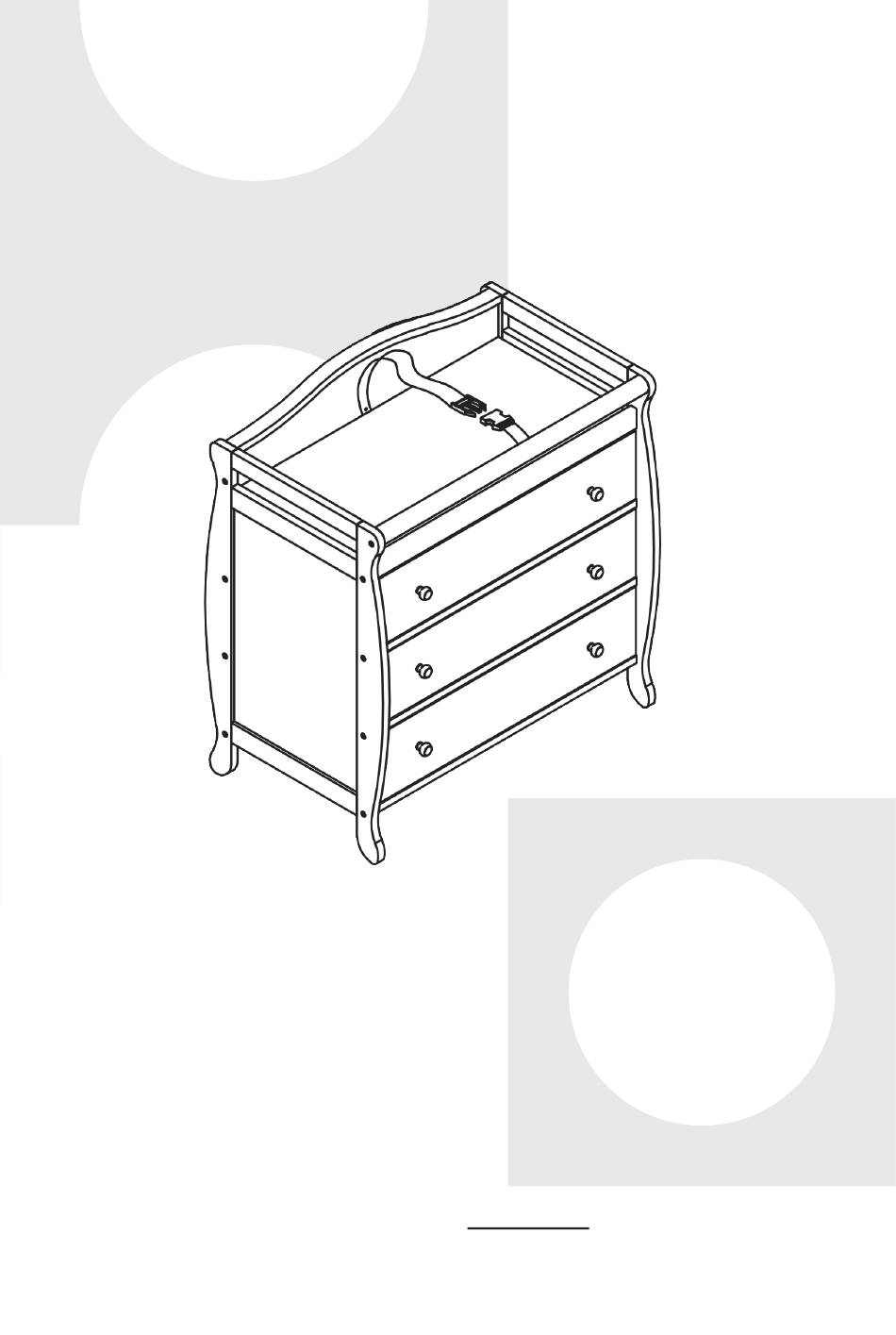

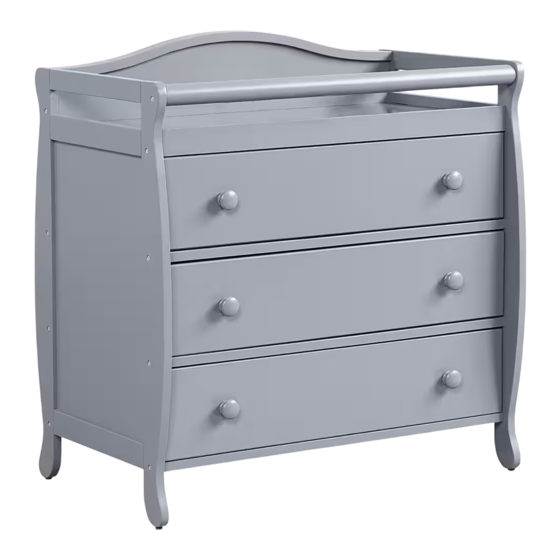

- Page 1 Baby Changing Table Table à Langer Bébé BB5762 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Before You Start
Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled. -
Page 3: Parts List / Liste Des Pièces
Parts List / Liste des Pièces Left Side Panel Right Side Panel Back Cross Beam /Panneau Latéral /Panneau Latéral /Traverse Arrière Gauche Droit (1 pc / pièce) (1 pc / pièce) (1 pc / pièce) Drawer Left Panel Drawer Right Panel Back Bottom Rail /Rail /Panneau Gauche de /Panneau Droit de... - Page 4 Parts List / Liste des Pièces Front Cross Beam Drawer Rail Drawer Front Panel /Traverse Avant /Rail de Tiroir /Panneau Avant de Tiroir (1 pc / pièce) (3 pcs / pièces) (3 pcs / pièces) Back Panel /Panneau Back Middle Rail /Rail Drawer Back Panel Arrière Central Arrière...
- Page 5 Hardware List / Liste de la Quincaillerie Allen Key/Clé Allen 3/16”*1” Bolt/Boulon 1/4”＊2-1/4” Barrel Nut/Écrou de Barillet 1/4”*3mm Dowel/Goujon 8*30 mm Screw/Vis F4*25 mm Bolt/Bouton 5/32”*28mm Knob/Bouton Safety Strap/Sangle de Sécurité 900x 25mm Screw/Vis F4*15mm Flat Washer/Rondelle à Plat Φ13mm Flat Washer/Rondelle à...
- Page 6 WARNING FALL HAZARD - Children have suffered serious injuries after falling from changing tables /trays. Falls can happen quickly. STAY in arm's reach of you child. Read all instructions before use of the changing table/tray. Keep instructions for future use. Do not use the changing table/tray if it is damaged or broken.
- Page 7 MISES EN GARDE RISQUE DE CHUTE - Des enfants ont subi des blessures graves après être tombés d'une table à langer ou d'un plateau. Les chutes peuvent arriver rapidement. RESTEZ à portée de bras de votre enfant. Lisez toutes les instructions avant d'utiliser la table à langer/le plateau.
- Page 8 Parts List / Liste des Pièces Right Side Panel Left Side Panel /Panneau Latéral Droit /Panneau Latéral Gauche Back Panel Back Cross Beam /Panneau Arrière /Traverse Arrière Back Bottom Rail Back Middle Rail /Rail Inférieur Arrière /Rail Central Arrière Panel Support Bar Top Panel /Barre de Support de /Panneau Supérieur...
- Page 9 Parts of Drawer / Tiroir Drawer Front Panel Drawer Bottom Panel /Panneau Avant du /Panneaux de Fond de Tiroir Tiroir Drawer Left Panel Drawer Support /Panneau Gauche du Tiroir /Support de Tiroir Drawer Right Panel Knob / Bouton /Panneau Droit du Tiroir Drawer Back Panel /Panneau Arrière du Tiroir...
- Page 10 EN: Attach drawer left panel (D) and drawer right panel (E) to drawer back panel (O) with 12 screws (#5) FR : Fixez le panneau gauche du tiroir (D) et le panneau droit du tiroir (E) au panneau arrière du tiroir (O) avec 12 vis (#5). EN: Slide drawer bottom panel (P) into the grooves of the side panels...
- Page 11 EN: Attach drawer support (V) to drawer back panel (O) FR : Fixez le support de tiroir (V) au panneau arrière du tiroir (O). EN: Attach drawer front panel (L) to assemble drawer left panel (D) and drawer right panel(E) and drawer support (V) with 15 screws (#5). FR: Fixez le panneau avant du tiroir (L) pour assembler le panneau gauche du tiroir (D) et le panneau droit du tiroir (E) ainsi que le support du tiroir (V) avec 15 vis (#5).
- Page 12 EN: Attach knob (#7) to drawer front panel (L) with bolt (#6). FR: Fixez le bouton (#7) au panneau avant du tiroir (L) avec le boulon (#6). EN: Attach 2 panel support bars (H) to back cross beam (C) and front cross beam (J) with 4 dowels (#4).
- Page 13 EN: Attach back cross beam (C), back middle rail (N), back bottom rail (F), top round rail (I), front cross beam (J) and drawer rail (K) to right side panel (B), using 9 bolts (#2) and 9 flat washer(#10) and 9 barrel nuts (#3) and 7 dowels (#4).
- Page 14 EN: Slide top panel (G), back panel (M) into the grooves. FR : Faites glisser le panneau supérieur (G) et le panneau arrière (M) dans les rainures.
- Page 15 EN: Attach back cross beam (C), back middle rail (N), back bottom rail (F), top round rail (I), front cross beam (J) and drawer rail (K) to left side panel (A), using 9 bolts (#2) and 9 flat washer(#10) and 9 barrel nuts (#3) and 7 dowels (#4).
- Page 16 EN: Insert the three assembled drawers into unit. FR: Insérez les trois tiroirs assemblés dans l'unité.
- Page 17 EN: Attach the safety strap (#8) to back cross beam (C) and front cross beam (J) by using the screws (#9) and flat washer (#11). FR: Fixez la sangle de sécurité (#8) à la traverse arrière (C) et à la traverse avant (J) à...
- Page 18 How to use safety strap / Comment utiliser la sangle de sécurité : EN: Adjust the restraint strap to fit baby’s body. To fasten restraint strap, insert the buckle as shown below. To release press inward on the tabs. FR: Ajustez la sangle de retenue pour s'adapter au corps de bébé. Pour attacher la sangle de retenue, insérez la boucle comme illustré...
- Page 19 Return / Damage Claim Instructions DO NOT discard the box / original packaging. In case a return is required, the item must be returned in original box. Without this your return will not be accepted. Take a photo of the box markings. A photo of the markings (text) on the side of the box is required in case a part is needed for replacement.
- Page 20 AUS office: Truganina FRA office: Saint Vigor d'Ymonville GBR office: FDS Corporation Limited,Unit 4, Blackacre Road, Great Blakenham,Ipswich, Ip6 0FL,United Kingdom USA:cs.us@costway.com If you're having difficulty, our friendly AUS:cs.au@costway.com GBR:cs.uk@costway.com customer team is always here to help. FRA:cs.f r @costway.com...
