True TS-23F Specifications

2001 East Terra Lane • P.O. Box 970 • O'Fallon, Missouri 63366
(636)240-2400 • Fax (636)272-2408 • (800)325-6152 • Intl Fax# (001)636-272-7546
Parts Dept. (800)424-TRUE • Parts Dept. Fax# (636)272-9471 • www.truemfg.com
Model:
TS-23F
ROUGH-IN DATA
Capacity
(Cu. Ft.)
Model Doors
(liters)
TS-23F 1 23
652
"
*
Height does not include 5
T R
RUE EFRIGERATION
TM
MADE IN
U.S.A. U.S.A. .S.A.
®
SINCE 1945
6/07
TRUE FOOD SERVICE
EQUIPMENT, INC.

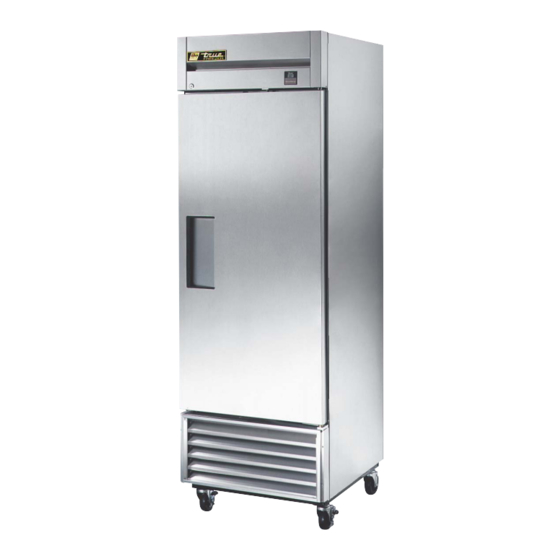

TS Series:
Reach-In 300 Series Stainless Steel Solid Door Freezer
Cabinet Dimensions
(inches)
(mm)
L D
Shelves
3 27 29
686 750
"
(127 mm) for castors or 6 (153 mm)
APPROVALS:
R
Printed in U.S.A.
Project Name:
Location:
Item #:
Model #:
Chart dimensions rounded up to the nearest
*
H
HP Voltage
1 3 1
/ 78 / / 115/60/1
2 8 2
1
1991 / 230-240/50/1
2
for optional legs.
Qty:
TS-23F
True's TS series is the choice for the
exclusive 300 series stainless steel
commercial application.
Designed using the highest quality
materials and components to
provide the user with colder product
temperatures, lower utility costs,
exceptional food safety and the
best value in today's food service
marketplace.
Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains
-10°F (-23.3°C) cabinet temperatures.
Ideally suited for both frozen food and
ice cream.
300 series stainless steel exterior and
interior. The fi nest stainless available;
higher tensile strength for fewer dents
and scratches.
Adjustable, heavy duty PVC coated
shelves.
Positive seal self-closing door. Lifetime
guaranteed door hinges and torsion
type closure system.
Automatic defrost system time-
initiated, temperature-terminated.
Saves energy consumption and
provides shortest possible defrost cycle.
Bottom mounted units feature:
"No stoop" lower shelf.
Storage on top of cabinet.
Compressor performs in coolest, most
grease free area of kitchen.
Easily accessible condenser coil for
cleaning.
Specifi cations subject to change without notice.
1
/ " (millimeters rounded up to next whole
8
Cord
Length
NEMA (total ft.)
Amps Confi g.
(total m)
10.4 5-15P 9
▲
5.5 2.74
▲ Plug type varies by country.
AVAILABLE AT:
AIA #
SIS #
number).
Crated
Weight
(lbs.)
(kg)
315
143
