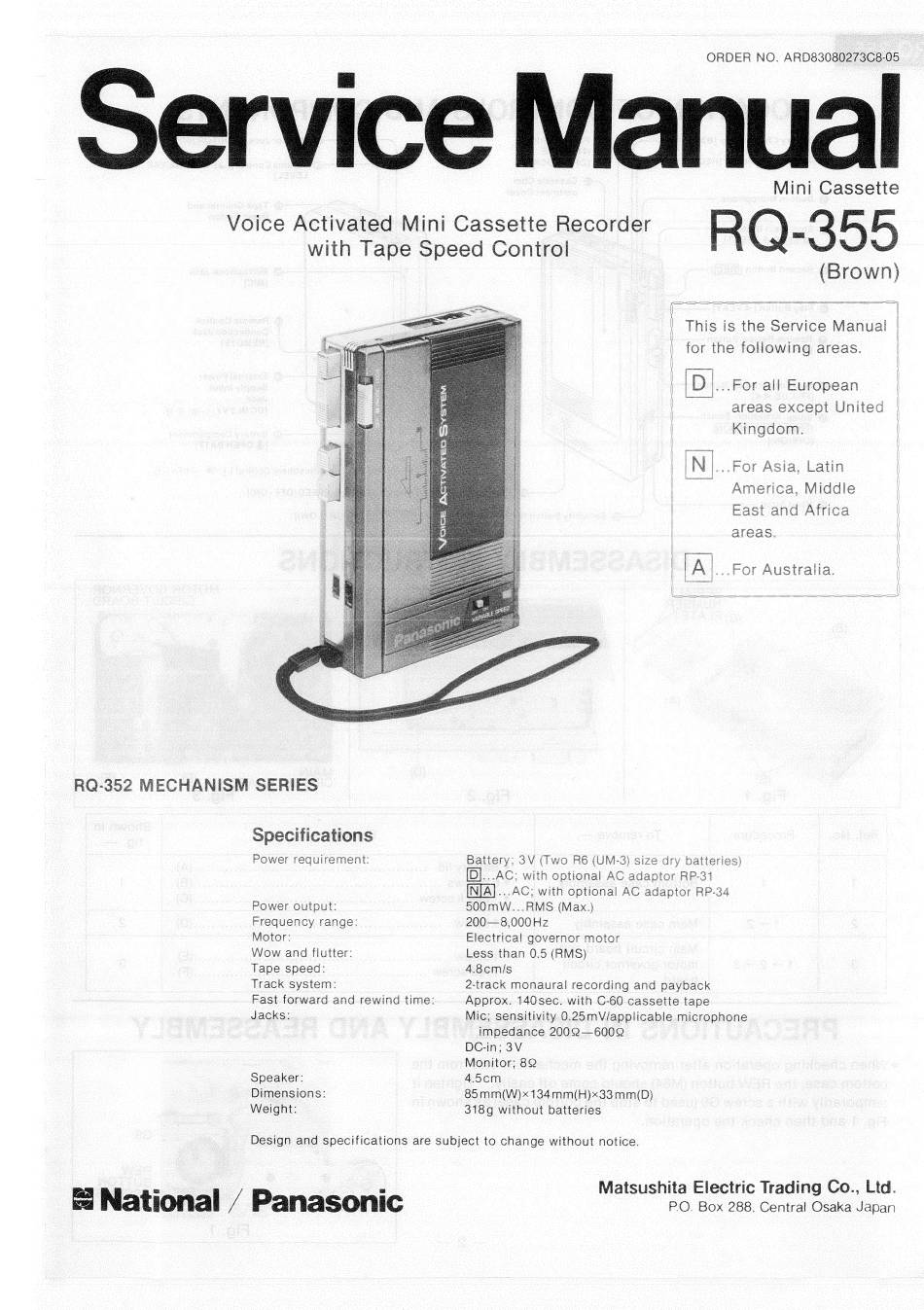

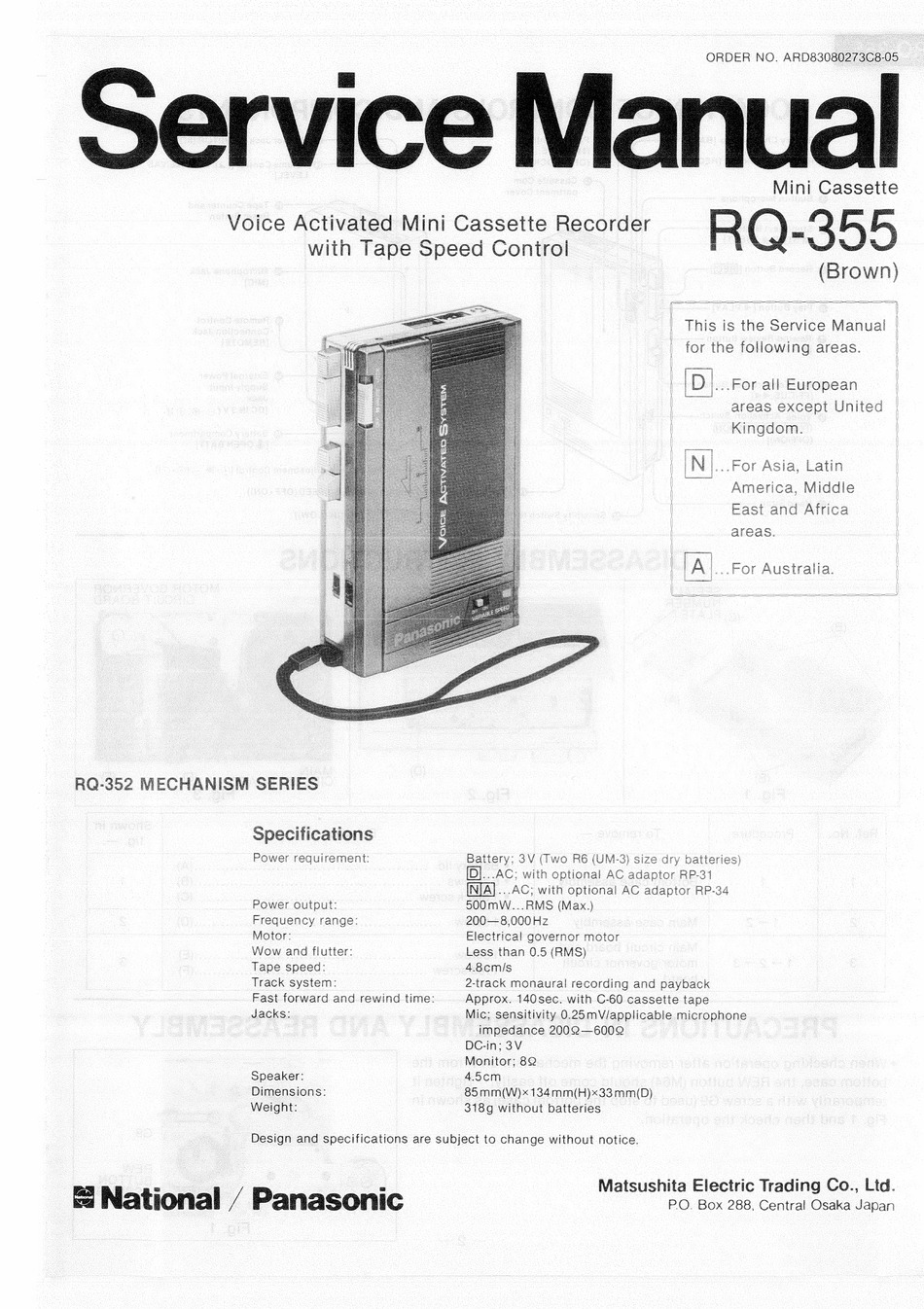

Panasonic National RQ-355 Service Manual

RQ-352 MECHANISM SERIES
Specifications
Power requirement:
Power output:
Frequency range:
Motor:
Wow and flutter:
Tape speed:
Track system:
Jacks: ©
Speaker:
Dimensions:
Weight:
Voice Activated Mini Cassette Recorder
with Tape Speed Control.
Fast forward and rewind time:
ORDER NO. ARD83080273C8-05
Mini Cassette
This is the Service Manual |
for the following areas.
..For all European
areas except United |
Kingdom. |
.For Asia, Latin |
America, Middle |
East and Africa |
areas.
AA}...For Australia. |
ep)
Battery; 3V (Two R6 (UM-3) size dry batteries)
[D]...AC: with optional AC adaptor RP-31
...AC; with optional AC adaptor RP-34
500mW...RMS (Max.)
200— 8,000 Hz |
Electrical governor motor
Less than 0.5 (RMS)
4.8cm/s |
2-track monaural recording and payback
Approx. 140sec. with C-60 cassette tape
Mic; sensitivity 0.25mV/applicable microphone |
impedance 2002—600©
DC-in; 3V
Monitor; 82
-45¢m. | .
-85mm(W)x134mm(H)x33mm(D)
318g without batteries
Design and specifications are subject to change without notice.
Matsushita Electric Trading Co., Lt
P.O. Box 288, Central Osaka Japan
