True T-23FG Specifications

St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366
(636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# (636)272-9471
Model:
T-23FG
ROUGH-IN DATA
Capacity
(Cu. Ft.)
Model Doors
(liters)
T-23FG 1 23
652
† 3
Depth does not include 1 /
8
"
*
Height does not include 5
T R
RUE EFRIGERATION
TM
MADE IN
U.S.A.
®
SINCE 1945
1/06
TRUE FOOD SERVICE
EQUIPMENT, INC.
T Series:

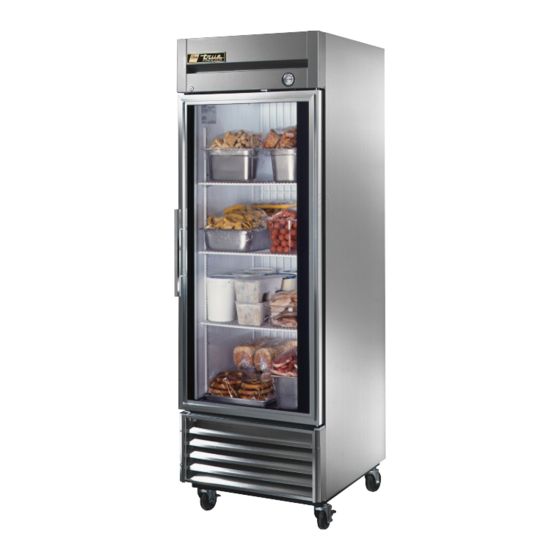

Reach-In Glass Door Freezer
Cabinet Dimensions
(inches)
(mm)
L D
Shelves
3 27 29
686 756
"
(35 mm) for door handle.
"
(127 mm) for castors or 6 (153 mm)
APPROVALS:
R
Printed in U.S.A.
Project Name:
Location:
Item #:
Model #:
Chart dimensions rounded up to the nearest
† *
H
HP Voltage
3 3 3
/ 78 / / 115/60/1
4 8 4
1991
for optional legs.
Qty:
T-23FG
Designed using the highest quality
materials and components to
provide the user with colder product
temperatures, lower utility costs,
exceptional food safety and the
best value in today's food service
marketplace.
Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser maintains -10°F
(-23.3°C). Ideally suited for both
frozen foods and ice cream.
300 series stainless steel front. The
very fi nest stainless available with
higher tensile strength for fewer
dents and scratches.
Triple pane thermal glass door.
Adjustable, heavy duty PVC coated
shelves.
Positive seal self-closing door.
Lifetime guaranteed door hinges and
torsion type closure system.
Automatic defrost system time-
initiated, temperature-terminated.
Saves energy consumption and
provides shortest possible defrost
cycle.
Bottom mounted units feature:
"No stoop" lower shelf.
Storage on top of cabinet.
Compressor performs in coolest,
most grease free area of kitchen.
Easily accessible condenser coil for
cleaning.
Specifi cations subject to change without notice.
1
/ " (millimeters rounded up to next whole
8
Cord
Length
NEMA (total ft.)
Amps Confi g.
(total m)
13.0 5-20P 9
2.74
AVAILABLE AT:
AIA #
SIS #
number).
Crated
Weight
(lbs.)
(kg)
405
184
