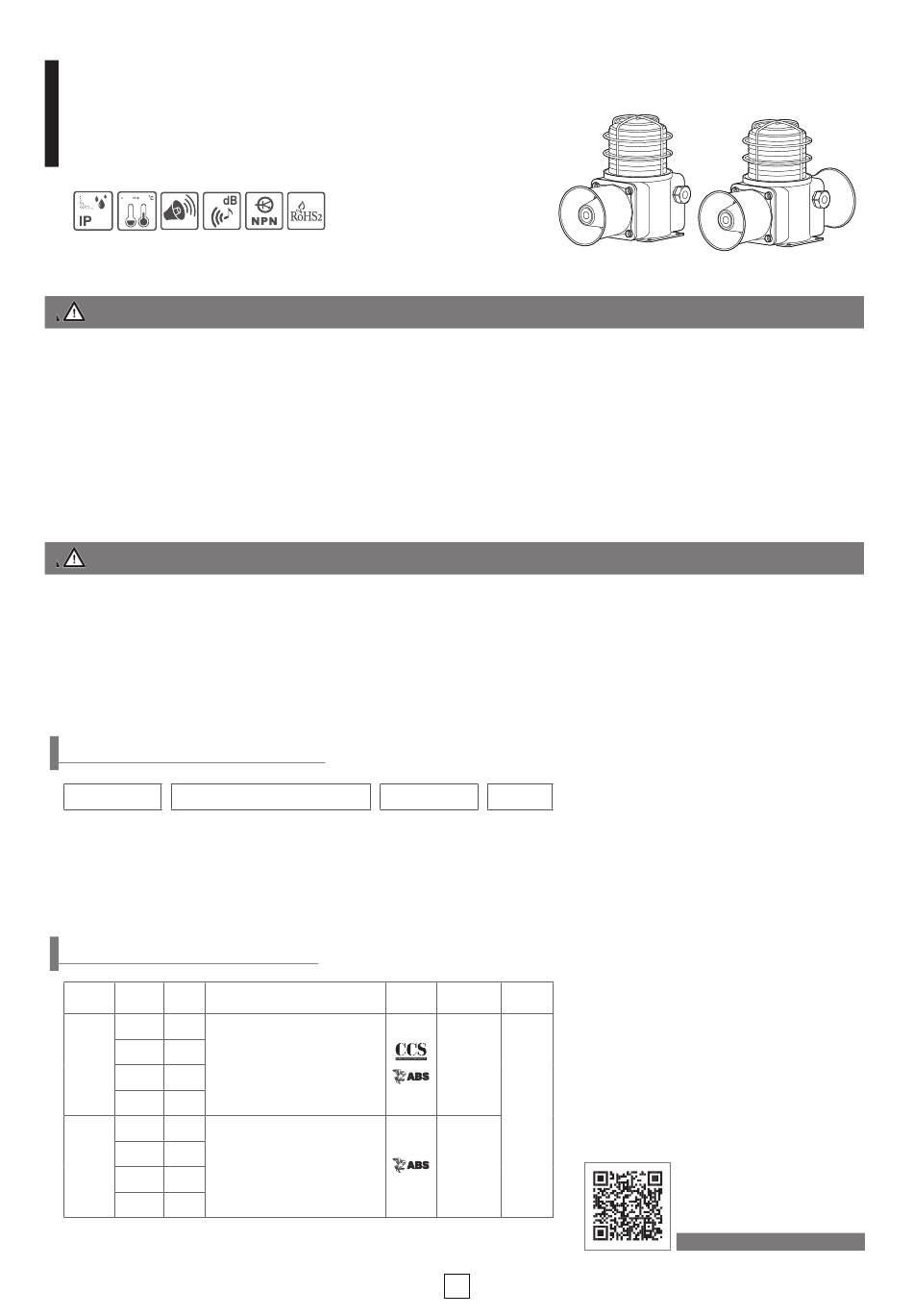

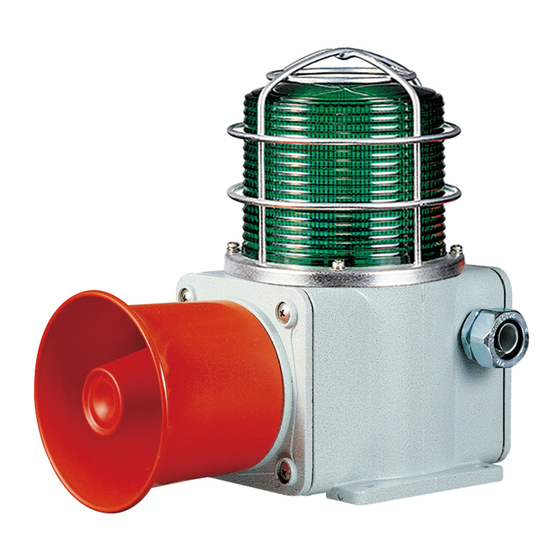

Qlight SHDL Quick Start Manual

Heavy-Duty LED Revolving Warning Light & Electric Horn Combination
for Vessels and Heavy Industry Applications
SHDL/ SHD2L
118
30 50
66
HORN
Thank you for purchasing Qlight's products. Please read this user
manual carefully prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. During wiring or maintenance, please completely turn off the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a fire to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to fire, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to fire, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, fire, electric shock and loss of life.)
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the product
that would void the warranty.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn off the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product's specification.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
Ordering Specifications
SHDL -
[Model number]
|
• SHDL • WS-Warning sounds
• SHD2L
• WP-special warning sounds
• SHDLP
• WM-Melodies
• SHD2LP
• WA-Alarms
• WV-Customizable sounds
Product Specifications
Model
Voltage Current
number
DC12V 2.511A • WS-5 Warning Sounds : Max.118dB
• WP-5 special warning sounds : Max.118dB
DC24V 1.222A
SHDL
• WM-5 Melodies : Max.118dB
SHDLP
AC110V 0.286A
• WA- 5 Alarms : Max.116dB
• WV-5 Customizable sounds : Max.113dB
AC220V 0.143A
DC12V 4.722A • WS-Warning Sounds : Max.118dBx2
• WP-special warning sounds : Max.118dBx2
DC24V 2.188A
SHD2L
• WM-5 Melodies: Max.118dBx2
SHD2LP
AC110V 0.513A
• WA-5 Alarms :116dBx2
• WV-5 Customizable sounds :113dBx2
AC220V 0.256A
• Protection rating : IP66
• Ambient operating temperature : -30°C to +50°C
WA - 24
[Sound] [Voltage]
|
• 12 - DC12V
• 24 - DC24V
• 110 - AC110V
• 220 - AC220V
Sound pattern
Certificate
and volume
- R
[Color]
| |
R-Red
A-Amber
G-Green
B-Blue
Weight Color
• SHDL
DC-3.02kg
AC-3.39kg
• SHDLP
DC-3.27kg
R-Red
AC-3.64kg
A-Amber
G-Green
• SHD2L
B-Blue
DC-4.07kg
AC-4.45kg
• SHD2LP
DC-4.32kg
AC-4.70kg
1
Please scan the QR code for more
detailed product information.
