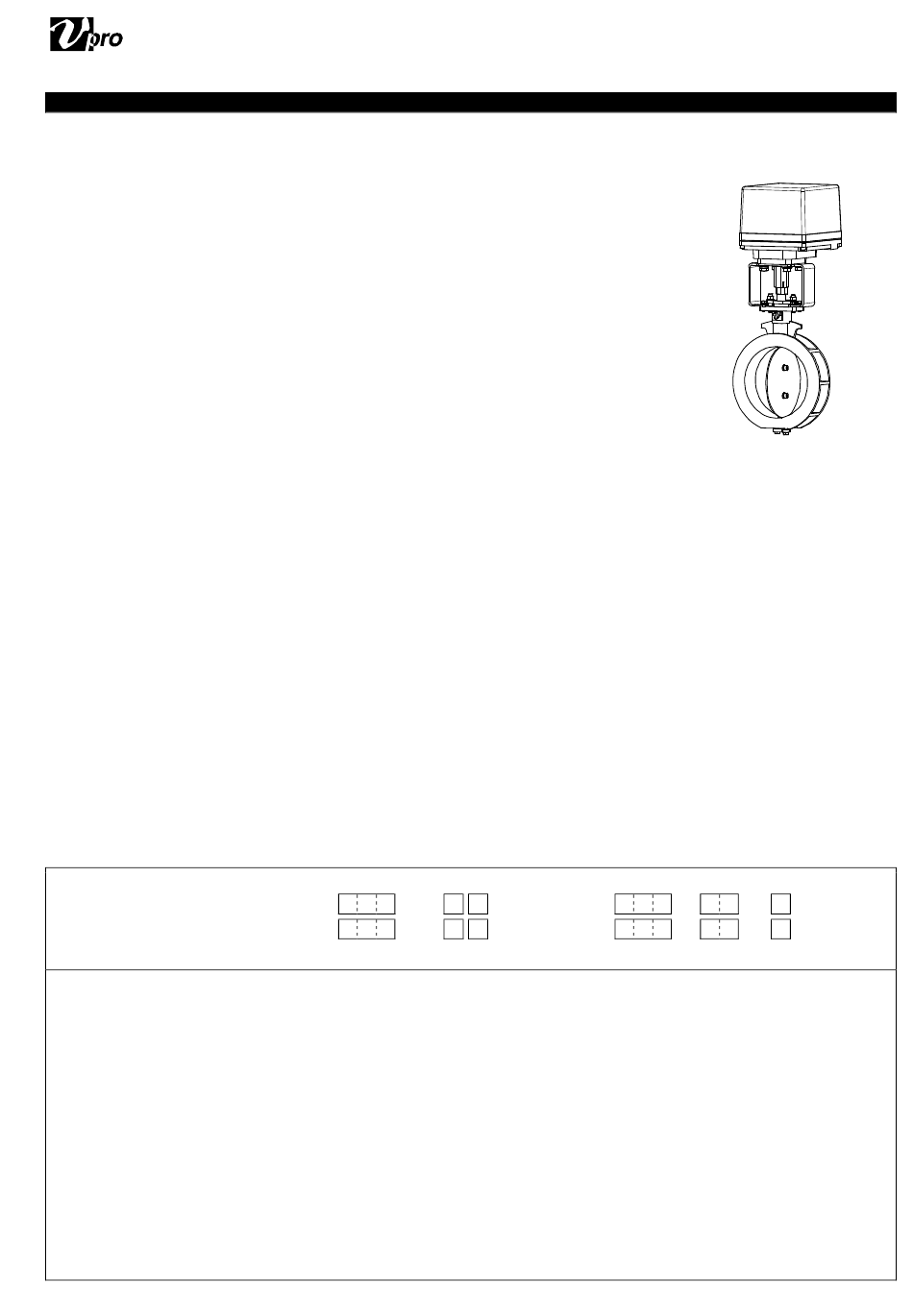

VPro WT Series Instruction Manual

NIPPON VALVE CONTROLS, INC.
Please read this manual before installation and use.
GENERAL
It composed of wafer type butterfly damper and high-power electric actuator.
(Proportional control)
Actuator
PDX : For AC / DC power.
PHX : For AC / DC power.
Damper
WT type With heat-resistant damper material this series can be used at fluid
temperatures ranging from -40 °C to +550 (600) °C.
PRODUCT CODE
WT type (Without seat)
(With SUS316 seat)
(1) Actuator
PDX
PHX
(2) Damper
WT
(3) Voltage
1 : 100 / 110 V AC
2 : 200 / 220 V AC
0 : 24 V DC
3 : 24 V AC
Instruction manual
Electric Actuated Butterfly Damper
W T
W T
(1) (2) (3) (4) (5) (6) (7) (8)
(4) Sizing code (8) Seat material
0 : Standard
1 : Light
2 : Heavy
(9) Size [mm]
(5) Connection
2 : JIS 5K
(6) Body material
T : SCS13A
(7) Packing material
G : Expansion graphite
2 T G 0 -
2 T G S -
(10) Option
0 : (Zero) None
S : SUS316
ex. 80 A ® 080
(11) Operation mode
(11) Input signal (PDX)
1/12
OSRWT23A-EN
WT
- -
- -
(9) (10) (11)
EA : Alarm output board
EI : 4 to 20 mA
Indication signal board
L0 : Auxiliary limit switch
L2 : Auxiliary limit switch
Nil : Mode A
J : Mode B
It corresponds to various
control input signals.
SP-1519
