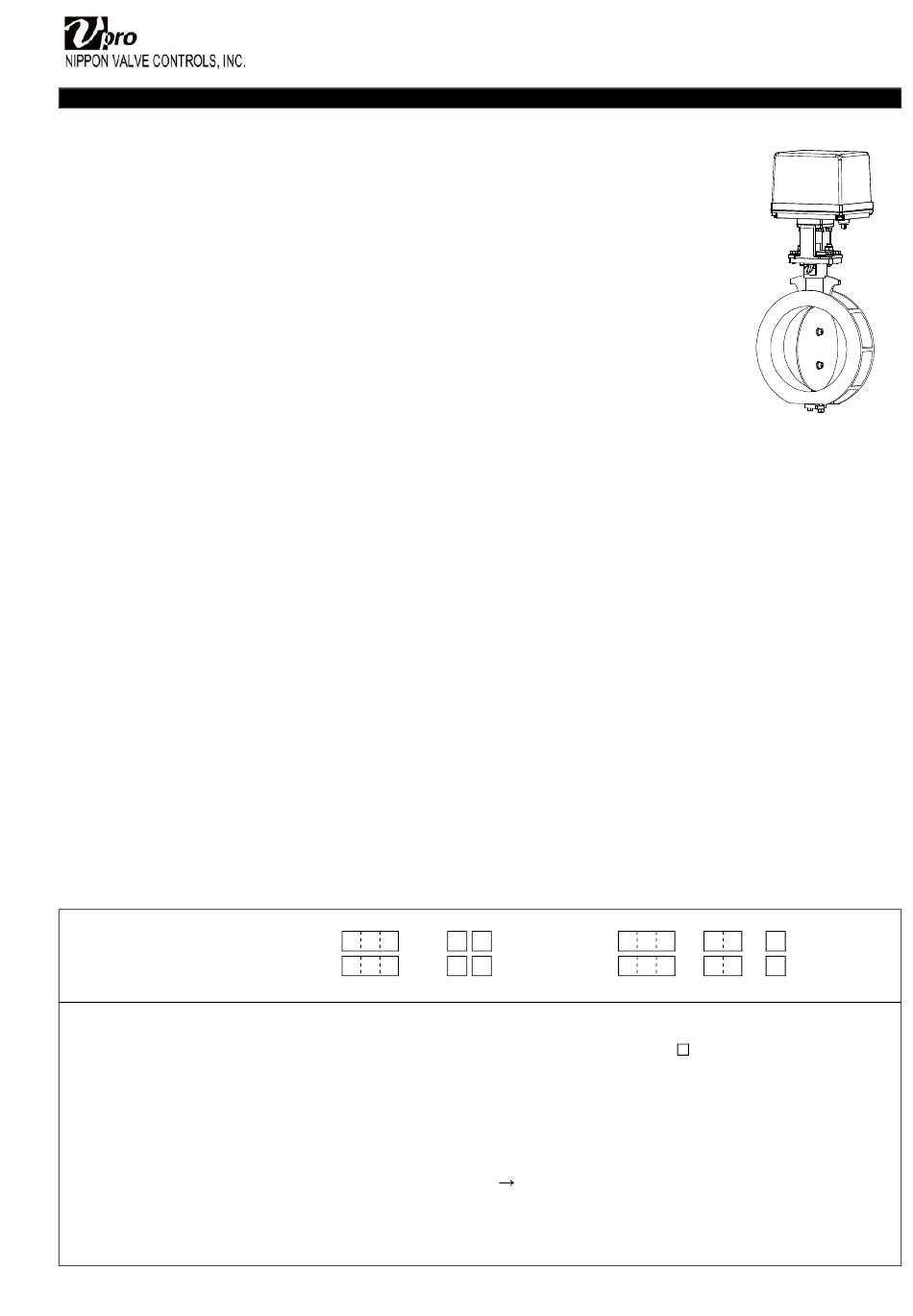

VPro WT Instruction Manual

Electric actuated butterfly damper
Hide thumbs Also See for WT:

Advertisement

Quick Links

Please read this manual before installation and use.
GENERAL
It composed of wafer type butterfly damper and high-power electric actuator.
(Proportional control)
Actuator
AEX : For AC power.
PEX : For AC / DC power. High speed response control
Damper
WT type For Wafer (JIS 5K)
Damper body and disk made by precision processing
ensure reduced leakage from damper seat.
This series can be used at fluid temperatures ranging
from -40 °C to +550 °C.
PRODUCT CODE
WT type
(Without seat)
(With SUS316 seat)
(1) Actuator
AEX
PEX
(2) Damper
WT
(3) Voltage
1 : 100 / 110 V AC
2 : 200 / 220 V AC
6 : 100 to 240 V AC
0 : 24 V DC
Instruction manual
Electric Actuated Butterfly Damper
It corresponds to various control
input signals.
and high reliability offers by
using a brushless DC motor.
W T
W T
(1)
(2) (3) (4) (5) (6) (7) (8)
(4) Sizing code
(7) Packing material
0 : Standard
G : Expansion graphite
1 : Light
2 : Heavy
(8) Seat material
0 : (Zero) None
(5) Connection
S : SUS316
2 : JIS 5K
(9) Size [mm]
(6) Body material
ex. 80 A
T : SCS13A
2 T G 0 -
2 T G S -
(9)
(10) Option
(11) Operation mode
080
1/12
OSVWT20A-EN
WT
-
-
-
-
(10)
(11)
L
: Auxiliary limit switch
EA : Alarm output board
EI : 4 to 20 mA
Indication signal board
Nil : Mode A
J : Mode B
SP-1379

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WT and is the answer not in the manual?

Questions and answers

Summary of Contents for VPro WT

  • Page 1 DC motor. Damper WT type For Wafer (JIS 5K) Damper body and disk made by precision processing ensure reduced leakage from damper seat. This series can be used at fluid temperatures ranging from -40 °C to +550 °C.
  • Page 2: Pressure & Temperature Rating

    2 % of rated Cv. 065 to 400 Less than 1 % of rated Cv. WT-2TGS (With SUS316 seat) 040 Less than 1 % of rated Cv. Less than 0.5 % of rated Cv. Less than 0.2 % of rated Cv.
  • Page 3 OSVWT20A-EN ELECTRIC ACTUATOR SPECIFICATIONS type Actuator type AEX-120- AEX-360- AEX-700- AEX-02K- AEX-06K- ( :Voltage code) Voltage 100 / 110 AC V ±10 % 50/60 Hz (Code: 1) 200 / 220 AC V ±10 % 50/60 Hz (Code: 2) Rated torque [N m] 12 Operation time [s] 30 / 25...
  • Page 4: Operating Range

    OSVWT20A-EN ELECTRIC ACTUATOR SPECIFICATIONS WIRING Setting with DIP SW • Operation Positioner board Voltage Motor Mode A Mode B 100/110VAC. 200/220VAC. Adjustment trimmer ON OFF ON OFF SPAN Indication Input signal signal ZERO  4 to 20mA.  1 to 5V. ( O-L ) ( S-L ) Resistance • Input signal input Dead band D. B.
  • Page 5 OSVWT20A-EN ELECTRIC ACTUATOR SPECIFICATIONS type Actuator type PEX-120- PEX-300- PEX-700- ( :Voltage code) Voltage 100 to 240 V AC ±10 % 50/60 Hz (Code: 6) 24 V DC +20 % ~ -10 % (Code: 2) Cannot use a half or full-wave DC power supply. Rated torque [N m] 10 Operation time...
  • Page 6 OSVWT20A-EN ELECTRIC ACTUATOR SPECIFICATIONS WIRING Setting with DIP SW Voltage Positioner board • Operation  24VDC. Motor  100 to Adjustment trimmer Mode A (Standard) Mode B    240VAC. Speed control S. C. Input signal SPAN Indication  4 to 20mA. signal ZERO  1 to 5V. ( O-L ) ( S-L ) Override Dead band D. B. SHUT SW Override OPEN Operating OPEN SW range...
  • Page 7: Optional Parts

    OSVWT20A-EN ELECTRIC ACTUATOR SPECIFICATIONS OPTIONAL PARTS Specifications Code No. AEX PEX Remarks Mode A (Standard) Input signal 4 to 20 mA or 1 to 5 V and operation Mode B Mode A 0-135 to 0-1 k Potentiometer input or 0 to 5 V Mode B 0 to 10 V Mode A...
  • Page 8: Drive Gear

    OSVWT20A-EN ELECTRIC ACTUATOR SPECIFICATIONS DIMENSIONS AEX-120, 360 AEX-700 AEX-02K AEX-06K 2-G1/2 2-G1/2 2-G1/2 2-G1/2 PEX-120, 300 PEX-700 2-G1/2 2-G1/2 Parts name 1 Body 4 Control board 7 Drive gear 10 Rubber packing 2 Motor cover 5 Terminal block 8 Drive shaft 3 Motor 6 Potentiometer 9 Manual shaft...
  • Page 9: Installation

    OSVWT20A-EN INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS HANDLING & STORAGE ENVIRONMENT HANDLING • Do not install in place where corrosive gas is present Proper care in handling the damper should be taken or where vibration is heavy (0.5 G or more). to prevent damage.
  • Page 10: Input Signal

    OSVWT20A-EN INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS WIRING CONTROL PRECAUTIONS INPUT SIGNAL • Remove the actuator cover before wiring. • Use shielded wire for signal wiring where high level • Two G1/2 electrical connections are provided with a noise is generated or when the wiring distance is long. cable gland and plug.
  • Page 11: Operation

    OSVWT20A-EN INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS OPERATION MANUAL OPERATION TESTING PRECAUTIONS • Make sure that power supply voltage is correct. Also • Be sure to turn off the power before manual operation. check operating position, wiring, speed and signals. • Operate manually with reference to the opening •...
  • Page 12: Troubleshooting

    OSVWT20A-EN INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS TROUBLE SHOOTING Problem Cause Solution Problem Cause Solution Actuator Faulty wiring. Correct the wiring. Stop in the Signal voltage Use a voltage source does not mid position. source that can be made to move. (Input signal capacity flow more than 20 mA.
