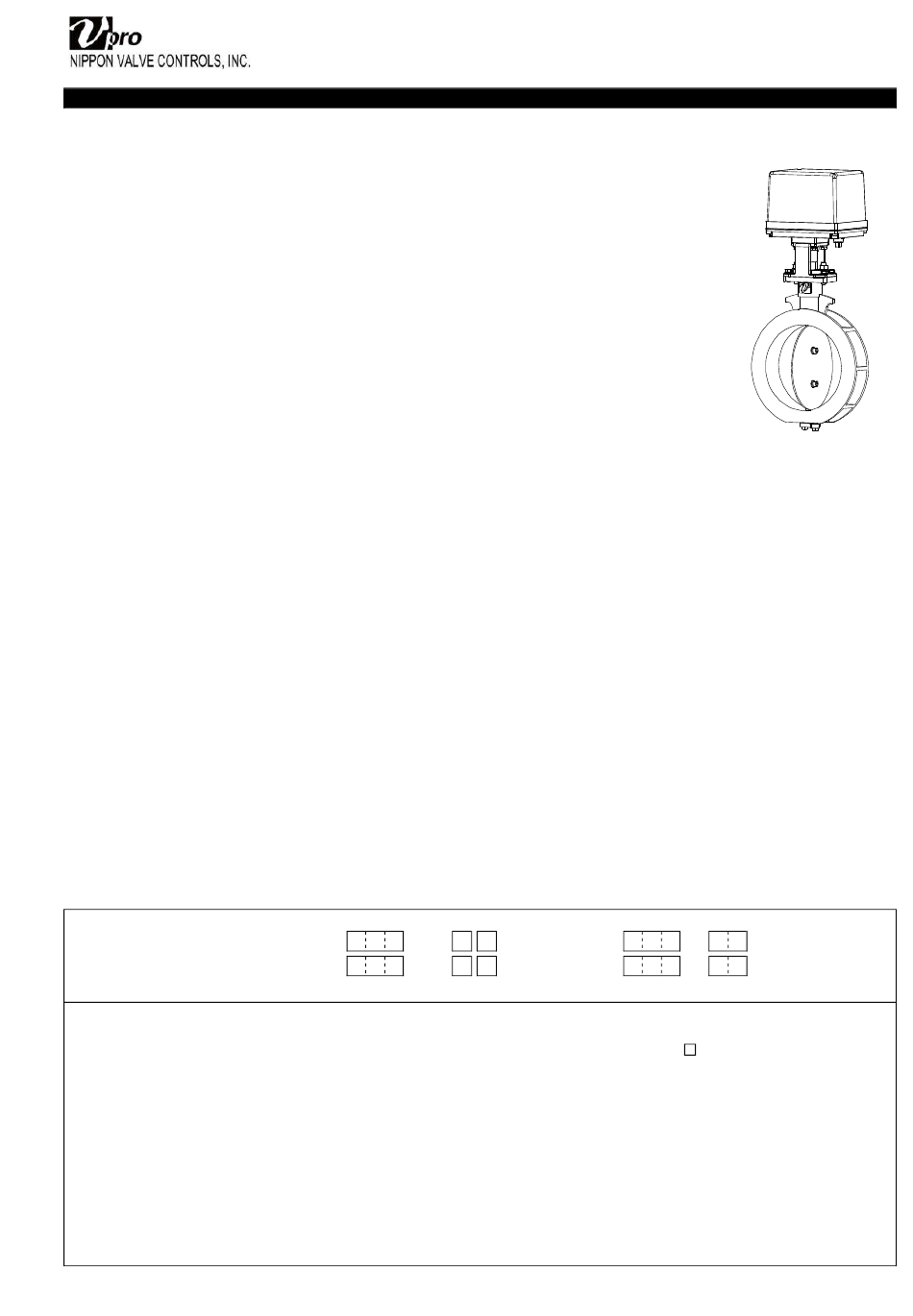

VPro WT Instruction Manual

Electric actuated butterfly damper
Hide thumbs Also See for WT:
Table of Contents

Advertisement

Quick Links

Download this manual
Please read this manual before installation and use.
GENERAL
Flanged-end butterfly damper with high-power electric actuator.
Actuator
AD1 : For AC power
AD2 : For AC / DC power
AD0 : For DC power
HD1 : For AC power
HD2 : For AC / DC power (High speed)
HD0 : For DC power
AE
: For AC power
Damper
WT type For Wafer (JIS 5K)
Damper body and Disc made by precision processing
ensure reduced leakage from damper seat.
This series can be used at fluid temperatures ranging
from -40 °C to +550 °C.
PRODUCT CODE
WT type
(Without seat)
(With SUS316 seat)
(1) Actuator
AD1 HD1 AE1
AD2 HD2 AE2
AD0 HD0
(2) Damper
WT
(3) Voltage
1 : 100 / 110 V AC
2 : 200 / 220 V AC
0 : 24 V DC
Instruction manual
Electric Actuated Butterfly Damper
(High speed)
(High speed)
W T
W T
(1)
(2) (3) (4) (5) (6) (7) (8)
(4) Sizing code
(7) Packing material
0 : Standard
1 : Light
2 : Heavy
(8) Seat material
(5) Connection
2 : JIS 5K
(9) Size [mm]
(6) Body material
T : SCS13A
2 T G 0 -
2 T G S -
G : Expansion graphite
0 : (Zero) None
S : SUS316
ex. 80 A ® 080
1/13
OSBWT225-EN
WT
-
-
(9)
(10)
(10) Option
L
: Auxiliary limit switch
M0 : Manual lever handle
SP-1474
