PCS3178L PCS4178L PCD3178L Instructions for use Built-in refrigerator-freezer...
Page 2
Please visit our website where you can enter your appliance model number, indicated on the rating plate or the warranty sheet, to find detailed description of your appliance, tips on use, troubleshooting, service information, instructions for use etc. www.pelgrim.nl Important safety warning General warnings and tips Protecting the environment...
CONTENTS INTRODUCTION 4 IMPORTANT NOTES AND PRECAUTIONS 4 BEFORE USING THE APPLIANCE FOR THE FIRST TIME 5 IMPORTANT SAFETY INSTRUCTIONS 7 IMPORTANT INFORMATION ON THE USE OF APPLIANCE 8 ENVIRONMENT PROTECTION 9 ADVICE FOR SAVING ENERGY WITH REFRIGERATION APPLIANCES APPLIANCE 10 INSTALLATION AND CONNECTION DESCRIPTION 12 APPLIANCE DESCRIPTION...
IMPORTANT NOTES AND PRECAUTIONS BEFORE USING THE APPLIANCE FOR THE FIRST TIME Before connecting the appliance to the power mains, please read carefully the instructions for use which describe the appliance and its correct and safe use. The instructions apply to several appliance types/models; thus, settings or equipment may be described herein which is not available in your appliance.
IMPORTANT SAFETY INSTRUCTIONS The appliance must be connected to the power mains and grounded in compliance with the effective standards and regulations. Before cleaning the appliance, unplug it from the power mains (unplug the power cord from the wall outlet). If the power cord is damaged, it must be replaced by a service technician or other adequately trained person.
Page 6
Danger of frostbite Never put frozen food in your mouth and avoid touching frozen food as this may cause frostnip or frostbite. Safety of children and vulnerable persons This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or metal capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe...
IMPORTANT INFORMATION ON THE USE OF APPLIANCE WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. The appliance may not be used outdoors and it may not be exposed to rain. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
ENVIRONMENT PROTECTION Packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. Removing an obsolete appliance To protect the environment, take the obsolete appliance to an authorized home appliance collection centre. Before doing so, do the following: •...
ADVICE FOR SAVING ENERGY WITH REFRIGERATION APPLIANCES • Install the appliance as specified in the instruction manual. • Do not open the door more often than necessary. • Occasionally make sure air circulation underneath the appliance is unobstructed. • Condenser unit on the rear wall should be kept clean (see chapter Cleaning the appliance).
INSTALLATION AND CONNECTION SELECTING THE ROOM • Install the appliance in a dry and well ventilated room. The appliance will operate correctly if the environment temperature is in the interval specifi ed in the table. The appliance class is indicated on the rating plate / label with the basic information on the appliance.
Page 11
CONNECTING THE APPLIANCE • Connect the appliance to the power mains using the power cord. The wall outlet should be fi tted with a ground contact (safety socket). Nominal voltage and frequency are indicated on the rating plate/label with basic information on the appliance.

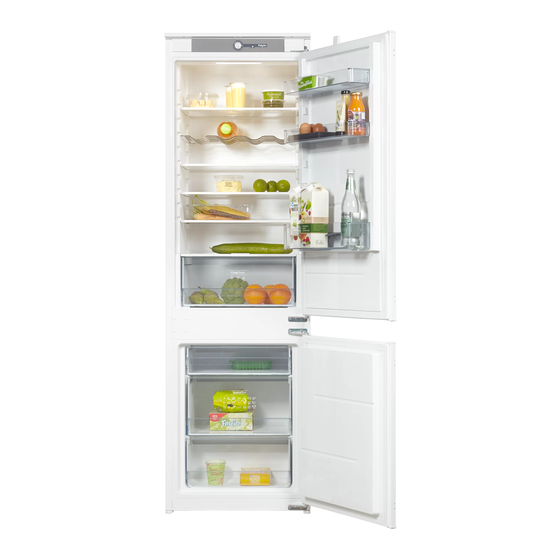

APPLIANCE DESCRIPTION A Refrigerator 1 Control unit 2 LED lighting 3 Bottle rack 4 Glass shelves 5 Fruit and vegetable drawer with humidity control 6 Door balconies 7 Bottle balcony B Freezer 8 Upper drawer for freezing and storing 9 Deep drawer for freezing and storing 10 Bottom drawer for storing...
OPERATING THE APPLIANCE A Temperature setting and on/off knob Use the dial to switch the appliance on or off , set the temperature, and control the ECO function. B Lighting on/off key Lighting will switch on automatically when you open the refrigerator compartment door, and it will switch off when you close it.
Page 14
ADJUSTING THE TEMPERATURE IN THE APPLIANCE • After the appliance is switched on, it may take several hours for the set temperature to be reached. Do not place any food into the refrigerator before the temperature drops to the selected setting. •...
APPLIANCE INTERIOR EQUIPMENT SHELF • Empty shelves can be distributed in the refrigerator interior without having to remove the shelf from the refrigerator. To move the shelf to a diff erent height, lift it at the front, hold it at the back, pull forward a little and move it higher or lower.
Page 16
FRUIT AND VEGETABLE DRAWER WITH HUMIDITY CONTROL • The drawer at the bottom of the refrigerator is intended for storing fruit and vegetables. It provides humidity and prevents the food from drying out. The drawer has integrated humidity regulator which allows setting the humidity level.
Page 17
HiddenSpace Extra storage out of sight. The HiddenSpace compartment provides extra hidden storage for cans or similar items underneath the fruit and vegetable drawer. INTERIOR SIDE OF THE REFRIGERATOR DOOR The balconies mounted on the interior side of the refrigerator door are intended for storing cheese, butter, eggs, yoghurt and other smaller packages, tubes, cans, etc.
Page 18
MultiBox STORAGE BIN * • The MultiBox off ers a convenient way for storing food with a strong or pungent smell, e.g. ripened or blue-vein cheese, sausages, onions, butter, etc. • The silicone lid provides an air-tight seal that prevents the food from drying out and the odour to spread throughout the refrigerator compartment.
STORING FOOD IN THE REFRIGERATOR IMPORTANT WARNINGS REGARDING FOOD STORAGE Correct use of the appliance, appropriate packaging, maintaining the right temperature, and observing the food hygiene standards have a decisive impact on the quality of food storage. Observe the expiry dates for the food, indicated on the packaging.
FREEZING FRESH FOOD AND STORING FROZEN FOOD FREEZING PROCEDURE Maximum amount of fresh food that may be inserted at once is specified on the appliance rating plate. If the amount of food to be frozen exceeds the indicated amount, the quality of freezing will be inferior; in addition, the quality of the food already frozen will deteriorate.
STORING INDUSTRIALLY FROZEN FOOD • When storing and using frozen food, observe the manufacturer's instructions. Temperature and expiry date are indicated on the packaging. • Only choose food with undamaged packaging, stored in freezers at temperatures of –18 °C or lower. •...
DEFROSTING THE APPLIANCE AUTOMATIC REFRIGERATOR DEFROSTING This refrigerator does not need defrosting because the ice on the back interior wall is thawed automatically. Any accumulated ice will melt when the compressor unit is inactive. Drops will flow through an opening in the refrigerator rear wall into a tray fitted above the compressor, from where they will evaporate.
CLEANING THE APPLIANCE Before cleaning, unplug the appliance from the power mains – switch off the appliance (see chapter Operating the Appliance) and unplug the power cord from the wall outlet. • Use a soft cloth to clean all surfaces. Cleaners that contain abrasive substances, acids, or solvents are not suitable for cleaning as they may damage the surface.
TROUBLESHOOTING Problem: Cause or remedy Appliance is connected • Make sure there is voltage in the power outlet and to the power mains but that the appliance is switched on. it does not work. Cooling system • Too high environment temperature. operates continuously •...
Page 26
Problem: Cause or remedy Water is dripping/ • Clogged water discharge opening or water leaking from the dripping past the water gutter. refrigerator: • Clean the blocked opening, e.g. using a plastic straw. • If a thick layer of ice builds up, defrost the appliance manually (see Defrosting the Appliance).
INFORMATION ABOUT APPLIANCE NOISE Cooling in refrigerator freezers is made possible by a cooling system that also includes a compressor (and a fan with some appliances), which generates some noise. The level of noise depends on installation, proper use, and age of the appliance.
