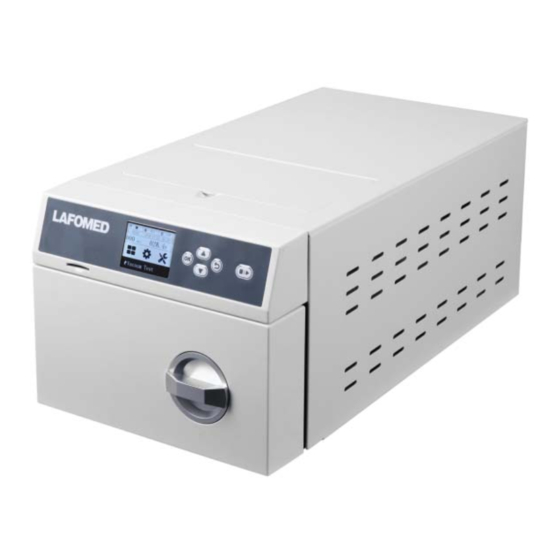

LAFOMED Autoclave LFSS03AA User Manual

Pressure steam sterilizer
Hide thumbs Also See for Autoclave LFSS03AA:
Table of Contents

Advertisement

Quick Links

Effective date：2020-07-22
No.:GC-JS-21
Version: 01/00
Pressure Steam Sterilizer
Autoclave LFSS03AA
User Manual
V1.0
Manufacturer:
Ningbo Haishu Life Medical Technology Co., Ltd.
No. 1, Jinghui Road, Hengjie, Haishu, Ningbo 315181 China P.R.C.
EC Representative:
Caretechion GmbH
Niederrheinstr 71,40474 Duesseldorf, Germany
Please appoint special person to operate and maintain the device. The
operator and maintenance must be well trained

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Autoclave LFSS03AA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LAFOMED Autoclave LFSS03AA

Summary of Contents for LAFOMED Autoclave LFSS03AA

  • Page 1 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 Pressure Steam Sterilizer Autoclave LFSS03AA User Manual V1.0 Manufacturer: Ningbo Haishu Life Medical Technology Co., Ltd. No. 1, Jinghui Road, Hengjie, Haishu, Ningbo 315181 China P.R.C. EC Representative: Caretechion GmbH Niederrheinstr 71,40474 Duesseldorf, Germany Please appoint special person to operate and maintain the device. The...
  • Page 2 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 Revision History Revised Revised content Revised date Revisor Revised number chapter New document 2020.7.22 Kejie V1.0 Zheng...

  • Page 3: Table Of Contents

    Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 Catalogue Catalogue ................................... 3 Scope of Use ................................4 User Guide ................................. 4 1. Brief introduction ..............................8 2. Specifications............................... 10 3. Installtion ................................12 4. Adjusting ................................16 5. Introduction of preset programs ........................... 17 6.

  • Page 4: Scope Of Use

    Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 Scope of Use This manual is applicable to the tabletop pressure steam sterilizers manufactured by Ningbo Haishu Life Medical Technology Co.,Ltd. Model：LFSS03AA Please read this manual carefully before use to ensure that the equipment is safe and reliable for your service! Please keep this manual during the life of the equipment.
  • Page 5 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 have The equipment must be operated and maintained by professional personnel who must received good training. For normal operation of the equipment, please keep the equipment clean, do not rinse or water the equipment; The maintenance of the equipment must be carried out by the personnel authorized by the manufacturer, who have passed the corresponding training of the manufacturer;...
  • Page 6 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 B type autoclave Protective grounding of TypeⅠ equipment Watch for burns on hot surfaces Refer to manual Face up No rolling Stack cannot exceed 2 layers Temperature range 5℃~40℃ Relative humidity is no greater than 80% keep dry Safety Notices: This sterilizer is only suitable to sterilize moisture- and heat-resistant medical devices, not...
  • Page 7 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 When you see the symbol anywhere on the device, it means that the surface temperature is high, avoid touching to avoid burns. This equipment complies with the emission and immunity requirements of Class A equipment specified in GB / T 18268.

  • Page 8: Brief Introduction

    Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 If the sterilizer is not used for a long time due to various reasons, the power cord plug should be disconnected from the power supply and placed in a dry and cool place. 1. Brief introduction LF series high-pressure steam sterilizer is specially designed and manufactured by for clinics, hospital departments, laboratories and other occasions requiring frequent sterilization.Used by a physician or professional.The sterilizer uses microprocessor intelligent control, man-machine...
  • Page 9 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 1.4 Sterilization principle, main sterilization factors and strength 1.4.1 Sterilization principle This equipment is suitable for the vacuum pump to exclude the cold air in the sterilizing room, take saturated steam as the sterilizing factor, and use the characteristics of high latent heat and high penetrability of saturated steam to sterilize the equipment.

  • Page 10: Specifications

    Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 Fuse holder 2. Specifications 2.1 Chamber specification： Available space size： Model No. Dimensions（DN * Length mm） LFSS03AA L=175, H=55, D=280 Space available 2.2 Parameter of Chamber： Design pressure: -0.1/0.27MPa; Design temperature：140℃ 2.3 Parameter of autoclave: Max working temperature：137℃...
  • Page 11 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 Evaporation Silica Iron Cadmium Lead Other heavy residue metals ≤10mg/L ≤1mg/L ≤0.2mg/L ≤0.005mg/L ≤0.05mg/L ≤0.1mg/L Chloride Phosphate Conductivity PH value Conductivity hardness ≤2mg/L ≤0.5mg/L ≤15uS/cm 5~7.5 Colorless ≤0.02mmol/L clean without precipitation 2.5 Transportation and storage conditions: Ambient temperature: 5 ~ 40 ℃...

  • Page 12: Installtion

    Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 3. Installtion 3.1 Product dimensions and weight The external dimensions of LFSS03AA equipment are as follows (unit: mm)， Equipment weight： Model Gross weight (kg) Net weight (9kg) LFSS03AA 3.2 Installation requirement In order to ensure the safe and reliable work of the equipment, please check whether it meets the requirements according to the following clauses.
  • Page 13 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 Minimum width of table L1 Left side to wall L2 Minimum Height 55mm 0.7m ≥100mm 3.3.4 Installation table requirements: The installation table is strong enough to bear the weight of the device and the sterilized object. The table can withstand at least 40kpa pressure. Do not install the device in a closed cabinet;...
  • Page 14 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 3.5 Lift the device onto the installation surface The device can be placed by one person, after the device is lifted between the front and rear feet of the product, it is placed on the workbench. Please note the following when handling： It is strictly forbidden to lift the door during transportation to avoid damage to the device;...
  • Page 15 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 3.6 Feet adjustment The height of the feet has been adjusted when the equipment leaves the factory. If the installation surface is flat, no adjustment is needed; if the surface is uneven, the feet of the sterilizer should be adjusted to make the sterilizer roughly flat.

  • Page 16: Adjusting

    Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 4. Adjusting To ensure the normal use of the sterilizer, the sterilizer cannot be delivered for use until the adjusting work is successfully completed. The specific steps are as follows: 4.1 Atmospheric pressure resetting After the device is installed in the first time or moved, the atmospheric pressure needs to be reset.

  • Page 17: Introduction Of Preset Programs

    Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 5. Introduction of preset programs 5.1 Parameters of preset programs Sterilization Holding time Drying time Pre-vacuum temperature Program Remarks times （Min） （Min） （℃） ） 134℃ Preset universal quick 134℃ Preset universal 134℃ solid 121℃ Preset universal B-D/Helix test Test program...
  • Page 18 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 tion tion tion tion LFSS0 2.2kg...

  • Page 19: User Interface Description

    Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 6. User interface description This device uses a 4.3-inch touch screen as a human-computer interaction interface. 6.1 Menu page introduction Introduction of general keys： Up button: Press to move up or number +1; Down button: Click to move down or number -1; OK button: Click to select or enter;...
  • Page 20 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 ：The program menu is for users to use, and it contains all preset programs; ： Setting menu, user. Inside user-configurable items; ：The service menu is used only by the manufacturer or the manufacturer's representative, and requires a password to enter, user cannot enter;...
  • Page 21 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 follows: ：cursor A total of 7 items can be set: language, date and time, temperature unit, pressure unit, preheating, drying setting and user password setting. 6.1.3.1 ： When cursor“ ”move to this option, pressure “OK”button to switch the language, totally 3 languages available right now.
  • Page 22 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 When cursor “ ”move to this option，press“OK” button to adjust the setting： When set to "On": The equipment will start to warm up and keep warm after being powered on, in order to shorten the sterilization cycle time; When set to "off": the device will not preheat after power on, the device will only start to preheat after the program is running, the entire sterilization cycle time will be 5-7 minutes longer than the "on"...
  • Page 23 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 6.1.4.2 The program runs after pressing the "Start" button, the curve will flish, The total running time will start counting. The line on the process curve diagram will flash to indicate the running stage. For the description of each stage, see Appendix III: Description of each stage 6.1.8 Explanation of each prompt message Prompt massages Description...
  • Page 24 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 replaced Please replace door seal The door seal has reached the end of its life and needs to be replaced Need maintenance The periodic maintenance time has expired, and the manufacturer or manufacturer's representative is required to maintain the equipment Last cycel ended improperly Since the last sterilization cycle was stopped by the user, the...

  • Page 25: Instructions Of Operation

    Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 . Instructions of operation 7.1 Preparation before operation Check the following items before operation： 1） If the SD card is needed to save records, check whether the SD card is inserted； 2） Check whether there is any impurity adsorption on the sealing surface of the door seal and the sealing surface of the chamber, if it is clean。...
  • Page 26 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 packaging to the top to facilitate the drying of the plastic packaging; 7) It is forbidden to put the tray of packaged items directly on textiles or soft items, so as to avoid the condensation of water on the items below; 8) Note that the loaded instruments should not exceed the provisions of Section 5.2.2, and the volume of the loaded load should not exceed 70% of the volume.
  • Page 27 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 Press "Start" to run the program automatically. 7.8 Man-made interruption If the device needs to be stopped running during the cycle, press and hold the "Stop" key for 5 seconds, the device will automatically release pressure to a safe pressure and end the program, then door can be opened. 7.9 Open the door and unload the loadings 7.9.1 After the program ends, you can turn the door handle counterclockwise to open the door；...
  • Page 28 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 minutes. 7.10 Record reading and storage 7.10.1 Record reading See the appendix II for the reading instructions of the record： 7.10.2 Record storage SD card records are recommended to make a backup every 3 months and empty the SD card. Too many records stored on the SD card may cause the risk of missing records.

  • Page 29: Errors List

    Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 8. Errors list If an abnormal situation occurs during work, the sterilizer will automatically alarm, interrupt the program operation and release the pressure. Absolutely ensure operator safety. The fault code will be displayed on the screen (the specific fault code is as follows).
  • Page 30 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 1. The connector of the 220≥heating jacket Re-made the connector of the temperature sensor of the temperature> 190 ℃ temperature sensor of the heating heating ring is not in good jacket contact Replace the circuit board 2.
  • Page 31 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 When running the general 1,check if same result with empty program, there are 2 1. Incorrect loading loading; vacuums that are not vacuum pump 2. Check the vacuum pump; drawn below -70Kpa damaged, 3.Check whether the door is 3.

  • Page 32: Maintenance

    Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 9. Maintenance In order to make this equipment work safely and reliably within the life span, periodic inspection, cleaning and maintenance should be done. 9.1 Safety matters that should be paid attention to during equipment maintenance： ...
  • Page 33 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 序号 Maintenance items Cycle Requirement Remark Bacteria filter replacement Every 150 times Insert firmly Refer to 9.3.12 Door seal replacement Every 2 years The wide side faces outwards, and Refer to 9.3.13 the sealing ring is flat Printer paper replacement When the printer The thermal side of the paper is...
  • Page 34 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 Before removing the filter, please make sure that the sterilization chamber has cooled to avoid burns. 9.3.4 Cleaning of the door seal: Check whether there is any foreign matter sticking on the sealing surface of the door seal, and remove it if there is any.
  • Page 35 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 9.3.8 Inspection of water quality detection function When the power is turned on, in the presence of water, short-circuit the two probes of the water quality probe with a conductor (such as tweezers, scissors, etc.) and wait a few seconds. If there is no reminder that the water value exceeds the limit, contact the supplier to inform the fault.
  • Page 36 Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 9.3.12 Bacteria filter replacement See section 1.4 for the location of the bacteria filter. Rotate the bacterial filter counterclockwise to take it out, take a new one and screw it clockwise. 9.3.13 Door Seal replacement After unscrewing the four screws shown in the figure below;...

  • Page 37: Quality Assurance

    Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 10. Quality assurance 1. This machine is valid for 5 years, and the whole machine is guaranteed for two years by invoice. This product is two years from the date of your purchase, and any failures or damages caused by the correct installation and use according to the provisions of this user guide, our company will provide you with repair services for free (consumables are no longer covered by the warranty).

  • Page 38: Accessories

    Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 11. Accessories accessory name Photos Remarks Instrument tray (standard * 1 Place sterilized items Optional * 2) Place on the instrument rack Instrument rack (optional) Sterilized items in the lower layer Upper instrument tray External waste water tank To store the waste water generated during cycle （optional）...

  • Page 39: Appendix

    Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 12. appendix Appendix 1 : Inspection items and results Test items Inspection type result Sterilizer dynamic pressure Type test Pass Air leak Inspection of finished product Pass Empty load Inspection of finished product Pass Solid load Type test Pass Small amount of porous permeable strips...

  • Page 40: Appendix 2: Print Record Sample And Instructions

    Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 Appendix 2: Print record sample and instructions SERIAL NO.:300012345 OPERATER: ----CLASS B--- COUNT:00001 B.W. WATER COUNT DATE: 01-07-2020 TIME: 15:46:25 PROGRAM: 134 / QUICK HH:MM:SS KPA ℃ Pressure Unit Temperature Unit START 15:51:43 072.6 05:18 VACUUM Time of vacuum phase 15:52:45...

  • Page 41: Appendix 3：Explanation Of Each Stage

    Effective date：2020-07-22 No.:GC-JS-21 Version: 01/00 Appendix 3：Explanation of each stage Display Explanation Standby The device is normal and ready for operation Warm up Warm-up phase vacuum Vacuuming Rise Steam is being injected into the sterilization chamber: temperature and pressure will increase drain The sterilization room is draining Sterilization...
