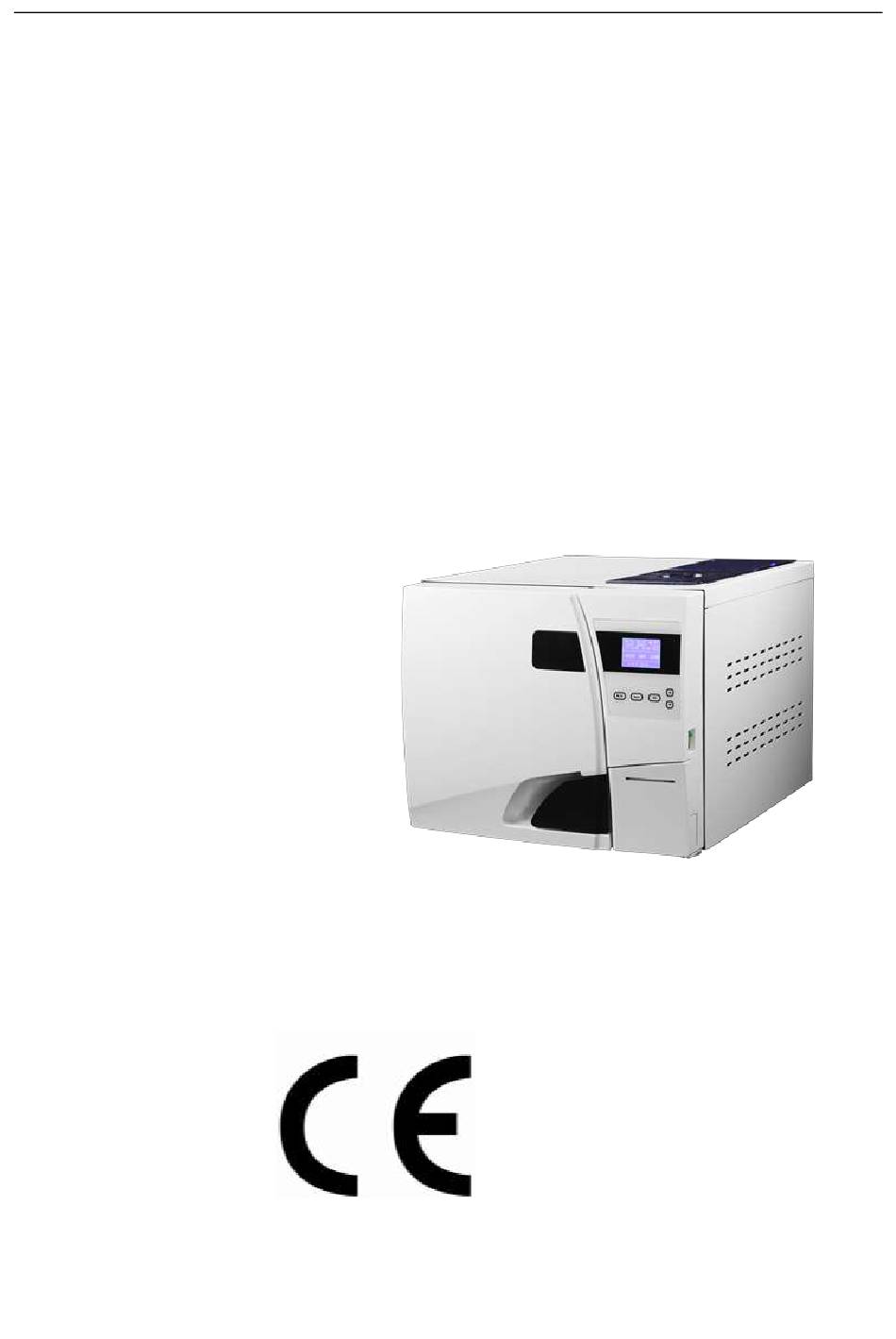

- Page 1 Instruction Manual Pressure Autoclave/ Steam Sterilizer LFSS12AA LFSS18AA LFSS23AA 1023...
- Page 2 Revision History Revised Content Date of Number of Revised By Remarks Chapter Revised Revision Revision Please appoint specific person to operate and maintain the device. The person must be well trained.
-
Page 3: Table Of Contents
MENU Using Range of This Instruction ……………………………………………………………………………………… 1 Information About This Autoclave …………………………………………………………………………………… 1 Explanation Of Symbols ……………………………………………………………………………………………… 2 Safety Warning ………………………………………………………………………………………………………… 3 1. Brief Introduction ………………………………………………………………………………………………… 2. Using Range ………………………………………………………………………………………………………… 4 3. Parameters and Sterilization Programs ………………………………………………………………………… 4. Operation Panel …………………………………………………………………………………………………… 5. -
Page 4: Using Range Of This Instruction
Using Range of This Instruction This instruction is for models: LF-8L-E, LFSS12AA, LFSS18AA, LFSS23AA Please do not operate the device according to other instruction manuals. Information About This Autoclave Description: Autoclave Class B Model number: Notice: ➢ Please read the manual carefully before operating the autoclave. -
Page 5: Explanation Of Symbols
Explanation Of Symbols Explanation of symbols on unit Symbol for "Caution!" Symbol for “PROTECTIVE CONDUCTOR TERMINAL” Symbol for “HOT SURFACE, KEEP AWAY” Symbol for “ENVIRONMENTAL PROTECTION – Electrical wastes should not be disposed together with household wastes.If possible, please contact local distributor or government to recycle it." Symbol for “MANUFACTURER”... -
Page 6: Safety Warning
Safety Warning Please read below carefully: ❖ Please use 3-hole socket, and ensure the socket has been connected well with the ground. Do not put the autoclave on a place that the power are difficult to be cut off. ❖ Do not use power with different voltage with that stated in this manual. -
Page 7: Brief Introduction
1. Brief Introduction This autoclave is automatic type steam sterilizer, which is very easy to operate. The parameters and conditions of the program will be displayed automatically on the digital screen during the sterilization. If there’s problem, the autoclave will alarm automatically. -
Page 8: Parameters And Sterilization Programs
The requirements of transportation and storage: ❖ Environmental temperature range: 5~40℃ Relative humidity: ≤80% ❖ ❖ No corroding gases Detailed sizes of the autoclave: (see below pictures) Net weight of autoclaves Model Net Weight LFSS12AA 47.7 KGS LFSS18AA 50.25 KGS LFSS23AA 53.5 KGS... -
Page 9: Operation Panel
3.2 Sterilization Programs Sterilization Sterilization Vacuum persist Process Vacuum times Sterilizing time Dry time temperature pressure time 121℃/SOLID 20min * 121℃ 110kPa 121℃/POROUS 20min * 121℃ 110kPa 121℃/HOLLOW 20min * 121℃ 110kPa 10 * 134℃/SOLID 4min * 134℃ 210kPa 134℃/PROOUS 4min * 134℃... - Page 10 door is opened, the sterilizer will stop warming up the chamber and steam generator. The longest time to keep temperature is 8 hours. This function can shorten the time of your next sterilization program. ✓ OFF: Disable the function. 4.1.3 ■W/OFF：Indicate the status of function of “Preheat” The relative menu: ❖...
- Page 11 4.2 Introduction of “ USER MENU” There are 11 sterilization programs for user to choose. ➢ 121℃-program and 134℃-program has no difference in sterilization results. If the instruments cannot be sterilized in 134 ℃, please choose 121℃ program. ➢ Solid program can only sterilize solid instruments without wrapped, such as pliers, forfex, forceps etc. ➢...
- Page 12 : Cursor User can press button “up” or “down” to move the cursor. When the cursor is next to the option which user wants to set up , user can press “OK” to set up. 4.3.1、KEEP TEMP This is the “■K” in LCD screen. ✓...
- Page 13 STER TEMP: It is used to set up the sterilization temperature. ✓ 134℃：The sterilizer temperature of program “USER-DEFINED” is 134 ℃ ✓ The range of the “STER TEMP” is 105℃~134℃. STER TIME: It is used to set up the sterilization time, ✓...
- Page 14 (Pic3) (Pic 4) USER PASSWORD SET: When the cursor is before the “USER PASSWORD SET” option, then press “OK” to enter the next page (pic 4) User can change the “0” with white fill by press “UP” or “DOWN”, ❖ UP: +1;...
- Page 15 Data and Time: The exact time when the sterilizer run automatically. XX hours later: To set how long time later, the sterilizer run automatically. (pic5) (pic6) (pic7) How to set the date/time(pic6 , pic7): Press “UP” or “DOWN” to change the date: UP: +1;...
-
Page 16: Installation
During the sterilization cycle, the user can press the button Start/Stop and keep 5 seconds to stop the whole cycle. 5. Installation The autoclave is packed by a wooden carton. To open the carton, you need a flat screwdriver to open the cover. Then, the autoclave can be lifted out by 2 persons. -
Page 17: Operation
6. Operation Preparation before using Before using, please connect power supply, turn on the switch. After that, the LCD screen will be turned on and show the main menu. At this moment, the autoclave has been ready for use. Before the first use, the LCD will show “ Please fill water”, please fill water from the top of the autoclave. After enough water has been filled, the alarm will disappear and user can use this autoclave now. -
Page 18: Abnormal Situations
result. ➢ When putting into and taking out the loads, you shall use the tool attached to prevent your hands from touching the hot surface. 6.3.3 Set up the parameters Set the parameters：KEEP TEMP, PRINTER, PREHEAT if in need. 6.3.4 Close the autoclave’s door If the door is not locked, the LCD will show “Please close the door”. -
Page 19: Maintenance
working. It will absolutely keep the user safe and display the error code( See the below page 14). If alarm appears, please write down the error code No. and cut off the power. Don’t open the door and then turn on the power again to wait the pressure turn back to “-0.5~0.5”. - Page 20 Below parts must be checked or replaced regularly: ✓ Germ filter: See 8.5 ✓ Seal ring: See 8.7 and 8.8. ✓ Safety valve: See8.9 Check schedule: Item Checked by Cycle Maintenance Door Professional engineer 2 years See 8.1 Seal ring User 1 year See 8.5...
- Page 21 4） Keep turning the door to a place where the door cannot move anymore. After the door adjustment, it is necessary to do a vacuum test. If there is a leakage, the user shall adjust it again. If the door is too loose, the sealing ring might be exploded out with a big “bang”. So, please be careful to use this function! Replace printer paper and paper feeding Replace printer paper...
-
Page 22: Transportation And Storage
8.7 Clean seal ring regularly The user needs to clean the seal ring regularly by distilled water. If leakage still happens after cleaning, the user may have to replace the seal ring. 8.8 Replace the seal ring Tool：The user needs a flat screwdriver. Hold the seal ring by a hand and use another one to hold a screwdriver carefully to separate the door and the seal ring. -
Page 23: Warranty
9.1 Preparation Cool down the sterilizer and disconnect power. 9.2 Drainage Empty all tanks：assemble the pipe without joint into bleeder valve，A is waste water tank bleeder valve， B is water storage tank bleeder valve. Then turn the drainage switches towards anti-clockwise. 9.3 Terms of transportation：... -
Page 24: Accessories
2. We will not offer free service even in the first year if the things happen as below: (1)The damage is caused by incorrect installation (2)The damage is caused by fall down or impact by carelessness (3)The damage is caused by customer’s install or repair (4) Without invoice and guarantee card (5)The damage is caused by force majeure such as abnormal voltage, fire etc；... -
Page 25: Appendixes
Drainage pipe(LF-9-10-1) Tray （ see table 11.1 ） Cable with plug( LF-9-12-2) Tray shelf （ see table 11.2 ） Tray-hand-holder( LF-9-12-4) Fuse(Φ6X30 230V20A) Manual Table 11.1: parts for different models Part/Model LFSS12AA LFSS18AA LFSS23AA Tray LF-2-6-1 LF-1-6-1 LF-3-6-1 Tray shelf LF-2-6-2... -
Page 26: Appendix 1: Structure Diagram
Appendix 1：Structure diagram... -
Page 27: Appendix 2: Circuit Diagram
Appendix 2：Circuit diagram... -
Page 28: Appendix 3: Emc
Appendix 3：EMC Electromagnetic emissions The Steam sterilizer is intended for use in the electromagnetic environment specified below. The customer or the user of the Steam sterilizer should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment – guidance RF emissions Group 1 The Steam sterilizer uses RF energy only for... - Page 29 Electromagnetic immunity The Steam sterilizer is intended for use in the electromagnetic environment specified below. The customer or the user of the Steam sterilizer should assure that it is used in such an environment. Immunity test IEC 60601 Compliance level Electromagnetic environment –...
- Page 30 Electromagnetic immunity The Steam sterilizer is intended for use in the electromagnetic environment specified below. The customer or the user of the Steam sterilizer should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance Electromagnetic environment –...
- Page 31 a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered.
