Assembly Instructions
Knutsford Pavilion 2.4m
Code: 15221
V6
(W x D x H) 2.80m x 2.80m x 2.30m
ONLINE ASSEMBLY VIDEO AVAILABLE
Please scan the QR code or visit zestoutdoorlivingsupport.co.uk
PLEASE KEEP THESE INSTRUCTIONS
www.zestoutdoorliving.co.uk | 01352 873555 option 1 | sales@zestoutdoorliving.co.uk
Advertisement
Related Manuals for Zest Knutsford 15221
Summary of Contents for Zest Knutsford 15221

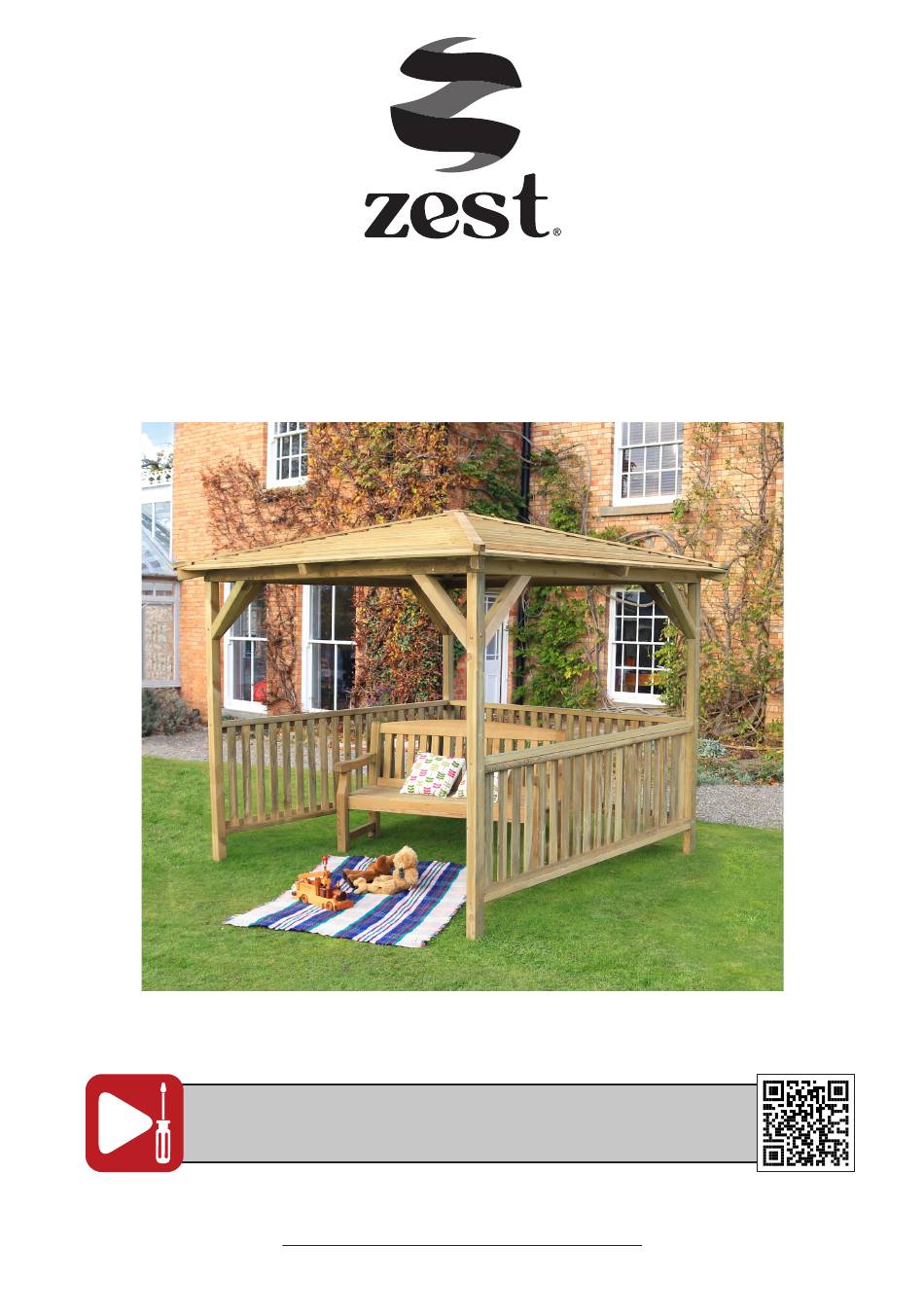

- Page 1 Assembly Instructions Knutsford Pavilion 2.4m Code: 15221 (W x D x H) 2.80m x 2.80m x 2.30m ONLINE ASSEMBLY VIDEO AVAILABLE Please scan the QR code or visit zestoutdoorlivingsupport.co.uk PLEASE KEEP THESE INSTRUCTIONS www.zestoutdoorliving.co.uk | 01352 873555 option 1 | sales@zestoutdoorliving.co.uk...
- Page 2 PEFC/16-37-1490 Every Zest product is unique because each piece of timber has its own distinctive, natural features. Zest sources all of its timber from This is vital not only for the health responsibly-managed forests of the planet, but also shows Zest’s...
- Page 3 Knutsford Pavilion 2.4m Assembly Instructions Requires 2-3 Person assembly *All Screw holes to be pre-drilled* Tools required: Corded / Cordless Drill, *Pozi-drive bit (*Crosshead) / 3mm & 5mm drill bits / Screwdriver, (Torx-Bits Included), Tape Measure, Mallet. Please take a few moments to check all pack contents listed Knutsford Pavilion 2.4m Pack List Code Item...
- Page 4 Set out Ring Beams A1 & A2 as shown above and fix in position using 8 x 60mm screws, 2 x 60mm Screws per corner. www.zestoutdoorliving.co.uk | 01352 873555 option 1 | sales@zestoutdoorliving.co.uk...
- Page 5 Position 2 x Posts (B) beneath Ring Beam (A1) and attach using 2 x 120mm Screws, 1 x 120mm screw per post. www.zestoutdoorliving.co.uk | 01352 873555 option 1 | sales@zestoutdoorliving.co.uk...
- Page 6 Place remaining Posts (B) beneath Ring Beam and fix using 2 x 120mm Screws, 1 x 120mm screw per post. Position 1 x Hand Rail (C) between Posts (B) at desired height and fix using 4 x 120mm Screws, 2 x 120mm per post. Repeat for remaining 2 x Hand Rails (C) www.zestoutdoorliving.co.uk | 01352 873555 option 1 | sales@zestoutdoorliving.co.uk...
- Page 7 Place 1 x Handrail Cover (D) onto Handrail (C) and fix using 4 x 45mm Screws. Repeat for remaining 2 x Handrail Covers (D) and Handrails (C) Fix 1 x Bracing (E) to Post (B) & Ring beam using 2 x 140mm Screws as shown above. Attach remaining Bracings (E) to Posts (B) &...
- Page 8 Attach angled end of 1 x Rafter (F) to Finial Block (G) allowing a 20-25mm gap between Rafter (F) and Finial Block Capping using 1 x 100mm Screw. Similarly attach 1 x Rafter (F) to opposite side of Finial Block (G) www.zestoutdoorliving.co.uk | 01352 873555 option 1 | sales@zestoutdoorliving.co.uk...
- Page 9 Place rafter assembly diagonally onto ring beam and fix using 2 x 100mm Screws, 1 x 100mm Screw per rafter. www.zestoutdoorliving.co.uk | 01352 873555 option 1 | sales@zestoutdoorliving.co.uk...
- Page 10 Attach remaining 2 x Rafters (F) to Finial Block (G) using 2 x 100mm Screws, (1 x 100mm Screw per Rafter (F)), and to Ring beam using 2 x 100mm Screws (1 x 100mm screw per Rafter (G)). www.zestoutdoorliving.co.uk | 01352 873555 option 1 | sales@zestoutdoorliving.co.uk...
- Page 11 Attach 1 x Centre Rafter (H) to Final Block (G) using 1 x 100mm Screw and to Ring beam using 1 x 100mm Screw. Fix remaining 3 x Centre Rafters (H) in corresponding positions in roof sections as shown above, using 6 x 100mm Screws, 2 x 100m Screws per rafter.
- Page 12 Open 1 x Roof Board pack and set out as shown above (Top). Attach longest pair of square ended roof boards to Centre Rafter (H) and to Rafters (F) (allowing a 10-15mm overlap beyond rafter ends) using 8 x 45mm Screws. (4 x 45mm Screws per board, 2 x 45mm Screws per end) Interlock shorter pair of square ended Roof Boards to fixed Roof Boards and continue to interlock subsequent Roof Boards.
- Page 13 Place 1 x Long Cover Strip (J) over joint in roof boards and under finial block capping (angled cut beneath capping and facing upwards). Fix in position using 8 x 45mm screws (2 x 45mm screws per end, 2 x 45mm either side of centre). Repeat on remaining roof board joints using 3 x Long Cover Strips (J) (1 x Long Cover Strip per joint).
