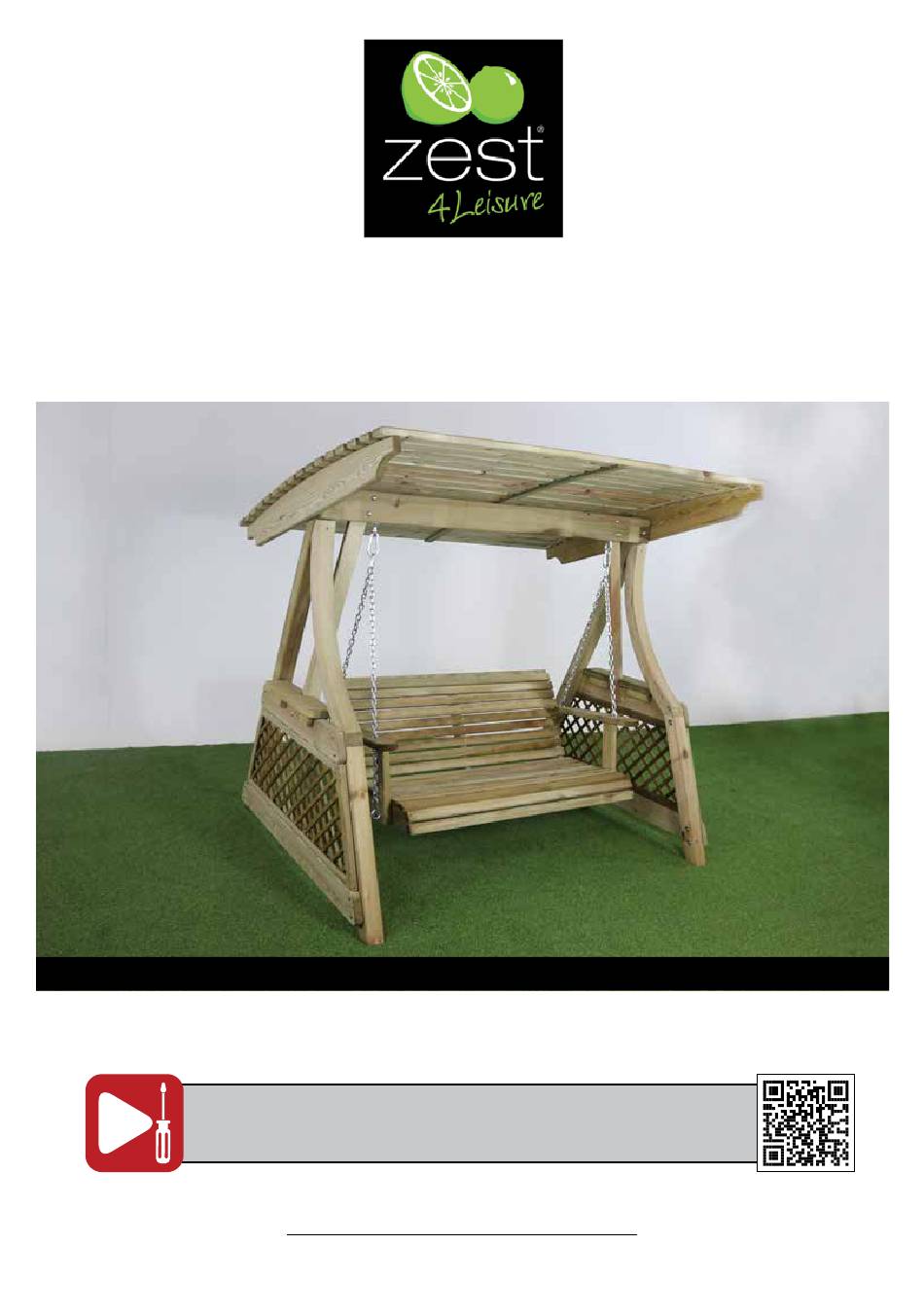

V2
Assembly Instructions
Santorini Swing
Code: 20772
CAUTION: CONSTRUCTION INVOLVES WORKING AT HEIGHT. SUITABLE EQUIPMENT REQUIRED.
(W x D x H) 1.90m x 1.50m x 1.80m
Online assembly video available
Please scan the QR code
PLEASE KEEP THESE INSTRUCTIONS
www.zest4leisure.co.uk | 01352 752555 option 1 | sales@zest4leisure.co.uk
Advertisement
Related Manuals for Zest Santorini Swing 20772
Summary of Contents for Zest Santorini Swing 20772
- Page 1 Assembly Instructions Santorini Swing Code: 20772 CAUTION: CONSTRUCTION INVOLVES WORKING AT HEIGHT. SUITABLE EQUIPMENT REQUIRED. (W x D x H) 1.90m x 1.50m x 1.80m Online assembly video available Please scan the QR code PLEASE KEEP THESE INSTRUCTIONS www.zest4leisure.co.uk | 01352 752555 option 1 | sales@zest4leisure.co.uk...
- Page 2 A guide to understanding the natural characteristics of timber and what to do if you feel there is an issue... Timber is a unique and naturally beautiful material with its own characteristics which makes each piece distinctive. At Zest we are committed to the environment and we are very proud to be a Forest Stewardship Certified company. (FSC C114990) ®...
- Page 3 Santorini Swing Assembly Instructions Requires 2 Person assembly Tools required: Corded / cordless drill, *Pozi- drive bit or Pozi-drive screwdriver (*Crosshead), Socket set (13mm, 17mm & 19mm), Hammer and Mallet. Star Drive included. Please take a few moments to check all pack contents listed Santorini Swing Pack List Item Description...
- Page 4 Santorini Swing Assembly Instructions Fixings Quantity 30mm Screw 60mm Screw 80mm Screw 45mm Bolt, washer & nut 90mm Bolt, washer & nut 100mm Bolt, washer & nut 115mm Eye Bolt &, washer & nut 140mm Eye Bolt, washer & nut 170mm Eye Bolt &...
- Page 5 Set out Lower Leg (front) (B1), Upper Leg (front) (E1) and Leg (back) (C1) as shown (left) (large holes face down) and place Horizontal Long Brace (A) and Horizontal Short Brace (D) in position shown (Above left) Align bolt holes and insert 8 x 100mm Bolts. (Nuts & washers to be attached at a later stage).
- Page 6 Attach Diagonal Brace (H) to Swing Beam (G) using 2 x 90mm Bolts, Nuts & Washers, and to Horizontal Short Brace (D) using 1 x 100mm Bolt, Nut & Washer. Attach other end of Swing Beam G to Back Leg C2 on previously assembled right hand side of swing using 1 x 100mm Bolt, Nut &...
- Page 7 Ensuring Upper Legs (front) E1 & E2 are flush with underside of Swing Beam (G) (See above), fix to Legs (back) C1, C2 as shown using 2 x 100mm Star Screws. (1 x Screw per leg). All Nuts & Washers from Stage 1 onwards to be attached and fully tightened at this stage. Attach Canopy Support (J) to Leg (back) (C1) using 1 x 100mm Bolt, Nut &...
- Page 8 Insert 170mm Eye-Bolt into Swing Beam (G) as shown. Attach Washer & Nut and fully tighten. Repeat procedure with remaining 170mm Eye-Bolt on other side of swing. Set Canopy (K) out evenly on to Canopy Supports (J) and fix using 32 x 60mm Screws (2 x Screws per slat, 1 x Screw at each end).
- Page 9 Note: Seat Back (M) on left. Seat (N) on right. Interlock joints in Seat Back (M) and Seat (N), align bolt holes and secure using 6 x 45mm Bolts, Nuts & Washers. (2 x Bolts per joint) do not tighten fully at this stage. www.zest4leisure.co.uk | 01352 752555 option 1 | sales@zest4leisure.co.uk...
- Page 10 Align dowels in Armrest Support (O) with corresponding holes in Armrest (P1) and tap into position. Fix in place using 1 x 60mm Screw. Place Armrest Assembly on to Seat Assembly, align bolt holes and insert 1 x 140mm Eye Bolt into Seat Back (M) and 1 x 115mm Eye Bolt into Seat (N).
- Page 11 Using 2 x Small Karabiners (1 x Per Eye Bolt), attach 1 x Short chain to rear Eye-Bolt and 1 x Long chain to front Eye-Bolt. Repeat procedure on other side of seat. Feed the long front chains through the holes in the Armrest Assemblies and attach pairs of chains (long and short) to Small Karabiners and clip to Large Karabiners on Swing Beam Eye Bolts.
