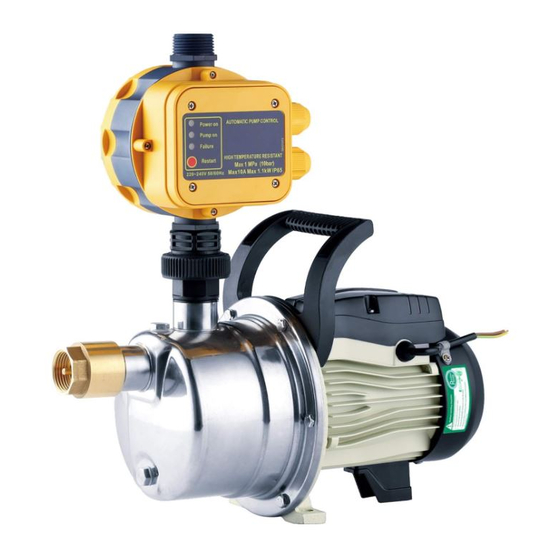

- Page 1 INSTRUCTION MANUAL with Warranty Card BOOSTER PUMP JETS-60 JETS-80 JT-100...
- Page 2 Specifics JETS-60 Input Voltage 110-120V Power 370W (1/2Hp) Rated Working Frequency 60Hz 1.5 bar Pressure Max Working Connection 1’’ 3.3 bar Pressure Max Working 60 ℃ (140 ℉) Max Head 32m (104ft) Temperature Max Flow 14.5 GPM JETS-80 Input Voltage...
-
Page 3: Installation
1.INSPECTION -After unpacking the pump, please check if it has been damaged during transport. If so, please contact TDRFORCE online services at the first time. 2.INSTALLATION -Make sure that the main voltage corresponds to the voltage specified on the motor rating plate. - Page 4 POSSIBLE WORKING DEFECTS TYPE OF DEFECT CAUSE SOLUTION -The pump does not start -The electronic card is broken -Replace the controller -Voltage failure -Use at rated voltage -Pump jammed -Clean the impeller -Electric cables inverted -Install according to manual (line/motor) -Pressure of inlet water is -No action should be taken higher...
- Page 5 Automatic Controller for Booster Pump Starting -When the unit is connected to the electrical network, the green led “ Power On” lights up and the yellow led “ On ” indicates that the pump has been started. -The pump continues to operate for dozens of seconds enabling the system to fill in the pipes and to reach the required pressure.
- Page 6 -The starting pressure has been pre-set by -Adjust the pressure screw clockwise to manufacturer at 1.5 bar (JETS-60) or 2.0 increase the starting pressure. bar(JETS-80). -Adjust the pressure screw counterclockwise to -The starting pressure of the controller can be decrease the starting pressure or release the adjusted to 2.2 bar maximum.
- Page 7 Customer contact, please keep it properly. Dear customer: Thank you for choosing products of TDRFORCE. In order to provide you with more satisfactory service and better protect your rights, please read this regulation carefully and keep the warranty card properly.
Need help?
Do you have a question about the JETS-60 and is the answer not in the manual?
Questions and answers
My jets 80 is not building enough pressure to run sprinklers like it did last year. I took it out and stored it for the winter and installed it today, had trouble getting it primed and now it is not putting out enough volume.
The TDRFORCE JETS-60 may not be building enough pressure to run sprinklers due to the following reasons:
1. Air in the System – The pump must be filled with water before starting. If there is air in the pump body or suction line, it may not function properly.
2. Suction Issues – A foot valve with a strainer must be installed on the suction pipe, and both suction and delivery pipes must be well fastened. Any leaks or blockages can reduce pressure.
3. Dry Running Protection – If the pump runs without water for 5 minutes, the lack-of-water protection circuit will shut it off automatically.
4. Restricted Flow – If the pump has been unused for a long period, deposits or frozen water may restrict flow. It should be emptied and checked before reuse.
5. Operating Conditions – The pump is designed for freshwater circulation only. If used with improper fluids or outside its specifications, it may not generate sufficient pressure.
Checking for airlocks, leaks, clogs, or improper setup can help resolve the issue.
This answer is automatically generated
