CONTACT US FIRST
CONTACT US FIRST
sauder.com
sauder.com
sauder.com
BEFORE MAKING ANY RETURNS TO THE STORE.
BEFORE MAKING ANY RETURNS TO THE RETAILER.
sauder.com/service
Visit
Prefer the phone? Give us a ring at
Customer Service is available Monday-Friday - 9 a.m. to 5:30 p.m. EST (except holidays)

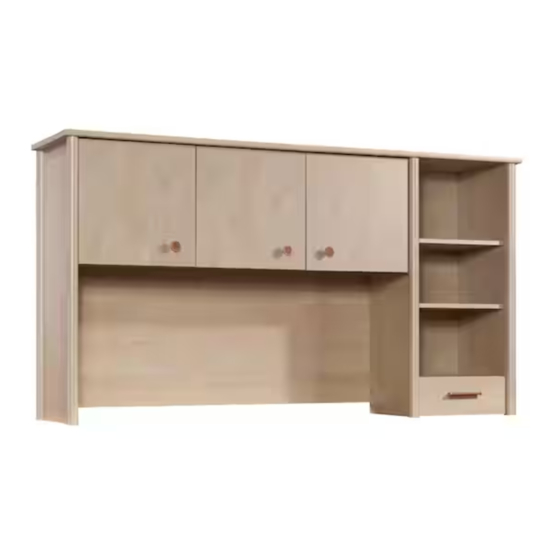

Hutch
Whitaker Point Collection | Model 429371
Sauder.com
Share your journey!
to order replacement parts, view video assembly tips, or chat with a live rep.
1-800-445-1527
.
Get all organized
and stuff.
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-34
Français pg 35-39
Español pg 40-44
Lot # 573727
Purchased: __________________
11/02/21
Advertisement
Related Manuals for Sauder Whitaker Point Hutch 429371
Summary of Contents for Sauder Whitaker Point Hutch 429371
- Page 1 CONTACT US FIRST CONTACT US FIRST sauder.com sauder.com sauder.com BEFORE MAKING ANY RETURNS TO THE STORE. BEFORE MAKING ANY RETURNS TO THE RETAILER. sauder.com/service Visit to order replacement parts, view video assembly tips, or chat with a live rep. 1-800-445-1527 Prefer the phone? Give us a ring at Customer Service is available Monday-Friday - 9 a.m.
- Page 2 Hardware Identification Tip Shown Actual Size Hardware Usage Guide Assembly Steps 6-34 Hammer Not actual size Français 35-39 Español Pencil 40-44 Electric drill with 1/8" or 3/8" bit Safety 45-46 (ONLY in indicated step) Warranty Tape Measure Page 2 www.sauder.com/service 429371...
- Page 3 LARGE UPRIGHT (1) ADJUSTABLE SHELF (2) LEFT DRAWER SIDE (1) TOP (1) UPPER BACK (1) RIGHT DRAWER SIDE (1) LARGE SHELF (1) LOWER BACK (1) DRAWER BACK (1) SMALL UPRIGHT (1) LEFT DOOR (2) DRAWER BOTTOM (1) 429371 www.sauder.com/service Page 3...
- Page 4 CAM - 28 CAM - 2 BACK PLATE - 2 BRACKET - 3 KNOB - 3 PULL - 1 FURNITURE TIPPING HINGE - 6 BUMPER CARD - 1 APPLIQUE CARD - 2 RESTRAINT KIT - 2 Page 4 www.sauder.com/service 429371...
- Page 5 1" PAN HEAD SCREW - 4 7/8" MACHINE SCREW - 3 5/8" PAN HEAD SCREW - 12 1/2" MACHINE SCREW - 2 1/2" PAN HEAD SCREW - 6 1/2" FLAT HEAD SCREW - 12 3/8" FLAT HEAD SCREW - 12 429371 www.sauder.com/service Page 5...
- Page 6 The arrow in the HIDDEN CAM must point Arrow toward the hole in the edge of the board. Hidden Cam Hole Insert the CAM SCREW or CAM DOWEL into the HIDDEN CAM. Tighten the HIDDEN CAM. Page 6 www.sauder.com/service 429371...
- Page 7 Step 1 Look for this icon. It means a video assembly tip is available at www.sauder.com/service/tips Find the numbered video or scan the QR code. å NOTE: Save some packing foam to be used later in assembly. å Assemble your unit on a carpeted floor or on the empty carton to avoid scratching your unit or the floor.
- Page 8 å NOTE: The EXTENSION SLIDES will be used later for the DRAWER. Push the black lever and pull the SLIDE from the RAIL. 3/8" FLAT HEAD SCREW (3 used in this step) Open end Page 8 www.sauder.com/service 429371...
- Page 9 UPRIGHT (C). Use four 1" PAN HEAD SCREWS (18). å NOTE: You should start each SCREW a few turns before completely tightening any of them. The small hole is closer to this edge. 3/4" 1-3/8" 1" PAN HEAD SCREW (4 used in this step) 429371 www.sauder.com/service Page 9...
- Page 10 Edge with HIDDEN CAMS S u r f a c H I D D E N i t h The holes are closer to this edge. To help line up holes, place packing foam or books here. Page 10 www.sauder.com/service 429371...
- Page 11 Fasten the SMALL UPRIGHT (F) to the LARGE SHELF (E). Use two 2" FLAT HEAD SCREWS (16). Arrow Unfinished edge i t h f a c S u r D E N H I D 2" FLAT HEAD SCREW (2 used in this step) 429371 www.sauder.com/service Page 11...
- Page 12 Insert two LARGE WOOD DOWELS (3) into the LARGE UPRIGHT (C). å Fasten the SMALL SHELF (H) to the LARGE UPRIGHT (C). Tighten two HIDDEN CAMS. Arrow Arrow Curved edge S u r f a c H I D D E N i t h Page 12 www.sauder.com/service 429371...
- Page 13 Step 7 å Push twelve LARGE HIDDEN CAMS (5) into the BACKS (K and L). Arrow Arrow Arrow 429371 www.sauder.com/service Page 13...
- Page 14 UPRIGHT (C) and LARGE SHELF (E). Use five 2" FLAT lift required HEAD SCREWS (16). å NOTE: Be sure the WOOD DOWELS in the UPRIGHT and SHELF insert into the BACK. Edge with HIDDEN CAMS 2" FLAT HEAD SCREW (5 used in this step) Page 14 www.sauder.com/service 429371...
- Page 15 Step 9 å Insert six LARGE WOOD DOWELS (3) into the LARGE UPRIGHT (C) and UPPER BACK (K). 429371 www.sauder.com/service Page 15...
- Page 16 LARGE UPRIGHT (C) and UPPER BACK (K). å With someone's help, fasten the LOWER BACK (L) to the Two person LARGE UPRIGHT (C). Use two 2" FLAT HEAD SCREWS (16). lift required 2" FLAT HEAD SCREW (2 used in this step) Page 16 www.sauder.com/service 429371...
- Page 17 Push two LARGE HIDDEN CAMS (5) into the LEFT END (A). Just think. The sooner you do this, the sooner å Turn six CAM SCREWS (7) into the you do something else. LEFT END (A). Arrow 429371 www.sauder.com/service Page 17...
- Page 18 å Fasten the LEFT END (A) to the LARGE SHELF (E) and BACKS (K and L). Tighten six HIDDEN CAMS. å NOTE: Be sure the WOOD DOWELS in the END insert into the SHELF and BACKS. Page 18 www.sauder.com/service 429371...
- Page 19 Then, slide the inner cartridge of the EXTENSION RAIL in to find the other holes that lines up with the holes in the END. Turn a SCREW into these holes. Arrow 3/8" FLAT HEAD SCREW (3 used in this step) Open end 429371 www.sauder.com/service Page 19...
- Page 20 å Fasten the RIGHT END (B) to the SMALL SHELF (H) and BACKS (K and L). Tighten six HIDDEN CAMS. å NOTE: Be sure the WOOD DOWELS in the END insert into the SHELF and BACKS. Page 20 www.sauder.com/service 429371...
- Page 21 Step 15 å Turn twelve CAM SCREWS (7) into the TOP (D). å Insert eleven LARGE WOOD DOWELS (3) into the TOP (D). (12 used) (11 used) 429371 www.sauder.com/service Page 21...
- Page 22 With someone's help, fasten the TOP (D) to the ENDS (A and B), UPRIGHTS (C and F), and UPPER BACK (K). Tighten Two person twelve HIDDEN CAMS. lift required å NOTE: Be sure the WOOD DOWELS in the TOP insert into the ENDS, UPRIGHTS, and BACK. Page 22 www.sauder.com/service 429371...
- Page 23 Fasten one KNOB (11) to the LEFT DOOR (M). Use one your drink. 7/8" MACHINE SCREW (19). å Repeat this step for the remaining two DOORS. 1/2" FLAT HEAD SCREW (12 used for the HINGES) 7/8" MACHINE SCREW (3 used for the KNOBS) 429371 www.sauder.com/service Page 23...
- Page 24 Peel the BUMPERS from the BUMPER CARD (14). Stick a Hinge BUMPER onto each DOOR (M and N) where it comes into contact with the LARGE SHELF (E). å See the next step for DOOR adjustments. Page 24 www.sauder.com/service 429371...
- Page 25 To adjust the DOOR in or out (depth), loosen the mounting screw one turn and move the DOOR in or out, as needed. Tighten the mounting screw after making adjustments. Mounting screw (depth) Adjusting screw (horizontal) (vertical adjustment) 429371 www.sauder.com/service Page 25...
- Page 26 Open both FURNITURE TIPPING RESTRAINT KITS (96), and fasten the SAFETY STRAPS to the TOP (D). Use the provided SHORT SCREWS. Use the SHORT SCREW from the RESTRAINT KIT. SAFETY STRAP Use the SHORT SCREW from the RESTRAINT KIT. SAFETY STRAP Page 26 www.sauder.com/service 429371...
- Page 27 Fasten the back edges of your hutch to the base unit. Use two BACK PLATES (9) and twelve 5/8" PAN HEAD SCREWS (20). å NOTE: You should start each SCREW a few turns before completely tightening any of them. 5/8" PAN HEAD SCREW (12 used in this step) 429371 www.sauder.com/service Page 27...
- Page 28 Next, fasten the BRACKETS to the base unit's top. Use three 1/2" PAN HEAD SCREWS (22). å NOTE: There are no pre-drilled holes in the surface of the base unit's top. Use firm pressure for the SCREWS. 1/2" PAN HEAD SCREW (6 used in this step) Page 28 www.sauder.com/service 429371...
- Page 29 - Fasten the unit to the wall. Use the LONG SCREW through the other end of the SAFETY STRAP and into the 1/8" hole. Electric drill with 1/8" bit Mark and drill a 1/8" hole into the wall. 429371 www.sauder.com/service Page 29...
- Page 30 NOTE: You will need to turn the LONG SCREW multiple turns to completely tighten and secure your unit to the wall. Mark and drill a 3/8" hole Electric drill with 3/8" bit into the wall. Squeeze the wings together and tap the wall anchor into the 3/8" hole in the wall. Page 30 www.sauder.com/service 429371...
- Page 31 Insert the SHELF PINS (8) into the hole locations of your choice in the RIGHT END (B) and LARGE UPRIGHT (C). If you're doing this to Set the ADJUSTABLE SHELVES (J) onto the SHELF PINS. help a friend, don't leave without a bite. (8 used) 429371 www.sauder.com/service Page 31...
- Page 32 å Fasten the PULL (12) to the DRAWER FRONT (O). Use two 1/2" MACHINE SCREWS (21). 3/8" FLAT HEAD SCREW (6 used for the SLIDES) Arrow Open end 1/2" MACHINE SCREW (2 used for the PULL) Page 32 www.sauder.com/service 429371...
- Page 33 Groove U n fi n i s h s u r f a c Be sure the DRAWER BOTTOM inserts into the DRAWER BACK groove. Be sure the DRAWER BOTTOM inserts into the DRAWER FRONT groove. 429371 www.sauder.com/service Page 33...
- Page 34 NOTE: Please read the back pages of the instruction booklet for important safety information. å This completes assembly. Clean with a damp cloth. Wipe dry. And to celebrate, why not share your success story at sauder.com or Large shelf - 45 lbs. Page 34 www.sauder.com/service...
- Page 35 DESCRIPTION QUANTITÉ REFERENCE DESCRIPTION QUANTITÉ conserver le livret pour future référence. Pour contacter Sauder en EXTRÉMITÉ GAUCHE ..........1 (ENSEMBLE DE GLISSIÈRE ILLUSTRÉ À PART) ce qui concerne cet GLISSIÈRE D'EXTENSION ........2 EXTRÉMITÉ DROITE ..........1 élément, faire référence COULISSE D'EXTENSION ........2 GRAND MONTANT .............1...
- Page 36 Enfoncer douze GRANDES EXCENTRIQUES ESCAMOTABLES (5) trous dans le MONTANT. Faire tourner une VIS dans ces trous. dans les ARRIÈRES (K et L). REMARQUE : Les COULISSES D'EXTENSION seront utilisées ultérieurement pour le TIROIR. Page 36 www.sauder.com/service 429371...
- Page 37 Fixer deux CHARNIÈRES (13) à la PORTE GAUCHE (M). Utiliser quatre VIS TÊTE PLATE 13 mm (23). Fixer une POIGNÉE (11) à la PORTE GAUCHE (M). Utiliser une VIS À MÉTAUX 22 mm (19). Répéter cette étape pour les autres deux PORTES. 429371 www.sauder.com/service Page 37...
- Page 38 Utiliser une pression ferme pour (profondeur), desserrer la vis de montage un tour et déplacer la les VIS. PORTE vers l'intérieur ou vers l'extérieur. Serrer la vis de montage après avoir ajusté. Page 38 www.sauder.com/service 429371...
- Page 39 Décoller les APPLIQUÉS des FICHES D'APPLIQUÉS (15) et coller les sur chaque EXCENTRIQUE ESCAMOTABLE visible. REMARQUE : Prière de lire les informations importantes sur la sécurité figurant sur les pages arrière du manuel d’instructions. Ceci complète l'assemblage. Nettoyer avec un tissu humide. Essuyer. 429371 www.sauder.com/service Page 39...
- Page 40 EXCÉNTRICO ESCONDIDO GRANDE ..28 su referencia futura. Si necesita ponerse en EXCÉNTRICO ESCONDIDO PEQUEÑO ...2 EXTREMO DERECHO ..........1 contacto con Sauder en BIELA DE EXCÉNTRICO ........30 PARAL GRANDE ............1 cuanto a esta unidad, ESPIGA DEL ESTANTE ...........8 PANEL SUPERIOR ............1 refiérase al número...
- Page 41 Empuje doce EXCÉNTRICOS ESCONDIDOS GRANDES (5) en con los agujeros del PARAL. Atornille un TORNILLO dentro de los DORSOS (K y L). estos agujeros. NOTA: Las CORREDERAS DE EXTENSIÓN se utilizarán más tarde para el CAJÓN. 429371 www.sauder.com/service Page 41...
- Page 42 Fije dos BISAGRAS (13) a la PUERTA IZQUIERDA (M). Utilice cuatro TORNILLOS DE CABEZA PLANA de 13 mm (23). Fije un POMO (11) a la PUERTA IZQUIERDA (M). Utilice un TORNILLO PARA METAL de 22 mm (19). Repita este paso para las dos otras PUERTAS. Page 42 www.sauder.com/service 429371...
- Page 43 Utilice una presión firme para los TORNILLOS. afloje el tornillo de montaje una vuelta y mueva la PUERTA hacia el interior o hacia el exterior según sea necesario. Apriete el tornillo de montaje después de hacer los ajustes. 429371 www.sauder.com/service Page 43...
- Page 44 APLICACIONES (15) y aplique las sobre cada EXCÉNTRICO ESCONDIDO visible. NOTA: Por favor, lea las páginas de atrás del folleto de instrucciones en cuanto a importante información de seguridad. Esto completa el ensamblaje. Limpiar con un trapo húmedo. Seque con un paño. Page 44 www.sauder.com/service 429371...
- Page 45 Les téléviseurs peuvent être très lourds. De un téléviseur téléviseur. plus, le poids et l’emplacement du tube image ont tendance à rendre les téléviseurs instables et enclins à tomber vers l’ a vant. 429371 www.sauder.com/service Page 45...
- Page 46 El soportar un televisor. diseñadas para soportar un televisor. peso y la ubicación del tubo de imagen tienden a causar la inestabilidad de televisores y por eso tendrán la tendencia a inclinarse hacia adelante. Page 46 www.sauder.com/service 429371...
- Page 47 à compter de la date d'achat la première fois et qui sont signalés à Sauder dans les limites de couverture de la contre tout défaut de matériaux ou de fabrication des composantes de mobilier Sauder.
- Page 48 BEFORE MAKING ANY RETURNS TO THE RETAILER. So, how did it go? Dear Valued Customer: Thanks so much for choosing Sauder® furniture. I hope the Set a world record for speed? purchase and assembly process was a positive experience Feeling good about yourself? and you feel good about the furniture you just built.
