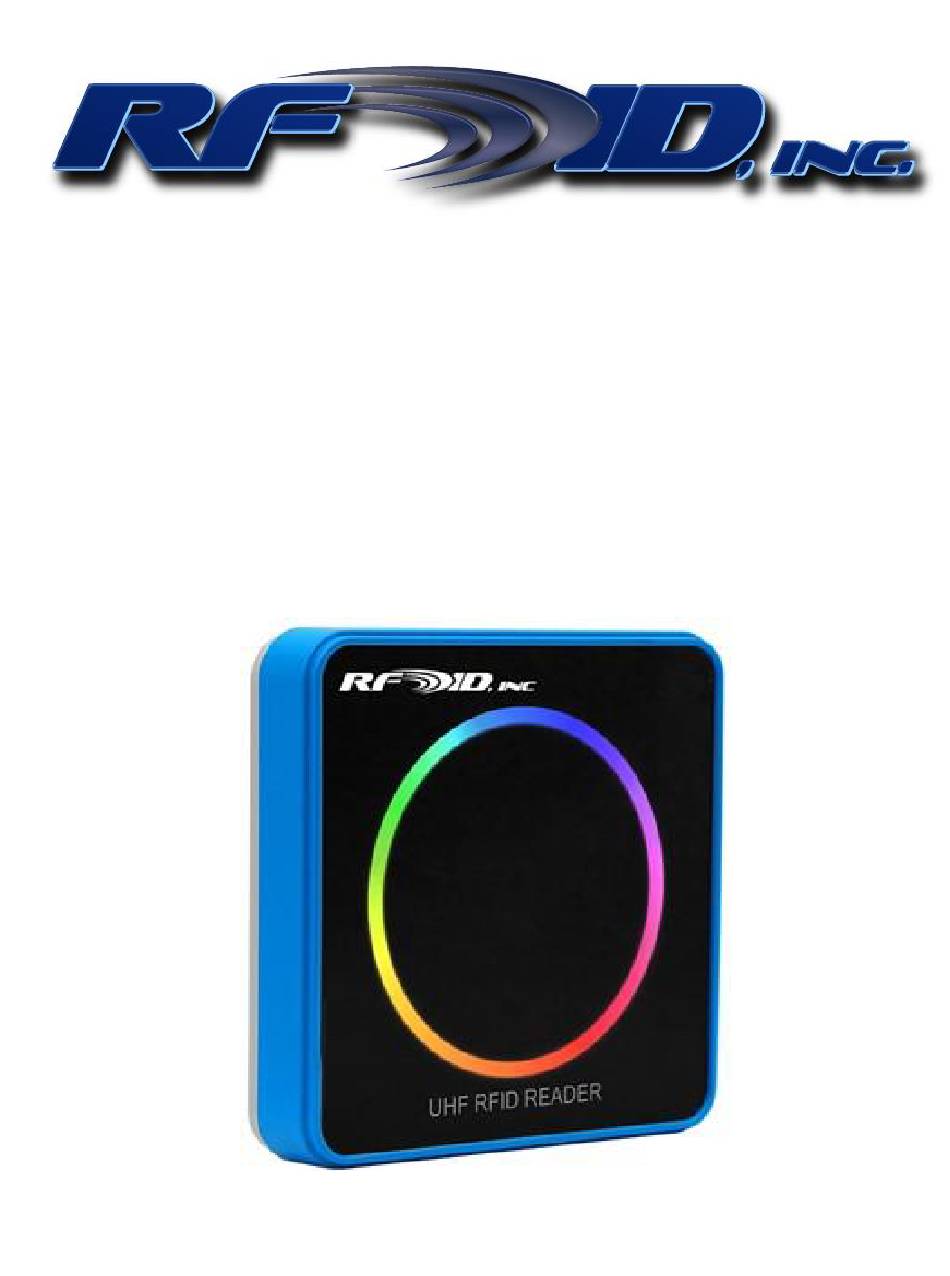

- Page 1 Installation & Operations Manual Model DT44 UHF RFID Desktop USB Tag Reader & Programmer...
-
Page 2: Table Of Contents
Writing (Programming) Tags (part 1) ....................6 Understanding Tag Memory ......................... 7 Writing (Programming) EPC Data (part 2) ................... 9 Tag Memory Chip Options ........................10 More about the DT44 Control Program ....................11 Locking ..............................11 Lock Password ............................ 11 Troubleshooting ........................... 12 WARRANTY ............................ -
Page 3: Product Part Numbers & Accessories
(RFID Tag). Once the Tag is energized it modulates its data back to the Reader which in turn detects and demodulates this data for delivery to the USB port. -
Page 4: Section 2 - Quick Start Installation Guide
Go to https://www.rfidinc.com/resource-center/ and choose the DT44 option. Download the DT44 zip file. Once downloaded, extract the entire zip folder as the program (app file named DT44Control) will not work without the two dll files. Save those three files to a folder on your PC and create a shortcut to the DT44Control software program on your desktop. -
Page 5: Operation Modes
Bank. It is best to be in the AnswerMode else the Reader will continually beep when a Tag is present and you must have both the Inquiry Area as well 14190 E. Jewell Avenue Suite 4 Aurora CO 80012 TEL: 303-366-1234 www.rfidinc.com Model DT44 902-928 MHz Operations Manual... -
Page 6: Writing (Programming) Tags (Part 1)
EPC and is all explained in the next section. Writing (Programming) Tags (part 1) If you intend to Write (program) a Tag, it’s important to understand the structure of a UHF RFID Tag’s memory. 14190 E. Jewell Avenue Suite 4 Aurora CO 80012 TEL: 303-366-1234 www.rfidinc.com... -
Page 7: Understanding Tag Memory
Tag data is represented in Hexadecimal format, meaning characters of 0 to 9 and A to F. Each UHF RFID memory chip consists of 3 sections: TID – 24 characters of unique ROM data. This data cannot be changed and is guaranteed unique. - Page 8 5000 = no data in user memory, EPC Length 10 words 5400 = data present in user memory, EPC Length 10 words 14190 E. Jewell Avenue Suite 4 Aurora CO 80012 TEL: 303-366-1234 www.rfidinc.com Model DT44 902-928 MHz Operations Manual...
-
Page 9: Writing (Programming) Epc Data (Part 2)
Change the Inquiry Area to User Data, Set, Start and Stop to confirm. For a more advanced and detailed explanation, please download and view video available under DT44 link here https://www.rfidinc.com/resource-center/. 14190 E. Jewell Avenue Suite 4 Aurora CO 80012 TEL: 303-366-1234 www.rfidinc.com Model DT44 902-928 MHz Operations Manual... -
Page 10: Tag Memory Chip Options
100k writes. There exists a plethora of UHF Tag memory chips available shown in the table below that RFID, Inc. can supply in a finished RFID Tag. Table lists chip manufacturer, model, and amounts of TID, EPC, and User memory. -
Page 11: More About The Dt44 Control Program
More about the DT44 Control Program RfPower(dbm) The DT44 RFID Reader is capable of being tuned up or down in power which results in increased or decreased read range. Default setting is 17dBm. If you experience reading Tags sitting nearby inadvertently, you may wish to consider selecting a lower power setting by using the pulldown menu, choosing your preference and then selecting Set. -
Page 12: Troubleshooting
The following error message pops up. Ignore this message, some PC operating systems will display this message, continue by hitting OK, nothing is wrong. 14190 E. Jewell Avenue Suite 4 Aurora CO 80012 TEL: 303-366-1234 www.rfidinc.com Model DT44 902-928 MHz Operations Manual... -
Page 13: Warranty
RFID, Inc. products are warranted against defects in materials and workmanship for one (1) year from date of shipment. RFID, Inc. shall, at its option, either repair or replace products that prove to be defective and are returned with freight prepaid to RFID, Inc.’s plant within the warranty period. The foregoing warranty shall not apply to defects resulting from abuse, misuse, accident, alteration, neglect or unauthorized repair or installation.
